Installing aftermarket gauges while retaining function of OEM gauges

I finally got a phone that takes good pics and I finally figured out how to download them. So lets have some fun!

Click the image to open in full size.
Made a bracket to bolt to a couple of studs already sticking out of the firewall.

Click the image to open in full size.
Going to weld this fitting to the bracket to mount the manifold.

Click the image to open in full size.
The oil sender manifold. It has the original dummy switch on the left, a real sender that will be used to run the dash gauge once I get the mod done, and the new add-on gauge sender on the right.
Click the image to open in full size.
Welded it.

Click the image to open in full size.
Test fit the manifold to the bracket.

Click the image to open in full size.

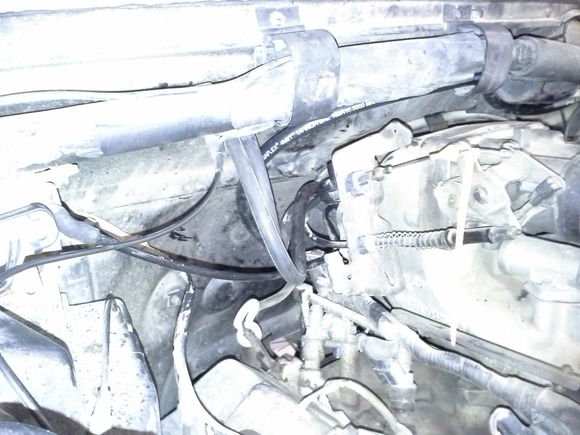

Had a 5 ft. hose made to run from the oil sender port on the engine intake manifold across the firewall and down to where the sender manifold will be mounted. ( It's the hose with the writing on it.)

Click the image to open in full size.
This is where the sender manifold will be mounted.

Click the image to open in full size.
Tapped into the harness on the fender so I can hook the OEM dash gauge back up.

Click the image to open in full size.
Painted the bracket and attached the ground strap.

Click the image to open in full size.
Thought I would show how the OEM gauge in it's current state is a dummy by grounding the wire.

Click the image to open in full size.
This is key on, engine off. It shows normal. If it was a real gauge or one that had been fixed, it would be pegged at H.

Click the image to open in full size.
Manifold installed, hose attached, and OEM wire attached to OEM sender just to see what happens.

Click the image to open in full size.
This is the tee fitting I installed so I can hook up the OEM temp gauge and the aftermarket temp gauge at the same time. Don't know if this will work good or if the readings will be lower than the actual temp because the senders are not in the coolant "stream". I guess we will see.

Click the image to open in full size.

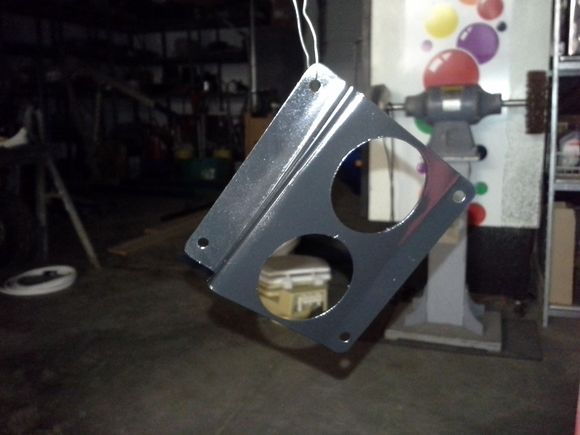

I made this bracket to mount the temp and oil pressure gauges in the cubby hole. Drilling holes in the dash panel before painting the bracket. The volt gauge on the right will be replaced with a trans temp gauge when it gets here. I'm using it for the mock-up.

Click the image to open in full size.
Painted!

Click the image to open in full size.
Fabbing up the wiring. I used a 5 wire plug that I had laying around and a 2 wire plug for the lights. Next time I will get a six wire plug.

Click the image to open in full size.
Put in up through the back into where it will be hooked to the gauges.

Click the image to open in full size.
Plug sticking out the back, wires for volt gauge run out the side.

Click the image to open in full size.
Lighting wires and lights.

Click the image to open in full size.
All hooked up.

Click the image to open in full size.
Ran the temp gauge wire and loomed it.

Click the image to open in full size.
All the wires hooked up and loomed.

Click the image to open in full size.
It is critical that these wires are pushed up against the back of the dash panel and centered top-to-bottom so they will clear.

Click the image to open in full size.
Installed!

Click the image to open in full size.
What they look like while driving.

Click the image to open in full size.
Close up with engine running.
Click the image to open in full size.
Turned on the lights.
Click the image to open in full size.
Trans temp gauge showed up early! Better get busy.

Click the image to open in full size.
Put the sender in the "hot" line from the transmission. I may have to move it down to the transmission if the readings don't look right.

Click the image to open in full size.
Decided to hook the OEM gauge wire back to the dummy sender and install a manual gauge. Had a little issue with a remote filter and this came in handy. Thread to follow soon...................
Click the image to open in full size.
The trans temp gauge was slightly longer and the dash needed a little modification.

Click the image to open in full size.
Ready to install.

Click the image to open in full size.
Making the harness with the plugs was time consuming but it was worth it. You can unplug it and remove the dash panel with the gauges in it in about a minute! The next time I do one like this, I will usu a 6 wire plug so I don't have to run a separate wire for the lights.

Click the image to open in full size.
What it looks like, engine running.

Click the image to open in full size.
What it looks like when driving.

I hope someone can get a few ideas from this and do something even better.

__________________
1989 F250 460 C6 D60 front 10 1/4 rear 3.55
1990 F150 300 4R70W
2004 Silverado 5.3
2000 Buick LeSabre
1982 IH S2500 400 Cummins 13spd
1994 CAT 953B 3116 Hydrostat
Reply With Quote
  #2
Old 05-17-2014, 11:41 AM
Eddiec1564 Eddiec1564 is offline
Posting Guru

Join Date: Mar 2007
Location: Arcadia, Fla
Posts: 2,065
Eddiec1564 has a good reputation on FTE.Eddiec1564 has a good reputation on FTE.Eddiec1564 has a good reputation on FTE.
That looks good, I though about putting gauges in that location. But I like to have them up higher in in of sight. I been looking around about a gauge pod that sits right on top of the dash. No luck finding anything yet. So I probly have to make up a pod myself.

A good upgrade is to swap out your cluster for a tach cluster, its all plug and play for our years of 87 to 91!! Don't matter if its from a I6 or V8 engine(not diesel though).
__________________
95 E350 460/E4od 4.10 The Bus
89 F250 2x4 300/AOD 3.55
84 F250 4x4 300/np435 3.55 The BLUE MULE
85 Plymouth Caravelle
73 Buick LeSabre
Reply With Quote
  #3
Old 05-17-2014, 12:41 PM
subford's Avatar
subford subford is offline
Post Fiend

Join Date: Aug 2005
Location: Easton,Ks
Posts: 17,035
subford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud of
A transmission temp sender in that line will not tell you the temp of the transmission. It will only tell you how much heat the torque converter can generate.
__________________
95 F150 302 4R70W EB EX-CAB
94 F53 460 E4OD COACHMEN SANTARA RV
83 F150 Flare Side 351W AOD
77 F250 351M-2V NP 435/4 Speed 4X4
subford@gmail.com
Bill K, Kansas Chapter
Reply With Quote
  #4
Old 05-17-2014, 07:43 PM
eakermeld's Avatar
eakermeld eakermeld is offline
Posting Guru

Join Date: Nov 2013
Location: South Central,MO
Posts: 1,304
eakermeld is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by Eddiec1564 View Post
That looks good, I though about putting gauges in that location. But I like to have them up higher in in of sight. I been looking around about a gauge pod that sits right on top of the dash. No luck finding anything yet. So I probly have to make up a pod myself.

A good upgrade is to swap out your cluster for a tach cluster, its all plug and play for our years of 87 to 91!! Don't matter if its from a I6 or V8 engine(not diesel though).
Thanks Eddiec! The tach swap is on the to-do list.
__________________
1989 F250 460 C6 D60 front 10 1/4 rear 3.55
1990 F150 300 4R70W
2004 Silverado 5.3
2000 Buick LeSabre
1982 IH S2500 400 Cummins 13spd
1994 CAT 953B 3116 Hydrostat
Reply With Quote
  #5
Old 05-17-2014, 07:49 PM
eakermeld's Avatar
eakermeld eakermeld is offline
Posting Guru

Join Date: Nov 2013
Location: South Central,MO
Posts: 1,304
eakermeld is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by subford View Post
A transmission temp sender in that line will not tell you the temp of the transmission. It will only tell you how much heat the torque converter can generate.
Yep and that is about 230* @ 70mph no load! I'm due for a fluid change anyway so would a weld-in bung in the pan be best or is there a better place? C6 trans, by the way.
__________________
1989 F250 460 C6 D60 front 10 1/4 rear 3.55
1990 F150 300 4R70W
2004 Silverado 5.3
2000 Buick LeSabre
1982 IH S2500 400 Cummins 13spd
1994 CAT 953B 3116 Hydrostat
Reply With Quote
  #6
Old 05-17-2014, 09:25 PM
Diesel_Brad's Avatar
Diesel_Brad Diesel_Brad is offline
Post Fiend

Join Date: May 2009
Location: Gilbert, PA
Posts: 13,598
Diesel_Brad has much to be proud ofDiesel_Brad has much to be proud ofDiesel_Brad has much to be proud ofDiesel_Brad has much to be proud ofDiesel_Brad has much to be proud ofDiesel_Brad has much to be proud ofDiesel_Brad has much to be proud ofDiesel_Brad has much to be proud ofDiesel_Brad has much to be proud of
Nice write up, especially with the PLUG. I do the same thing when I install A pillar gauges
__________________
Looking for Blue 40-20-40 seats. PM me !!!
Reply With Quote
  #7
Old 05-17-2014, 09:33 PM
eakermeld's Avatar
eakermeld eakermeld is offline
Posting Guru

Join Date: Nov 2013
Location: South Central,MO
Posts: 1,304
eakermeld is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by Diesel_Brad View Post
Nice write up, especially with the PLUG. I do the same thing when I install A pillar gauges
Thanks for the atta-boy Brad! That means a lot to get a compliment from somebody that has done as much to trucks as you have.
__________________
1989 F250 460 C6 D60 front 10 1/4 rear 3.55
1990 F150 300 4R70W
2004 Silverado 5.3
2000 Buick LeSabre
1982 IH S2500 400 Cummins 13spd
1994 CAT 953B 3116 Hydrostat
Reply With Quote
  #8
Old 05-17-2014, 09:42 PM
eakermeld's Avatar
eakermeld eakermeld is offline
Posting Guru

Join Date: Nov 2013
Location: South Central,MO
Posts: 1,304
eakermeld is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by Eddiec1564 View Post
That looks good, I though about putting gauges in that location. But I like to have them up higher in in of sight. I been looking around about a gauge pod that sits right on top of the dash. No luck finding anything yet. So I probly have to make up a pod myself.

A good upgrade is to swap out your cluster for a tach cluster, its all plug and play for our years of 87 to 91!! Don't matter if its from a I6 or V8 engine(not diesel though).
I agree on the line-of-sight issue. If you notice on the bracket that holds the twin 1-1/2" gauges the bottom of the bracket sets out about 3/4" farther than the top. This helped a lot with visibility of the gauges. The original design was flat and you couldn't see them very good so that one got scrapped. That wasn't an issue with the trans temp gauge. And if the other two were bigger gauges it might not have been an issue with them either but I wanted the smaller ones so they would fit in the cubby-hole.
__________________
1989 F250 460 C6 D60 front 10 1/4 rear 3.55
1990 F150 300 4R70W
2004 Silverado 5.3
2000 Buick LeSabre
1982 IH S2500 400 Cummins 13spd
1994 CAT 953B 3116 Hydrostat
Reply With Quote
  #9
Old 05-18-2014, 06:51 AM
subford's Avatar
subford subford is offline
Post Fiend

Join Date: Aug 2005
Location: Easton,Ks
Posts: 17,035
subford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud of
Quote:
Originally Posted by eakermeld View Post
Yep and that is about 230* @ 70mph no load! I'm due for a fluid change anyway so would a weld-in bung in the pan be best or is there a better place? C6 trans, by the way.
If I remember right the C6 has a test plug in the side like the E4OD, so that would be the the best place for it.
__________________
95 F150 302 4R70W EB EX-CAB
94 F53 460 E4OD COACHMEN SANTARA RV
83 F150 Flare Side 351W AOD
77 F250 351M-2V NP 435/4 Speed 4X4
subford@gmail.com
Bill K, Kansas Chapter
Reply With Quote
  #10
Old 05-18-2014, 01:28 PM
eakermeld's Avatar
eakermeld eakermeld is offline
Posting Guru

Join Date: Nov 2013
Location: South Central,MO
Posts: 1,304
eakermeld is gaining momentum as a positive member of FTE.
Quote:
Originally Posted by subford View Post
If I remember right the C6 has a test plug in the side like the E4OD, so that would be the the best place for it.
Ok thanks. Is that port primarily a pressure port? Might be good for a future project!
Reply With Quote
  #11
Old 05-18-2014, 02:09 PM
subford's Avatar
subford subford is offline
Post Fiend

Join Date: Aug 2005
Location: Easton,Ks
Posts: 17,035
subford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud ofsubford has much to be proud of
Yes it is.
__________________
95 F150 302 4R70W EB EX-CAB
94 F53 460 E4OD COACHMEN SANTARA RV
83 F150 Flare Side 351W AOD
77 F250 351M-2V NP 435/4 Speed 4X4
subford@gmail.com
Bill K, Kansas Chapter
Reply With Quote
  #12
Old 09-01-2014, 11:30 AM
Island Time's Avatar
Island Time Island Time is offline
Senior User

Join Date: Nov 2013
Location: Orcas Island, WA
Posts: 472
Island Time has a great reputation on FTE.Island Time has a great reputation on FTE.Island Time has a great reputation on FTE.Island Time has a great reputation on FTE.Island Time has a great reputation on FTE.
Old thread, I know. But I'm wondering if now that you've lived with it for 3 months, is there anything you'd change about the way it's done?

Also, have you found the temperature sender setup, tee'ed up on the manifold, to be accurate?
__________________
Jim
1990 F150 XLT Lariat 351W - RATT (Run Around Town Truck)
2009 E250 Cargo 4.6 - Work
2008 F550 SDCC 6.0 - WASP Fire Engine (not mine, but I get to play with it)
Reply With Quote
  #13
Old 09-01-2014, 01:41 PM
eakermeld's Avatar
eakermeld eakermeld is offline
Posting Guru

Join Date: Nov 2013
Location: South Central,MO
Posts: 1,304
eakermeld is gaining momentum as a positive member of FTE.
Thanks for the interest in my project. The temp gauge has turned out to be quite accurate. It took it a while to get the air bubble out of the top of the tee, but once it burped itself it works well. Shot it with the laser temp gauge and it reads within one degree. The oil pressure manifold was by far my best idea. The gauges are ok, but I think I'll put the temp, oil pres, and something else up on the pillar and put some other gauge(s) there. I like the trans temp where it's at, but the sender needs to be moved to the pan. I may use that one for a converter temp gauge and add another sender in the pan and another gauge for actual trans temp and another gauge for trans pressure. That would be like the setup on our old dozer. I know it's not necessary but it would look cool! And no matter what I build or how I build it, I always think of something better/cooler/different that I can't wait to try!
__________________
1989 F250 460 C6 D60 front 10 1/4 rear 3.55
1990 F150 300 4R70W
2004 Silverado 5.3
2000 Buick LeSabre
1982 IH S2500 400 Cummins 13spd
1994 CAT 953B 3116 Hydrostat
Reply With Quote
  #14
Old 09-01-2014, 09:03 PM
Island Time's Avatar
Island Time Island Time is offline
Senior User

Join Date: Nov 2013
Location: Orcas Island, WA
Posts: 472
Island Time has a great reputation on FTE.Island Time has a great reputation on FTE.Island Time has a great reputation on FTE.Island Time has a great reputation on FTE.Island Time has a great reputation on FTE.
Good to know. When you say "burped itself" did you have to do anything to help it, or did it really just work itself out without help.

I think based upon your project, and some things posted by others, I'll do a triple "A" pillar with oil pressure, coolant temp, and tranny temp. Trimming up a later model pillar housing for my '90 should be fun, but it won't look any worse than the interior already looks and will probably look a heck of a lot better.
__________________
Jim
1990 F150 XLT Lariat 351W - RATT (Run Around Town Truck)
2009 E250 Cargo 4.6 - Work
2008 F550 SDCC 6.0 - WASP Fire Engine (not mine, but I get to play with it)
Reply With Quote
  #15
Old 09-01-2014, 09:10 PM
eakermeld's Avatar
eakermeld eakermeld is offline
Posting Guru

Join Date: Nov 2013
Location: South Central,MO
Posts: 1,304
eakermeld is gaining momentum as a positive member of FTE.
The "burp" did work itself out. I was going to loosen the sender a bit to let it bleed out, but ended up not needing to. Show me some pics of the pillar mount when you do it.
__________________
1989 F250 460 C6 D60 front 10 1/4 rear 3.55
1990 F150 300 4R70W
2004 Silverado 5.3
2000 Buick LeSabre
1982 IH S2500 400 Cummins 13spd
1994 CAT 953B 3116 Hydrostat
Reply With Quote
