Lift Kit-Front Drive Line Problems
I just installed a 6" Skyjacker lift kit on my 79 F350. (I will post photos and my story later)
Problem is the front drive line seems like its binding on the U Joints and doesn't move beyond a 180 degree drive line rotation. It looks like the angle might be to much for the U Joints to tolerate. When I installed the front springs the instructions said to install the "Short End towards the front of the vehicle." So I measured from the locking pin on the spring to the middle of the shackle area. One end was 2" longer than the other so I installed the springs so that the short side was on the front. Looking at the finished work the front wheel sits dead center in the wheel well.
Do I have the springs on backwards or do I need a CV Joint for the front drive line? I already know that I will need to extend the front drive line because I have not enough of the spline in the shaft.
Help!
Problem is the front drive line seems like its binding on the U Joints and doesn't move beyond a 180 degree drive line rotation. It looks like the angle might be to much for the U Joints to tolerate. When I installed the front springs the instructions said to install the "Short End towards the front of the vehicle." So I measured from the locking pin on the spring to the middle of the shackle area. One end was 2" longer than the other so I installed the springs so that the short side was on the front. Looking at the finished work the front wheel sits dead center in the wheel well.
Do I have the springs on backwards or do I need a CV Joint for the front drive line? I already know that I will need to extend the front drive line because I have not enough of the spline in the shaft.
Help!
Senior User
Joined: Sep 2008
Posts: 197
Likes: 0
From: near Pittsburgh
If your springs were backward your tires would not be centered in the wheel well. The short side always goes to the fixed frame mount the long side goes to the shackle. You might wanna check your pinnion angle sometimes you have to put a tappered shim under the spring to do away with lower ujoint binding. You should already have a cv style joint on in the front driveshaft up by the t case but the lower joint that mounts to the front diff will bind I think pinnion angles the culpret.
Thread Starter
|
Fleet Mechanic
Joined: Jan 2010
Posts: 1,287
Likes: 17
From: San Carlos, CA
Thanks for the info Gus11208. I kind of suspected it was the pinion angle. Here are some photos. Let me know what you think.

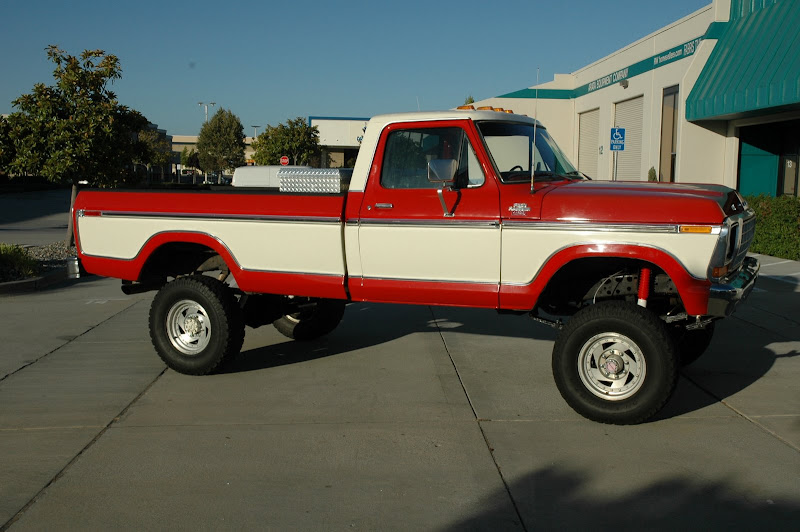

After the install and road ready.

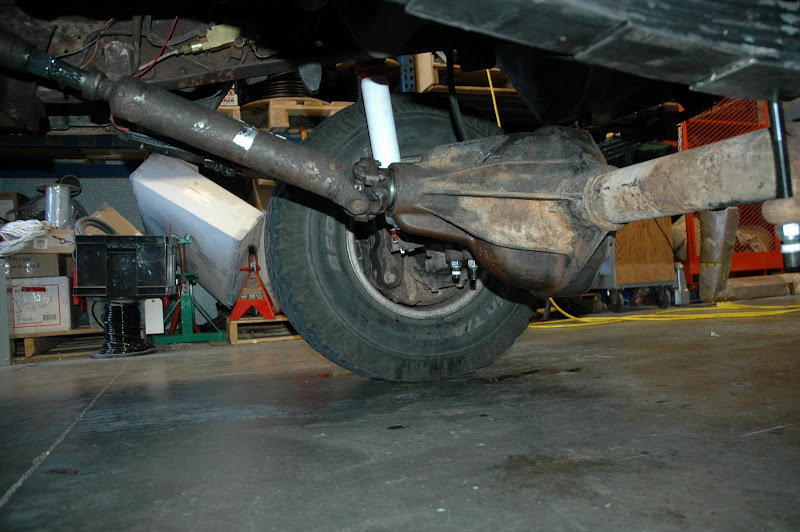

The front drive line.

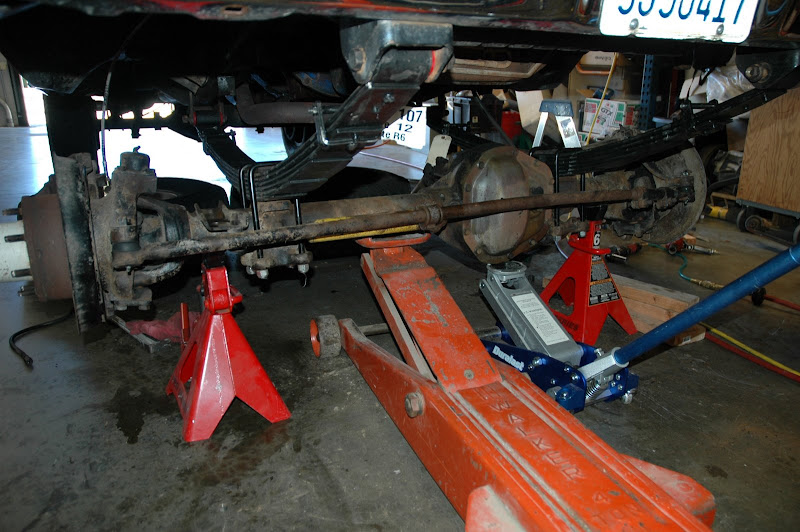

This is the completed front end lift except the shocks, Pitman arm and drag link.
After the install and road ready.
The front drive line.
This is the completed front end lift except the shocks, Pitman arm and drag link.
Senior User
Joined: Jul 2009
Posts: 129
Likes: 14
From: phoenix
looks good. one question though 1.is it a skyjacker lift?...if it is the driveline looks fishy . (no offense)as far as that goes i mean i have a skyjacker 6in lift my self on my 78 and your drivshaft looks totally different than mine ... i know they are not all alike but that being said i mean the slip yoked end on mine goes towards the front diff and like was mentioned earlier the double cardan side is towards the t-case. looks like the double cardan end is missing.re read gus's post and then look at the photo and you should see what i mean hope that helps..man thats a super clean truck..
Senior User
Joined: Jul 2009
Posts: 129
Likes: 14
From: phoenix
Trending Topics
Senior User
Joined: Mar 2005
Posts: 310
Likes: 1
It looks like someone took a D44 front driveshaft, removed the double cardigan joint and than installed it backwards??? weird
Nice truck though, are you going to get bigger tires?
Nice truck though, are you going to get bigger tires?
