Brake Controller Mouting Pictures?
Thread Starter
|
Senior User
Joined: Apr 2008
Posts: 365
Likes: 4
From: Round Rock, TX
Brake Controller Mouting Pictures?
I just placed an order for a Tekonsha P3 brake controller to be mounted in my new to me Super Duty. I know a lot of you guys have P3's and Prodigy's on here and I was wondering if you guys had pictures of yours mounted? If so would you mind sharing?
I just want to know where I can mount it and at what angle.
Any advice/pictures are much appreciated!
Thanks!
I just want to know where I can mount it and at what angle.
Any advice/pictures are much appreciated!
Thanks!
Super Moderator
Joined: Aug 2003
Posts: 25,479
Likes: 742
From: Isanti, MN
As with any inertia activated brake controller, be VERY careful of the angle you mount it at!

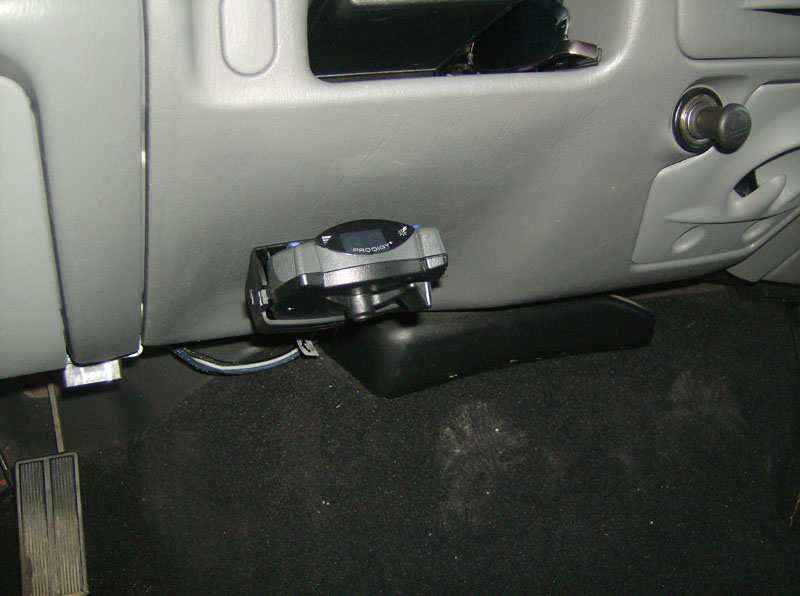

I used a Prodigy brake controller on my last truck, and I had it mounted in a similar fashion. It worked pretty well on level ground, as it was mounted just within the angle requirements, but this was a real problem coming down a hill! Steep declines put the controller at a near vertical position and I almost went into several deer at the base of a hill with a loaded trailer. Hit the brakes hard and had absolutely NO trailer brakes! Nearly locked up the truck, but it took forever to stop. Will never mount a brake controller like that again.
Fortunately I don't have to with my new truck, but something to keep in mind if you are planning on mounting one. I highly suggest finding a way to keep it as close to level as possible.
I used a Prodigy brake controller on my last truck, and I had it mounted in a similar fashion. It worked pretty well on level ground, as it was mounted just within the angle requirements, but this was a real problem coming down a hill! Steep declines put the controller at a near vertical position and I almost went into several deer at the base of a hill with a loaded trailer. Hit the brakes hard and had absolutely NO trailer brakes! Nearly locked up the truck, but it took forever to stop. Will never mount a brake controller like that again.
Fortunately I don't have to with my new truck, but something to keep in mind if you are planning on mounting one. I highly suggest finding a way to keep it as close to level as possible.
Super Moderator
Joined: Aug 2003
Posts: 25,479
Likes: 742
From: Isanti, MN
Correct, that's one of the big features they like to tout, the fact that it doesn't have to be level! However, there's a difference between being close to level and near vertical, which is how it ended up being on my F150. Very similar to that picture I saw 1975StroppeBaja posted.
In the owner's guide for the Prodigy it mentioned the mounting tolerances. I think it can be up to 30 or 40 degrees off level, if I remember correctly. Mine was close to that mounting limit, and sometimes it just wasn't consistent. If I were to do it all over again without the IBC I have now, I'd try and mount it somewhere on top of the dash, and get it as level as possible.
In the owner's guide for the Prodigy it mentioned the mounting tolerances. I think it can be up to 30 or 40 degrees off level, if I remember correctly. Mine was close to that mounting limit, and sometimes it just wasn't consistent. If I were to do it all over again without the IBC I have now, I'd try and mount it somewhere on top of the dash, and get it as level as possible.
Cargo Master
Joined: Apr 2006
Posts: 3,215
Likes: 8
From: WV
The installation instructions for the Prodigy here:
http://www.tekonsha.com/product/pdf/N90185.pdf
state that it can be mounted up to 70degrees off zero. When I decided to mount mine there I held it in place by hand, and then tipped it up until the upper bars flashed and it was quite a ways away from this angle, so I felt pretty good about it. So far so good with the mountains I deal with around here.
Trending Topics
Cargo Master
Joined: Dec 2007
Posts: 2,196
Likes: 120
From: Carstairs Alberta
on my 05 i mounted right where the factory brake controller would have been.right beside the aux switches, there is a removable pocket, on the back of the pocket is there ford wires for the controller too. i just used a dremel tool to cut a big enough hole in the back for the wires to run through
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 6 Best Deals Available on New Fords & Lincolns Right Now
Brett Foote
This Hennessey Takes the Expedition Tremor's Off-Roading Capability to the Next Level
Verdad Gallardo
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Hotshot
Joined: Mar 2007
Posts: 10,101
Likes: 40
From: Pa
Here are pics of my P3 mounted on my 04'.(I made the mount) I can reach it with the seatbelt on and I have my seat all the way back. You should like the P3, very easy to use and works great. For mounting just make shure the controll is paralell with the doors/side of the truck and not crooked. The face can be tipped up or down quite a bit. Just read the mounting instructions that come with the kit. Also may want to watch the included tiny DVD.
Junior User
Joined: Apr 2008
Posts: 80
Likes: 0
From: Oak Hills, Ca
Same idea as the above pics, but just a little bit lower, and a bit more level.
Also mine is mounted on the the fuse panel cover, take the cover off, mount the controller, and put the panel back on, super easy.
Also mine is mounted on the the fuse panel cover, take the cover off, mount the controller, and put the panel back on, super easy.
