door adjustments
alright so my drivers side door is far from correct.
symptoms
the back of the door (handle and that stuff) is too close to the cab, not a 1/4 inch or so like the passenger thus it hits the cab and wont close quite all the way.
next the...lord what would you call it? the groove? on the door does not line up with the fender and the cab
the bottom of the door sits out about an inch or two? from the cab, unlike the passenger side that sits close to the cab
I tried adjusting the bottom hinge and I could line up the groove but i could not get it to have the correct spacing
i will try and get some pictures if they're needed.
symptoms
the back of the door (handle and that stuff) is too close to the cab, not a 1/4 inch or so like the passenger thus it hits the cab and wont close quite all the way.
next the...lord what would you call it? the groove? on the door does not line up with the fender and the cab
the bottom of the door sits out about an inch or two? from the cab, unlike the passenger side that sits close to the cab
I tried adjusting the bottom hinge and I could line up the groove but i could not get it to have the correct spacing
i will try and get some pictures if they're needed.
Logistics Pro
Joined: May 2003
Posts: 4,238
Likes: 21
From: Northern Illinois
Pictures help.
There are 4 places to get adjustment for the door.
2 are the hinge mount to cab: These will adjust your front to back settings of the door.
2 are the door to hinge: These will adjust your in and out of door.
All adjustments can be made here to get the door back into specs. Don't forget to double check the striker post after making adjustments to verify it is still lined up.
There are 4 places to get adjustment for the door.
2 are the hinge mount to cab: These will adjust your front to back settings of the door.
2 are the door to hinge: These will adjust your in and out of door.
All adjustments can be made here to get the door back into specs. Don't forget to double check the striker post after making adjustments to verify it is still lined up.
Logistics Pro
Joined: May 2003
Posts: 4,238
Likes: 21
From: Northern Illinois
the back of the door (handle and that stuff) is too close to the cab, not a 1/4 inch or so like the passenger thus it hits the cab and wont close quite all the way.
Move the hinges (probably both) towards the fender. This will pull the door away from the rear jamb and move it closer to the front.
next the...lord what would you call it? the groove? on the door does not line up with the fender and the cab
The dentside. Up and down vertically or in and out? Up and down vertically can be adjusted by moving the hinge to cab and door to hinge up or down. Usually there is not much need for adjusting up and down play. Adjustment of this is minimal at most.
the bottom of the door sits out about an inch or two? from the cab, unlike the passenger side that sits close to the cab
this adjustment will come from the lower door to hinge. Loosen bolts and push door in further on hinge.
I tried adjusting the bottom hinge and I could line up the groove but i could not get it to have the correct spacing
There are so many possibilites of adjustment it may take adjusting all 4 points to get that door perfect. It is a major pain in the kazoo to get it figured out
Move the hinges (probably both) towards the fender. This will pull the door away from the rear jamb and move it closer to the front.
next the...lord what would you call it? the groove? on the door does not line up with the fender and the cab
The dentside. Up and down vertically or in and out? Up and down vertically can be adjusted by moving the hinge to cab and door to hinge up or down. Usually there is not much need for adjusting up and down play. Adjustment of this is minimal at most.
the bottom of the door sits out about an inch or two? from the cab, unlike the passenger side that sits close to the cab
this adjustment will come from the lower door to hinge. Loosen bolts and push door in further on hinge.
I tried adjusting the bottom hinge and I could line up the groove but i could not get it to have the correct spacing
There are so many possibilites of adjustment it may take adjusting all 4 points to get that door perfect. It is a major pain in the kazoo to get it figured out
Thread Starter
|
Elder User
Joined: May 2006
Posts: 947
Likes: 0
From: Spokane, Washington
Yeah that is what I have learned by trying to do it ahahah :-)

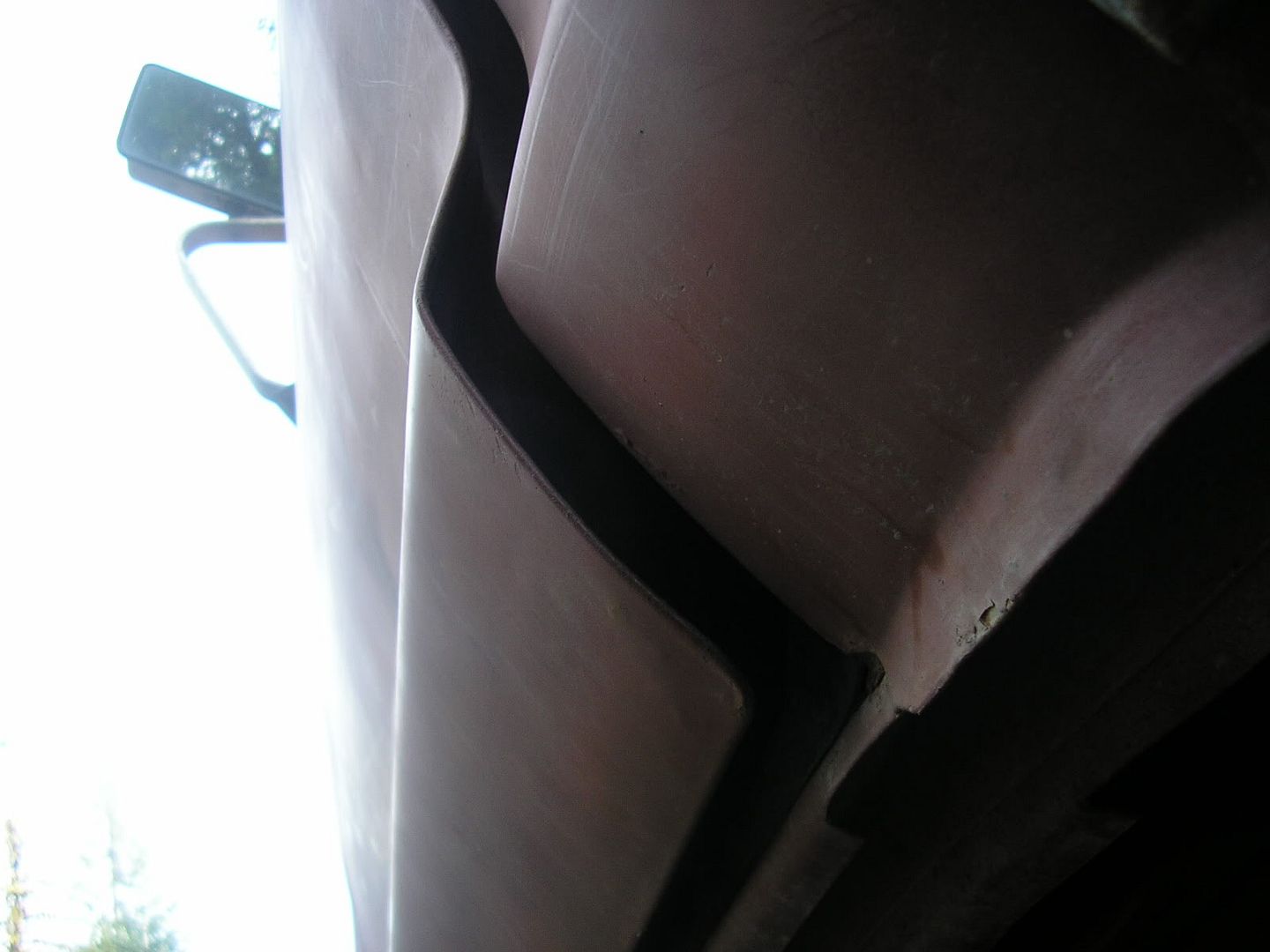

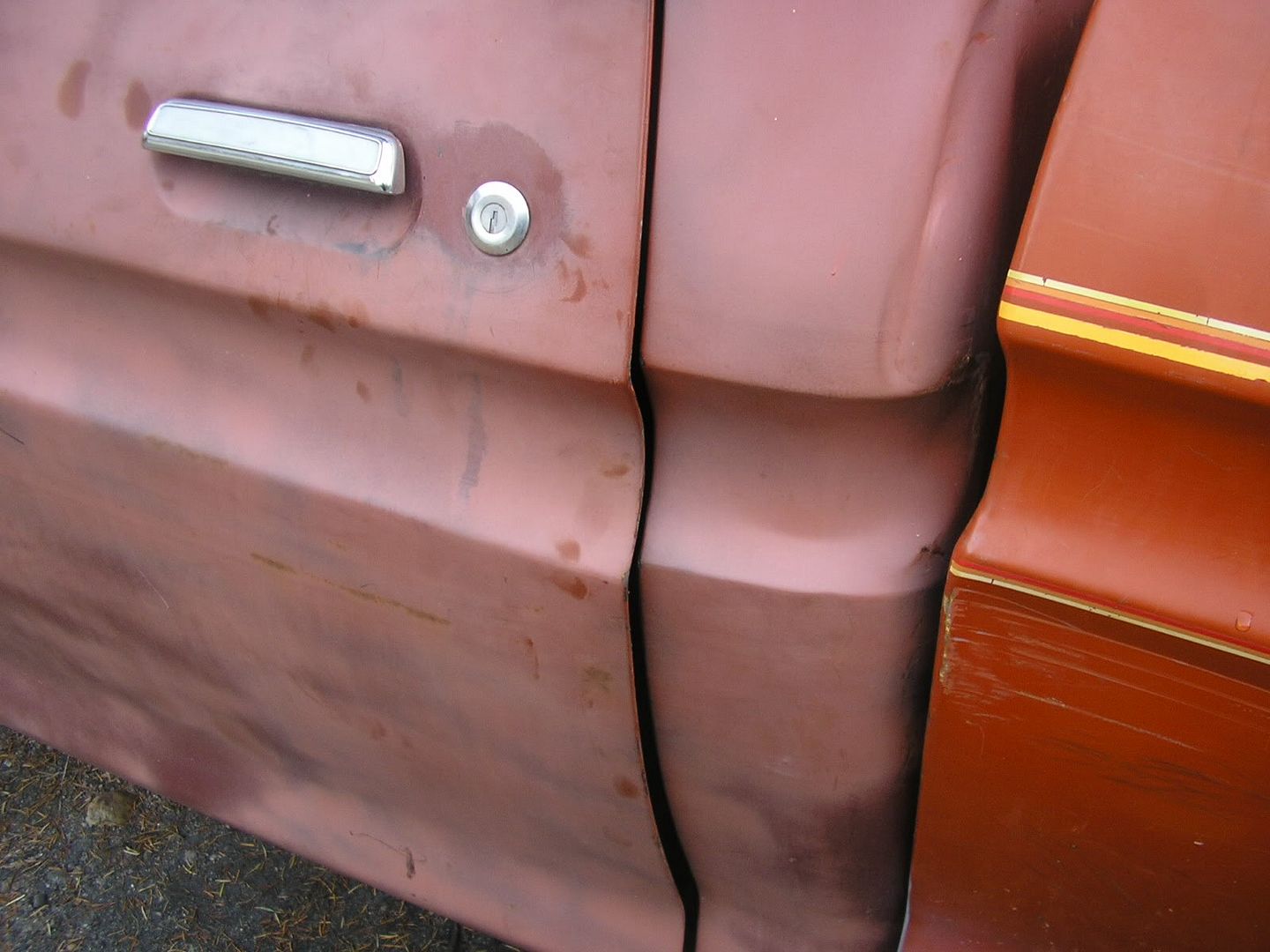

here are some pictures, I think like you said it's just a matter of getting it all figured out
and if you look at the pictures, if I move the door up anymore (adjusting the lower hinge) it wont close because it will be over laying the cab.
the top of the door (by the vent window) is the same distance as the passenger door.
http://i6.photobucket.com/albums/y24...n/PA240030.jpg
http://i6.photobucket.com/albums/y24...n/PA240034.jpg
http://i6.photobucket.com/albums/y24...n/PA240035.jpg
http://i6.photobucket.com/albums/y24...n/PA240042.jpg
and yes I know my bed doesnt sit correct it is from the accident.
here are some pictures, I think like you said it's just a matter of getting it all figured out
and if you look at the pictures, if I move the door up anymore (adjusting the lower hinge) it wont close because it will be over laying the cab.
the top of the door (by the vent window) is the same distance as the passenger door.
http://i6.photobucket.com/albums/y24...n/PA240030.jpg
http://i6.photobucket.com/albums/y24...n/PA240034.jpg
http://i6.photobucket.com/albums/y24...n/PA240035.jpg
http://i6.photobucket.com/albums/y24...n/PA240042.jpg
and yes I know my bed doesnt sit correct it is from the accident.
Logistics Pro
Joined: May 2003
Posts: 4,238
Likes: 21
From: Northern Illinois
Try loading your pictures right to the thread. My McAfee software has blocked all the pictures except this one:
I take it this is with the door closed all the way? If so you need to adjust your striker in further on the door jamb. It takes a T-50 torx socket to loosen it up.
You can also host pictures at Supermotors.net. They will automatically resize them for you so they are not this large.
I take it this is with the door closed all the way? If so you need to adjust your striker in further on the door jamb. It takes a T-50 torx socket to loosen it up.
You can also host pictures at Supermotors.net. They will automatically resize them for you so they are not this large.
Post Fiend
Joined: Jul 2004
Posts: 8,786
Likes: 28
From: Northern California
it looks like his door hinges might be worn out. Very comon for the drivers side.
With the door open, grab the door at the bottom and lift up. there should be little to no play in the hinges.
If you can lift the door up quite a bit, I would look into getting new hinges, or get a hinge pin and bushing kit. Last time I checked you could get the "kits" in the help section of autopart stores.
After fixing the hinges, (If needed) then I would adjust the doors.
With the door open, grab the door at the bottom and lift up. there should be little to no play in the hinges.
If you can lift the door up quite a bit, I would look into getting new hinges, or get a hinge pin and bushing kit. Last time I checked you could get the "kits" in the help section of autopart stores.
After fixing the hinges, (If needed) then I would adjust the doors.
Trending Topics
Logistics Pro
Joined: May 2003
Posts: 4,238
Likes: 21
From: Northern Illinois
You are right about worn out hinges. I have been lucky enough to not have a bad set of hinges to worry about that. Not being able to see the pics doesn't help me.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
Thread Starter
|
Elder User
Joined: May 2006
Posts: 947
Likes: 0
From: Spokane, Washington
hey ranger sorry, photobucket is supposed to make them smaller my preferences never quite save though...and 81, the door has no play in it, it is tight and secure btw thanks Ranger, I like this place for pictures
here you go
where is the T-50 bolt exactly?
here you go
where is the T-50 bolt exactly?
Post Fiend
Joined: Jul 2004
Posts: 8,786
Likes: 28
From: Northern California
Additional Information:
Did not realise that your truck has a bent frame.
You mention that in this post here...
https://www.ford-trucks.com/forums/7...the-beast.html
The frame being bent could be causing, (most likely is causing) the door to be out of alignment, by putting a bind on the cab.
You mention that you are saving up money to have the frame straightened.
Having the frame straightened may pull the door, as well as your bed back into alighnment.
It might not be possible to adjust the door into alignment before the frame is straightened.
Did not realise that your truck has a bent frame.
You mention that in this post here...
https://www.ford-trucks.com/forums/7...the-beast.html
The frame being bent could be causing, (most likely is causing) the door to be out of alignment, by putting a bind on the cab.
You mention that you are saving up money to have the frame straightened.
Having the frame straightened may pull the door, as well as your bed back into alighnment.
It might not be possible to adjust the door into alignment before the frame is straightened.
Logistics Pro
Joined: May 2003
Posts: 4,238
Likes: 21
From: Northern Illinois
I still can't see the pictures, blocked by McAfee
The only one I see is the one I posted.
The T-50 is what size socket you need for the door striker pin.
If you have a bent frame on the truck that could be some major problems for gettting those doors to close properly.
The only one I see is the one I posted.The T-50 is what size socket you need for the door striker pin.
If you have a bent frame on the truck that could be some major problems for gettting those doors to close properly.
Thread Starter
|
Elder User
Joined: May 2006
Posts: 947
Likes: 0
From: Spokane, Washington
I still can't see the pictures, blocked by McAfee The only one I see is the one I posted.
The T-50 is what size socket you need for the door striker pin.
If you have a bent frame on the truck that could be some major problems for gettting those doors to close properly.
The only one I see is the one I posted.The T-50 is what size socket you need for the door striker pin.
If you have a bent frame on the truck that could be some major problems for gettting those doors to close properly.
I would say yeah the frame bent on it would, but it was like this prior to the accident, It has been like that since I have owned the truck from my grandpa. Maybe the frame being bent isnt letting it be adjusted properly? I can see that and did not tink of that thanks ranger i'll have to mess with it more and see
Thread
