6 Volt Generator Charging Problem
Cross-Country
Joined: Nov 2016
Posts: 68
Likes: 7
From: Minnesota
Thanks
Parts Nerd Extraordinaire
Joined: Sep 2010
Posts: 4,383
Likes: 1,791
From: Western NY
Let's back up...
You do know that it isn't a given that the AMP gauge will always show a charge indication. This can be true if the battery is actually charged up.

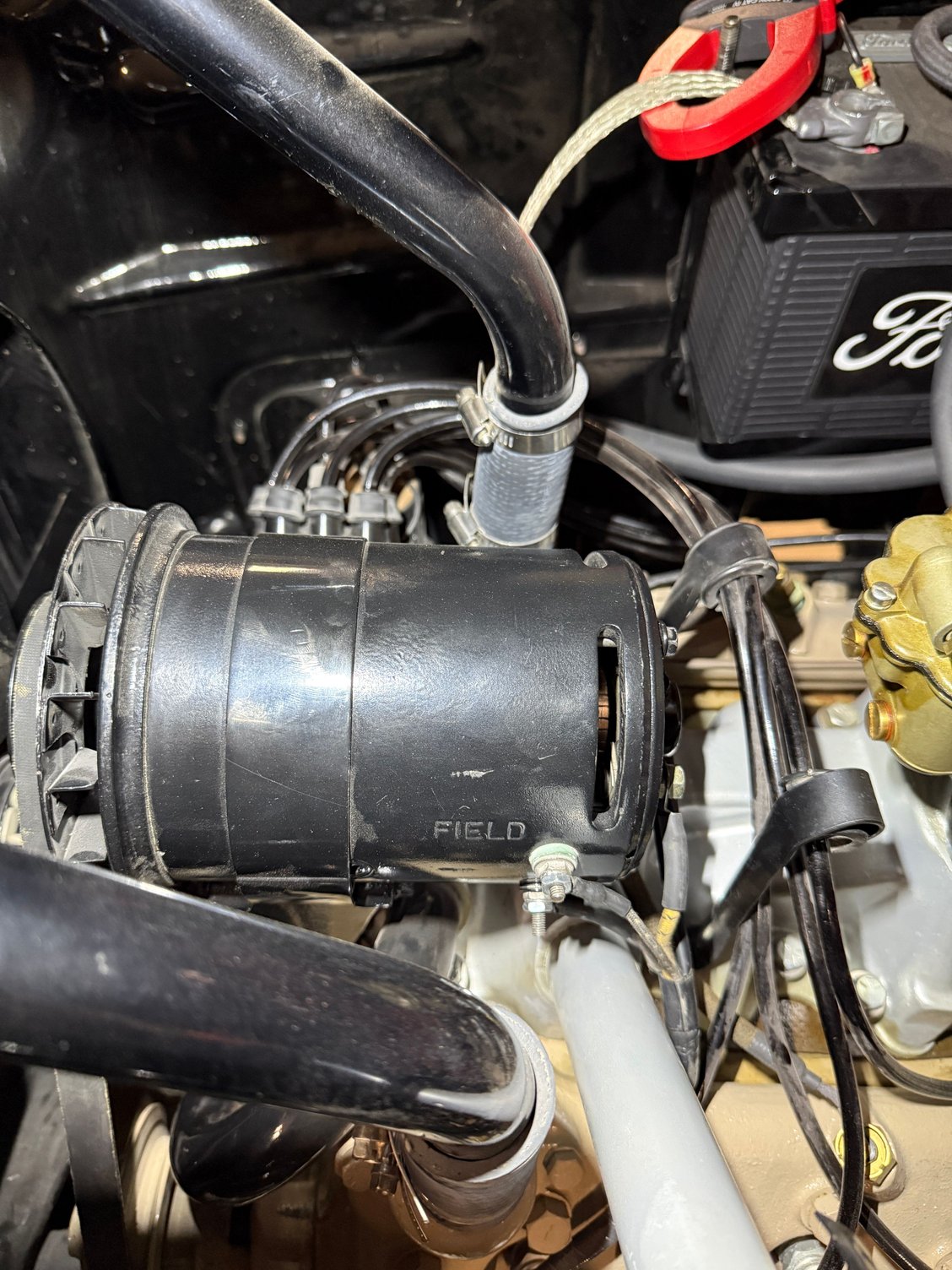

Which generator do you have? The 36 Amp C8BA, the 40 Amp 8EL, the 60 Amp 8BA? Do you have the matching regulator the C51A-C, the 8BA, the C8BAS (or equivalents)? If you are unsure, provide us pictures, part numbers, receipts, links - whatever you may have to help us identify what we are specifically dealing with and help build an efficient troubleshooting tree for you.
You do know that it isn't a given that the AMP gauge will always show a charge indication. This can be true if the battery is actually charged up.
Which generator do you have? The 36 Amp C8BA, the 40 Amp 8EL, the 60 Amp 8BA? Do you have the matching regulator the C51A-C, the 8BA, the C8BAS (or equivalents)? If you are unsure, provide us pictures, part numbers, receipts, links - whatever you may have to help us identify what we are specifically dealing with and help build an efficient troubleshooting tree for you.
Fleet Mechanic
Joined: Sep 2010
Posts: 1,835
Likes: 467
From: Mason City, Iowa
Let's back up...
You do know that it isn't a given that the AMP gauge will always show a charge indication. This can be true if the battery is actually charged up.
Which generator do you have? The 36 Amp C8BA, the 40 Amp 8EL, the 60 Amp 8BA? Do you have the matching regulator the C51A-C, the 8BA, the C8BAS (or equivalents)? If you are unsure, provide us pictures, part numbers, receipts, links - whatever you may have to help us identify what we are specifically dealing with and help build an efficient troubleshooting tree for you.
You do know that it isn't a given that the AMP gauge will always show a charge indication. This can be true if the battery is actually charged up.
Which generator do you have? The 36 Amp C8BA, the 40 Amp 8EL, the 60 Amp 8BA? Do you have the matching regulator the C51A-C, the 8BA, the C8BAS (or equivalents)? If you are unsure, provide us pictures, part numbers, receipts, links - whatever you may have to help us identify what we are specifically dealing with and help build an efficient troubleshooting tree for you.
So it looks like his generator works.
The voltage regulator sounds either bad or way out of adjustment. But that's just my 2 cents.
EDIT:
You are right about AMP gauge not showing a charge on a fully charged battery.
Maybe we should ask the OP what voltage he was seeing across the battery after he hooked everything back up and reved the engine up. Hopefully over 7 volts.
Last edited by hooler1; Mar 25, 2026 at 12:24 PM.
Parts Nerd Extraordinaire
Joined: Sep 2010
Posts: 4,383
Likes: 1,791
From: Western NY
Yeah, trying to get back to square one and get a good known foundation and then smartly navigate a troubleshooting tree rather than just chopping the tree down and throwing random branches out.
Cross-Country
Joined: Nov 2016
Posts: 68
Likes: 7
From: Minnesota
Cross-Country
Joined: Nov 2016
Posts: 68
Likes: 7
From: Minnesota
Let's back up...
You do know that it isn't a given that the AMP gauge will always show a charge indication. This can be true if the battery is actually charged up.
Which generator do you have? The 36 Amp C8BA, the 40 Amp 8EL, the 60 Amp 8BA? Do you have the matching regulator the C51A-C, the 8BA, the C8BAS (or equivalents)? If you are unsure, provide us pictures, part numbers, receipts, links - whatever you may have to help us identify what we are specifically dealing with and help build an efficient troubleshooting tree for you.
You do know that it isn't a given that the AMP gauge will always show a charge indication. This can be true if the battery is actually charged up.
Which generator do you have? The 36 Amp C8BA, the 40 Amp 8EL, the 60 Amp 8BA? Do you have the matching regulator the C51A-C, the 8BA, the C8BAS (or equivalents)? If you are unsure, provide us pictures, part numbers, receipts, links - whatever you may have to help us identify what we are specifically dealing with and help build an efficient troubleshooting tree for you.

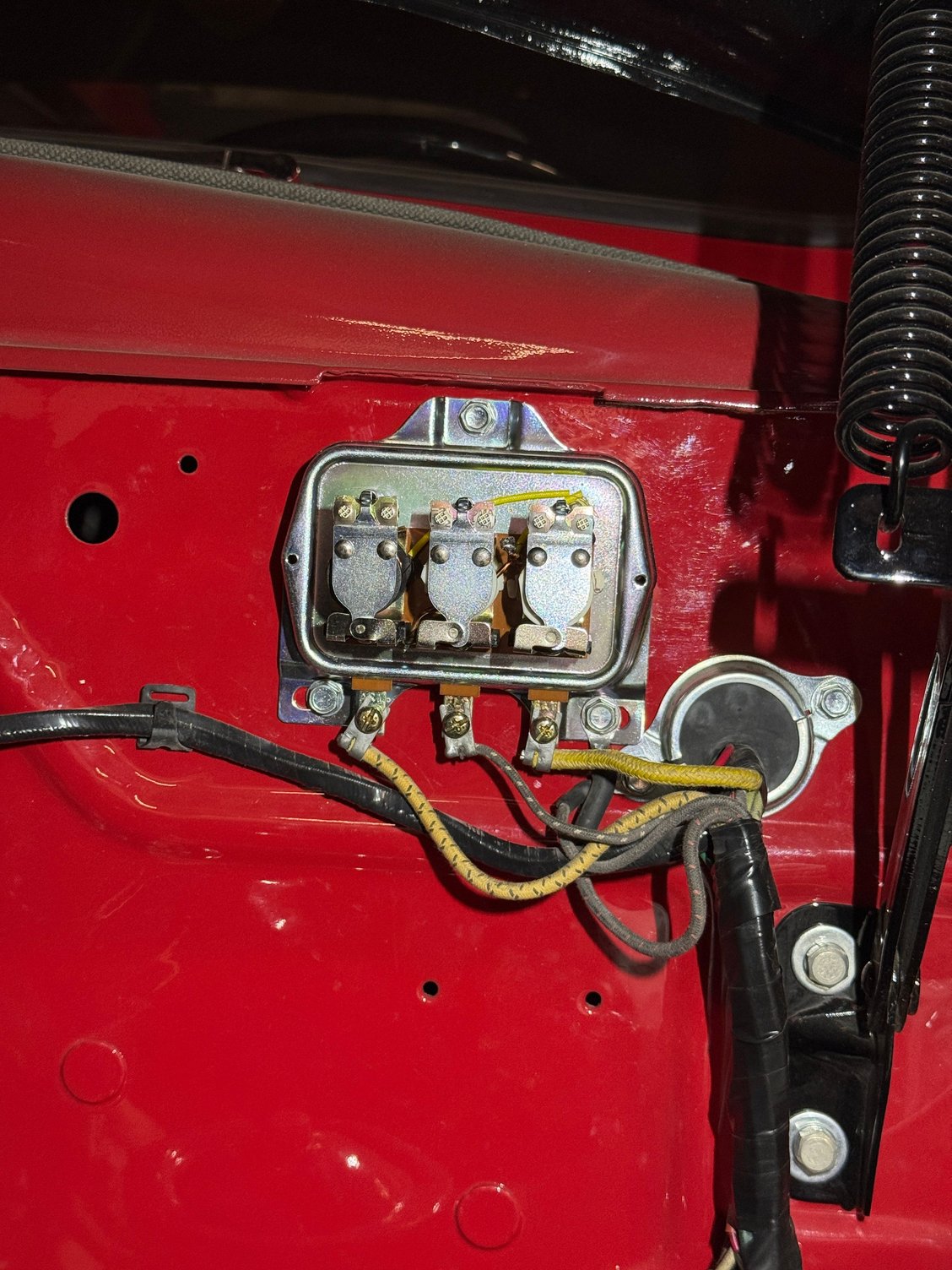

As for the regulator this is the one I bought
https://www.dennis-carpenter.com/tru...YaAjojEALw_wcB
Last edited by Lando25; Mar 25, 2026 at 03:17 PM.
Parts Nerd Extraordinaire
Joined: Sep 2010
Posts: 4,383
Likes: 1,791
From: Western NY
That is generally a viable generic voltage regulator, but it may need to be adjusted as they don't necessarily come tuned for your specific generator. Instructions are in the service/shop manual. You should get one if you don't already have one!
Cross-Country
Joined: Nov 2016
Posts: 68
Likes: 7
From: Minnesota
Thanks for the info, I have both the F1 and F47 shop manual and have glanced at the regulator maintenance section. I'm guessing the shop who looked through the generator never actual adjusted the three regulator circuits like they said they did. Between my ohm meter and amp clamp I should hopefully be able to get it tuned correctly.
