P228E error, no power

Good evening,

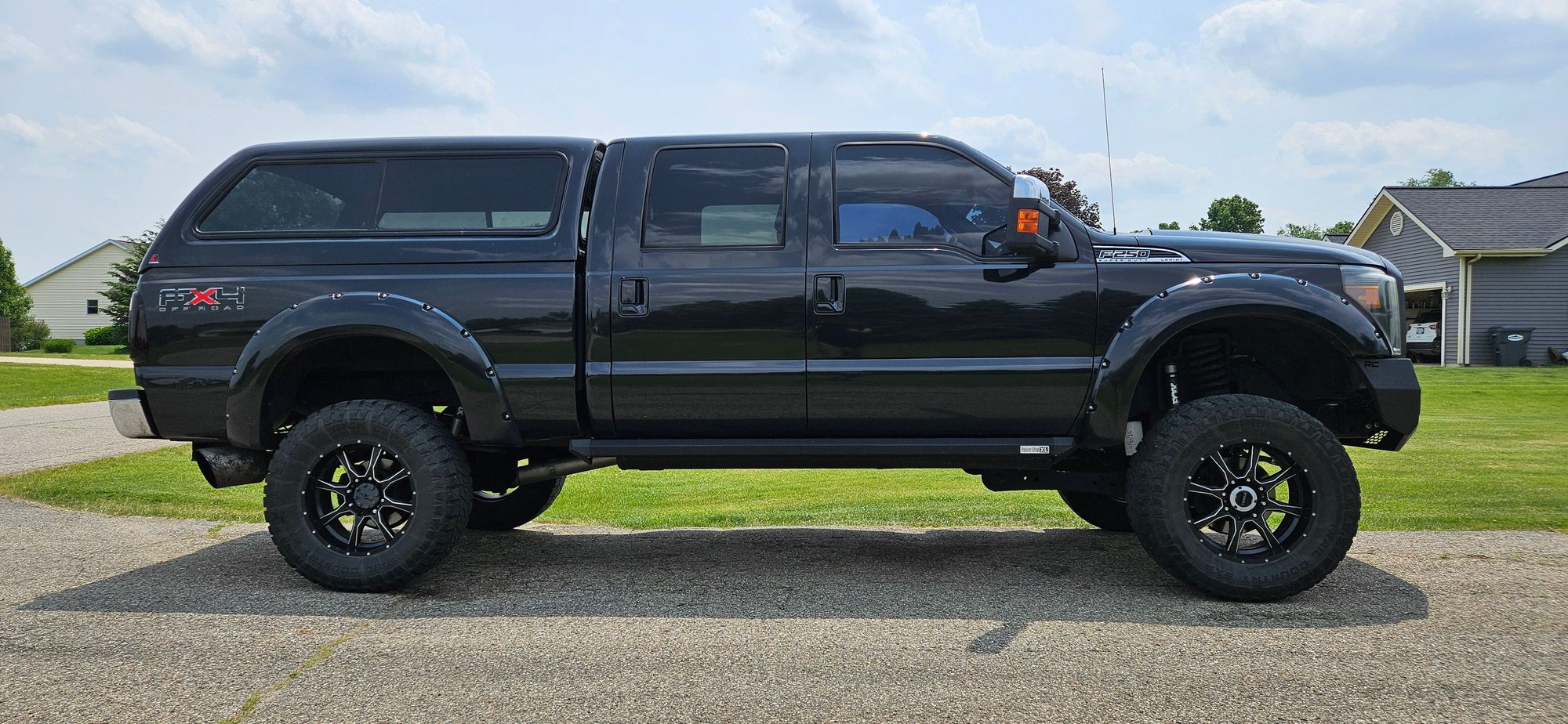

I have a 2011 F250 6.7 that I've owned for almost 2 years problem free and currently is at 228k. a few weeks back on the way to the beer store, i noticed it had no power and was struggling to maintain 45 mph. completed my beer run and on the home it would only go about 35 mph. Runs and idle fine and after checking for error codes, i have the p228E code only. I know what the worst case scenario and before I do anything drastic Id like to trouble shoot it myself. I was able to log a little data around the hood (see attached) which shows the fuel pressure drop the second I hit the throttle. Id happy bust a few knuckles and loose a few dollars trouble shooting before I sell as is or spend 10k. any advise what I should fix first? thanks. (rust free Texas truck located in west Michigan)

Attached Files

Screen_Recording_20260124_200620_Auto Agent.mp4 (4.87 MB, 30 views)

Feb 11, 2026 | 06:39 AM

slowmans

Cargo Master

Joined: Jan 2006

Posts: 3,010

Likes: 90

From: SE. MA

My search results found fuel pressure regulator or fuel rail/regulator combo....

Feb 11, 2026 | 09:21 AM

speakerfritz

Hotshot

Joined: Jul 2013

Posts: 14,266

Likes: 2,187

per Google AI

Common Causes for P228E (6.7 Powerstroke)

Fuel Pressure Regulator/Sensor Failure: The sensor on the fuel rail may be failing, or the regulator is unable to maintain commanded pressure.
CP4 High-Pressure Fuel Pump Issues:A loose or failing CP4 pump can cause low fuel pressure, often accompanied by metal shavings in the system.
Fuel Leaks or Blockages: Air in the system from a loose fuel filter housing or leaks in the fuel return line.
Wiring Issues: Corroded or damaged wiring harnesses for the fuel pressure regulator.

Diagnostic and Repair Steps

Check for Leaks/Filters: Ensure the fuel filter housing is tight and not letting air in.
Inspect for Metal: Check the fuel filter for metal shavings, which indicates a CP4 pump failure.
Scan Data: Use a diagnostic tool to compare commanded fuel pressure vs. actual fuel pressure.
Check Wiring: Inspect the fuel pressure regulator harness for damage or corrosion.
Replace Components: Common repairs include replacing the fuel pressure sensor, the volume control valve on the CP4, or the CP4 pump itself.

Feb 12, 2026 | 08:46 AM

Overkill2

FTE Legend

Joined: Mar 2017

Posts: 31,878

Likes: 9,171

From: Western NY

One check would be to pull the intake to double check you have no metallic contamination on the Inlet Metering Valve aka MPROP (Magnetic Proportioning valve) aka FCA (Fuel Control Actuator) which would show the rest of the system is contaminated and the pump has failed. If no metal, then maybe at 228k miles, your CP4 is getting weak. Here is the Exergy one with the finer 25 micron screen opposed to the standard 80 micron screen.

Then a check and/or replacement of the driver's side fuel rail pressure sensor. I don't know how to check it electrically, but there is YouTube. Another check for metallic contamination would be this sensor as well. There also should be zero rust and corrosion on it as well, which would indicate bad fuel has been being used. You use any additive at all?

Here's two sensors from Full Force Diesel.

The Bosch one and the Motorcraft one.

Appearing that the pump cannot keep up with the commanded pressure. You just have to find out why.

Did this just come out of nowhere? Any recent fuel filter changes?
