Rare Ford vacuum gauge
Thread Starter
|
Logistics Pro
Joined: Jun 2018
Posts: 3,553
Likes: 442
Rare Ford vacuum gauge
See A Man About A Horse
Joined: Apr 2003
Posts: 4,919
Likes: 667
From: Mariposa, Ca.
Someone here probably has a Performance Parts catalogue or two from the era and might be able to check. But it would have been an option for several vehicles, is my guess.
I have seem a similar one, labeled as Rotunda brand, Mustang guys seem to want those, and they are pricey, may have only been vacuum though.
I have seem a similar one, labeled as Rotunda brand, Mustang guys seem to want those, and they are pricey, may have only been vacuum though.
Hotshot
Joined: Oct 2009
Posts: 16,173
Likes: 4,781
From: Burbank, WA

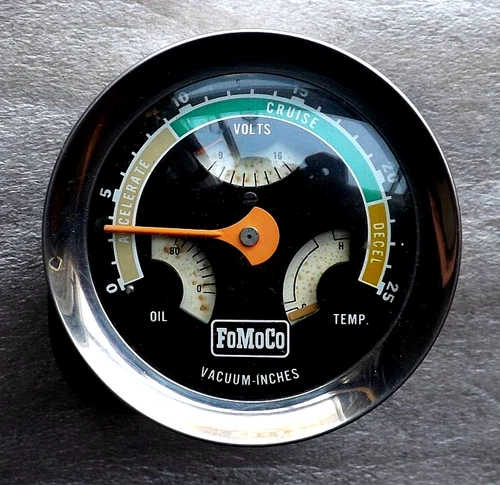

In all my years messing with old Ford stuff I've never seen this unit in person or in pictures. That's way cool. I've seen plenty of vacuum gauges but never with the volt, temp and oil gauges built in with it. Volts is even more odd since amps was the typical gauge of the day. With that style FoMoCo logo, it's got to be late 50's to early 60's. Later than that would more likely have the Rotunda label. It would be a generic, over the counter accessory gauge, not a factory installed piece.
See A Man About A Horse
Joined: Apr 2003
Posts: 4,919
Likes: 667
From: Mariposa, Ca.
It ‘s a dash-top mount gauge, and will be too large for the holes in the dash. Could possibly be used as a column mount.
Thread Starter
|
Logistics Pro
Joined: Jun 2018
Posts: 3,553
Likes: 442
Trending Topics
Hotshot
Joined: Oct 2009
Posts: 16,173
Likes: 4,781
From: Burbank, WA
Real 66 Cobra dash. Since AI has taken over the world, everything written on google is suspect anymore.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
Tuned
Joined: May 2008
Posts: 253
Likes: 48
From: Somerset, OH
sheesh, more evidence of why not to trust everything you see on the web. First off that’s a 1967 or 1968 NOT a 1966 Mustang. Second it’s just called a Shelby GT 500. They did not use Cobra in the name of the car model.
Fleet Mechanic
Joined: Mar 2013
Posts: 1,661
Likes: 1,062
From: Montana
I am not sure of the application, but I am guessing a gauge such as that would be offered by the dealership, specifically for Ford vehicles that had dummy lights for oil and temp and only an ammeter. The addition of vacuum is nice due to the diagnostic capability. A dealer installed option for cars and light trucks in the 50s and 60s for folks that wanted to have better monitoring than a dummy light provides. My first car was a '66 Galaxie and memory is fuzzy, but I think there was only a fuel gauge, big speedo and maybe an ammeter. Dummy lights for oil pressure and water temp.
Since it is a dash/column mounted "universal" option (or at least could be) that simplifies installation for most vehicles of that era.
Cool gauge none the less and if I had an application for it I would have already ordered it...
Since it is a dash/column mounted "universal" option (or at least could be) that simplifies installation for most vehicles of that era.
Cool gauge none the less and if I had an application for it I would have already ordered it...
Thread Starter
|
Logistics Pro
Joined: Jun 2018
Posts: 3,553
Likes: 442
I am not sure of the application, but I am guessing a gauge such as that would be offered by the dealership, specifically for Ford vehicles that had dummy lights for oil and temp and only an ammeter. The addition of vacuum is nice due to the diagnostic capability. A dealer installed option for cars and light trucks in the 50s and 60s for folks that wanted to have better monitoring than a dummy light provides. My first car was a '66 Galaxie and memory is fuzzy, but I think there was only a fuel gauge, big speedo and maybe an ammeter. Dummy lights for oil pressure and water temp.
Since it is a dash/column mounted "universal" option (or at least could be) that simplifies installation for most vehicles of that era.
Cool gauge none the less and if I had an application for it I would have already ordered it...
Since it is a dash/column mounted "universal" option (or at least could be) that simplifies installation for most vehicles of that era.
Cool gauge none the less and if I had an application for it I would have already ordered it...

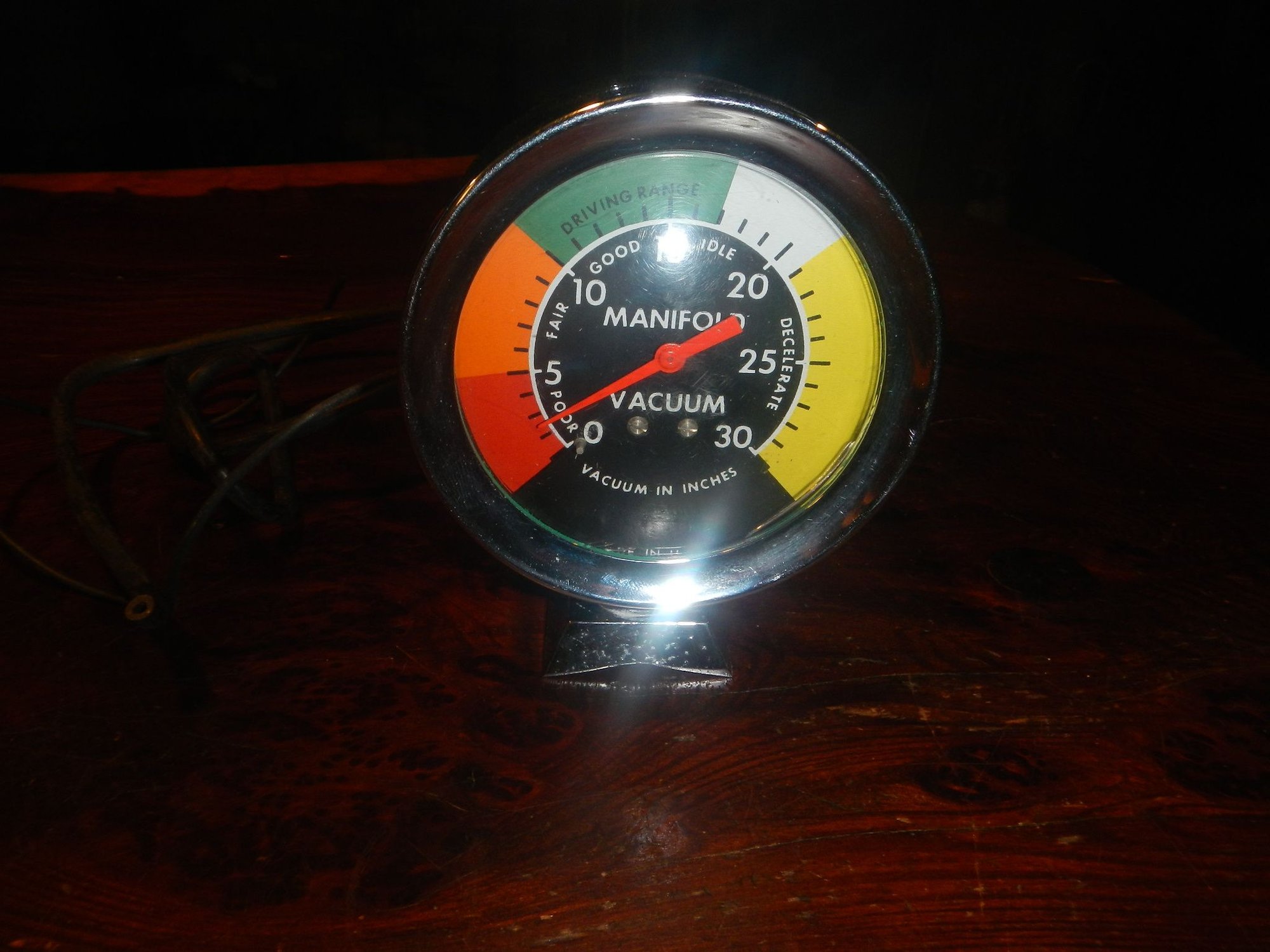

If I hadn't just bought my 2nd Dixco gauge I could justify putting this on the shelf.
It is rare, and the price is very good.
Hotshot
Joined: Oct 2009
Posts: 16,173
Likes: 4,781
From: Burbank, WA
Yes, you are correct. The car pictured is a 67 Shelby GT500. Not a Mustang, and not a Cobra. The Cobra was the sports car. The 67's used Cougar tail lights without the chrome grille cover. 68-70's used 65 Thunderbird tail lights. The GT500 was the 428 big block car, using the police interceptor engine. The Cobra Jet 428 came later, in mid-year 68, which were the GT500KR cars, with KR standing for "King of the Road" and did 13 second quarter mile times. But they still weren't Cobras.
See A Man About A Horse
Joined: Apr 2003
Posts: 4,919
Likes: 667
From: Mariposa, Ca.
That really is a cool gauge. At 125 bucks, it is worth having. You’d be taking a chance on it working, but there has to be restoration shops that could disassemble, clean or repaint, and even remove the insect that the seller mentions in his disclaimer. Or maybe leave the bug as patina? On vacuum gauges, what are the parts that are serviceable, if any?
