Old Aug 12, 2024 | 08:07 PM
  #16
mikelduh's Avatar
mikelduh
Thread Starter
|
5th Wheeling
Photogenic
Photoriffic
Liked
Loved
Joined: Aug 2024
Posts: 48
Likes: 1
Originally Posted by FuzzFace2
So that tube from the exh. manifold dose not go up to the EGR plate?
There is 2 ways of going with this.
1st (and I think the hardest) is to remove the tubes from the fittings and fittings from the plate & manifold and screw in plugs.Think pipe plug worked but been a while since I did this.To get the fittings out I used a large socket and impac gun, came right out.
2nd (and the easy way) is to cut the tube leaving enough where you can pinch the end closed and bend it over to make sure it is sealed.
Dave ----

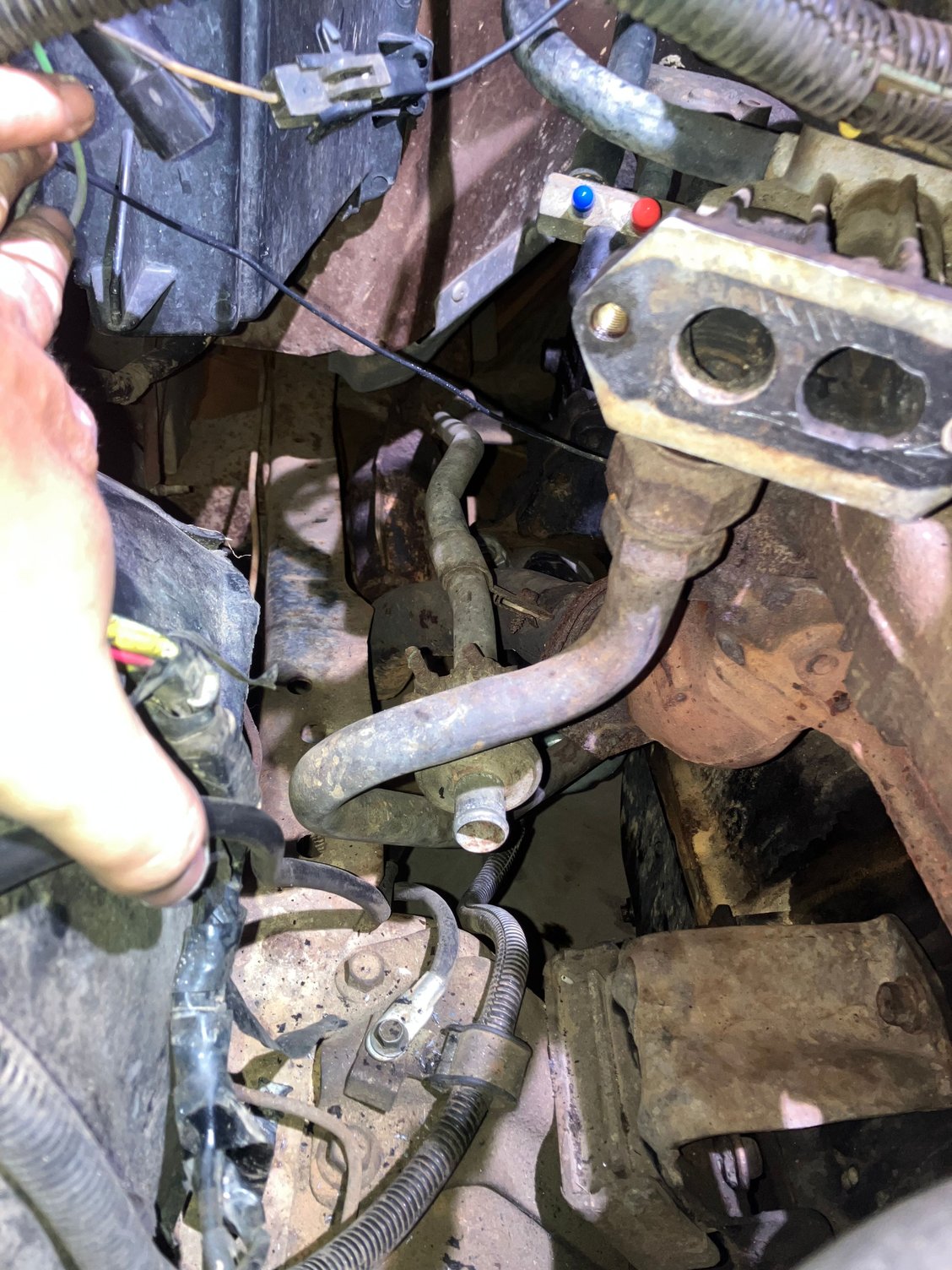

What about this big one? Just plug or remove it as well? And these lines coming off this smog box



?) the small one goes back to the tank.


Last edited by mikelduh; Aug 12, 2024 at 08:12 PM.
Reply
Old Aug 13, 2024 | 09:42 AM
  #17
JimsRebel's Avatar
JimsRebel
Cargo Master
15 Year Member
Photogenic
Photoriffic
Community Builder
Joined: Mar 2008
Posts: 2,562
Likes: 207
From: Washington
Originally Posted by mikelduh
What would be the difference between using the fat wire from the 3 wire splice as Jim suggested, rather than the blue and white?
The fat wire, leaving the 3 to 1 splice shown in your photo in post 9, is a good power source.
Also, as you stated all your power wires are spliced together in the engine harness, this would also be a good power source, as it is multiple hot wires from different sources.
You said the coil power wire was downstream of this splice. You have taken the time to unrap the black tape and see what you have. Not everyone does this. This stuff is not shown in wiring diagrams, you have to take it apart and look at it.
So if it was my truck, I would just follow Franklin2 advice (post 3) and use the wire on the original coil positive connector.

To be fair, the instructions that come with your new distributor might say it MUST be feed with a larger gauge wire... larger then what is currently feeding the coil. Most people feel the need to follow the instructions.
A lot of people want you to use a 30 amp relay, and then take power directly from the battery. This gives you a clean strong power source and keeps the current flow out of the original wiring. If I had a 1970 truck with a point system, I would use a relay.

The original square coil in your truck had full voltage applied and is similar the to coil in your new distributor. So no real changes.

Opinions vary, you will see lots of stuff on the web sites saying you need a 30 amp supply source. Which some feel they want, and thus add a relay.
Good luck, Jim


Reply
Old Aug 13, 2024 | 11:04 AM
  #18
FuzzFace2's Avatar
FuzzFace2
FTE Legend
10 Year Member
Photogenic
Community Builder
Liked
Joined: Nov 2015
Posts: 30,866
Likes: 4,109
From: Angier, NC
Club FTE Gold Member
Originally Posted by mikelduh

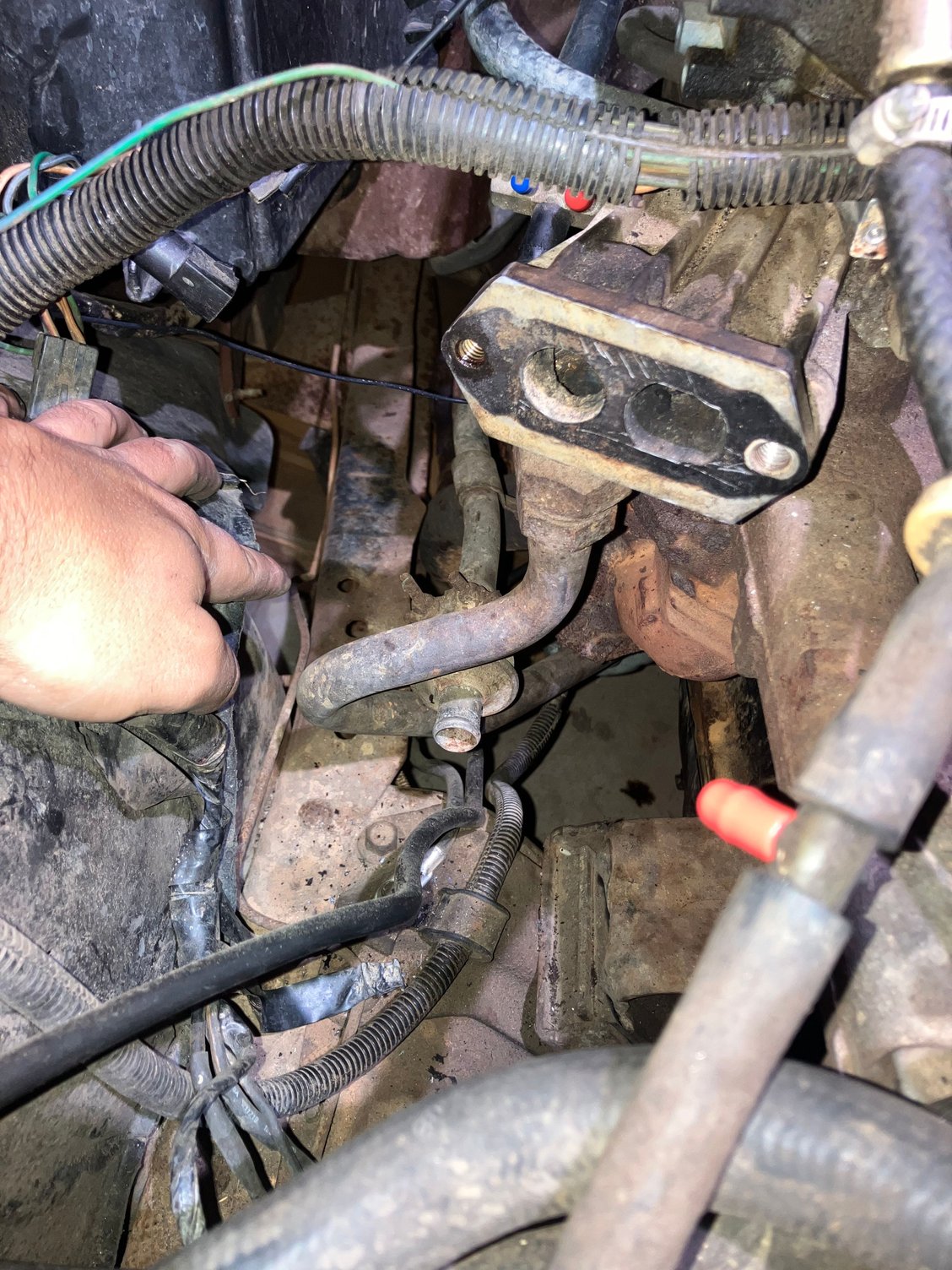

What about this big one? Just plug or remove it as well? And these lines coming off this smog box
I see 2 things going on here. First the EGR valve needs to be bolts back in place. Some say make a block off plate from a tin can me I just dont hook a vacuum hose to it so it will not open.
Second the large metal tube going back to the cat. get a hose to fit the end, a old spark plug and 2 clamps. put the plug on the hose the hose on the tube and clamp it in place = done!

That is the fuel tank vapor recovery tank. The small line goes back to the fuel tank(s) and the large to the carb float bowel and to vacuum to pull the vapors into the motor to burn them. It can stay just the way it is.

I guess you are pointing to the metal tube going back to the cat. See my first post with hose / old spark plug and clamps.

?) the small one goes back to the tank.
See my answers above ^
Dave ----


Reply
Old Aug 13, 2024 | 11:14 AM
  #19
FuzzFace2's Avatar
FuzzFace2
FTE Legend
10 Year Member
Photogenic
Community Builder
Liked
Joined: Nov 2015
Posts: 30,866
Likes: 4,109
From: Angier, NC
Club FTE Gold Member

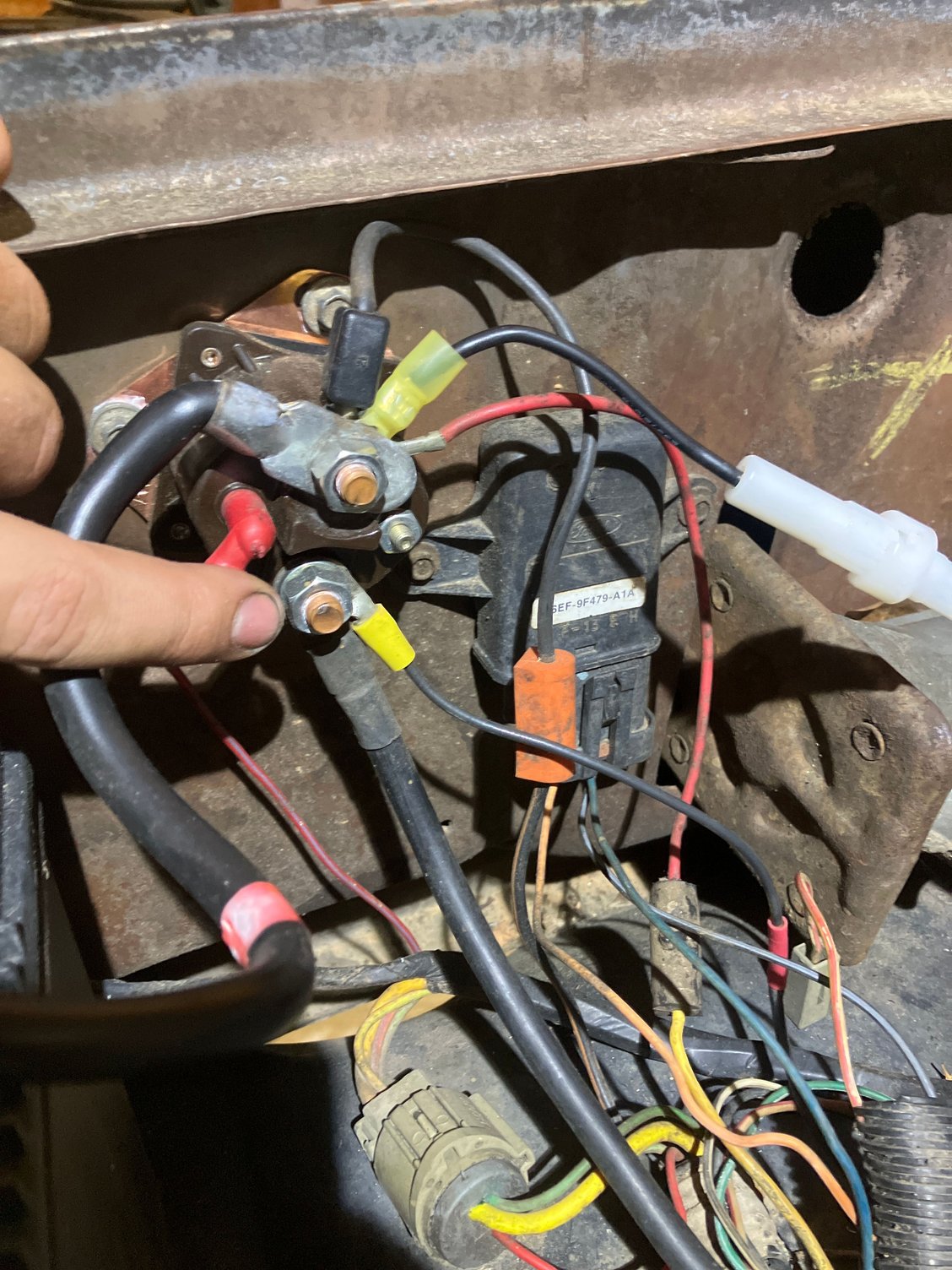

I just saw something in this picture that might cause problems down the road.
Right in the center you have a battery cable going to the starter in a holder that is good
But you have another cable under that hold down bolt, where dose that go to? It should go to the top starter bolt.
But the problem, where dose the battery ground cable go to from the battery? It should also go to this hold down bolt also.
If the battery ground goes to the motor some where then you need to run a cable from there to the frame ans the frame is not grounded ATM.
Factory ground was from battery to frame hold down bolt to the top starter bolt as 1 long cable but you can use 2 to make it happen.

Dave ----

Reply
Old Aug 13, 2024 | 12:55 PM
  #20
mikelduh's Avatar
mikelduh
Thread Starter
|
5th Wheeling
Photogenic
Photoriffic
Liked
Loved
Joined: Aug 2024
Posts: 48
Likes: 1
Originally Posted by JimsRebel
The fat wire, leaving the 3 to 1 splice shown in your photo in post 9, is a good power source.
Also, as you stated all your power wires are spliced together in the engine harness, this would also be a good power source, as it is multiple hot wires from different sources.
You said the coil power wire was downstream of this splice. You have taken the time to unrap the black tape and see what you have. Not everyone does this. This stuff is not shown in wiring diagrams, you have to take it apart and look at it.
So if it was my truck, I would just follow Franklin2 advice (post 3) and use the wire on the original coil positive connector.

To be fair, the instructions that come with your new distributor might say it MUST be feed with a larger gauge wire... larger then what is currently feeding the coil. Most people feel the need to follow the instructions.
A lot of people want you to use a 30 amp relay, and then take power directly from the battery. This gives you a clean strong power source and keeps the current flow out of the original wiring. If I had a 1970 truck with a point system, I would use a relay.

The original square coil in your truck had full voltage applied and is similar the to coil in your new distributor. So no real changes.

Opinions vary, you will see lots of stuff on the web sites saying you need a 30 amp supply source. Which some feel they want, and thus add a relay.
Good luck, Jim

Thanks for explaining. I’ll clean it up and just use the original b/w coil wire.

Reply
Old Aug 13, 2024 | 01:04 PM
  #21
mikelduh's Avatar
mikelduh
Thread Starter
|
5th Wheeling
Photogenic
Photoriffic
Liked
Loved
Joined: Aug 2024
Posts: 48
Likes: 1
Are the plug wires sorted during the timing process? Or should I reference where the vacuum advance is as where the plug on the old one was? Probably a silly question.

Reply
Old Aug 13, 2024 | 01:06 PM
  #22
mikelduh's Avatar
mikelduh
Thread Starter
|
5th Wheeling
Photogenic
Photoriffic
Liked
Loved
Joined: Aug 2024
Posts: 48
Likes: 1
Originally Posted by FuzzFace2
See my answers above ^
Dave ----
DAVE! Thanks man. That’ll get me rocking on that side. I’m going to plate it. And I’ll use your plug trick to get that tube closed.

Reply
Old Aug 13, 2024 | 01:50 PM
  #23
JimsRebel's Avatar
JimsRebel
Cargo Master
15 Year Member
Photogenic
Photoriffic
Community Builder
Joined: Mar 2008
Posts: 2,562
Likes: 207
From: Washington
Originally Posted by mikelduh
Are the plug wires sorted during the timing process? Or should I reference where the vacuum advance is as where the plug on the old one was? Probably a silly question.
Looking at my engine photo in post 6, don't do that!
My oil filter serves 2 purposes, the second one being a hard stop for ignition timing adjustments.
You are getting ahead of yourself, it really doesn't matter which position is #1, as long as they are in correct firing order.

Also, the end of the pipe coming from the CAT has a "one way check valve" at the end closest to the engine. It's the round large thing near the open end. If it's working as it should, it won't leak. You can put this off until you get it running.
Jim

Reply
FTE Stories

Ford Trucks for Ford Truck Enthusiasts

story-0

Top 10 Ford Truck Tragedies

 Joe Kucinski
story-1

AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

 Brett Foote
story-2

Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

 Michael S. Palmer
story-3

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

 Verdad Gallardo
story-4

10 Best Ford Truck Engines We Miss the Most!

 Joe Kucinski
story-5

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

 Brett Foote
story-6

2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

 Michael S. Palmer
story-7

10 Most Surprising 2026 Ford Truck Features!

 Joe Kucinski
story-8

Top 10 Ford Trucks Coming to Mecum Indy 2026

 Brett Foote
story-9

5 Best / 5 Worst Ford Truck Wheels of All Time

 Joe Kucinski
Old Aug 13, 2024 | 03:05 PM
  #24
FuzzFace2's Avatar
FuzzFace2
FTE Legend
10 Year Member
Photogenic
Community Builder
Liked
Joined: Nov 2015
Posts: 30,866
Likes: 4,109
From: Angier, NC
Club FTE Gold Member
Swapping dist is easy.
Pull #1 plug, hold finger OVER plug hole and have someone tap the key till you fell your finger getting pushed off.
Look and the timing mark and turn the motor so the mark is at TDC.
Pop the dist. cap and note where the rotor is pointing. Also note where the TFI wires are on the dist.body like in your picture below.

Disconnect the wires to the TFI and pull the non-feed back dist. out.
On the new dist. turn the rotor so it points to where the old dist was pointing.
Also have the vacuum advance unit in the same area as the TFI / wires were so you will had room to turn the dist. to ad just the timing.
When you drop the dist. in the rotor will turn a little adjust where the rotor points so when all the way in it points to where the old dist. rotor was pointing for #1

Just rest the cap in place and see if the rotor is pointing to 1 of the plug towers.
If not can you turn the dist. body so it dose? If not pull the dist. and turn the rotor 1 way or the other so when you drop it in the rotor will point to a plug tower and have room to turn the dist. to adjust the timing.
When you install the hold down bolt do not tighten it all the way so you cant turn the dist. just snug it so it takes a little power to turn it as you will need to turn it to start and time it.

Install the plug in motor and put plug wires in cap following the firing order.
Wire power to dist. and you should be able to start the motor.
If it dose not start right away try turning the dist. a little in each direction and see if it will start.
If you get a back fire out the carb you did not get motor on TDC before you pulled the old dist. out so you are 180* off.
You can either go back through setting motor to TDC and pulling the dist. so itis now on TDC also or just rewire the plug wires on the cap and try again.
Dave ----

Reply
Old Aug 13, 2024 | 03:56 PM
  #25
mikelduh's Avatar
mikelduh
Thread Starter
|
5th Wheeling
Photogenic
Photoriffic
Liked
Loved
Joined: Aug 2024
Posts: 48
Likes: 1
Originally Posted by FuzzFace2
I just saw something in this picture that might cause problems down the road.
Right in the center you have a battery cable going to the starter in a holder that is good
But you have another cable under that hold down bolt, where dose that go to? It should go to the top starter bolt.
But the problem, where dose the battery ground cable go to from the battery? It should also go to this hold down bolt also.
If the battery ground goes to the motor some where then you need to run a cable from there to the frame ans the frame is not grounded ATM.
Factory ground was from battery to frame hold down bolt to the top starter bolt as 1 long cable but you can use 2 to make it happen.

Dave ----

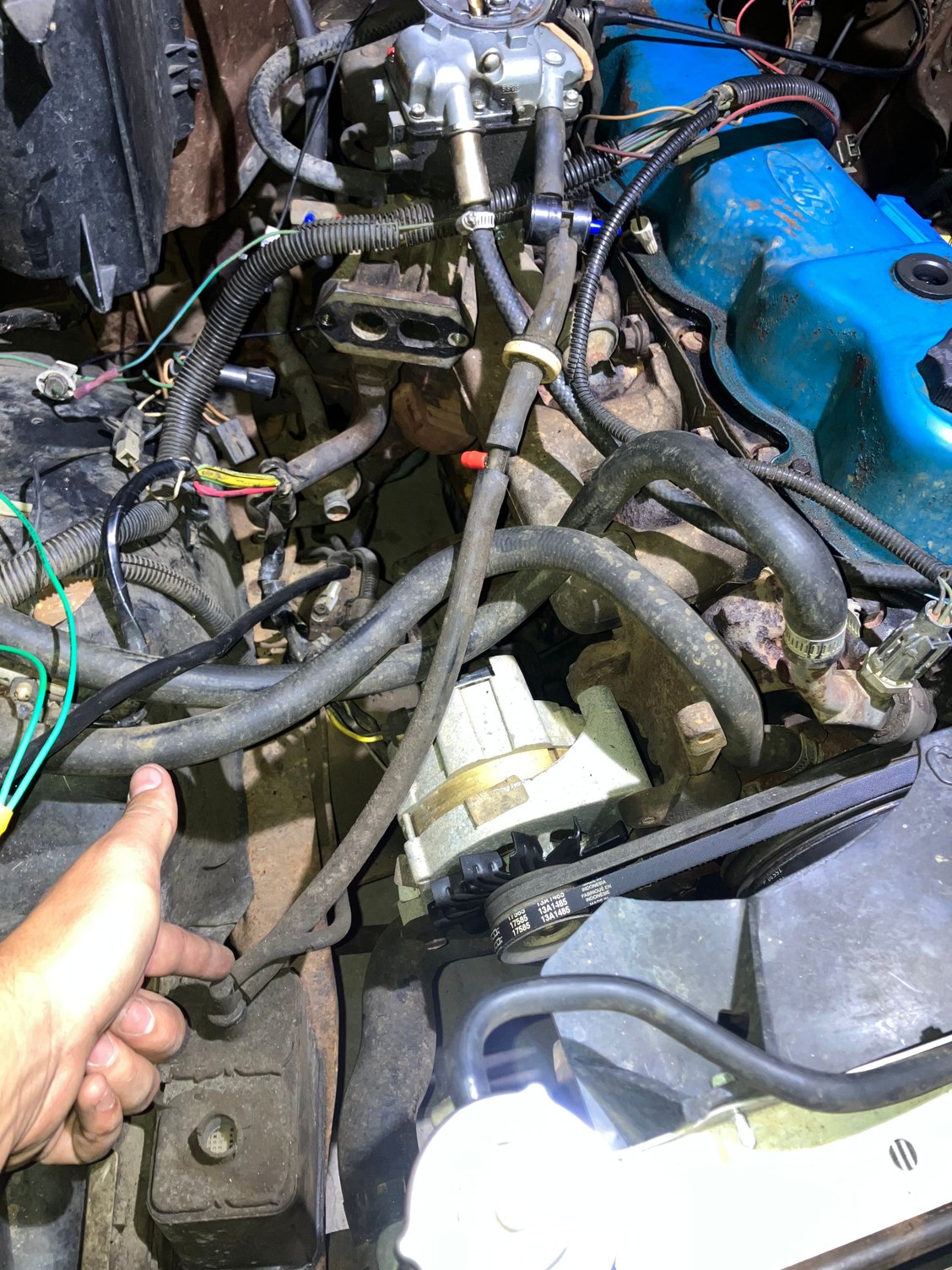

This is the one that goes through the conduit. The other is the ground side of the battery to the starter and the one on the lug goes from starter to chassis.


Reply
Old Aug 13, 2024 | 04:09 PM
  #26
FuzzFace2's Avatar
FuzzFace2
FTE Legend
10 Year Member
Photogenic
Community Builder
Liked
Joined: Nov 2015
Posts: 30,866
Likes: 4,109
From: Angier, NC
Club FTE Gold Member
Originally Posted by mikelduh

This is the one that goes through the conduit. The other is the ground side of the battery to the starter and the one on the lug goes from starter to chassis.
Oh ok so ground from battery to starter then up to that bolt on the frame
That works as I did not know how the battery side was run.
Factory did it from battery to frame then to starter LOL
Dave ----

Reply
Old Aug 13, 2024 | 05:40 PM
  #27
Franklin2's Avatar
Franklin2
Moderator
25 Year Member
Photogenic
Community Builder
Community Influencer
Joined: Jan 2001
Posts: 56,966
Likes: 2,728
From: Virginia
Club FTE Gold Member
Originally Posted by mikelduh
Are the plug wires sorted during the timing process? Or should I reference where the vacuum advance is as where the plug on the old one was? Probably a silly question.
Have you pulled the old distributor out yet? If you haven't, yes you can use it to organize the new distributor. It did run before correct? And you have not messed with the original distributor? Those are the rules on this method, it ran before and you have not pulled the old one out yet. If you have pulled it already and are lost, then do the thumb over #1 sparkplug hole like the other Dave suggested. That is starting over and finding #1 on the engine TDC.

1. If you still have the original distributor in there and the engine was running, then mark the sparkplug wires and the distributor tower to what cylinder goes where. I think you said you did this already.

2. Then pull the original cap off. Look to see where the rotor is pointing. What tower is it pointing to? Is it inbetween two towers? Make a note of which cylinder towers the rotor is pointing to.

3. Pull the old distributor. Watch the rotor as the distributor comes out. See it turn? You will need to make note of this, the new distributor is going to turn back when you set it in position.

4. Get the new distributor. Position the vacuum advance out in the open area away from the engine so you have plenty of room to twist the distributor back and forth. Set the new distributor in place. Watch the rotor turn a little bit as it goes in. It may stop short of going all the way in. In that case, pull the distributor up, turn the rotor so it's on another tooth down inside the engine, and try again. Try to keep the rotor in the same general area as it was before. Like generally pointing to the fender, or the firewall or the radiator, where ever it was on the old distributor. This is not super important, just so it's in the neighborhood. If the distributor still won't go in try a tooth the other way. It should finally go in.
5. Once you get the distributor all the way in, again twist the distributor around a little bit to make sure the vacuum advance has plenty of room. Then pull the distributor cap on the new distributor. Check to see where the rotor is pointing. Point it to the tower or towers just like the old distributor. You will now take a marker and name the tower or towers just like the old distributor. You will also number the towers all around the new distributor just like the old.

6. Plug the proper cylinder wires into the new distributor according to how they are marked. The rotor should be pointing to the same cylinder or cylinders that was before on the old distributor. Snug the lockdown bolt down so the distributor just moves with some pressure from your hand. Then hook the hot wire up and see if it will start. Have a timing light ready and shine the light and grab the distributor and tweak it till it's around 10 BTDC.

Reply
Old Aug 18, 2024 | 05:51 PM
  #28
mikelduh's Avatar
mikelduh
Thread Starter
|
5th Wheeling
Photogenic
Photoriffic
Liked
Loved
Joined: Aug 2024
Posts: 48
Likes: 1
Originally Posted by Franklin2
Have you pulled the old distributor out yet? If you haven't, yes you can use it to organize the new distributor. It did run before correct? And you have not messed with the original distributor? Those are the rules on this method, it ran before and you have not pulled the old one out yet. If you have pulled it already and are lost, then do the thumb over #1 sparkplug hole like the other Dave suggested. That is starting over and finding #1 on the engine TDC.

1. If you still have the original distributor in there and the engine was running, then mark the sparkplug wires and the distributor tower to what cylinder goes where. I think you said you did this already.

2. Then pull the original cap off. Look to see where the rotor is pointing. What tower is it pointing to? Is it inbetween two towers? Make a note of which cylinder towers the rotor is pointing to.

3. Pull the old distributor. Watch the rotor as the distributor comes out. See it turn? You will need to make note of this, the new distributor is going to turn back when you set it in position.

4. Get the new distributor. Position the vacuum advance out in the open area away from the engine so you have plenty of room to twist the distributor back and forth. Set the new distributor in place. Watch the rotor turn a little bit as it goes in. It may stop short of going all the way in. In that case, pull the distributor up, turn the rotor so it's on another tooth down inside the engine, and try again. Try to keep the rotor in the same general area as it was before. Like generally pointing to the fender, or the firewall or the radiator, where ever it was on the old distributor. This is not super important, just so it's in the neighborhood. If the distributor still won't go in try a tooth the other way. It should finally go in.
5. Once you get the distributor all the way in, again twist the distributor around a little bit to make sure the vacuum advance has plenty of room. Then pull the distributor cap on the new distributor. Check to see where the rotor is pointing. Point it to the tower or towers just like the old distributor. You will now take a marker and name the tower or towers just like the old distributor. You will also number the towers all around the new distributor just like the old.

6. Plug the proper cylinder wires into the new distributor according to how they are marked. The rotor should be pointing to the same cylinder or cylinders that was before on the old distributor. Snug the lockdown bolt down so the distributor just moves with some pressure from your hand. Then hook the hot wire up and see if it will start. Have a timing light ready and shine the light and grab the distributor and tweak it till it's around 10 BTDC.

” The other Dave “ lol . Thanks for the explanation, I did have it marked but pulled it without looking. So I did the thumb method. I’m gonna post an update here shortly.

Reply
Old Aug 18, 2024 | 06:06 PM
  #29
mikelduh's Avatar
mikelduh
Thread Starter
|
5th Wheeling
Photogenic
Photoriffic
Liked
Loved
Joined: Aug 2024
Posts: 48
Likes: 1

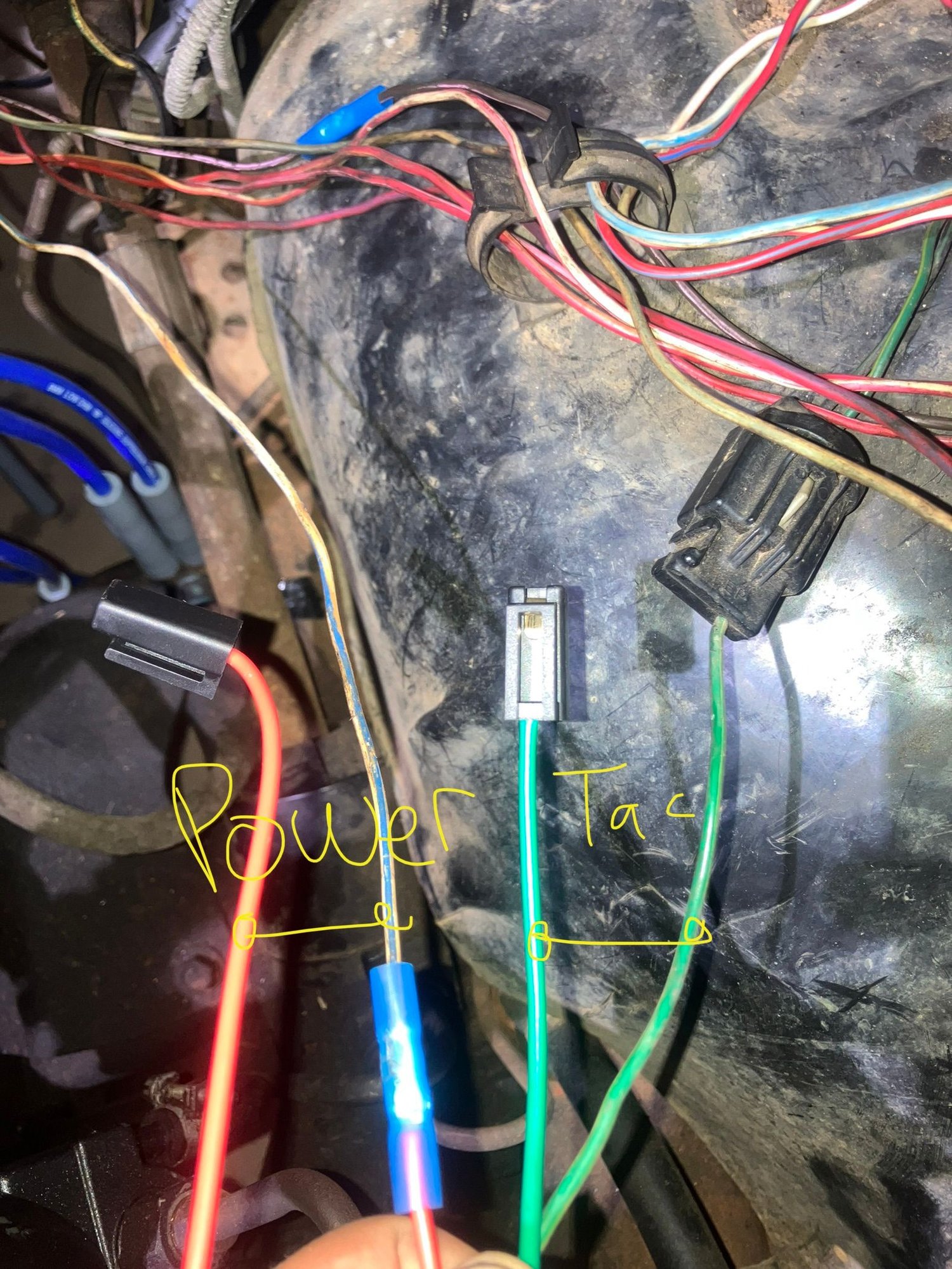

So far

I have the blue and white from the old ign coil wires as my new power. Single green for the tac. Plug wires numbered. Everything plated and capped. Old plug for dist is just hangin. Next step is setting timing? I haven’t found a mark but there is a notch with white paint on it.




Reply
Old Aug 18, 2024 | 06:45 PM
  #30
Franklin2's Avatar
Franklin2
Moderator
25 Year Member
Photogenic
Community Builder
Community Influencer
Joined: Jan 2001
Posts: 56,966
Likes: 2,728
From: Virginia
Club FTE Gold Member
Do you see a pointer on the top side that you can shine the light on? Leave the distributor just a tiny bit loose so you can move it, and try to start it. If it tries but kicks back, tweak the dist one way a little bit. If it gets worse try it the other way.

P.S. I just thought about it. If you did the thumb method and then turned it to TDC #1, that white mark if it was any good would be near the pointer. This needs more investigation.

Reply



All times are GMT -5. The time now is 11:19 AM.

story-0
Top 10 Ford Truck Tragedies

Slideshow: Top 10 Ford truck tragedies.

By Joe Kucinski | 2026-05-18 19:34:33


VIEW MORE
story-1
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make

And it might be even better than that.

By Brett Foote | 2026-05-18 19:26:42


VIEW MORE
story-2
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!

Slideshow: Does lowering an F-150 Lobo RUIN the ride quality?

By Michael S. Palmer | 2026-05-18 19:20:37


VIEW MORE
story-3
Ford's 2001 Explorer Sportsman Concept Looks For a New Home

Slideshow: Ford's bizarre fishing-themed Explorer concept has resurfaced after spending decades largely forgotten.

By Verdad Gallardo | 2026-05-12 18:07:46


VIEW MORE
story-4
10 Best Ford Truck Engines We Miss the Most!

Slideshow: The 10 best Ford truck engines we miss the most.

By Joe Kucinski | 2026-05-12 13:09:47


VIEW MORE
story-5
2026 Shelby F-150 Off-Road: Better Than a Raptor R?

Slideshow: first look at the 810 hp 2026 Shelby F-150 Off-Road!

By Brett Foote | 2026-05-12 12:50:07


VIEW MORE
story-6
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

Slideshow: Everything You Need to Know about the 2027 Super Duty Carhartt Package!

By Michael S. Palmer | 2026-05-07 17:51:06


VIEW MORE
story-7
10 Most Surprising 2026 Ford Truck Features!

Slideshow: 10 most surprising Ford truck options/features in 2026.

By Joe Kucinski | 2026-05-05 11:17:22


VIEW MORE
story-8
Top 10 Ford Trucks Coming to Mecum Indy 2026

Slideshow: Here are the top 10 Fords coming to Mecum Indy 2026.

By Brett Foote | 2026-05-04 13:49:49


VIEW MORE
story-9
5 Best / 5 Worst Ford Truck Wheels of All Time

Slideshow: The 5 best and 5 worst Ford truck wheels of all time

By Joe Kucinski | 2026-04-29 16:49:01


VIEW MORE
