Heater hose routing
Thread Starter
|
5th Wheeling
Joined: Feb 2018
Posts: 34
Likes: 1
From: SD
Heater hose routing
Does anyone have the correct routing diagram for the heater hoses in a 63 Econoline 2.4? I'm replacing radiator & water pump & cleaning heater core and it looks like it was jerry-rigged with a t fitting coming out of the petcock radiator hole.

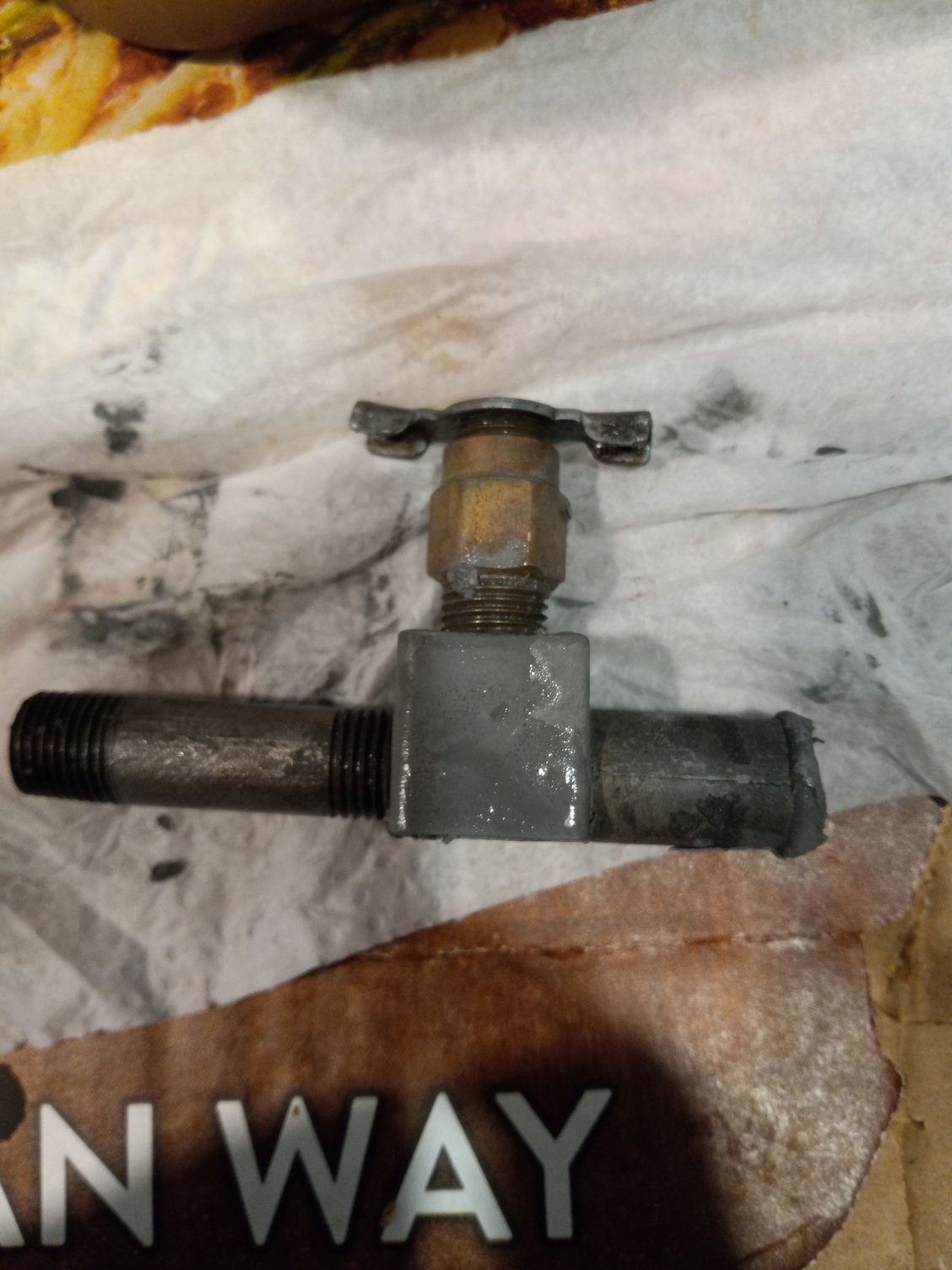

As it was installed un petcick(clogged)
As it was installed un petcick(clogged)
Cross-Country
Joined: Jul 2009
Posts: 50
Likes: 12
More Turbo
Joined: Jan 2011
Posts: 546
Likes: 40
From: Fayetteville, NC
More Turbo
Joined: Jan 2011
Posts: 546
Likes: 40
From: Fayetteville, NC
Here is a drawing that shows the heater hose that connects to the front of the head and to the carburetor spacer.
https://econoline.org/drawing.php?d=A2005-B
https://econoline.org/drawing.php?d=A2005-B
More Turbo
Joined: Jan 2011
Posts: 546
Likes: 40
From: Fayetteville, NC
Here is the same drawing but with part numbers. The part numbers have more detail below the drawing.
https://econoline.org/drawing.php?d=P-4833
https://econoline.org/drawing.php?d=P-4833
Trending Topics
More Turbo
Joined: Jan 2011
Posts: 546
Likes: 40
From: Fayetteville, NC
This exploded view of the heater gets the hoses to the engine, but does not show how they connect. One heater hose connects to the water cut-off valve (at the heater), then to the carburetor spacer, and goes through the spacer to the front of the head. The other heater hose connects to the water pump.
https://econoline.org/drawing.php?d=P-3296
https://econoline.org/drawing.php?d=P-3296
