2005 Ex brake controller project.
Howdy y’all,

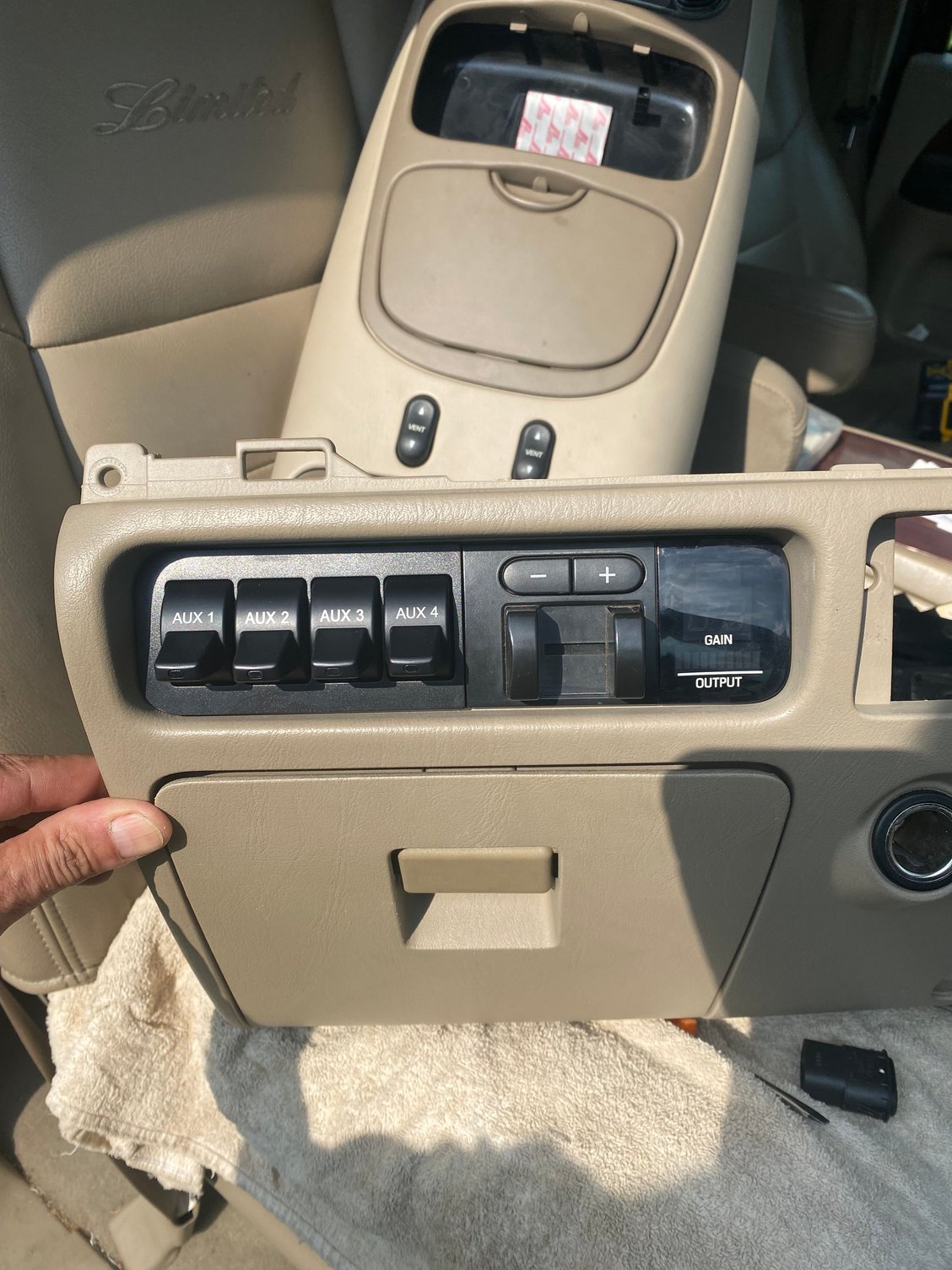

been collecting parts to do the Ex to F lower center dash swap, things are looking good, as far as the dash panel. I ended up wiring the up fitter switches directly to the battery with a little aftermarket fuse box and it seems to work well for the led off road lights. Now the fun part, hooking up a new TBC. I’ve read a lot, and am procrastinating a bit about this part of the project. Looks like my Ex has the 2 sensor master cylinder, the TBC I picked up has 2 plugs and I’m hopeful someone could guide me in the right direction on finishing this project.
been collecting parts to do the Ex to F lower center dash swap, things are looking good, as far as the dash panel. I ended up wiring the up fitter switches directly to the battery with a little aftermarket fuse box and it seems to work well for the led off road lights. Now the fun part, hooking up a new TBC. I’ve read a lot, and am procrastinating a bit about this part of the project. Looks like my Ex has the 2 sensor master cylinder, the TBC I picked up has 2 plugs and I’m hopeful someone could guide me in the right direction on finishing this project.
Fleet Mechanic
Joined: Mar 2023
Posts: 1,587
Likes: 928
Did the trailer brake controller not come with instructions?
I put one of these trailer brake controllers in awhile back, must've been pretty easy because I don't remember cursing to much about it.
https://www.etrailer.com/multi-produ...odel=Excursion
....
I put one of these trailer brake controllers in awhile back, must've been pretty easy because I don't remember cursing to much about it.
https://www.etrailer.com/multi-produ...odel=Excursion
....
Fleet Mechanic
Joined: Mar 2023
Posts: 1,587
Likes: 928
If you get that working it'll be pretty sweet. I'd say you're in for some staring at wiring diagrams of the two trucks (whatever the TBC came out of and your Excursion) to figure it out. I'm sure it can be done, but it's not common.
Post back up when you get it figured out.
...
Post back up when you get it figured out.
...
Fleet Mechanic
Joined: Jan 2023
Posts: 1,318
Likes: 446
It looks like the 2005 F series TBC does not have any communication with the cluster or other modules. It should be straightforward to connect it to your EX wiring.
Here is the TBC connection in a 2005 F150:
https://charm.li/Ford%20Truck/2005/F...r%20Connector/
Your TBC needs the standard connections: PWR, GND, BRAKE signal in, BRAKE signal out to the trailer connector
Here is the Excursion trailer wiring:
https://charm.li/Ford%20Truck/2005/E...r%20Connector/
Hopefully you have all the trailer tow relays. Do you have a 4 pin or 7 pin connector? Self serve junkyards are a good source of the connectors and you may find a matching harness to easily upgrade from 4 to 7 pin.
All the drawings you need can be found here: Navigate to repair>diagrams>electrical diagrams
https://charm.li/Ford%20Truck/
I agree, the OEM TBC looks nice!
Here is the TBC connection in a 2005 F150:
https://charm.li/Ford%20Truck/2005/F...r%20Connector/
Your TBC needs the standard connections: PWR, GND, BRAKE signal in, BRAKE signal out to the trailer connector
Here is the Excursion trailer wiring:
https://charm.li/Ford%20Truck/2005/E...r%20Connector/
Hopefully you have all the trailer tow relays. Do you have a 4 pin or 7 pin connector? Self serve junkyards are a good source of the connectors and you may find a matching harness to easily upgrade from 4 to 7 pin.
All the drawings you need can be found here: Navigate to repair>diagrams>electrical diagrams
https://charm.li/Ford%20Truck/
I agree, the OEM TBC looks nice!
Thread Starter
|
Trailering
Joined: Jan 2023
Posts: 15
Likes: 1
From: The Mitten
Thanks guys, and thanks for the wiring, the up fitter switches would plug into the same spot my rear entertainment system does on the Ex, that’s why I wired the little fuse box to power it. The truck came from the dealer with a 4 pin and 7 pin round on the rear bumper, that’s why I thought it would be possible to add the factory TBC
Last edited by GunSlinger66; Jun 5, 2024 at 05:48 AM.
FTE Leadership Emeritus
Joined: Sep 2003
Posts: 12,246
Likes: 761
From: Houston, Texas
I myself plan on this mod but plan on using a P3 rather than the factory controller. With my P3, I have WAY more options and a lot more gain for heavier trailers. The Ford TBC stops at 10.5 and leaves a lot to be desired, atleast for me.
