Hello all, again. I searched and didn't find anything exactly like my issue.
I recently have put new bulbs in the cluster (74 f-100, 2wd, 240) and everything is much much brighter but the temperature gauge no longer works. I'm not absolutely positive it's related and happened right after, but it seems pretty likely I'd think considering it's just dead. I changed the temp sensor to make sure but it didn't change anything, still doesn't move up any, just stays left.
Is there a connection or anything I should be looking for on the cluster that might cause it to happen? Or is the wire to the sensor a possible reason for it?
Thanks for all the info you all provide, it has made so much doable for me. Once I get this worked out and figure out why on earth my dome light won't come on, I'll be happy!
Last edited by Semetery; Apr 15, 2024 at 09:54 PM.
Maybe the main harness connector on the back of the cluster came loose. You should be able to reach your arm up behind the dash and find the main harness plug on the back of the cluster. Give it a push and a wiggle. If your other gauges work, the voltage regulator on the back of the cluster is still good. If you short the temp sensor wire to ground, the gauge should max out. (Don't short it for too long) But if that works, then you have a bad new sensor, or no ground path from the sensor through the block. This can happen if you use too much teflon tape on the sensor. Another possibility is that the parts store may have given you a temperature switch for an idiot light. It's unlikely, since these trucks always had a temp gauge, even with the basic cluster. These trucks require a variable resistance sensor for the gauge.
My temp gauge stops working every time I pull the cluster out. Then I reach under and push in on the far end on the wiring plug and it works again. It's done it like four times. All the other gauges always work. So does the temp as long as a leave the cluster in.
Thanks for all of the responses! I finally have some time to get in there. This is probably a really stupid question but; can I safely put my hand back under there and push the wires while it's running (to see if the gauge kicks in)?
I pushed around a little bit and then started it, no temperature gauge yet. Actually no voltage movement either, so it seems most likely to be a connection doesn't it? Bulbs on that side, too. I plan to mess with it tonight so I can see the lights as well since the right most gauge lights also weren't on last time I drove it at night. New bulbs, everything worked (including the new bulbs) at one point and now the far right is just off.
I noticed that the oil pressure is high. That anything to be concerned about? I recently put a new distributor cap, rotor, plugs, wires and changed the alternator.
Yes, you can reach in while the power is on, but make absolutely sure you have no metal on your arm and hand (rings, watches, bracelets, shirt buttons, etc). Make sure the engine has warmed up so there will be gauge movement when the connection is good. Don't put any more pressure on the wiring than necessary so you don't inadvertently knock some other connection loose.
Our trucks are 50+ years old. It's possible that corrosion has set in. Worst case, you may have to take the instrument cluster out and clean the connections. But let's leave that as a last resort! Not an easy job.
I got all the dash lights working I'm happy to say thanks to getting in there with the lights on. I jiggled the main plug on the back of the cluster to no avail, still no temperature gauge working. It worked a month ago and the next day it just was dead. Changed it and still nothing. I feel like it's most likely the connection. Is there a particular wire that goes to the back of the cluster for the temperature gauge specifically or is it just the big main plug? Does the circuit board on back come into play here at all?
The oil pressure gauge levels out after it warms up (I should've known that probably).
Find the wire that runs to the temp sensor that is screwed in to the engine. Remove the wire from the sender, connect the wire to a good ground. Turn the key on, watch the temp gauge. If it rises to full scale in a few seconds, your gauge is good & the sender is bad. Or the sender is for a warning light & not a gauge.
Also, check the connector on the end of the wire where it plugs on to the temp sender. Those connectors rust, fall apart & make poor contact. Then the gauge won't work. Replace the connector if it is bad.
I recommend doing this before you start fooling around under the dash with the cluster.
Following up here, I apologize @scottscott , I didn't see your message before. I will try that. I think about it every time I drive it.
What is the hole that I circled in the pic? I've looked for diagrams but I really suck at finding what I'm after.
EDIT: I ran a ground to the body from the connector and the temp gauge on the dash went up to full. Guess I need another sender? I literally replaced it and it didn't work with the new one, chance I got a bum one from Autozone or is it possible it's not connecting well? Probably a stupid question but is it safe to remove and wiggle the connector while the truck's running?
Last edited by Semetery; Mar 15, 2026 at 09:30 PM.
I have found that 50+ year old factory guages are good for reference and are adequate to keep you out of the “oh crap!” zone, but are inaccurate most of the time. Clean contacts and circuit boards, grounds in place, connections cleaned, new bulbs, relays, fuses and hardware, everything checked and rechecked with a multimeter and you are still stuck with a 50 year old gauge that is slightly off. However, factory guages are well sought after, desirable option to have. Why not have both?

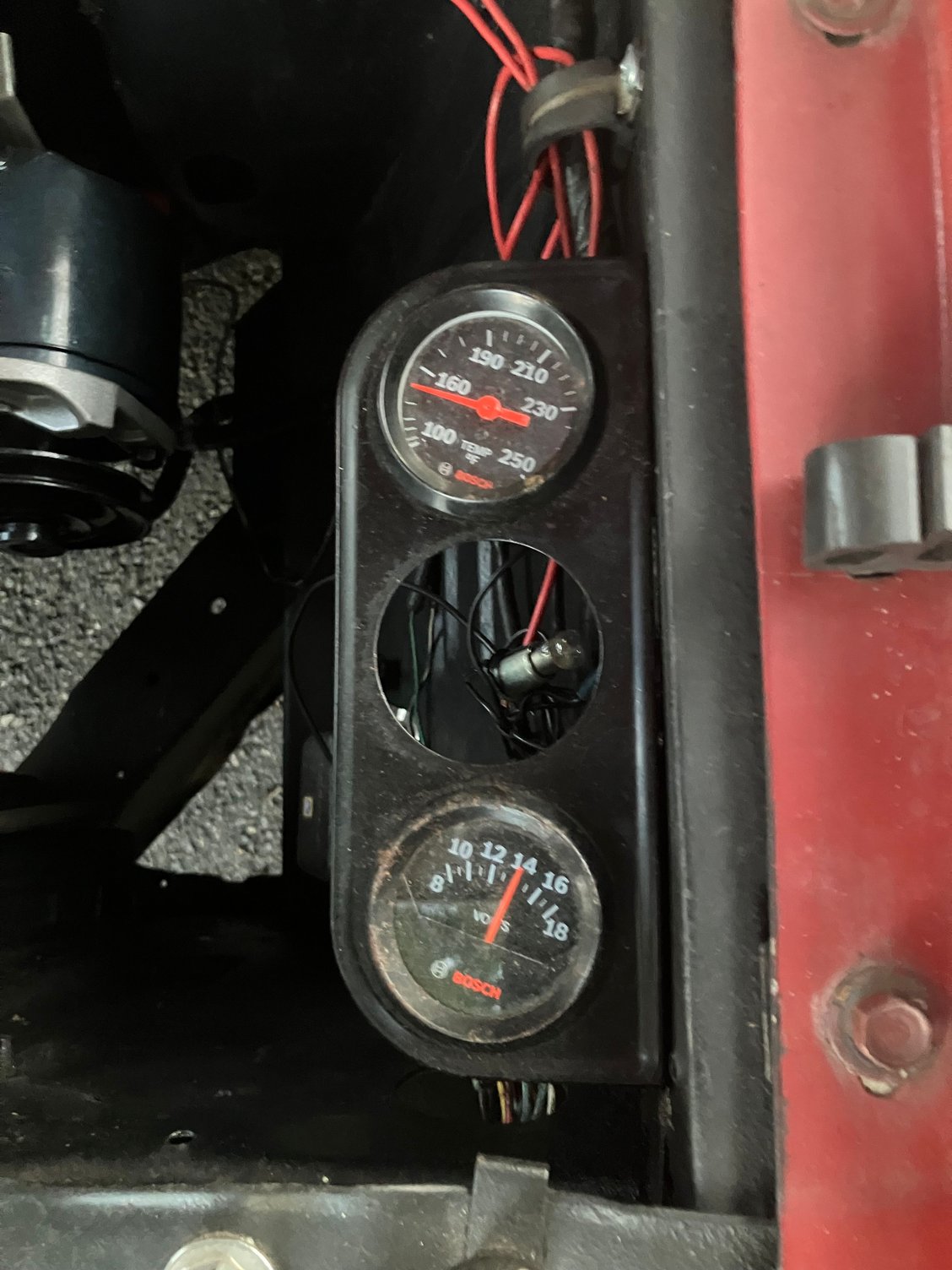

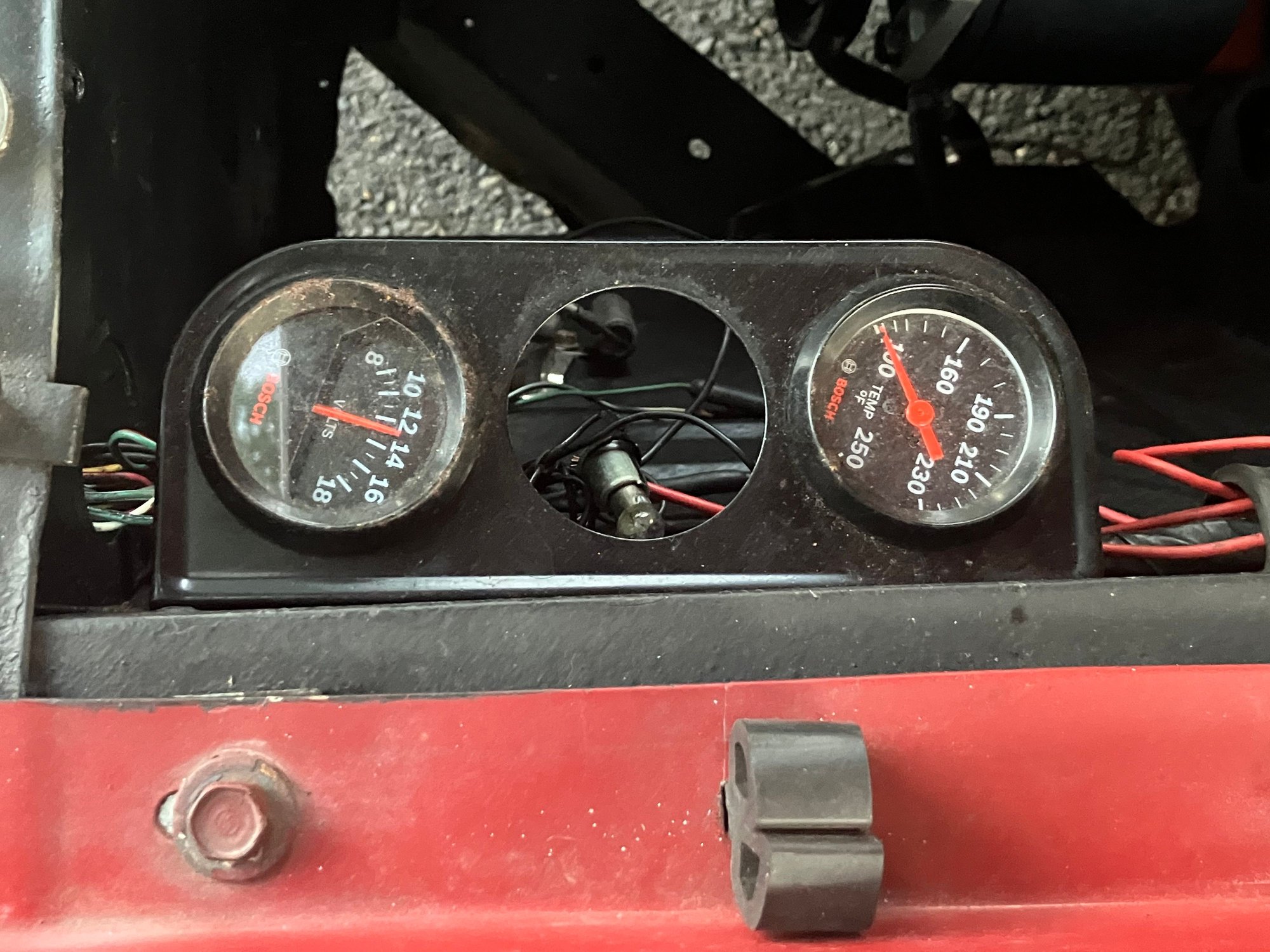

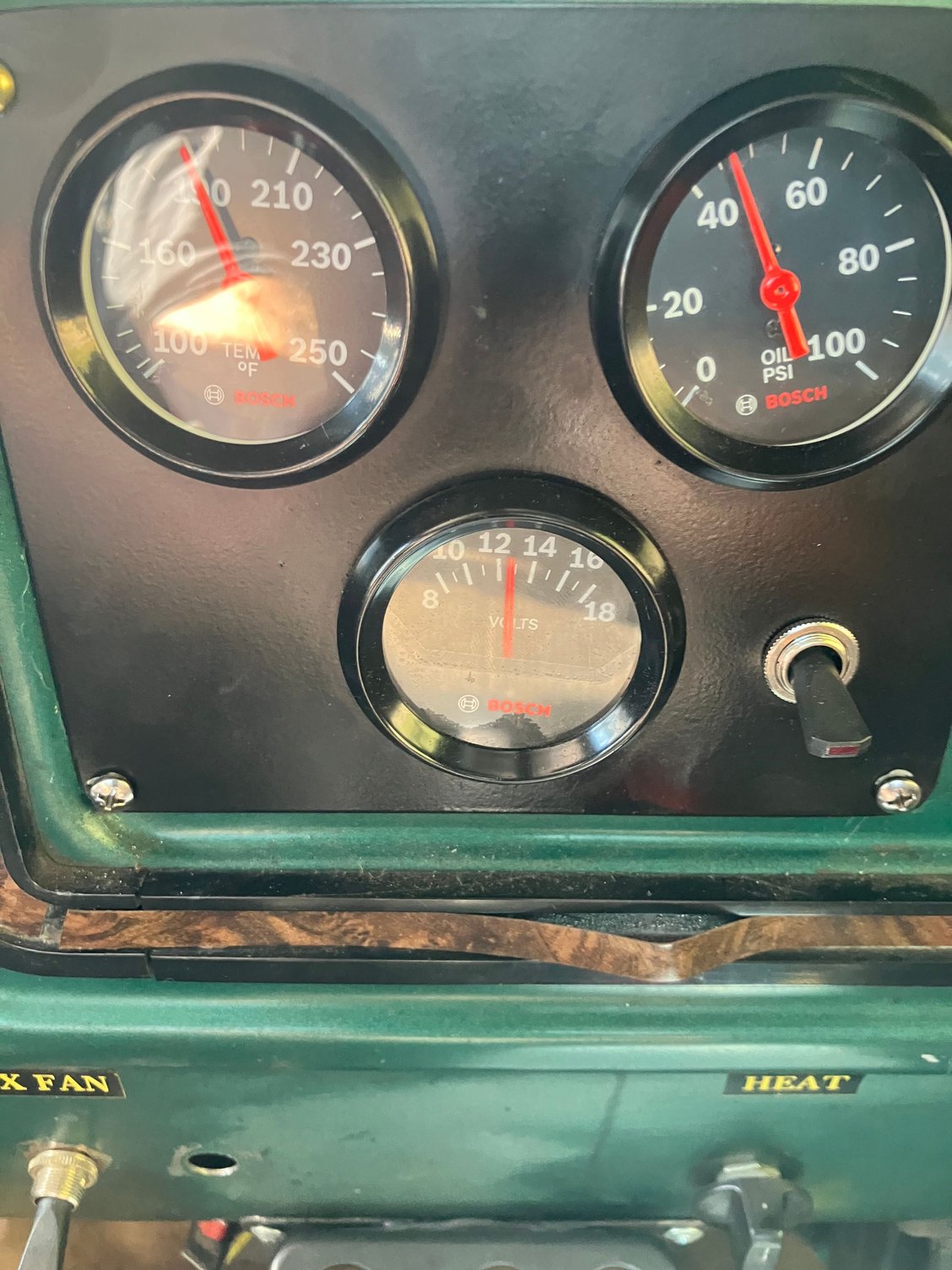

Solution? Mount an auxiliary set of “newer, more modern!” aftermarket guages somewhere for validation and more precise readings in addition to your factory dash gauges. I mounted mine under hood where I can monitor them while working on it. Use a splitter for your oil pressure, 12v from the alt and there are a bunch of places for your additional temp sensor. Easy and good insurance.
I looked up some after-market ones, I'm not opposed to it but I'd like to get the one in the dash working as well. I'm wondering if the connection to the sender might be the problem? Is it true that after-market posts on the senders are longer and could cause it to not read? If so, what's the best course of action, buy another connector or is there an easier way? A random review on Advance Auto Parts for the sender that fits says, "Worked for my 84 f350s temp gauge. 6.9 idi. The post is bigger like all aftermarket sensors but if you cut the plastic and remove the silver retaining clip the copper will spread and fit over it".
Last edited by Semetery; Mar 16, 2026 at 04:53 AM.
I’ve had brand new senders out of the box be way off dozens of times over the years. See if you can find an NOS ford factory replacement on eBay. Another issue I’ve encountered has been corroded copper wire that looked fine from the outside, but massive electrical impedance due to corrosion. Split or peel back a section of wire behind the connector, if the wiring inside is green or black, fix it. It should be bright shiny copper.
good luck
Last edited by Screwtinized; Mar 16, 2026 at 12:57 PM.
I will try that. I've ordered another connector as well. I did notice the sender I got has a longer stem/screw on it, I'm wondering if I can at least find one the appropriate length to an OEM one, if it'll read. Since the wire from the connector to a ground worked, I'm thinking it's possibly just not making proper contact.
I cleaned the connector, which looks to be in fine condition and it didn't make a difference so it seems like the only thing left is the sender itself so will replace it again. It had the appropriately sized stem actually so it's not that it was too long, it must just be a dud.
Last edited by Semetery; Mar 17, 2026 at 04:26 PM.
