I have a 1999 Coachman motorhome with 90,000 miles on it. Up until now it has run flawless. (short of a DPFE module)
# 1-5 on the passenger side exhaust manifold idles at aprox 450* on each cylinder.
# 6-10 on the drivers side idle at less than 200*.
Naturally, when I drop it in gear it wants to stall .. and barely will move under it's own power.
I cleaned the injectors.
I put new NGK (full thread) plugs in, as well as a new set of coils.
I cleared the codes and then ran the engine again. This is the results.
PO 356 Coil F
PO 357 Coil 6
PO 358 Coil H
PO 358 Coil I
PO 360 Coil J
What am I missing, or better yet, where do I go from here ...
# 1-5 on the passenger side exhaust manifold idles at aprox 450* on each cylinder.
# 6-10 on the drivers side idle at less than 200*.
Naturally, when I drop it in gear it wants to stall .. and barely will move under it's own power.
I cleaned the injectors.
I put new NGK (full thread) plugs in, as well as a new set of coils.
I cleared the codes and then ran the engine again. This is the results.
PO 356 Coil F
PO 357 Coil 6
PO 358 Coil H
PO 358 Coil I
PO 360 Coil J
What am I missing, or better yet, where do I go from here ...
Thread Starter
|
4wd Low
Joined: Jan 2023
Posts: 10
Likes: 1
Does each bank have their own coil harness that could have become possibly become unplugged (or dirty, corrosion) from the main harness ?
Does the PCM have a set of drivers for each bank, or is the ignition contained in one unit and a driver assigned to each coil ?
Is there a fuse (like for the injectors) that supplies (key on) 12 volts to the coil circuit ? Or maybe even each bank ?
What baffles me is that the driver's side bank does produce some heat at the exhaust manifold, It is less than half of the passenger side. It would seen to me that it would either be all or nothing. Not partial spark.
Where might I find a schematic for the electrical system for this engine ?
Would it be better to post this in another section where it might be more noticeable to a Ford electrical guru ????
Where are my points and condenser ... when I need them ..
Does the PCM have a set of drivers for each bank, or is the ignition contained in one unit and a driver assigned to each coil ?
Is there a fuse (like for the injectors) that supplies (key on) 12 volts to the coil circuit ? Or maybe even each bank ?
What baffles me is that the driver's side bank does produce some heat at the exhaust manifold, It is less than half of the passenger side. It would seen to me that it would either be all or nothing. Not partial spark.
Where might I find a schematic for the electrical system for this engine ?
Would it be better to post this in another section where it might be more noticeable to a Ford electrical guru ????
Where are my points and condenser ... when I need them ..
Hotshot
Joined: Jan 2004
Posts: 19,762
Likes: 1,079
From: St Louis
Where are my points and condenser ... when I need them ..

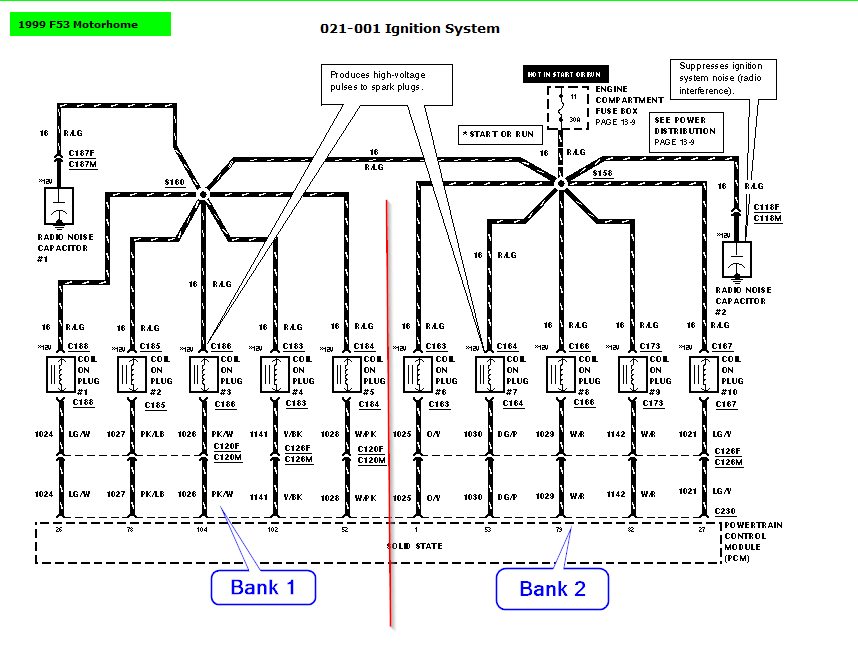

I was hoping that you'd say it was an E450 as that schematic indicates that your symptom makes good sense and is an easy fix. However, here's the schematic out of the service docs for what you have....
The data suggest that there is an issue at splice S158 which is located at "Engine control sensor fuel charge harness, near T/O for C196 fuel injector #7"
Most expedient thing would be to simply install a jumper between the two COP power wires for each bank (LG/RD) and see if that fixes it.
Thread Starter
|
4wd Low
Joined: Jan 2023
Posts: 10
Likes: 1
Thank you,
I see where wire #16 is hot out of the relay (key on) to splice #158 that goes to the coils as well as over to splice #160 to feed the left side.
Not sure what T/O means .. nor where to find splice # 196 (close to injector #7 you say, I'll look in that area)
Only LG I see is on the computer side of the coil. I was under the impression that the computer grounds the coil.
I don't see a RD in your schematic either.
Even with my glasses.
I'll hold off till I hear back, but wouldn't jumping #16 provide what we are looking for ?
Ahh yea .. the beloved distributor cap ...
I see where wire #16 is hot out of the relay (key on) to splice #158 that goes to the coils as well as over to splice #160 to feed the left side.
Not sure what T/O means .. nor where to find splice # 196 (close to injector #7 you say, I'll look in that area)
Only LG I see is on the computer side of the coil. I was under the impression that the computer grounds the coil.
I don't see a RD in your schematic either.
Even with my glasses. I'll hold off till I hear back, but wouldn't jumping #16 provide what we are looking for ?
Ahh yea .. the beloved distributor cap ...
Hotshot
Joined: Jan 2004
Posts: 19,762
Likes: 1,079
From: St Louis
Oops, that color code should have been R(ed)/LG. Circuit #16 feeds both sides
"T/O" means "take out". Its where a branch circuit breaks out of a bundle. If you start at the wires for the #7 injector and work back into the bundle, you should find that splice.
Yes, that is what I was suggesting.
"T/O" means "take out". Its where a branch circuit breaks out of a bundle. If you start at the wires for the #7 injector and work back into the bundle, you should find that splice.
but wouldn't jumping #16 provide what we are looking for ?
Trending Topics
Thread Starter
|
4wd Low
Joined: Jan 2023
Posts: 10
Likes: 1
Soooo, I finally got around (please don't ask)
to checking out my motorhome's electrical gremlin.
Splice #160 was where you said it was. Just aft of the #7 injector. While it looks overheated, shriveled up, stuck to other wires, etc. The three wires going in all had continuity with the four coming out the other side of the splice.
Where might I find splice #158 .. (in the harness) I'm pretty sure the issue is at the feed side T/O or the wire making the trip to the second bank.
I might even get brave and use something bigger than a 22 ga. wire to feed the second bank ...
All kidding aside, Thank You projectSHO89
to checking out my motorhome's electrical gremlin. Splice #160 was where you said it was. Just aft of the #7 injector. While it looks overheated, shriveled up, stuck to other wires, etc. The three wires going in all had continuity with the four coming out the other side of the splice.
Where might I find splice #158 .. (in the harness) I'm pretty sure the issue is at the feed side T/O or the wire making the trip to the second bank.
I might even get brave and use something bigger than a 22 ga. wire to feed the second bank ...
All kidding aside, Thank You projectSHO89
