Pertronix wiring
Thread Starter
|
Mountain Pass
Joined: Feb 2004
Posts: 205
Likes: 3
From: West Vancouver BC Canada
Pertronix wiring
All: My 352V8 rebuild came with a PerTronix Ignitor "electronic" points and Flamethrower 1.5 ohm coil.
As such I understand I need to provide the Ignitor with a "switched 12volts" for it to run properly.
To do so, I'll have to "splice" into the red w/green wire coming from the the ignition switch that joins the pink resistor wire.
My question is; can I disconnect the pink resistor wire and use the bullet connection on the red w/green wire to connect 12 volts to the Ignitor? I.e take the pink resistor wire out of service?
If I can't do that because the pink resistor wire connects to the solenoid thru the firewall, what is the recommended method for splicing into the red w/green wire ahead of the pink resistor wire?
Pretty technical I know, but I'm a greenhorn, and don't want to screw up a fairly pristine F250.
Thanks, Jeff
As such I understand I need to provide the Ignitor with a "switched 12volts" for it to run properly.
To do so, I'll have to "splice" into the red w/green wire coming from the the ignition switch that joins the pink resistor wire.
My question is; can I disconnect the pink resistor wire and use the bullet connection on the red w/green wire to connect 12 volts to the Ignitor? I.e take the pink resistor wire out of service?
If I can't do that because the pink resistor wire connects to the solenoid thru the firewall, what is the recommended method for splicing into the red w/green wire ahead of the pink resistor wire?
Pretty technical I know, but I'm a greenhorn, and don't want to screw up a fairly pristine F250.
Thanks, Jeff
More Turbo
Joined: Mar 2018
Posts: 610
Likes: 42
From: Lacey
You should be good to run that coil and Ignitor "straight up". I don't recommend splicing your pink wire at all. Run it as normal to your coil and use small ring connectors on the two wires off your Ignitor. Just make sure you have a solid grounding circuit between the engine, cab and frame.
Mountain Pass
Joined: Nov 2022
Posts: 111
Likes: 65
I would be very hesitant on using Petronix units. I have used them in the past, and they worked well, WHEN THEY WORKED. After the third time one of my vehicles left me stranded because the unit failed, and they will fail your car just shuts off and will not start again. I went back to points. When they start to go it is more gradual and you can usually limp home. Just my 2 cents.
Logistics Pro
Joined: May 2015
Posts: 4,474
Likes: 974
From: Tri Cities, TN
If you are using the pertronix coil you have to give it 12V. Yes, just take the pink wire out of service. You can cut it close to the ignition switch and splice in a solid wire. An inch or two of that pink wire will have no effect on the voltage. If you are concerned with a failure just keep a set of points and condenser in the glovebox. It only takes a few minutes to swap back.
Thread Starter
|
Mountain Pass
Joined: Feb 2004
Posts: 205
Likes: 3
From: West Vancouver BC Canada
If you are using the pertronix coil you have to give it 12V. Yes, just take the pink wire out of service. You can cut it close to the ignition switch and splice in a solid wire. An inch or two of that pink wire will have no effect on the voltage. If you are concerned with a failure just keep a set of points and condenser in the glovebox. It only takes a few minutes to swap back.
Your suggestion raises another question.
That is: the pink resistor wire (16A in the Ignition wiring diagram) connects at the firewall main disconnect to wire 262 going to the solenoid 'I' terminal and also wire 16 red w/green going to the plus side of the coil.
So, if I cut the pink resistor wire that removes the switched supply to the solenoid and the coil from the original harness.
The new wire, that you suggest could be spliced into a short section of the resistor wire, will provide switched power to the coil, but how does the solenoid 'I' terminal get its power?
Thanks for your assistance. Jeff
i ain't rite
Joined: Mar 2005
Posts: 65,581
Likes: 5,613
From: Marlboro Mental Hospital.
If you are using the pertronix coil you have to give it 12V. Yes, just take the pink wire out of service. You can cut it close to the ignition switch and splice in a solid wire. An inch or two of that pink wire will have no effect on the voltage. If you are concerned with a failure just keep a set of points and condenser in the glovebox. It only takes a few minutes to swap back.
as for having the pertronix go bad, i have only had one fail in over 30 years, and that was within minutes of installation.
and i have installed over 100 of them.
i still have a set of points, condensor, and feeler gauge in the glove box of both my falcon and 7 litre. but i think after 30 years in the falcon and 21 years in the 7 litre, i am safe to take the points and condensor out.
More Turbo
Joined: Dec 2019
Posts: 740
Likes: 160
From: Orange County
That is: the pink resistor wire (16A in the Ignition wiring diagram) connects at the firewall main disconnect to wire 262 going to the solenoid 'I' terminal and also wire 16 red w/green going to the plus side of the coil.
So, if I cut the pink resistor wire that removes the switched supply to the solenoid and the coil from the original harness.
The new wire, that you suggest could be spliced into a short section of the resistor wire, will provide switched power to the coil, but how does the solenoid 'I' terminal get its power?
So, if I cut the pink resistor wire that removes the switched supply to the solenoid and the coil from the original harness.
The new wire, that you suggest could be spliced into a short section of the resistor wire, will provide switched power to the coil, but how does the solenoid 'I' terminal get its power?
Wire 262 and wire 16 remain untouched, and will work just as before.
The easiest way to replace wire 16A might be to cut it near the switch and to cut it near the firewall. Then strip those two short ends at the switch and the firewall and splice a new wire in between them.
There are other ways, and possibly better ways - like completely removing the entire 16A wire and building a new wire with the right connector ends - but provided you get a good connection at the two ends of a splice, it should be fine.
Wire 16 and 262 are 18 gage. I would choose 18 gage for your replacement wire. Wire 16A is 20 gage, so you will be splicing 18 gage to 20 gage, which is fine. Just choose the right size of splice item. For instance, the very common Dorman wire splices and connectors would be the Red ones for 20 and 18 gage (not the blue ones or yellow ones). https://www.dormanproducts.com/c-314...onnectors.aspx
You could do a 'permanent' crimped butt splice, or add crimped male/female connectors on all the ends and plug the new wire in.
I do not suggest using types of push-on or T-tap style splice connectors. These are not reliable.
I've run Pertronix for years w/o any issues. I've found better overall performance and easier maintenance with it. You could keep a spare Pertronix in your glove box. I don't.
Trending Topics
i ain't rite
Joined: Mar 2005
Posts: 65,581
Likes: 5,613
From: Marlboro Mental Hospital.
when i do a splice i use either a red or blue crimp barrel connector with the plastic cut off. then solder it, and finish with heat shrink tubing.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Fords at 2026 Carlisle Ford Nationals
Joe Kucinski
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Mountain Pass
Joined: Mar 2022
Posts: 204
Likes: 68

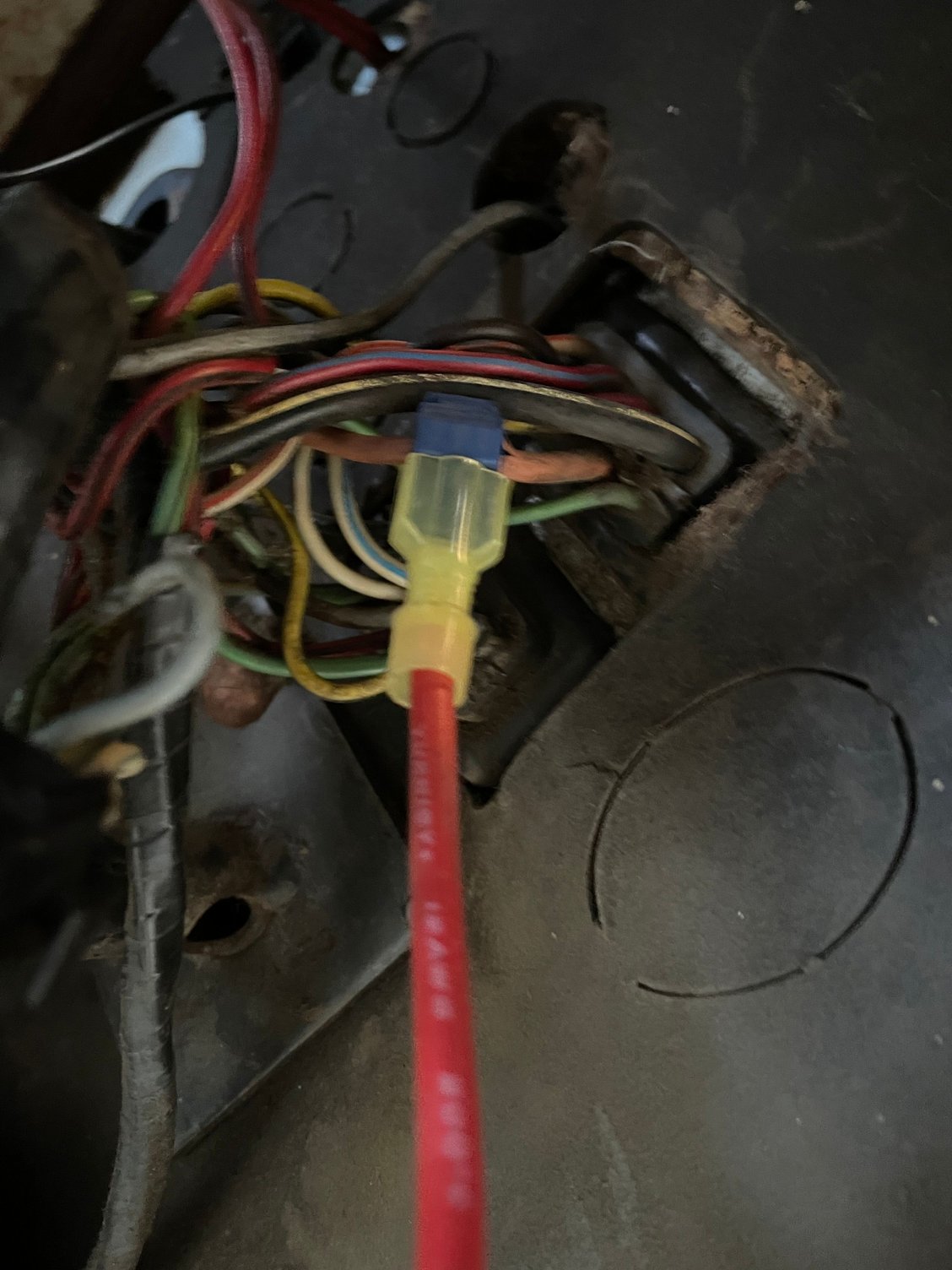

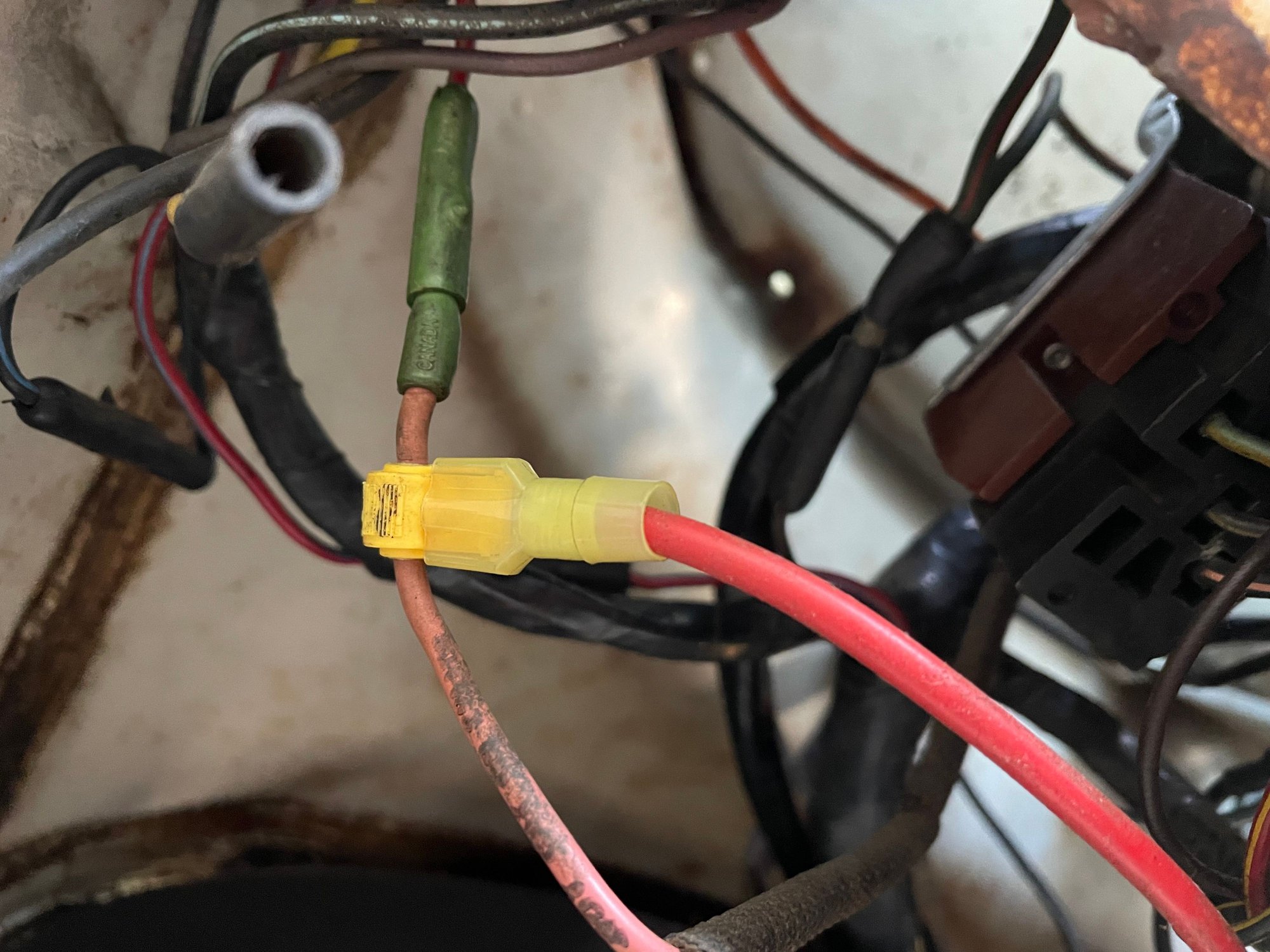

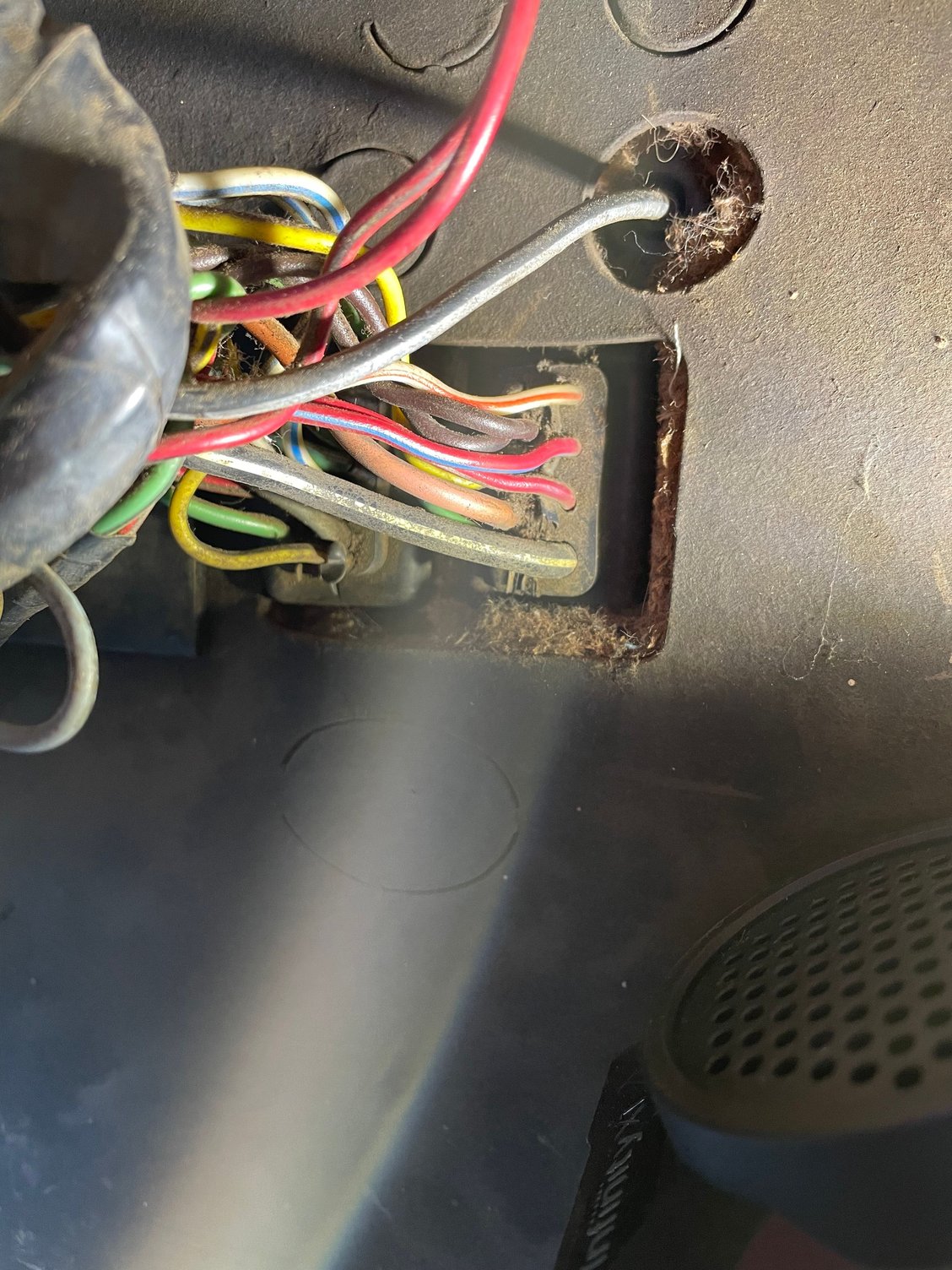

Instead of replacing 16A I just run a 18 gauge wire in parallel for Pertronix units. This way it is still in place if you want to go concours at one point
Keep in mind you the supply voltage must be 0V if the engine is not running. If you start the engine and for whatever reason the engine dies, turn the key. Otherwise Pertronix 1 units are getting damaged. Regarding reliability, I personally never had an issue with my Pertronix units. But I also have my old points in the trunk. I stranded before with a bad condenser... So even with reliable points you can run into issues.
Keep in mind you the supply voltage must be 0V if the engine is not running. If you start the engine and for whatever reason the engine dies, turn the key. Otherwise Pertronix 1 units are getting damaged. Regarding reliability, I personally never had an issue with my Pertronix units. But I also have my old points in the trunk. I stranded before with a bad condenser... So even with reliable points you can run into issues.
More Turbo
Joined: Dec 2019
Posts: 740
Likes: 160
From: Orange County
me too, but my response was getting too long
