Confused Steering Column Issue
Thread Starter
|
Fleet Mechanic
Joined: Apr 2017
Posts: 1,391
Likes: 106
From: COSMOS
Confused Steering Column Issue
Is the part 3510 the welded flange ?

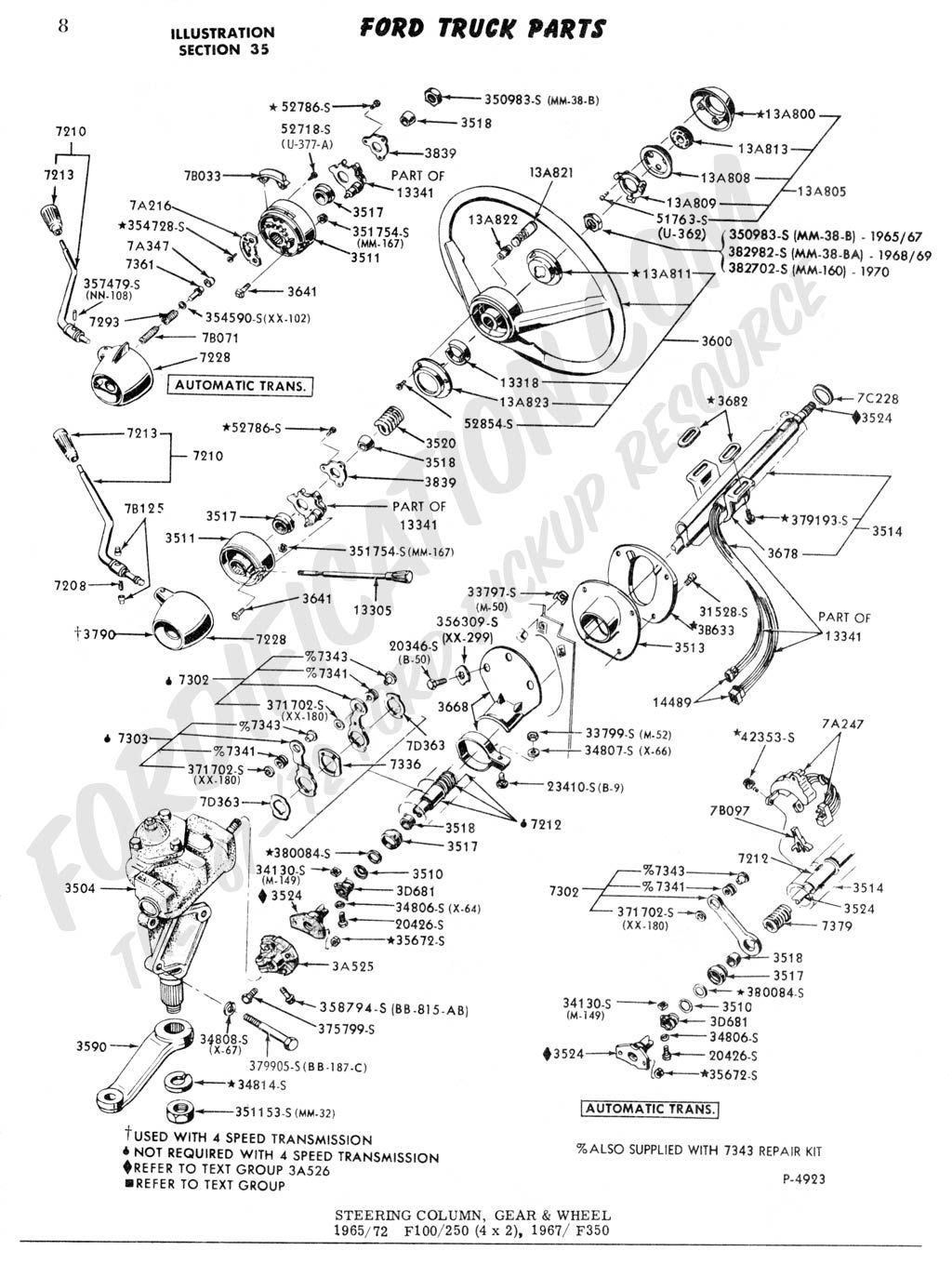

In this drawing part 3510 is causing too much stress
I am attempting to reassemble my column with several new parts & need to know if part 3510 is the flange that is spot welded in the column tube !!!!!!! I do not see how it can be, so if not what is it
HELP, I WAS SO READY TO COMPLETE THIS & NOW I AM CONFUSED BECAUSE I CANNOT FIGURE OUT WHAT THAT PART IS ..................IF it is not the flange then WHAT IS IT !!!
