Upfitter switch possibilities
Thread Starter
|
New User
Joined: Apr 2020
Posts: 9
Likes: 0
Upfitter switch possibilities
I’ve found a complete lack of information about the Upfitter system. I work with a fleet of 8 SD’s from 2007 to 2022 and 2 Transit Vans, all with Power Strokes. Several of them came with wiring harnesses in the glove compartment, none have any info on what they are used for or even where they plug in. Can anyone point me in the direction of where to find this information? Thanks
Wiser by FTE
Joined: Jan 2010
Posts: 2,837
Likes: 48
try this link, I've used it on my E350 's and my F250 Publications | Body Builder Advisory Service (fordbbas.com)
Lead Driver
Joined: Nov 2005
Posts: 8,450
Likes: 4,948
Upfitter switch setup has changed a number of times over the years, and of course between truck models, so you will need to look for specific info for each different model you are working with.
Most have youtube videos made for them, so worth looking there for guidance.
Most have youtube videos made for them, so worth looking there for guidance.
Logistics Pro
Joined: Apr 2000
Posts: 4,334
Likes: 306
From: Mills River
This info can be really hard to find. Here’s the upfitter bulletin for the 2011-16 Super Duty trucks:
https://madocumentupload.marketingas...258b7&v5=False
2017 to 19 Super Duty trucks:
https://madocumentupload.marketingas...529ff&v5=False
https://madocumentupload.marketingas...1fb63&v5=False
2008 SD:
https://madocumentupload.marketingas...048f2&v5=False
HTH,
Jim / crewzer
https://madocumentupload.marketingas...258b7&v5=False
2017 to 19 Super Duty trucks:
https://madocumentupload.marketingas...529ff&v5=False
https://madocumentupload.marketingas...1fb63&v5=False
2008 SD:
https://madocumentupload.marketingas...048f2&v5=False
HTH,
Jim / crewzer
Logistics Pro
Joined: Apr 2000
Posts: 4,334
Likes: 306
From: Mills River
More info:
2020 Transit Body and Equipment Mounting Manual (I *really* like this manual; see the Index to find Aux Switch info in Section 4.21):
https://madocumentupload.marketingas...e5b3d&v5=False
2021 Super Duty Body Builders Layout Book (see Index to find Upfitter Switches):
https://madocumentupload.marketingas...4a8a3&v5=False
I have no idea about “harnesses” in the glove boxes. Can you post pictures?
I hope you’ll share the results of your application projects!
HTH,
Jim / crewzer
2020 Transit Body and Equipment Mounting Manual (I *really* like this manual; see the Index to find Aux Switch info in Section 4.21):
https://madocumentupload.marketingas...e5b3d&v5=False
2021 Super Duty Body Builders Layout Book (see Index to find Upfitter Switches):
https://madocumentupload.marketingas...4a8a3&v5=False
I have no idea about “harnesses” in the glove boxes. Can you post pictures?
I hope you’ll share the results of your application projects!
HTH,
Jim / crewzer
Trending Topics
Logistics Pro
Joined: Apr 2000
Posts: 4,334
Likes: 306
From: Mills River
Update: See page 135 in the Transit manual for information on Accessory Kits, including harnesses.
I wish we had a manual like this for our Super Duty trucks.
HTH,
Jim / crewzer
I wish we had a manual like this for our Super Duty trucks.
HTH,
Jim / crewzer
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Thread Starter
|
New User
Joined: Apr 2020
Posts: 9
Likes: 0

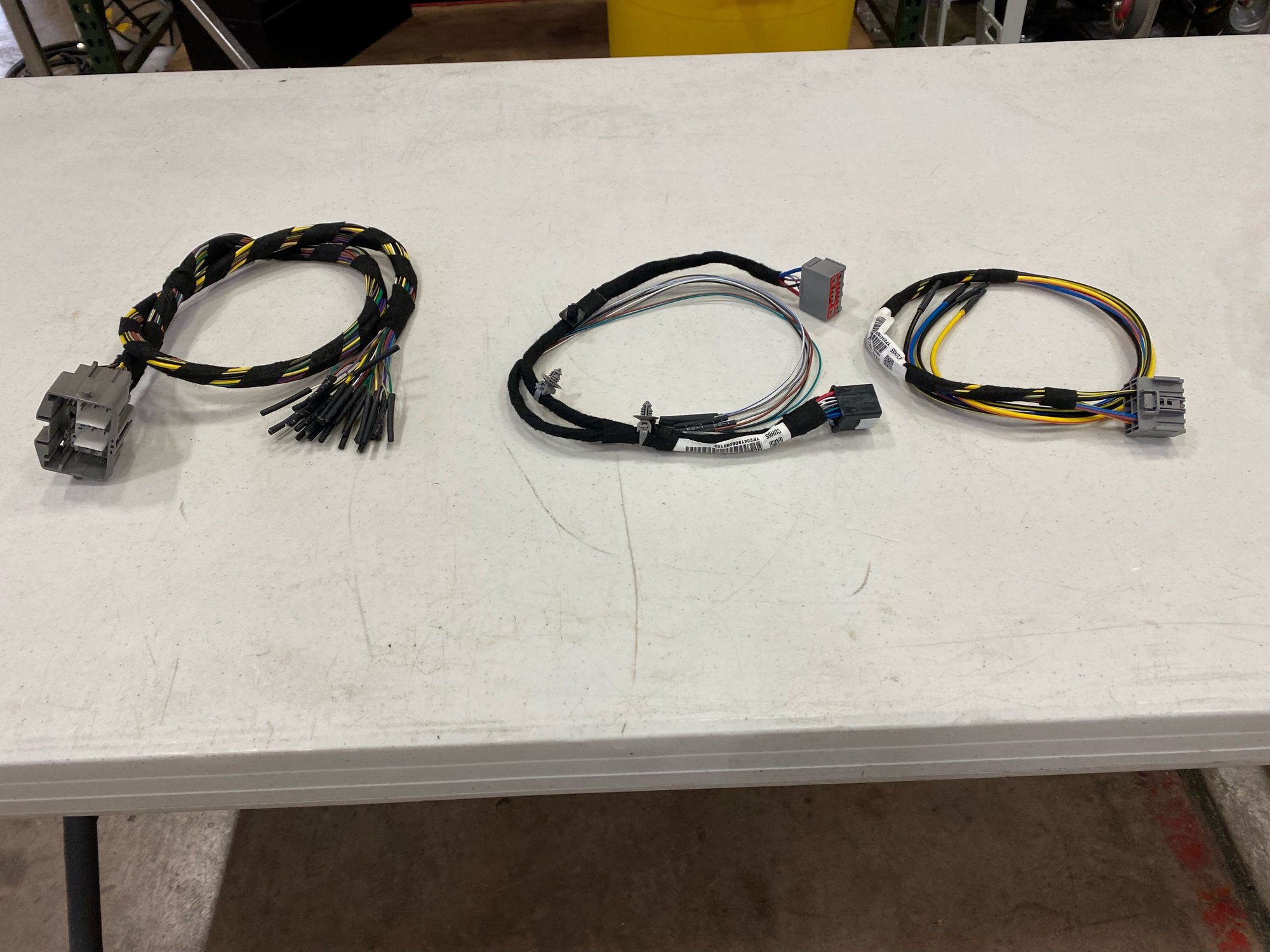

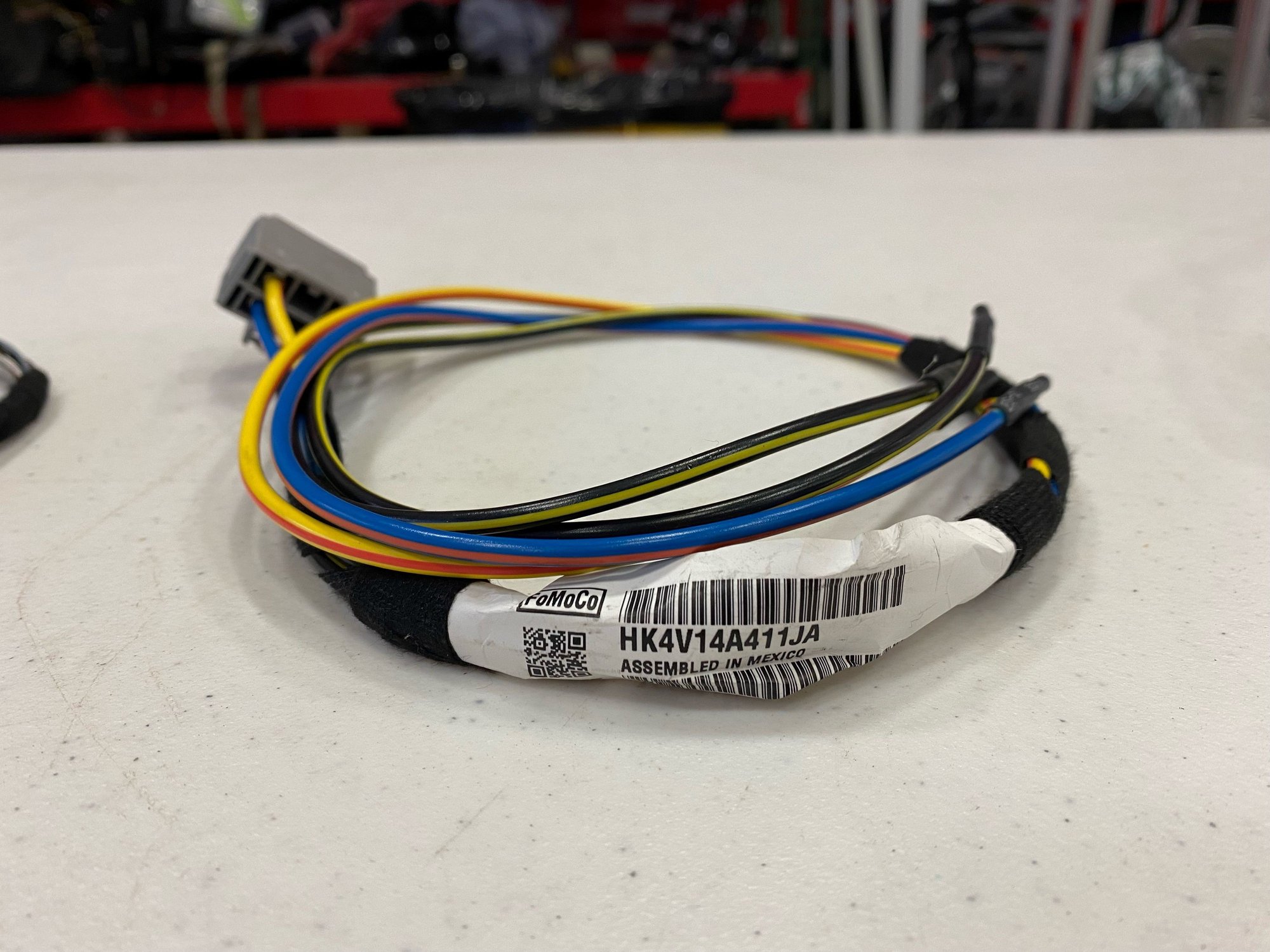

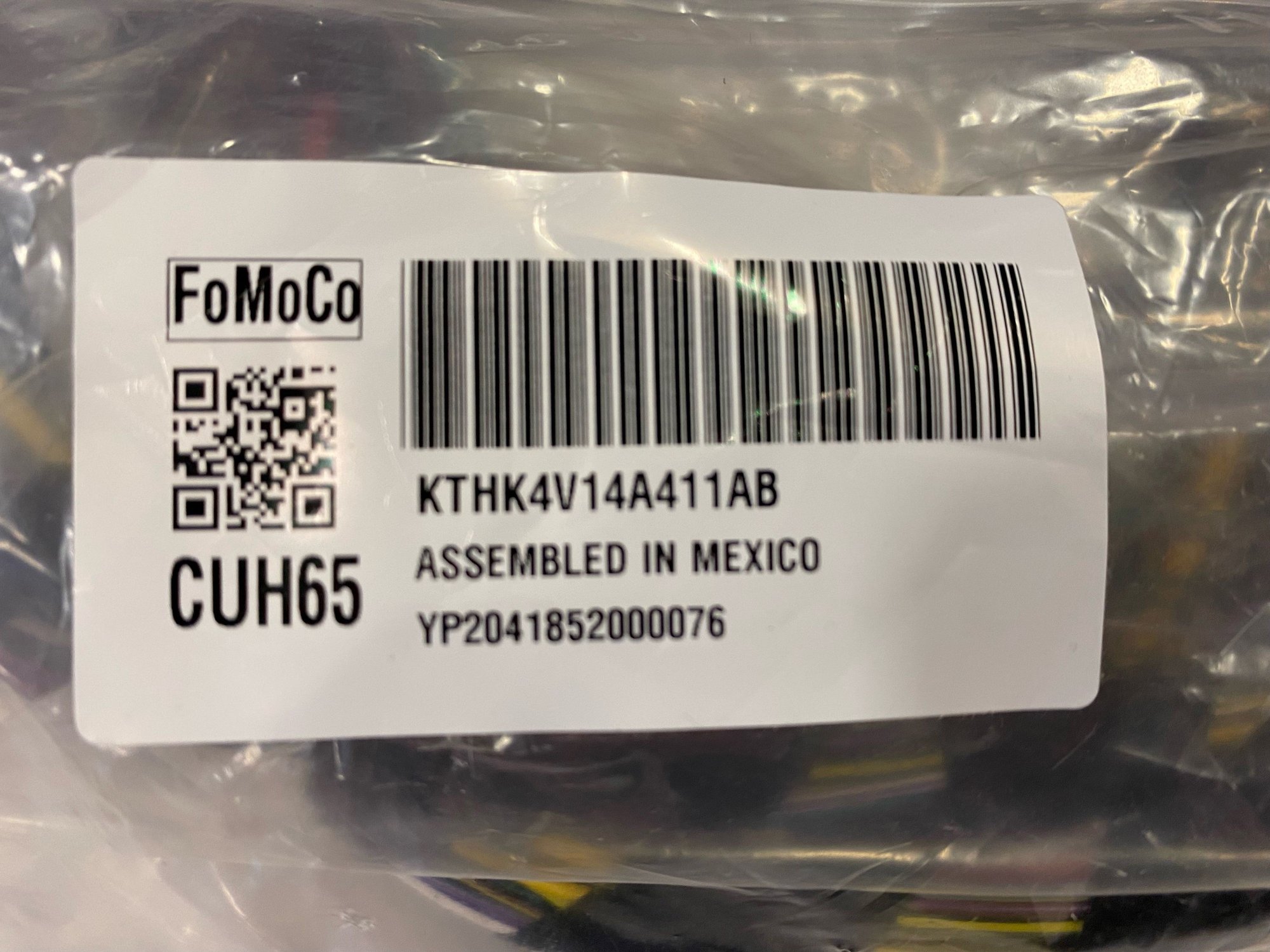

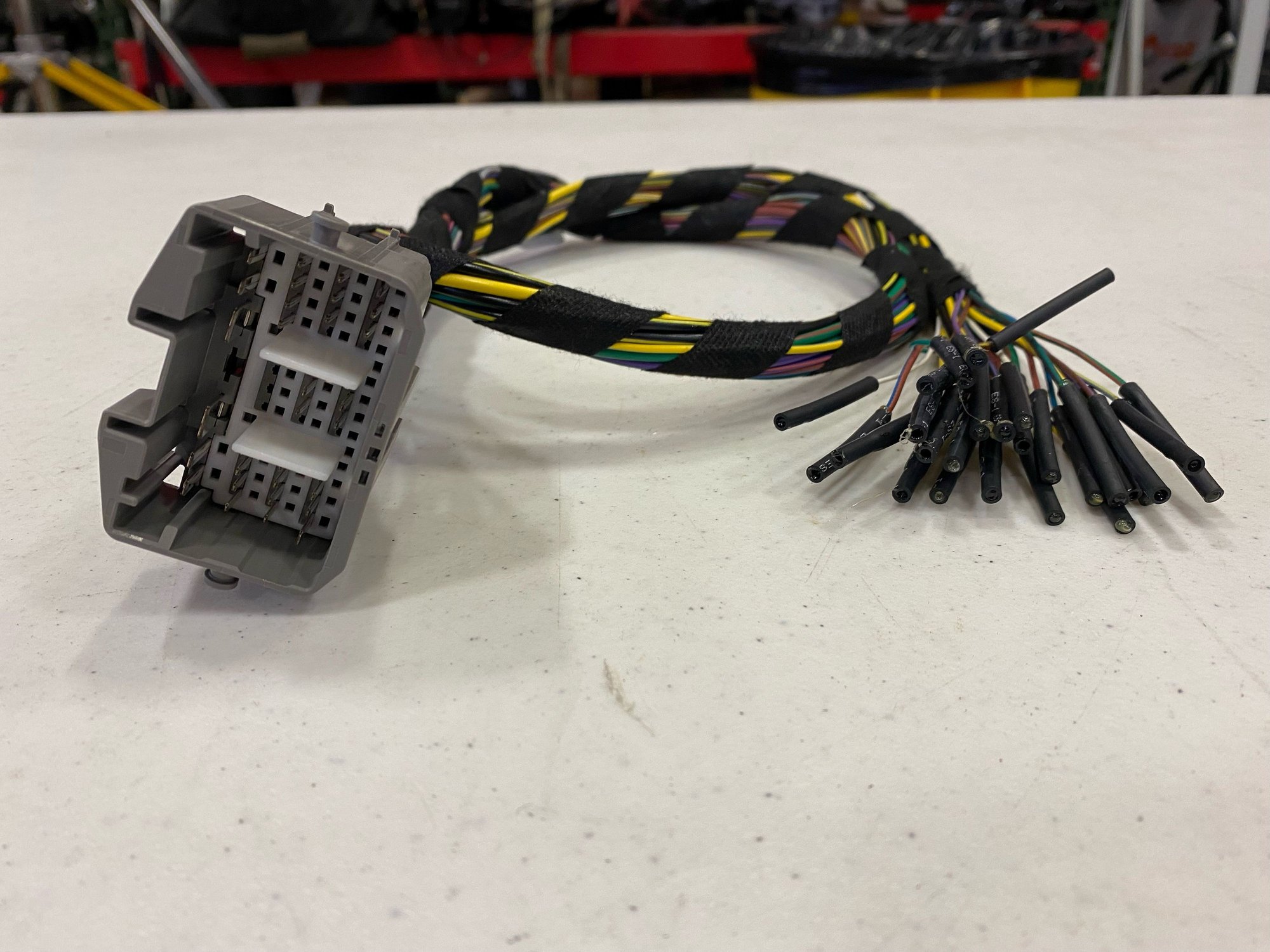

pics have been added. Thanks
Thread Starter
|
New User
Joined: Apr 2020
Posts: 9
Likes: 0
Thank you sir, this is very helpful.
Logistics Pro
Joined: Apr 2000
Posts: 4,334
Likes: 306
From: Mills River
OK!
Here’s a link to the 2019 Transit Body Mounting and Equipment Manual:
https://madocumentupload.marketingas...1318f&v5=False
The Transit harnesses sure look like the ones described in the manual’s “Accessory Kits”; see 2019 Manual pages 136 and 137.
You should be able to Google on the harness part numbers to confirm / get more application info.
HTH,
Jim / crewzer
Here’s a link to the 2019 Transit Body Mounting and Equipment Manual:
https://madocumentupload.marketingas...1318f&v5=False
The Transit harnesses sure look like the ones described in the manual’s “Accessory Kits”; see 2019 Manual pages 136 and 137.
You should be able to Google on the harness part numbers to confirm / get more application info.
HTH,
Jim / crewzer
