Copied your question from https://www.ford-trucks.com/forums/1...e-routing.html below:

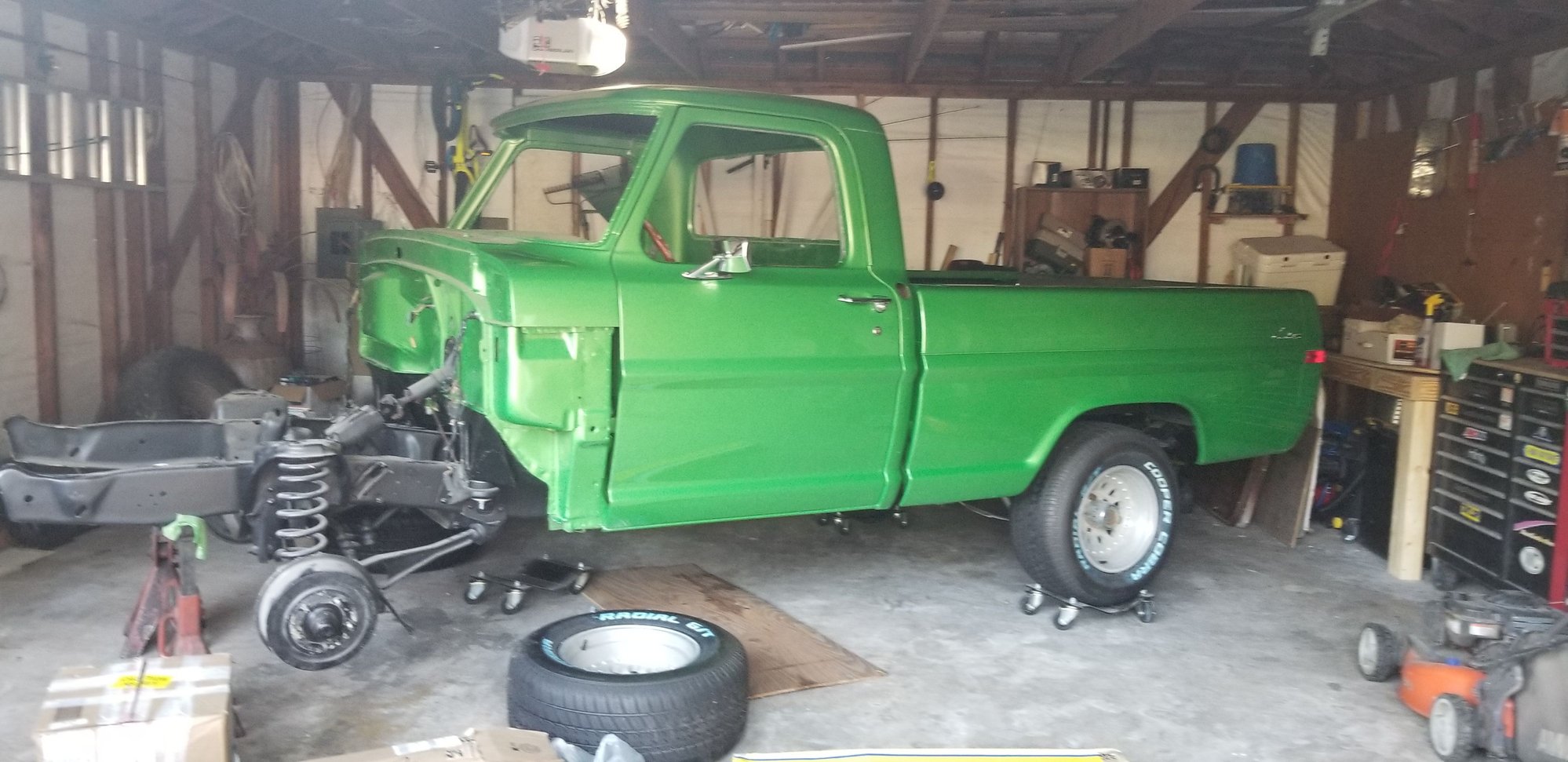

I have a 72 f100 I stripped to the frame a few years back. The paint shop threw away my brake lines. Was going to replace them anyways but I have nothing to go by. I bought a new pre-bent kit with horrible labels. I have the rear on at the wheels but there isn't a line long enough to go from the rear to the front. Does anyone know if it is two pieces and supposed to have a union? The kit didn't come with a union but don't see any other way this works. I cant find a diagram anywhere. Thanks.
FTE Legend
Joined: Nov 2015
Posts: 30,828
Likes: 4,094
From: Angier, NC
I cant say on your 72 but my 81 flare side short bed truck did use a 2 piece line front to rear with a union.
As did my long bed parts truck. I think the factory only changed the rear part of that 2 piece to fit the different WB trucks.
Dave ----
As did my long bed parts truck. I think the factory only changed the rear part of that 2 piece to fit the different WB trucks.
