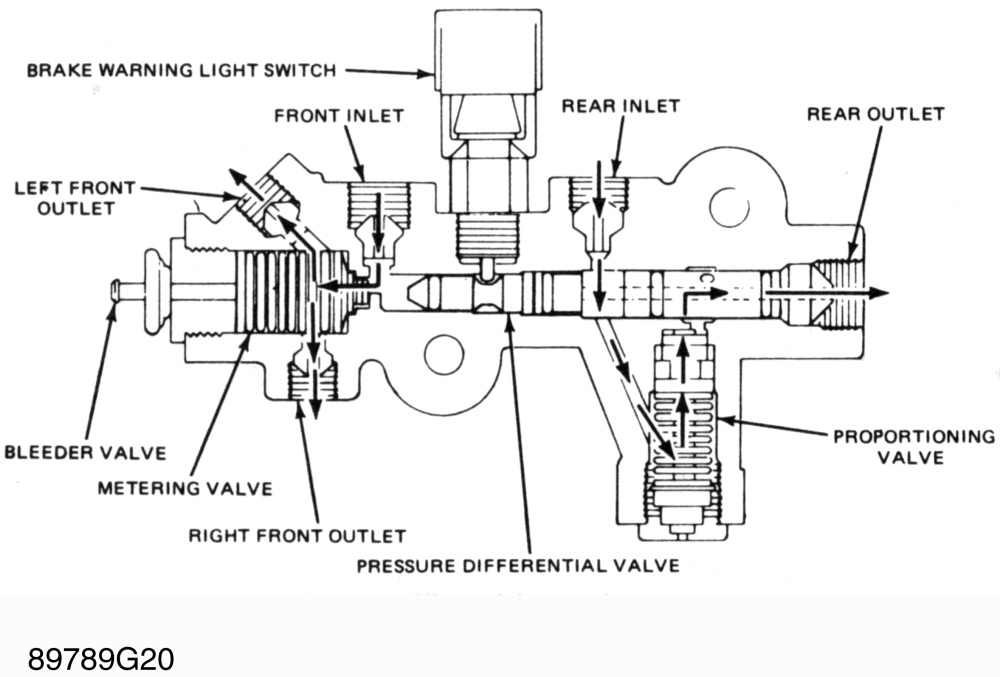

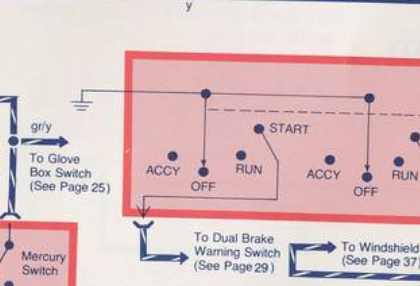

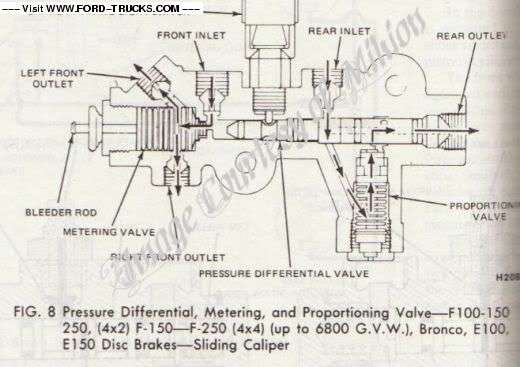

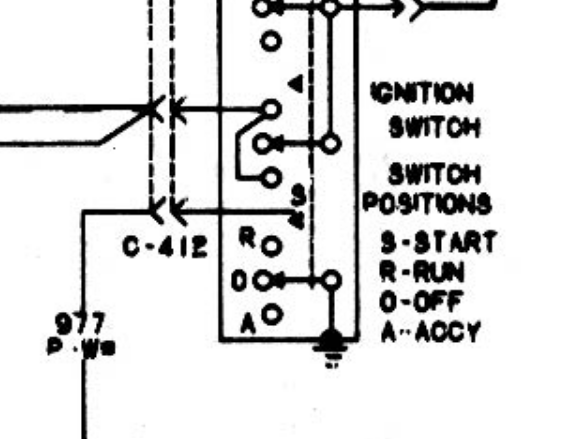

Testing procedures for the ignition switch call for continuity between the prove-out pin and the ignition switch body.

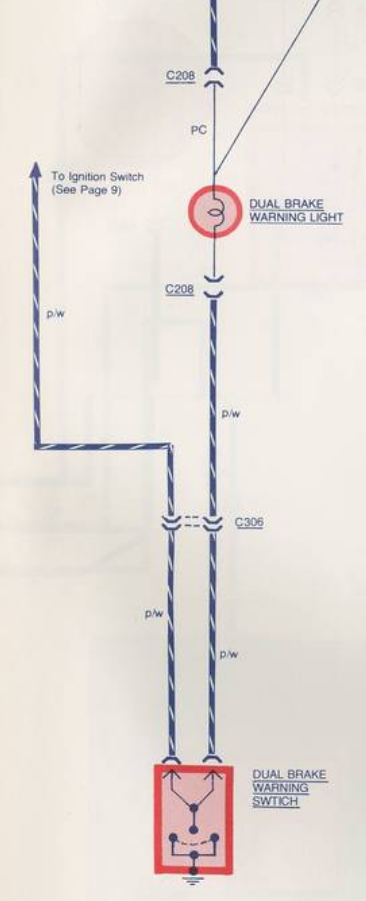

Voltage for the warning lamp is provided ONLY from the instrument cluster.

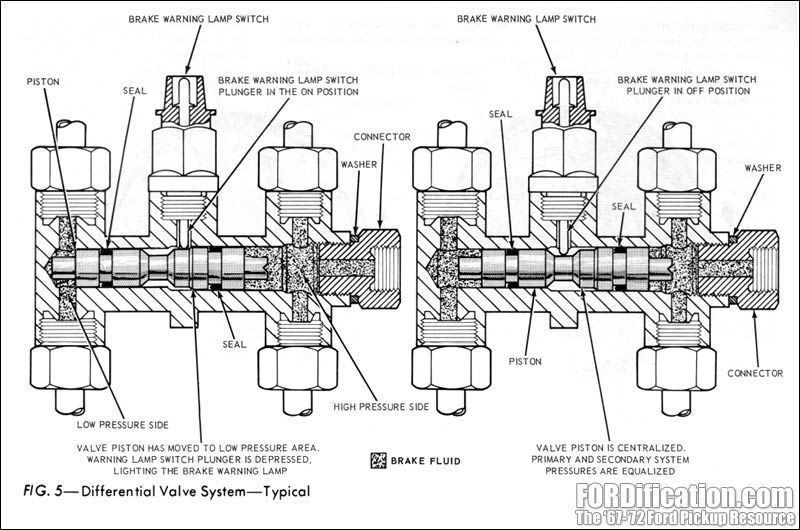

So in order for the prove-out circuit to illuminate the bulb, it's clear that electrically both pins are the same. You can prove this by checking continuity between the two pins on the valve.
I would never have associated ground wires with a 'live' ignition switch circuit, but it all makes sense now.
How do you upload a pdf so that it shows on the page, like yours, instead of showing as an attachment ?
I took a load of IQ Boosting tablets to work it out, but they either don't work, or I'm unfortunately immune to them.

I ran out of time in my last post, and didn't mention the tube nuts.
The M10 and M12 tube nuts in the 1995 Ranger MC require ''bubble'' flares on the lines.
The 9/16-18 and 7/16-24 tube nuts in the 2002 F150 MC require ''Double'' flares.
I bought these for my new combination valve (CV) :
https://www.summitracing.com/parts/SUM-220237
Before I threw the CV in the bin, I removed the tube nuts, and subsequently used them on my 2002 F150 MC.
The attachments show the differences between the flares, and which tube nuts are used on the CV.
