Alternator not charging
Thread Starter
|
Cross-Country
Joined: Aug 2020
Posts: 52
Likes: 4
Alternator not charging
I’ve got a 1974 F250 with a 390FE and I have a few accessories that require an alternator above 65 Amps so I bought the same type, 1g, 4 wire, 100 amp. The first time I put it in it didn’t charge my battery which was odd, so I put the old 65 amp back in and that wouldn’t charge my battery either after it literally just did an hour before. It ended up being a bad voltage regulator so I replaced that with a 12v one from oreilys. Well I took the new 100 amp alternator to oreilys to get tested because I’ve put it in about 5 times and it still doesn’t charge, and it tested good, so I went home and put it back in today and reclocked the alternator to see if that would change anything and it didn’t.
Im so lost because my 65 amp alt charges it’s just not big enough so I need to get this 100 amp to work. No fusible links are blown, I actually converted them to regular fuses. Im just so lost I have no idea what to do. The ground wire is new and runs straight to my battery to see if that was the problem and it wasn’t.
If anyone can help, I would greatly appreciate it.
Im so lost because my 65 amp alt charges it’s just not big enough so I need to get this 100 amp to work. No fusible links are blown, I actually converted them to regular fuses. Im just so lost I have no idea what to do. The ground wire is new and runs straight to my battery to see if that was the problem and it wasn’t.
If anyone can help, I would greatly appreciate it.
Thread Starter
|
Cross-Country
Joined: Aug 2020
Posts: 52
Likes: 4
I’m not sure if this will help but here’s the new one I got.
https://www.summitracing.com/parts/s.../ford#overview
https://www.summitracing.com/parts/s.../ford#overview
Lead Driver
Joined: Nov 2006
Posts: 5,217
Likes: 506
From: Pa.
I’m not sure if this will help but here’s the new one I got.
https://www.summitracing.com/parts/s.../ford#overview
https://www.summitracing.com/parts/s.../ford#overview
Thread Starter
|
Cross-Country
Joined: Aug 2020
Posts: 52
Likes: 4
Trending Topics
Thread Starter
|
Cross-Country
Joined: Aug 2020
Posts: 52
Likes: 4
From the description it says "no on 1 wire capable" and externally regulated. So It's definitely 1G. So from the 1G wiring diagram from above can you see any mistakrs in your current wiring set up ? Maybe tomorrow in the day light double check it. If still no joy post back and we'll go from there. A guy needs a 100 amps these days
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
FTE Emeritus
Joined: Jan 2006
Posts: 2,288
Likes: 200
From: springfield Missouri area
Make sure the voltage regulator is grounded good, after installing and removing the screws they get loose. It will blow the regulator if not, I went thru several before I was told to ground to the battery.
Thread Starter
|
Cross-Country
Joined: Aug 2020
Posts: 52
Likes: 4
However, I’ve got another question. With both the old and new alternator, there’s a 5th post on it with no writing next to it. With the 65 amp, the ground wire ran to that, leaving the post labeled “GRD” empty. With the new alternator, I moved the ground to the “GRD” post but it still didn’t change anything. What would be the reasoning behind that? Is that why the other posts on the alt aren’t getting power, because it’s not grounded properly?
Lead Driver
Joined: Nov 2006
Posts: 5,217
Likes: 506
From: Pa.
The regulator has a good ground. The FLD post is still getting no power, and I checked the STA post and that’s not getting power either.
However, I’ve got another question. With both the old and new alternator, there’s a 5th post on it with no writing next to it. With the 65 amp, the ground wire ran to that, leaving the post labeled “GRD” empty. With the new alternator, I moved the ground to the “GRD” post but it still didn’t change anything. What would be the reasoning behind that? Is that why the other posts on the alt aren’t getting power, because it’s not grounded properly?
However, I’ve got another question. With both the old and new alternator, there’s a 5th post on it with no writing next to it. With the 65 amp, the ground wire ran to that, leaving the post labeled “GRD” empty. With the new alternator, I moved the ground to the “GRD” post but it still didn’t change anything. What would be the reasoning behind that? Is that why the other posts on the alt aren’t getting power, because it’s not grounded properly?
Thread Starter
|
Cross-Country
Joined: Aug 2020
Posts: 52
Likes: 4

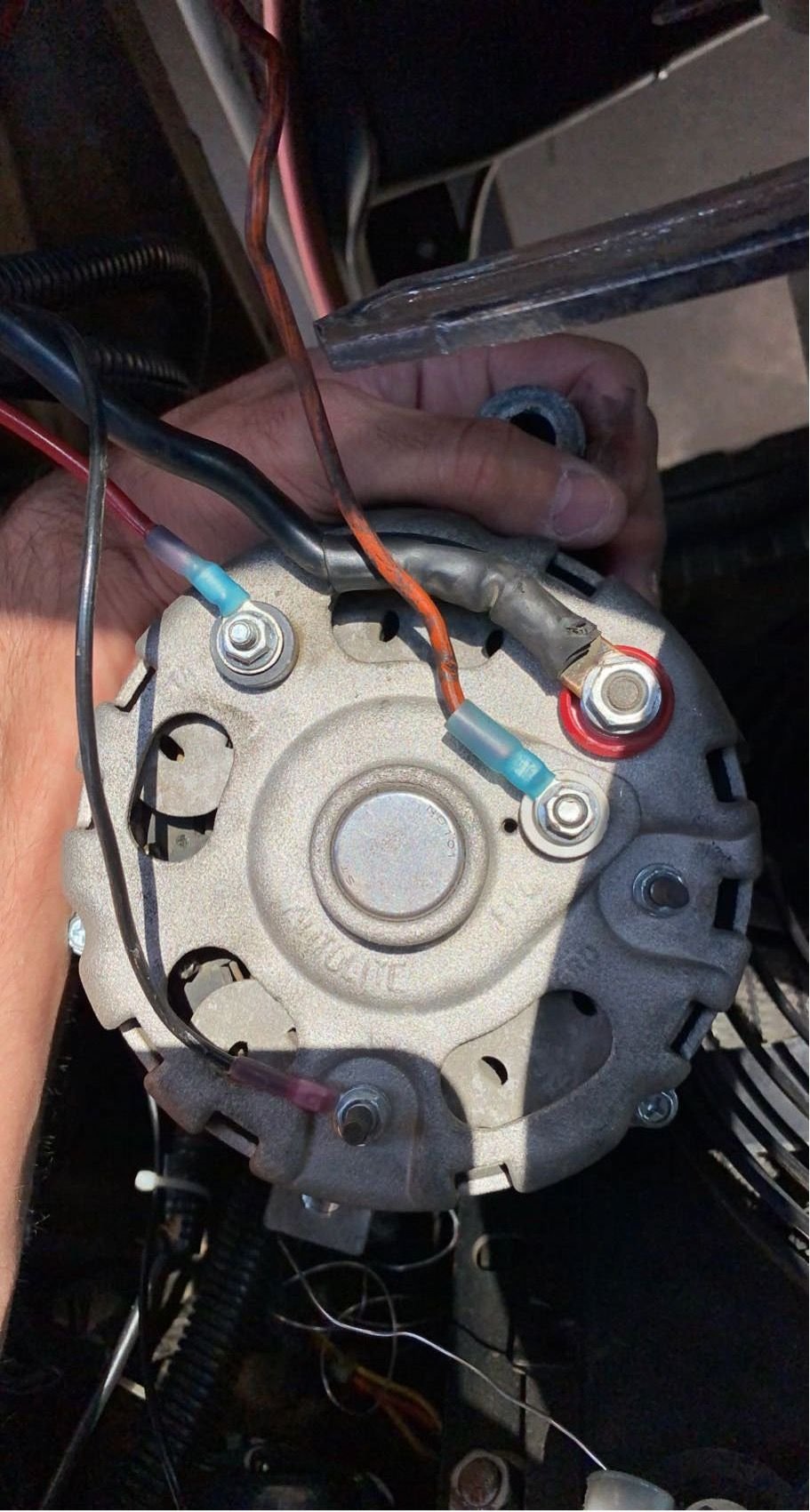

This is the 65 amp but the 100 amp is identical. As you can see, the ground was not on the GRD post, but rather the empty post.
