Pushrod Length Confusion
This engine is not fully stock but it does use OE roller lifters.
First off I decided to do the half lift method of finding pushrod length. Cam is on TDC compression stroke with the intake and exhaust valve both on the base circle. The head was set down atop the block sans gasket (can just add the gasket thickness to the length of the pushrod to compensate). The 7/16 studs were screwed down and snuged lightly in place atop the AFR guide plate. I then set the scorpion roller rocker on the rocker arm stud after drawing a line between the center of the roller tip pin and the center of the pivot pin. I adjusted the polynut down till this line was as straight as possible for my eyes in line with the horizontal nature of the top of the valve spring retainer plate. I then did the math for my cam to break 0.520"/0.541" lift to half lift which was 0.260"/0.271" and taking into account of the 7/16" studs and 1 full turn of the polynut equals 0.050" I marked the polynut and turned it 5.2 turns down to set the rocker arm at half lift. I then adjusted my adjustable pushrod out till it took up the slack between the lifter and the rocker arm. The measurement I got out of the 4 times I tried it varying the adjustment for initial level I was getting 6.4875" to 6.50" on the pushrod length.
I noticed the roller tip looked funky so I marked the valve top with a sharpie and wiggled the rocker arm with the 6.50" pushrod length and found that the roller tip in this relaxed position was outboard of the centerline of the valve tip. This is obviously not going to work like that and even accounting for 0.039" - 0.041" headgaskets will not pull the roller tip on the inboard side of centerline.
I looked up the OE length of pushrod which is 6.25" and adjusted the adjustable pushrod to 6.25" and then adjusted the rocker arm down and wiggled on fresh sharpie and the roller mark shows at rest to be inboard of the center line on the valve. I tried it again with 6.35" pushrod length (AFR stated OE length pushrod or 0.100" longer), and it still was inboard of the center line but a little closer.
My problem is why did my half lift method I did multiple times to the tee give me a length of pushrod that put me on the outboard side of the valve tip when it should be on the inboard side?
My other problem is do I go with 6.35 and throw on 0.039" - 0.041" for the headgasket which would force me to run a 6.40" length as there is nothing between 6.35" and 6.40". Or do I take and invest in a machinists edge and keep trying on the half lift method to try and get a different length.
I will be installing the lifters and retainers tomorrow but I cant bolt the heads down as I am seriously contemplating getting the 0.039" headgaskets and not using the recommended 0.041" so I can bump compression up a bit as well as improve quench a little. Im also awaiting for the ARP timing cover/waterpump bolt set to come in as well so I can take some time to triple check this as I want this done right.
Don't worry about any 1/2 lift stuff. That doesn't make any difference unless you're using a rocker arm that's designed around Jim Miller's Mid Lift Geometry principles. With his design when the rocker arm pivots are at 90 degrees on the valve end the are also at 90 degrees on the pushrod end. One of the ideas being that as the ratio increases on one end it decreases on the other end and the changes in ratio largely cancel each other out. It is interesting but it requires a lot of different rocker arm designs to make it work, sometimes two different designs on the same engine(Big block Ford).
Don't worry about any 1/2 lift stuff. That doesn't make any difference unless you're using a rocker arm that's designed around Jim Miller's Mid Lift Geometry principles. With his design when the rocker arm pivots are at 90 degrees on the valve end the are also at 90 degrees on the pushrod end. One of the ideas being that as the ratio increases on one end it decreases on the other end and the changes in ratio largely cancel each other out. It is interesting but it requires a lot of different rocker arm designs to make it work, sometimes two different designs on the same engine(Big block Ford).

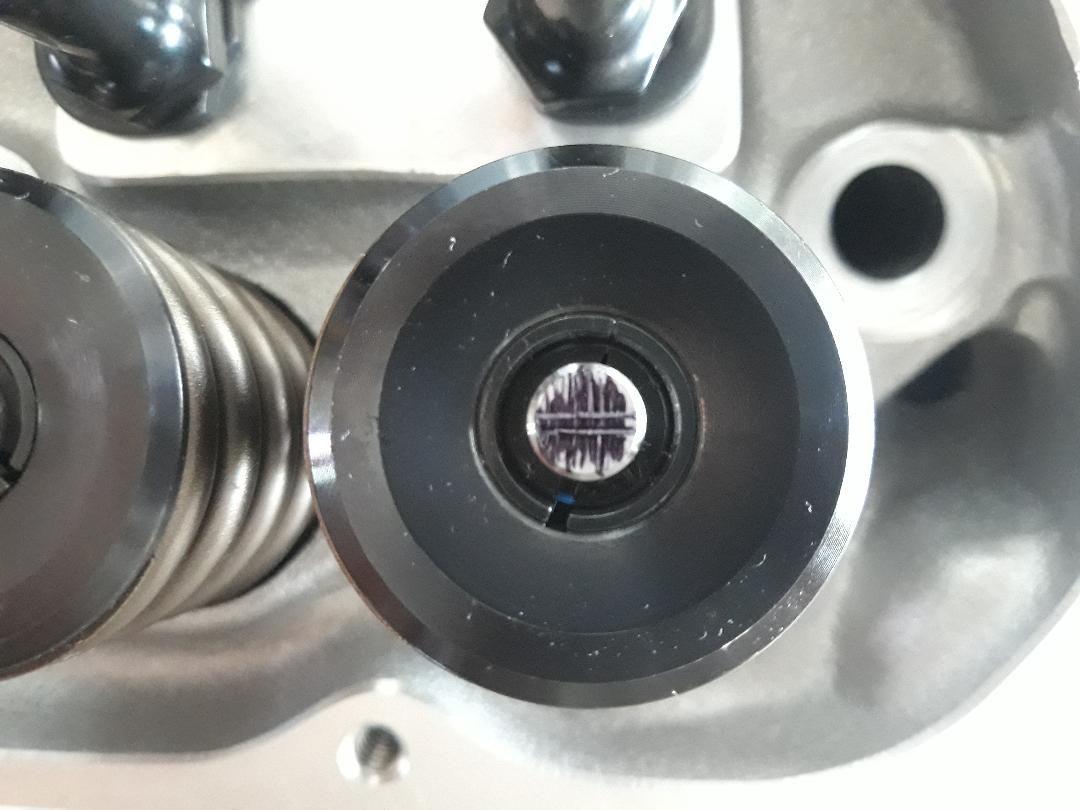

This is a photo I took of the sharpie wiped away when I wiggled the rocker arm with 6.25" or 6.35" length pushrod, that 0.100" didnt seem to make a whole lot of difference if any. I already wiped the sharpie mark off I had from the 6.50" but I roughly marked about where it was with a redline, with the blue line representing roughly center of the valve. Honestly with 6.25"/6.35" vs 6.50" the rest position is about the same distance from center of the valve just one is on intake side other is on exhaust side. From the reading I have done it sounds like longer pushrods will result in a narrower contact patch than a shorter pushrod. I also was reading it seems to be a longer pushrod requires less effort than a shorter pushrod to overcome the spring which tells me the shorter rod is changing leverage in the wrong way.
If it really doesnt matter where the contact patch is long as it is narrow and not rolling off the end and from what I have seen with longer pushrods using the half lift method it seems it provides some of the narrower patterns over just setting the rocker arm to be just inboard of the center line. That is why I was concerned cause everything up till now has told me that you want the rocker arm to be inboard at rest, center at half lift and outboard at full lift.
One thing I am thinking of trying tomorrow is doing the 2/3 lift method I was reading and it seems 2/3 lift method is becoming quite popular as it allows for a shorter pushrod.
I really need to go with a shorter one than 6.500" cause I forgot that AFR recommends a .120 wall thickness pushrod and Scorpion recommends the same .120 wall thickness to prevent pushrod deflection with high spring pressure which roller engines do have.
So going with a .120" wall thickness pushrod it limits me to 6.300", 6.350", or 6.400" for Manley Chromoly Swedge end pushrods which is recommended by Scorpion. Even if I remove the Manley brand it still comes up with no 6.500". So it is really making me wonder if I should lean more towards the OE + .100" and let it ride. It is a roller tip and would reduce friction and side loading of the valve but my main thing is lots of magazine articles I came across online mention that with proper geometry using the 1/2 lift method results in valve lift actually being as advertised and not using it can see the valve lift be as much as 0.01" less.
Just seems like there is so much back and forth on this but I am interested in trying the 2/3 lift method and see what length I get for that. With the 1/2 lift I was getting 0.260" with 5.2 turns from horizontal with the 2/3 lift I am looking at 0.346" with 6.92 turns. If I look at exhaust its 0.361 at 7.22 turns so I think I would go for 7 turns even and split the difference and see what length I get then tomorrow.
With what I am looking at I might be over a barrel right now cause stock length is 6.25" I just double checked AFR and their paperwork doesnt state stock or stock plus .100" I could have swore it did, but 6.35" plus 0.039" would put me at 6.40" which I can get a pushrod in with .120" wall thickness and 5/16" outside of that I have no real option unless I try and contact someone that can custom make me a .120" wall thickness 5/16" pushrod in a oddball length. Then I question do I really need to spend the money for custom length push rods in a 306 displacement roller engine that I am building for daily driving with some goodies in it. 6.40" would be essentially what I need including headgasket thickness and would put the contact point on the base circle just inboard towards the intake manifold of center line.
Will have to see what happens tomorrow and what I get measurement wise cause I currently have 0.041" gaskets but I wont be using them as I am leaning towards 0.039" for a bump in compression and improvement in quench since I found out my deck clearance at true tdc when I was degreeing my camshaft is 0.0015". I guess I am doing like the engine builder I know told me about my cam bolt that I am just over thinking this and over complicating this for what is basically a warmed over mild street 302 that I am building.
https://www.pushrods.net/one-piece-pushrods
Trending Topics
Ford Trucks for Ford Truck Enthusiasts
I did try a different form today how ever, I did the 2/3 lift method which comes out as 0.346" intake and 0.361" exhaust resulting in 6.92 turns for intake and 7.22 turns for exhaust. I did 7 turns from level just as it is kind of in the middle between the two splitting the difference. With 7 turns on the intake I got on a tape measure 6 5/16" on the adjustable pushrod doing the math for 0.050" per turn came up as 6.3125" length on the pushrod. Once you account for the 0.039" headgasket thickness it puts it to 6.364" length. The pushrod I was looking at was 6.35" which is 0.100" over OE 6.25". Right now I am trying to decide do I want to let it ride at 6.35" or go to 6.40". I honestly dont believe 6.40" would move the base circle contact point on the valve too much further outboard right now with 6.3125" length on my adjustable pushrod I was a little inboard towards intake side of center line. With 6.50" I am a little outboard of the center line to the exhaust side. So with 6.40" I would be basically over the center of the valve.
The upper line is with the 6.3125" length I came up with today at first doing the 2/3 lift method. The lower line towards the exhaust side is 6.50" length. I didnt bother marking with a 6.40" length as it would be right in between the two lines. So I think I could run either the 6.35" or 6.40" length pushrod and be fine both of them have the starting point very close to the center of the valve on the base circle and with 0.520" intake and 0.542" exhaust lift the contact patch should remain fully on the valve.
