Wiring harness dead end

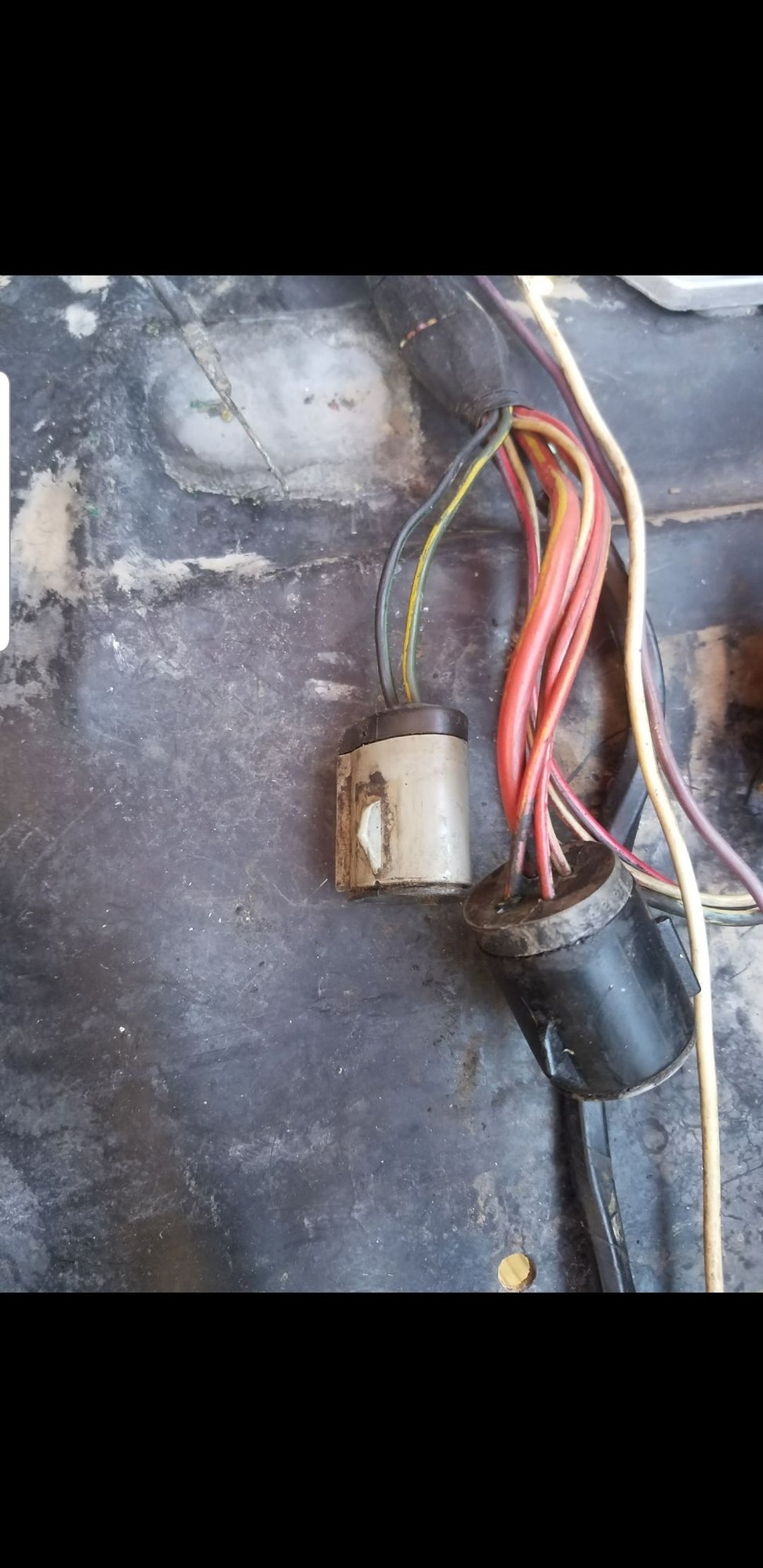

Hey Everyone.....1986 Ford F250 7.5l. Have these 2 harnesses that dead end but they look pretty important. There is so much that doesn't work on this truck electrically. Anyone know where these go?

Thanks everyone.



Reply
Old Feb 27, 2021 | 05:31 PM
  #2
CharlesStuber85F150's Avatar
CharlesStuber85F150
Cross-Country
5 Year Member
Joined: Sep 2016
Posts: 61
Likes: 1
From: Culver
If they are on the Driver Side, they are for the Duraspark II Ignition Module for the Distributor

Reply
Old Feb 27, 2021 | 06:15 PM
  #3
JimsRebel's Avatar
JimsRebel
Cargo Master
15 Year Member
Photogenic
Photoriffic
Community Builder
Joined: Mar 2008
Posts: 2,569
Likes: 207
From: Washington
The 4 wire plug is..
Coil positive, the fat wire
oil pressure
water temp
4th might be a Key ON 12 volt power source wire


JIm

Reply
Old Feb 27, 2021 | 06:42 PM
  #4
JimsRebel's Avatar
JimsRebel
Cargo Master
15 Year Member
Photogenic
Photoriffic
Community Builder
Joined: Mar 2008
Posts: 2,569
Likes: 207
From: Washington
https://www.ford-trucks.com/forums/1...l#post19526247

The plug circled in red is the tach plug. Do you have a factory tach in the dash? If you don't, you don't need this plug.

Jim
