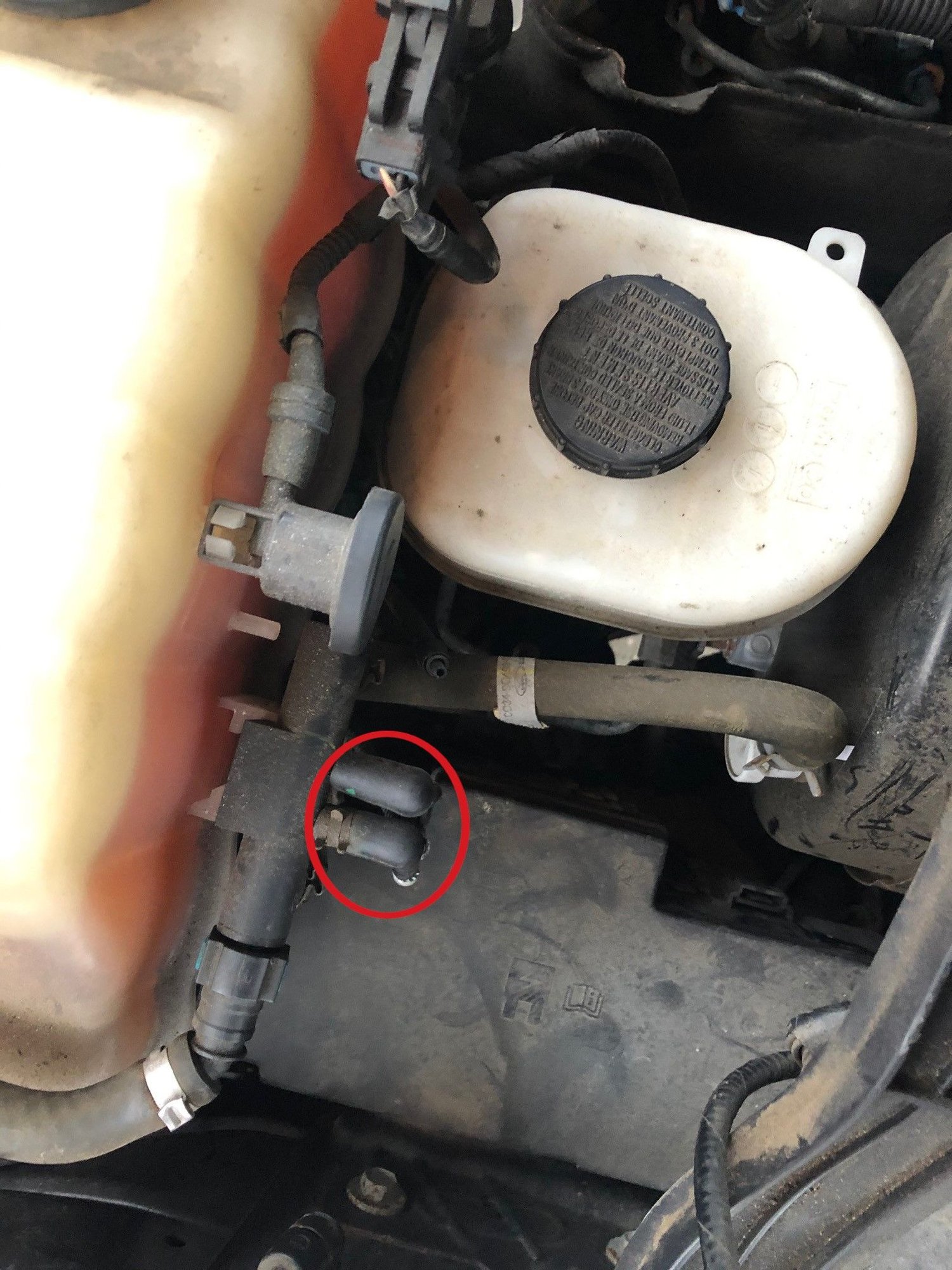

I pulled the electric distribution cover to check a relay and broke both these vacuum lines. The were extremely brittle. I plugged them so my brakes would work. Anyone know where they go to? I was thinking to the auto locking hubs.
I looked for a vacuum diagram while I was troubleshooting my hubs in auto, never came across one.
The larger diameter hose in the bottom of the picture is from your vacuum pump. The passenger side of the two you broke should be the one that goes to the vacuum solenoid half shown in the top center picture with the wires coming from it. Both hubs T off from that hidden above the inner fender.
I can’t tell you what the driver side hose you broke goes, I lost it going under the fuse box. Vacuum goes to the EGR cooler but I believe that T’s off immediately off the vacuum pump below the intake somewhere.
