Unidentified part

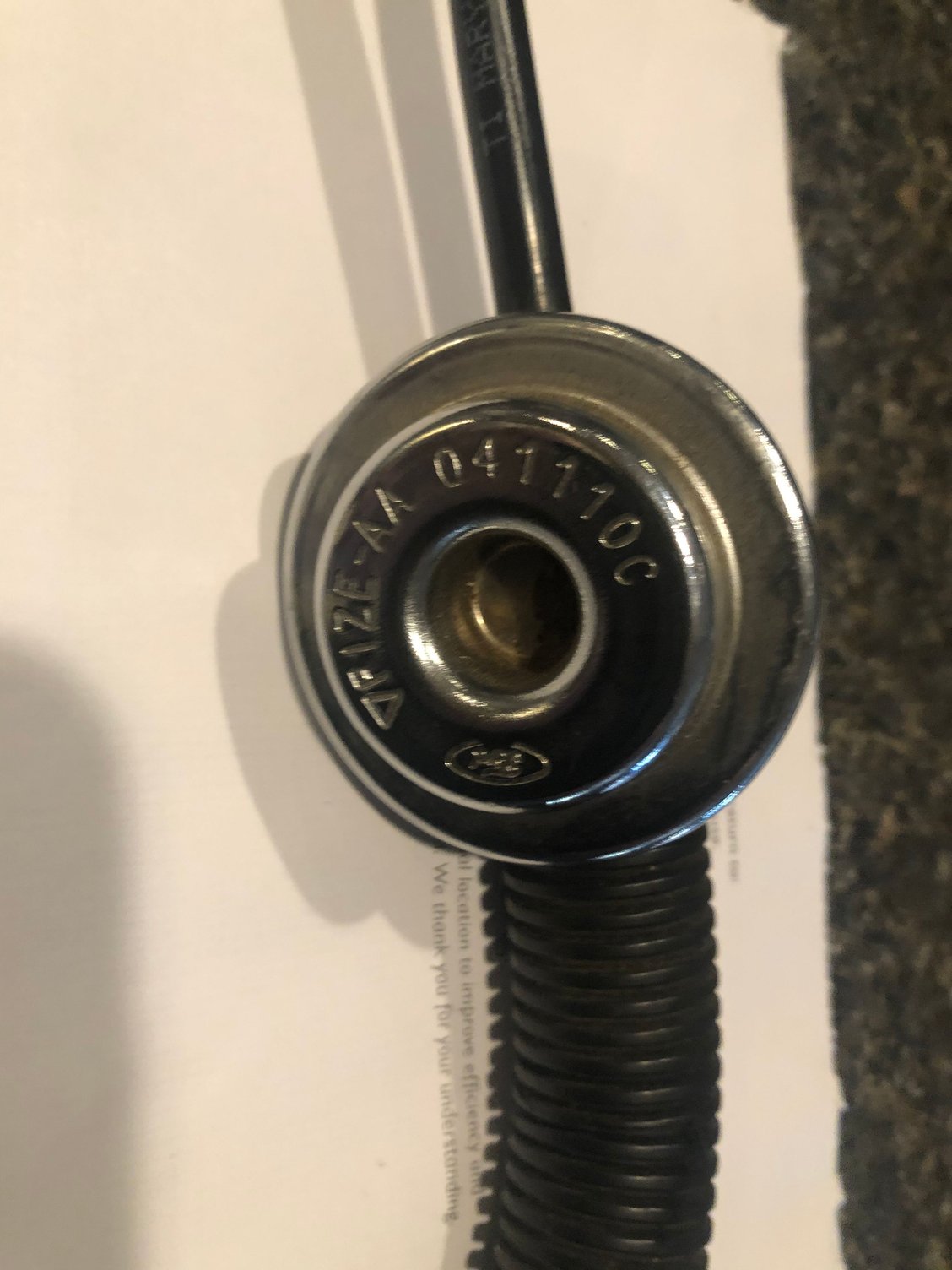

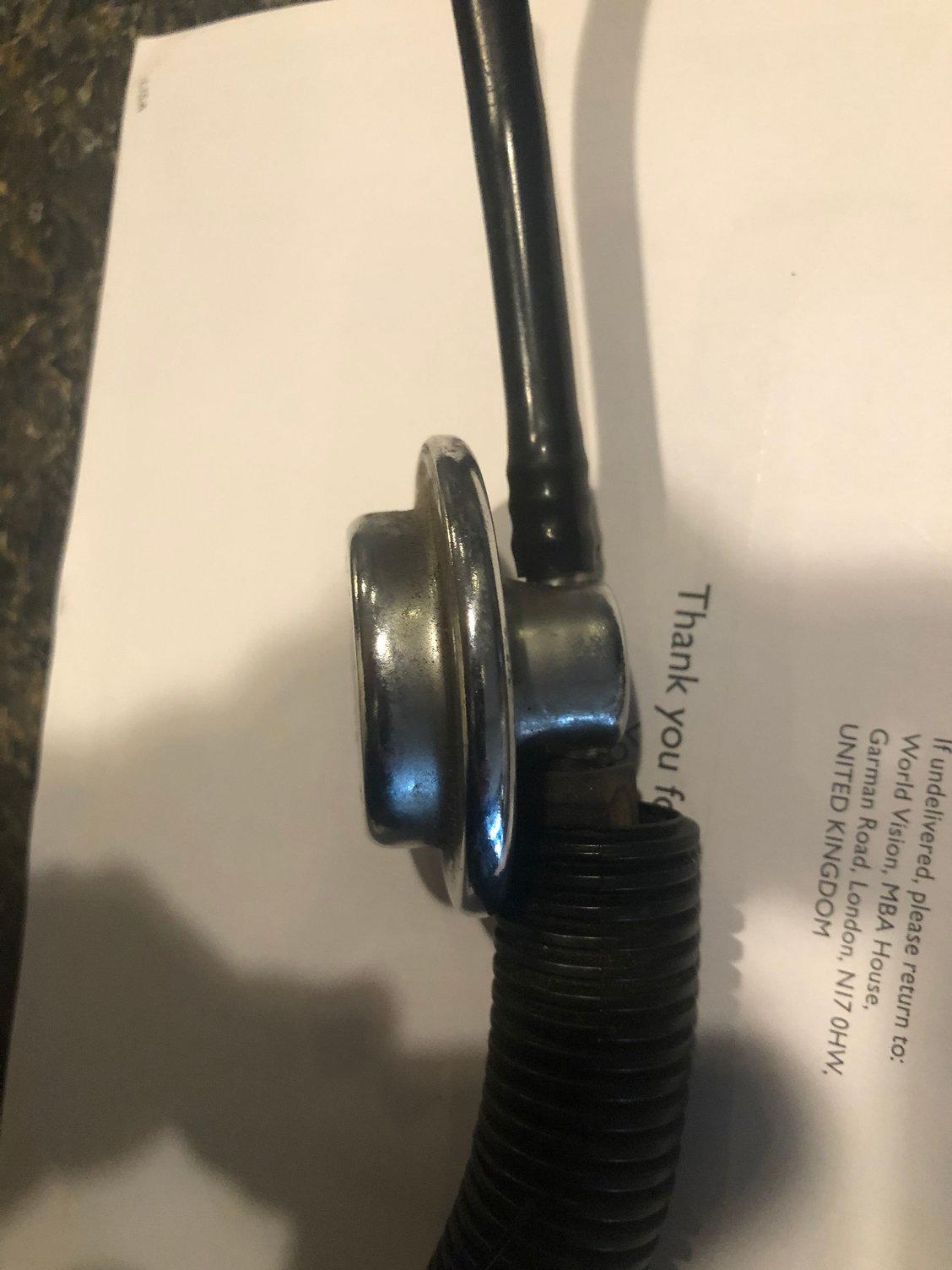

Does anyone know where this goes?
2002 Ranger, 3.0 flex. Swapped blocks and cant figure out where it goes.

I asked Ford, they sent me wrong info

Dec 14, 2020 | 10:23 AM

ranger pat

Cargo Master

Joined: Mar 2001

Posts: 2,759

Likes: 70

From: Elk River, MN

Fuel pressure regulator

Dec 14, 2020 | 10:56 AM

margent7

Thread Starter

New User

Joined: Dec 2020

Posts: 4

Likes: 0

Doesnt attach to fuel rail

Quote:

Originally Posted by ranger pat

Fuel pressure regulator

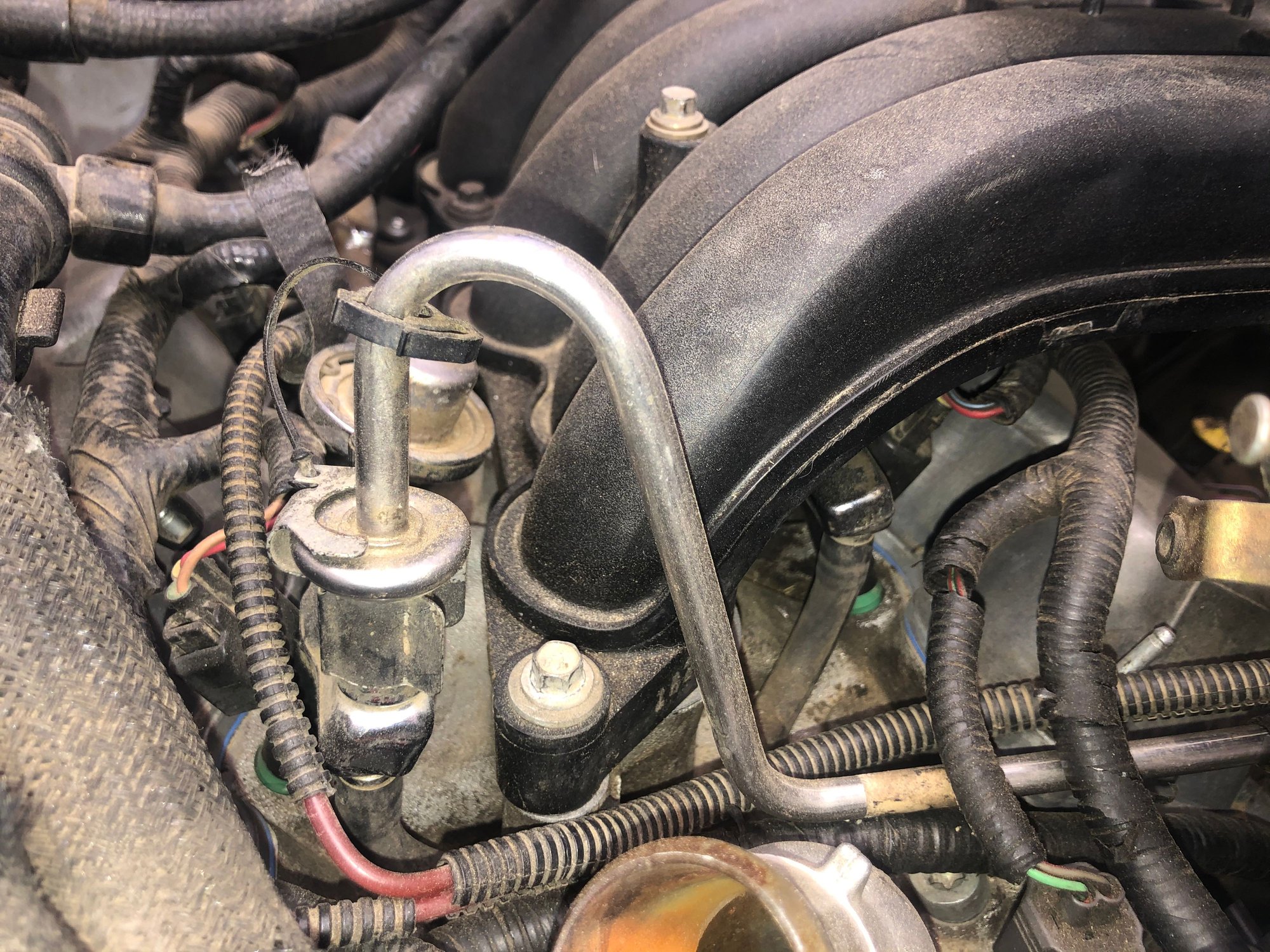

Back side of rail

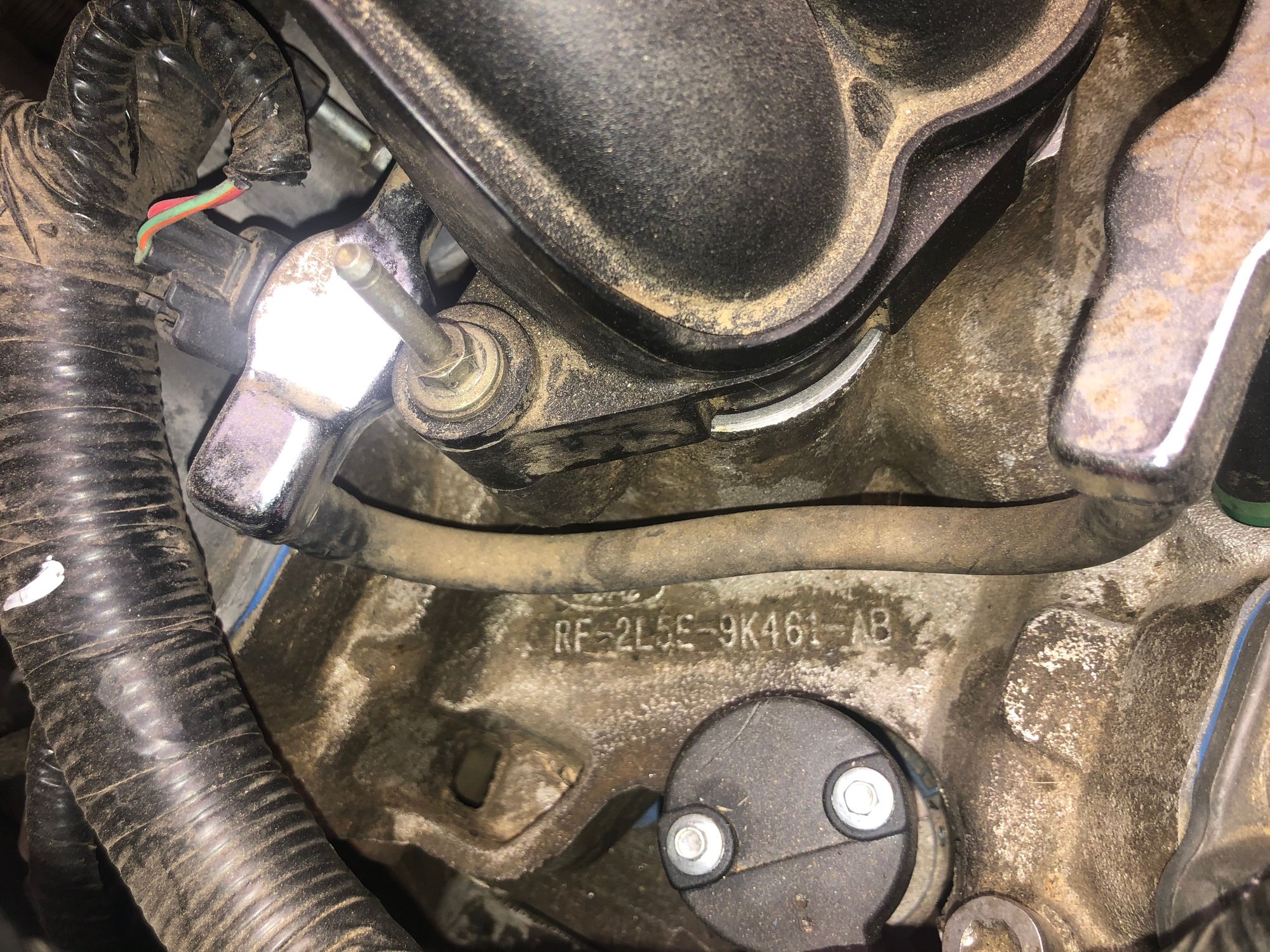

Front side of rail. There is only one nipple to attach a line and it is occupied by the pink tube to left of rail.

Dec 14, 2020 | 04:12 PM

mfp4073

Fleet Mechanic

Joined: Sep 2007

Posts: 1,726

Likes: 10

From: down south

I dont know if this helps, but when I searched the part number I came up with a post on stangenet where someone was asking what that part was and apparently there is a TSB out there about it.

"It appears Ford added a dampening device to the fuel supply line when they changed to nylon lines. Apparently the noise from the lines could be heard while sitting in the vehicle. Probably surges in pressure caused the line to bang around a bit when the pump would come on and off. I am speculating the original lines were nylon without the silicone sleeve which insulates the line noise and vibration but I can't confirm this."

Dec 15, 2020 | 04:32 AM

pawpaw

Moderator

Joined: Jan 2004

Posts: 13,851

Likes: 111

From: SW Va

I agree it looks like a pulse dampener.

Dec 15, 2020 | 08:16 AM

margent7

Thread Starter

New User

Joined: Dec 2020

Posts: 4

Likes: 0

Where is the pulse dampener

I think you guys are correct, its a fuel pulse dampener. I just cant figure out where it goes. Does anyone know?

Dec 15, 2020 | 02:08 PM

pawpaw

Moderator

Joined: Jan 2004

Posts: 13,851

Likes: 111

From: SW Va

I don't know on your year engine, try the Ford / Motorcraft website, input the vehicle VIN #, then toggle over to the fuel delivery pictorial page where the under hood fuel rail & associated parts are shown & have a look-see for where they plumbed it in on your year/ model / engine. On my 99 4.0L its at the fuel rail, close to where the fuel pressure regulator Used to be, before it was moved into the fuel tank on the pump assembly.
If you have a repair, or shop manual it should be shown there too. It's said a picture is worth a thousand words, so maybe have a look-see on YouTube, maybe someone has put up a video that'll show where / how its plumbed in. The above posted photos ranger pat posted show one example of where it went, but I don't know what year that assembly came from. It ID's the fuel pressure regulator as being on the fuel rail, so it isn't the same as your or mine, as the FPR has been moved to the fuel tank, so the pulse dampener on your later year / model 3.0L might very well be different. Is your 3.0L a flex fuel model???.
