Can anyone identify these?
Scope Wizard
Joined: May 2019
Posts: 6,530
Likes: 25
the one in Red is the AC cycling pressure switch connector.
the one in yellow is the Low Vacuum sensor that turns on the Brake warning Lamp when you loose Vacuum.
right now I'm not sure about the 2 pin connector.... let me look it up EDIT: self test Connector
EDIT 1 more time .. that connector may be for Tach sensor.
the one in yellow is the Low Vacuum sensor that turns on the Brake warning Lamp when you loose Vacuum.
right now I'm not sure about the 2 pin connector.... let me look it up EDIT: self test Connector
EDIT 1 more time .. that connector may be for Tach sensor.
Thread Starter
|
Junior User
Joined: Aug 2020
Posts: 52
Likes: 0
what do you mean by “self test connector”?
Thread Starter
|
Junior User
Joined: Aug 2020
Posts: 52
Likes: 0
so a question I’m wondering is if it’s something to do with the tach, since it’s not plugged in wouldn’t my tach not be working?
Scope Wizard
Joined: May 2019
Posts: 6,530
Likes: 25
so IF it is not a Tach connector the only other thing I can think of off hand is an ABS sensor Test Connector.
It is 2 pin right not 3 pin ?
It is 2 pin right not 3 pin ?
Trending Topics
Thread Starter
|
Junior User
Joined: Aug 2020
Posts: 52
Likes: 0
luckily my tach is working properly. Let’s say it’s the ABS sensor test connector then it’s supposed to be unplugged? And I’m guessing it gets plugged in to test something to do with the ABS?
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
Scope Wizard
Joined: May 2019
Posts: 6,530
Likes: 25
the Vacuum sensor is 3 wire.... if that connector is 2 wire and is in fact ABS test connector (Still Guessing) then it connects to a plastic cap mounted on the fender well (Generally) it would be used to just read the VSS signal with the proper test equipment.
Thread Starter
|
Junior User
Joined: Aug 2020
Posts: 52
Likes: 0

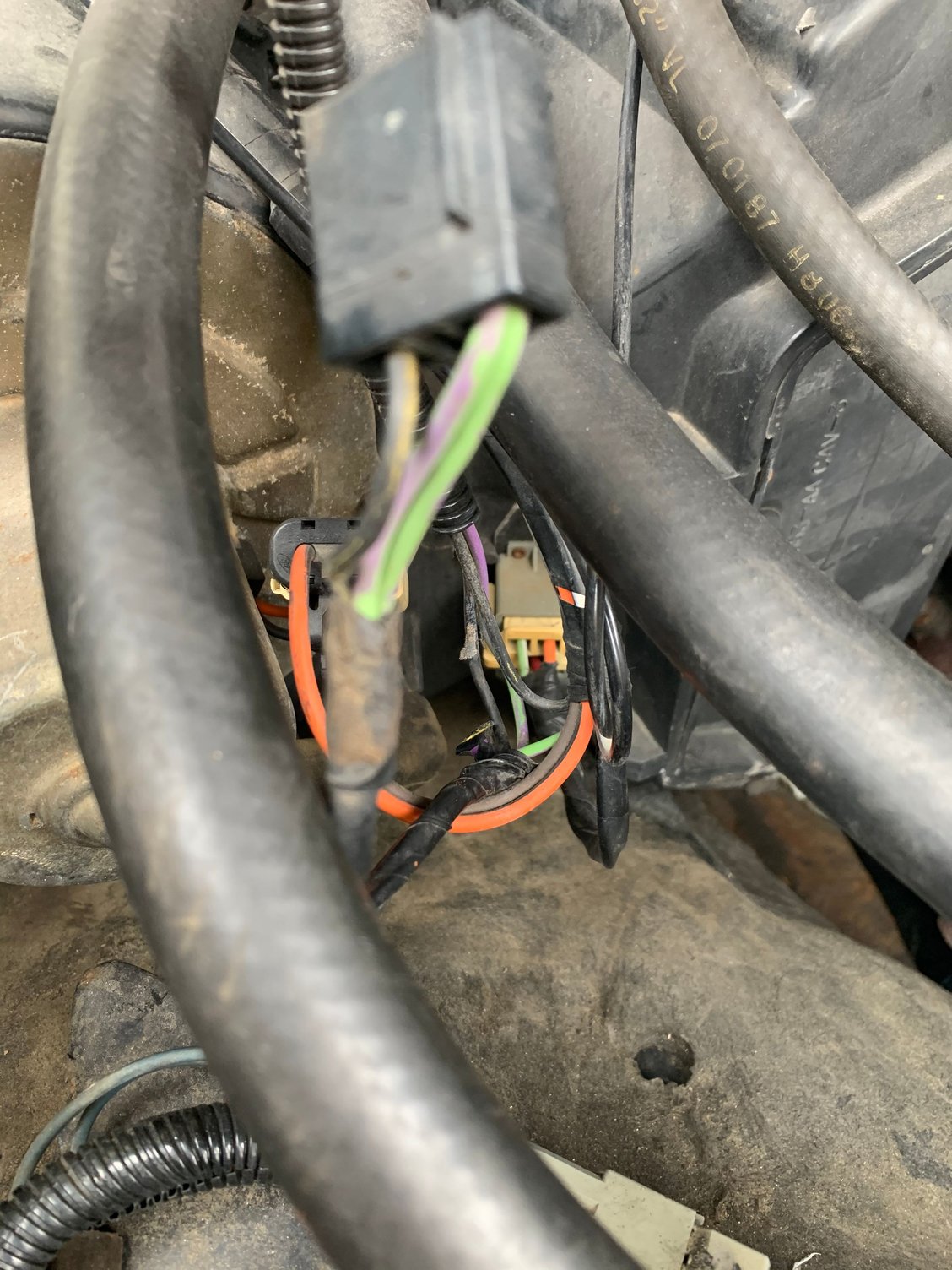

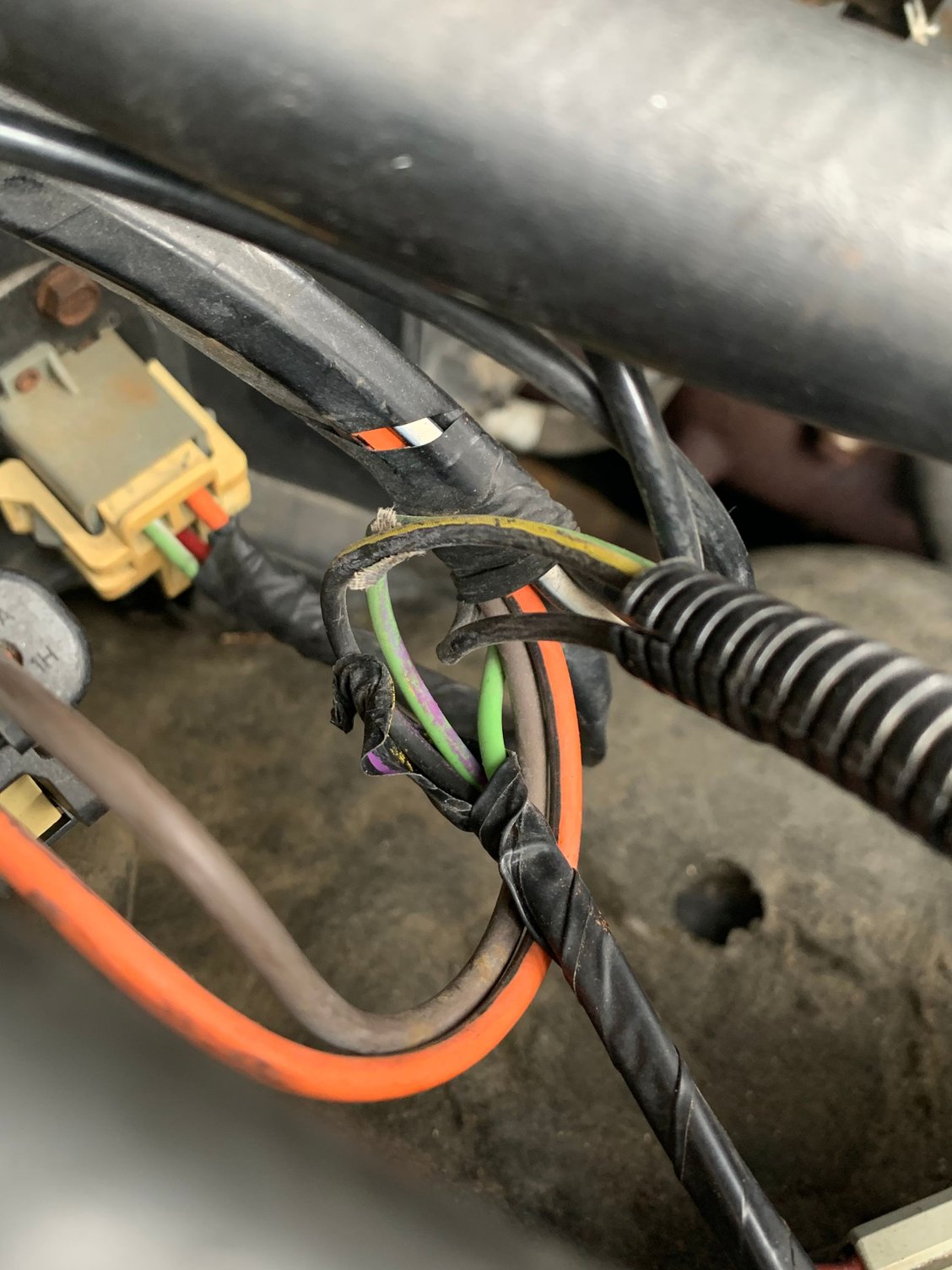

I just looked at the wiring and it seems like the ac plug you identified has two green wires with a purple stripe. This other plug also has a green wire with a purple stripe. It seems as if they both are using that green wire with a purple stripe. They also both have a black wire with a yellow stripe going to the plugs. Could they both be AC related?
Thread Starter
|
Junior User
Joined: Aug 2020
Posts: 52
Likes: 0
awesome thank you for all the help. Glad I finally know what they’re all for
