Vacuum line?

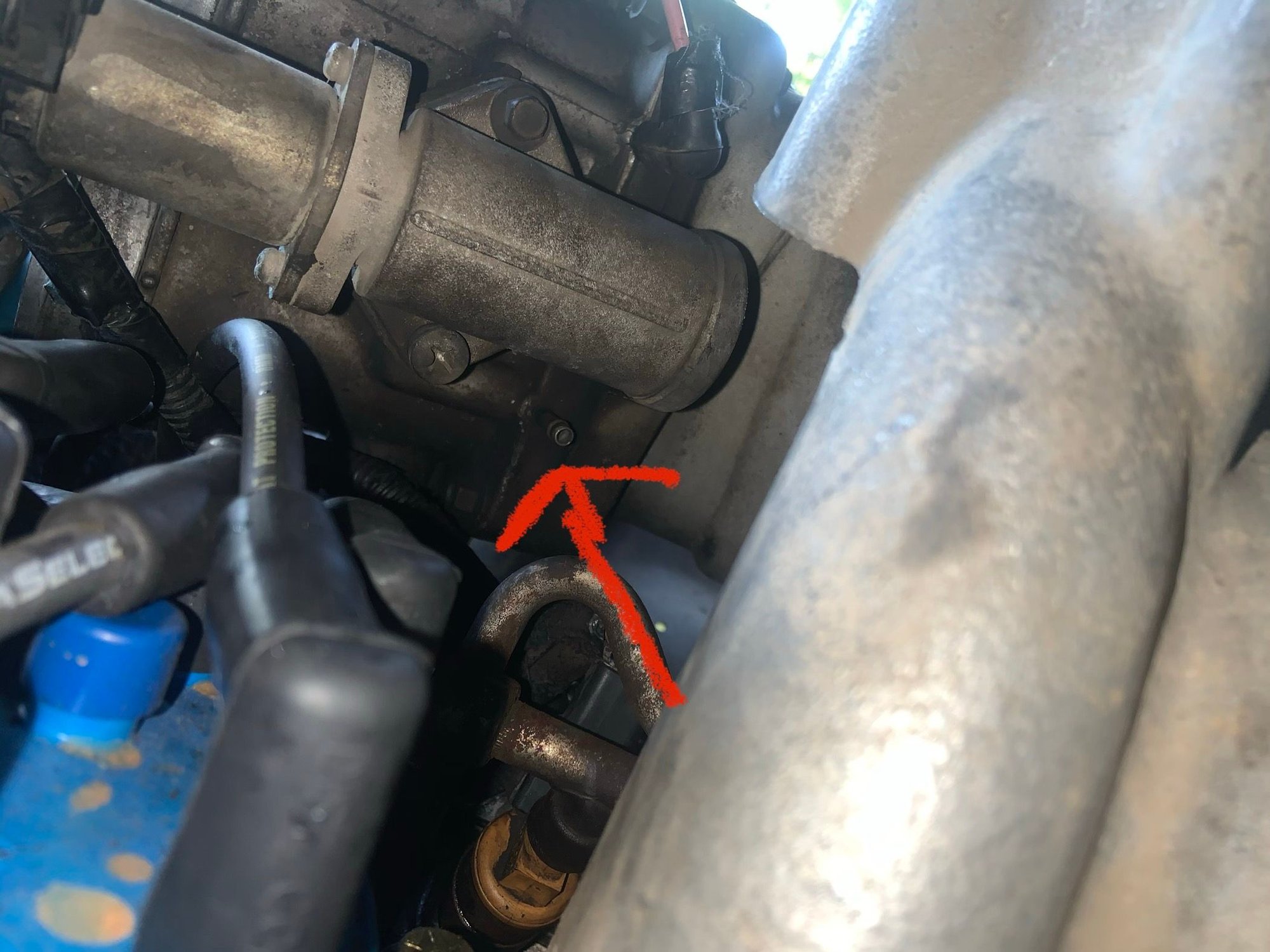

looks like a vacuum line goes here but can’t figure out from where. This is on the throttle body on the upper intake. 89 351w





Reply
0
Old Sep 6, 2020 | 07:36 AM
Share
  #2
subford's Avatar
subford
Fleet Owner
20 Year Member
Photogenic
Photoriffic
Top Answer: 1
Joined: Aug 2005
Posts: 23,666
Likes: 301
From: Easton,Ks
Evaporative Emission Canister Purge Solenoid.
But that nipple looks plugged.

Reply
0
Old Sep 6, 2020 | 07:39 AM
Share
  #3
My4Fordtrucks's Avatar
My4Fordtrucks
Hotshot
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2015
Posts: 12,763
Likes: 2,420
From the same source as the top nipple. The two hoses were “ Y’d “ together from the factory.

Reply
0
Old Sep 6, 2020 | 07:39 AM
Share
  #4
Branden Blevins's Avatar
Branden Blevins
Thread Starter
|
New User
Joined: Aug 2020
Posts: 6
Likes: 0
Might just look like that from the photo and would that happen to be the thing located behind the upper intake because I just saw that there’s no vacuum going to that either

Reply
0
Old Sep 6, 2020 | 07:41 AM
Share
  #5
Branden Blevins's Avatar
Branden Blevins
Thread Starter
|
New User
Joined: Aug 2020
Posts: 6
Likes: 0

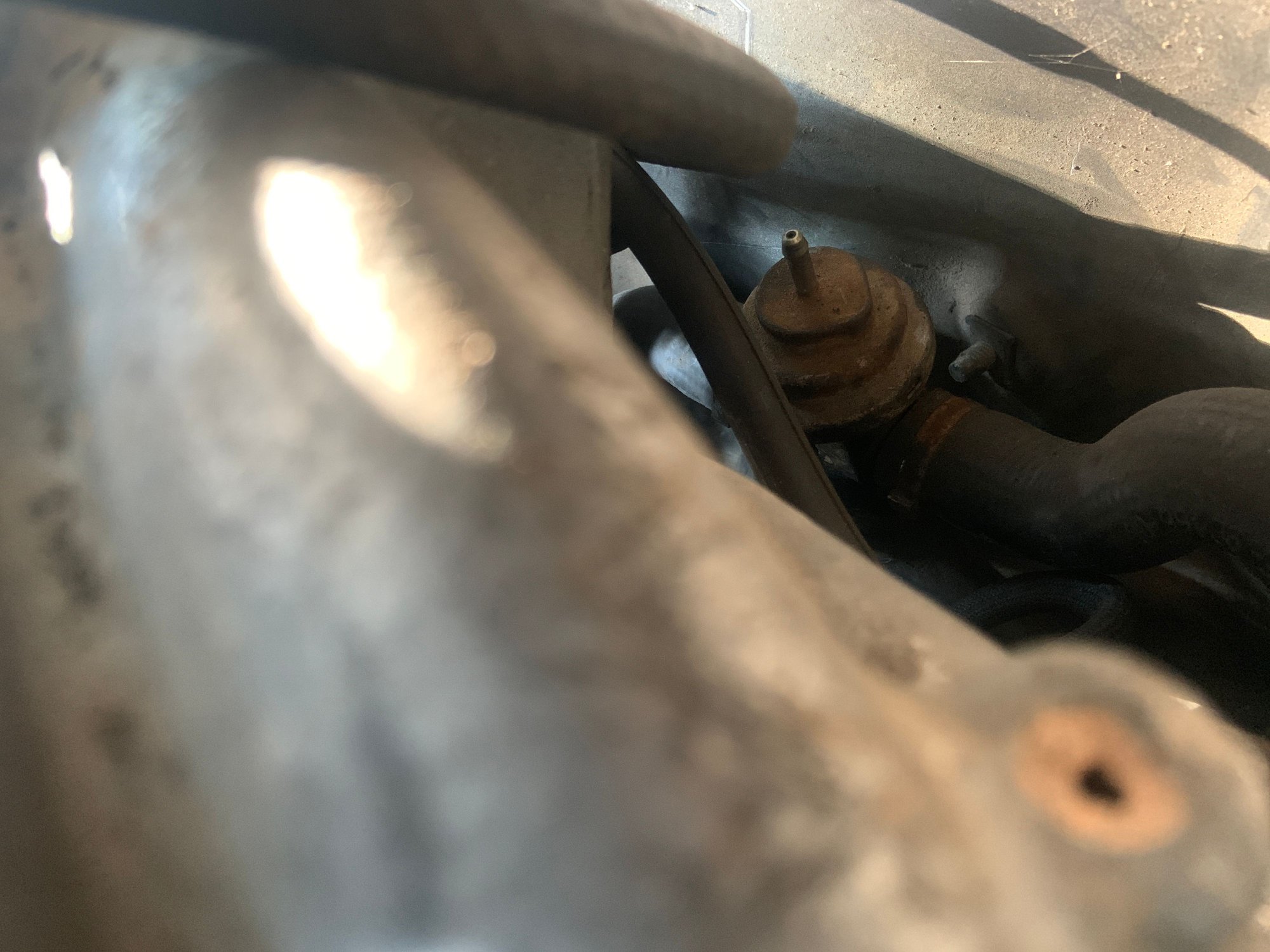

Found this one too

Reply
0
Old Sep 6, 2020 | 07:45 AM
Share
  #6
My4Fordtrucks's Avatar
My4Fordtrucks
Hotshot
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2015
Posts: 12,763
Likes: 2,420
Originally Posted by Branden Blevins
Might just look like that from the photo and would that happen to be the thing located behind the upper intake because I just saw that there’s no vacuum going to that either
If you mean what is pictured below then No. That is a diverter valve for the air injection system.

Originally Posted by Branden Blevins

Found this one too

Reply
0
Old Sep 6, 2020 | 07:48 AM
Share
  #7
Branden Blevins's Avatar
Branden Blevins
Thread Starter
|
New User
Joined: Aug 2020
Posts: 6
Likes: 0
Where would that be located? Sorry for all the questions, I’m no mechanic by any means and rebuilt this engine from 3 torn apart engines and these vacuum lines are a pain

Reply
0

Trending Topics

Old Sep 6, 2020 | 08:53 AM
Share
  #8
minimalist's Avatar
minimalist
Senior User
Joined: Dec 2018
Posts: 232
Likes: 1
The diverter valve should have a vacuum line to the TAD solenoid. Where that is on the 351 I don't know.

Reply
0
FTE Stories

Ford Trucks for Ford Truck Enthusiasts

story-0

Ford's 2001 Explorer Sportsman Concept Looks For a New Home

 Verdad Gallardo
story-1

10 Best Ford Truck Engines We Miss the Most!

 Joe Kucinski
story-2

2026 Shelby F-150 Off-Road: Better Than a Raptor R?

 Brett Foote
story-3

2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!

 Michael S. Palmer
story-4

10 Most Surprising 2026 Ford Truck Features!

 Joe Kucinski
story-5

Top 10 Ford Trucks Coming to Mecum Indy 2026

 Brett Foote
story-6

5 Best / 5 Worst Ford Truck Wheels of All Time

 Joe Kucinski
story-7

Ford Super Duty: 5 Things Owners LOVE, 5 Things They LOATHE!

 Joe Kucinski
story-8

Every 2026 Ford Truck Engine RANKED from WORST to FIRST!

 Michael S. Palmer
story-9

The Best F-150 Deal of Every Trim Level (XL through Raptor)

 Joe Kucinski
Old Sep 6, 2020 | 10:30 AM
Share
  #9
subford's Avatar
subford
Fleet Owner
20 Year Member
Photogenic
Photoriffic
Top Answer: 1
Joined: Aug 2005
Posts: 23,666
Likes: 301
From: Easton,Ks
Maybe this will help:
Name: wtntwej.png Views: 52 Size: 19.9 KB
/

Reply
0
Old Sep 6, 2020 | 10:34 AM
Share
  #10
subford's Avatar
subford
Fleet Owner
20 Year Member
Photogenic
Photoriffic
Top Answer: 1
Joined: Aug 2005
Posts: 23,666
Likes: 301
From: Easton,Ks
Originally Posted by subford
Evaporative Emission Canister Purge Solenoid.
Sorry I was wrong above after looking at the diagram it does not come from the Canister Purge Solenoid.
The Line for that nipple comes from a "T" ahead of the Canister Purge Solenoid.

Reply
0
Old Sep 6, 2020 | 01:27 PM
Share
  #11
My4Fordtrucks's Avatar
My4Fordtrucks
Hotshot
10 Year Member
Liked
Loved
Community Favorite
Joined: Jun 2015
Posts: 12,763
Likes: 2,420
Originally Posted by minimalist
The diverter valve should have a vacuum line to the TAD solenoid. Where that is on the 351 I don't know.

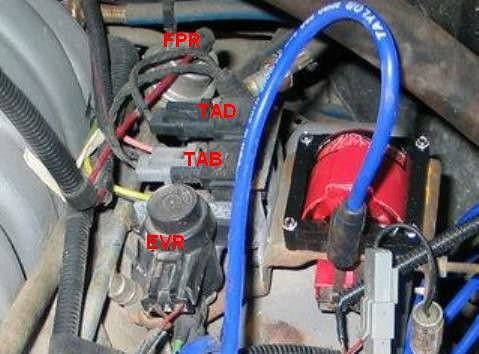

They are located here:

302 / 351W
