Replacing failing electrical plugs for multi-function switch
#1
Replacing failing electrical plugs for multi-function switch
Recently replaced my Motorcraft multi-function switch after the turn signal function broke internally. It lasted a whopping 4 years. When removing the old switch, the tabs broke off the old plugs that mount to the back of the switch assembly. The plastic had become very brittle, and it was impossible to remove the plugs without breaking the tabs.
They came off with very little force.
I went ahead and installed the new switch without the plug retainer tabs, but soon discovered the brake light voltage was bleeding over to the turn signals every time I stepped on the brake. I thought the new switch was bad, but that was not the case.

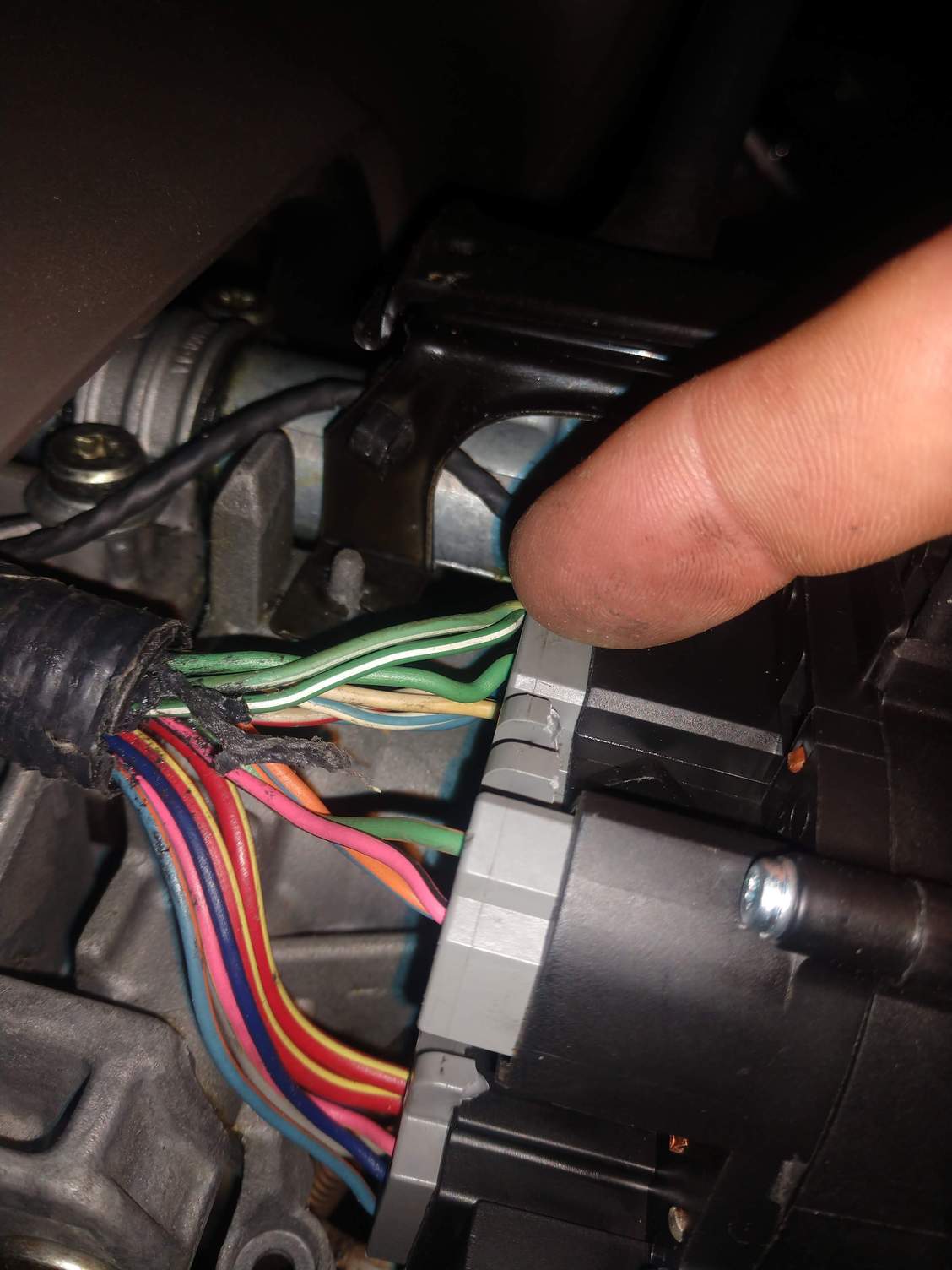

The pin retainers inside the plugs had all broken internally when I removed the old switch, and the wires were falling out the back and shorting together.
I ordered the new plugs (both) off RockAuto (Motorcraft), and replaced them in about 30 minutes. Very easy if you follow these simple steps:
New plug with pins and wires pre-installed

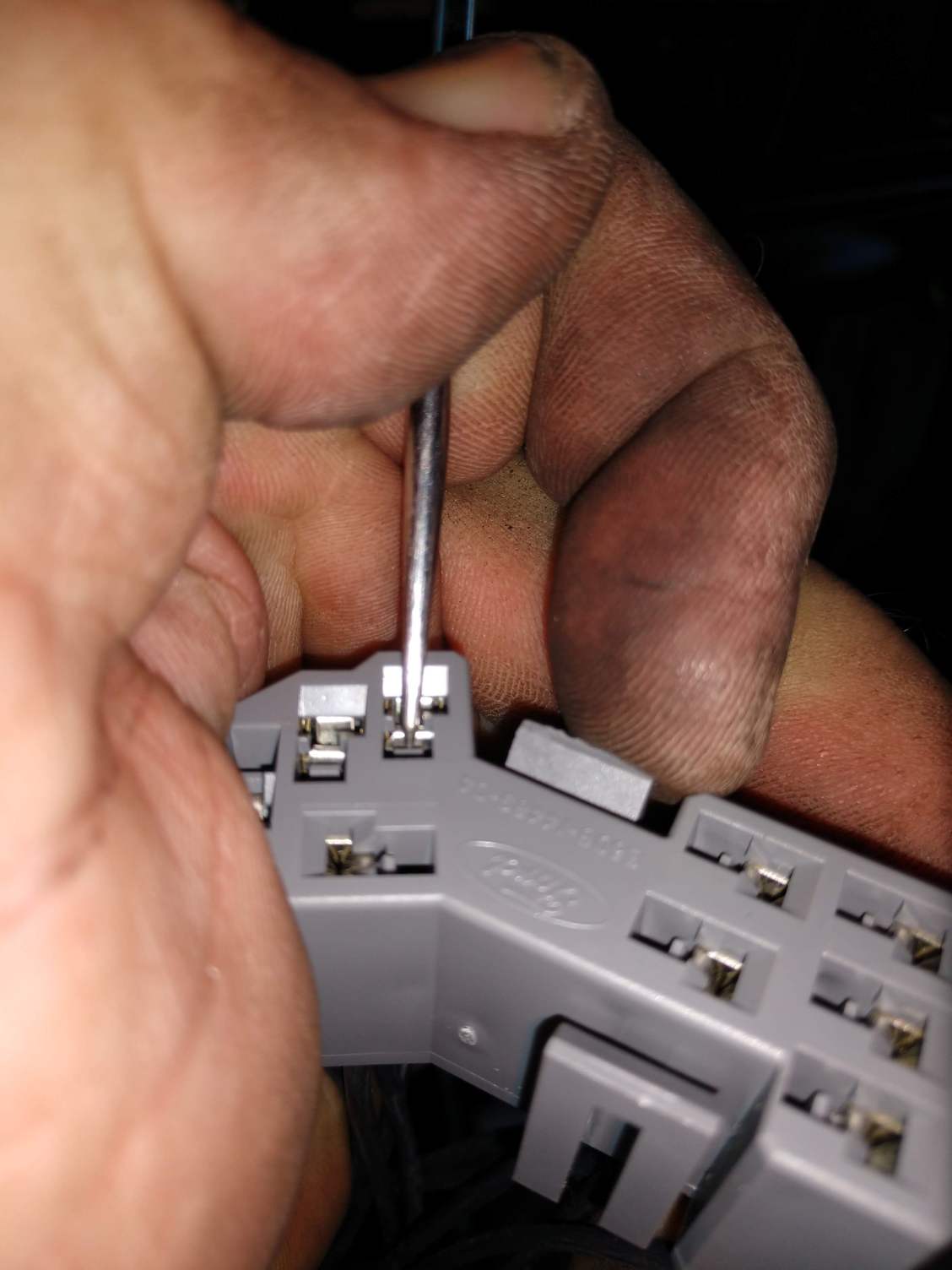

Using a small pick or screwdriver, gently remove the pins from the new plugs.
Until they are all out, and the plug is empty.

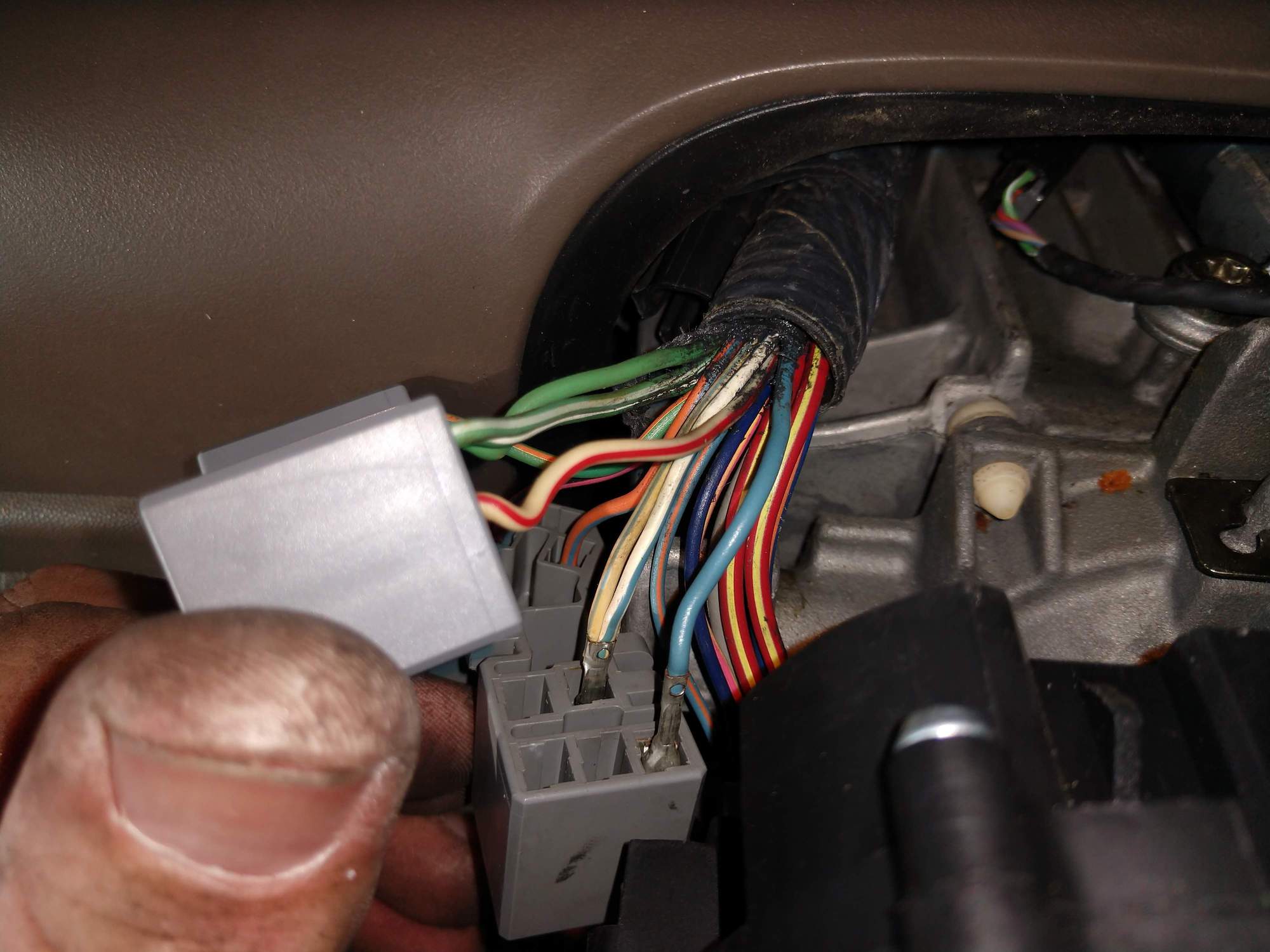

One by one, remove the wires from the old plug, and insert them into the corresponding hole on the new plug.
Continue the process with the smaller plug. It has a red pin-retainer insert in it that has to be gently pried out to access the pin release tabs. It has been removed in this photo.
Once you have transferred all the wires over, you can plug it back in and keep on truckin'.
Most of the electrical plugs are still available, and I plan to buy most...if not all...of them in the near future, because I will continue to run into this same aged plastic problem while conducting repairs in various locations on the truck down the road. I've already replaced the plugs to the headlights and front turn signals in the past for the same reason.
They came off with very little force.
I went ahead and installed the new switch without the plug retainer tabs, but soon discovered the brake light voltage was bleeding over to the turn signals every time I stepped on the brake. I thought the new switch was bad, but that was not the case.
The pin retainers inside the plugs had all broken internally when I removed the old switch, and the wires were falling out the back and shorting together.
I ordered the new plugs (both) off RockAuto (Motorcraft), and replaced them in about 30 minutes. Very easy if you follow these simple steps:
New plug with pins and wires pre-installed
Using a small pick or screwdriver, gently remove the pins from the new plugs.
Until they are all out, and the plug is empty.
One by one, remove the wires from the old plug, and insert them into the corresponding hole on the new plug.
Continue the process with the smaller plug. It has a red pin-retainer insert in it that has to be gently pried out to access the pin release tabs. It has been removed in this photo.
Once you have transferred all the wires over, you can plug it back in and keep on truckin'.
Most of the electrical plugs are still available, and I plan to buy most...if not all...of them in the near future, because I will continue to run into this same aged plastic problem while conducting repairs in various locations on the truck down the road. I've already replaced the plugs to the headlights and front turn signals in the past for the same reason.
