camber bushing
I replaced my ball joints and now I can't get my camber bushings to fully seat. They stick out 1/4 - 1/2 inch. If I can get them to almost sit flush, they just pop out when the lower ball joint is tightened. Thanks for any help. 1986 f150, twin i beam, 2 wheel drive. Stock suspension.
Last edited by LarsTurner; Mar 11, 2020 at 06:56 PM. Reason: add vehicle description
Laughing Gas
Joined: Feb 2016
Posts: 817
Likes: 27
I replaced my ball joints and now I can't get my camber bushings to fully seat. They stick out 1/4 - 1/2 inch. If I can get them to almost sit flush, they just pop out when the lower ball joint is tightened. Thanks for any help. 1986 f150, twin i beam, 2 wheel drive. Stock suspension.
Short story is I tried all the tricks on the internet about centering the stud up in the axle tube bore, anti-seize, etc. - no dice. I even removed the knuckle and made sure both joints were seated well. After looking at bushing design, I decided that, as long as the bushing was driven down the joint’s taper enough to swell it against the axle tube bore, I was satisfied, so I tightened it up and left it alone.
Disclaimer: I’ve only put maybe 75 miles on it and haven’t had it realigned just yet. It’s possible the alignment shop may share my opinion or tell me I’m an idiot. Will update if it’s the latter.
Lead Driver
Joined: Apr 2002
Posts: 5,265
Likes: 1,228
I reviewed several videos on YouTube last year and found some nicely done ones on F series ball joint replacement. You might take a look at a few. Sorry no links but do a search and see if one of them covers this issue.
Fleet Mechanic
Joined: Jul 2003
Posts: 1,844
Likes: 129
From: Atlantic Canada
I replaced my ball joints and now I can't get my camber bushings to fully seat. They stick out 1/4 - 1/2 inch. If I can get them to almost sit flush, they just pop out when the lower ball joint is tightened. Thanks for any help. 1986 f150, twin i beam, 2 wheel drive. Stock suspension.
Thread Starter
|
Freshman User
Joined: Jun 2018
Posts: 26
Likes: 0
Thanks for your reply & picture, Franklin2. My truck's ball joints have the threads pointing downward, as opposed to all the videos showing a top-down camber sleeve placement secured by a pinch bolt. Anyway, yes, I got a mile of threads to work with. And, I can even get the bushing to go all the way in the knuckle. The problem happens when I begin to tighten the lower ball joint. That's when the bushing starts to pop put. I even did a test by ignoring the torquing sequence and cranking down on the top ball joint first (leaving the bottom one loose). I got it flush. But dang if it still didn't pop out when I began to tighten the bottom ball joint. The camber bushings were replaced with exact replica's. The only thing I can think of is that the new NAPA ball joint's tapered stud was not machined properly. I know this is reaching, but there it is. Thanks again for your help.
Thread Starter
|
Freshman User
Joined: Jun 2018
Posts: 26
Likes: 0
Thanks for your input, packagejr.
I'm afraid that worst-case scenario, I will also have to run the truck with the camber bushing sticking out. I really don't want to have to resort to that. It just doesn't seem right. The camber bushings were all the way in with the old ball joints. That's why I'm thinking there may be an issue with the new ball joints. If machining is standard across the industry, then I'm thinking that any brand of ball joint tapered stud will have the same diameter. (I could be wrong). All the relevant videos on youtube show the style of ball joint with the busing coming in from the top, secured by a pinch bolt. No one has a problem with that style. I wish I could find a video of my style (with the bushing inserted from the bottom).
I'm afraid that worst-case scenario, I will also have to run the truck with the camber bushing sticking out. I really don't want to have to resort to that. It just doesn't seem right. The camber bushings were all the way in with the old ball joints. That's why I'm thinking there may be an issue with the new ball joints. If machining is standard across the industry, then I'm thinking that any brand of ball joint tapered stud will have the same diameter. (I could be wrong). All the relevant videos on youtube show the style of ball joint with the busing coming in from the top, secured by a pinch bolt. No one has a problem with that style. I wish I could find a video of my style (with the bushing inserted from the bottom).
Trending Topics
Thread Starter
|
Freshman User
Joined: Jun 2018
Posts: 26
Likes: 0
Thanks for your reply, BigBlue2.
I did find some good videos, but unfortunately, they have a different knuckle set-up. Theirs have the upper balljoint facing upward, with the camber bushing being held in place by a pinch-bolt. Mine has the balljoint facing downward, with the camber bushing held in place by the castle nut. I don't know if my style of balljoint placement is prone to the problem I'm having, or if it's just by chance that there isn't a video.
I did find some good videos, but unfortunately, they have a different knuckle set-up. Theirs have the upper balljoint facing upward, with the camber bushing being held in place by a pinch-bolt. Mine has the balljoint facing downward, with the camber bushing held in place by the castle nut. I don't know if my style of balljoint placement is prone to the problem I'm having, or if it's just by chance that there isn't a video.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Fleet Mechanic
Joined: Jul 2003
Posts: 1,844
Likes: 129
From: Atlantic Canada
Thread Starter
|
Freshman User
Joined: Jun 2018
Posts: 26
Likes: 0
Yes, Rembrant!
That's exactly what I have. Thanks for the great pictures. My camber bushings look like that. They stick so far out that little more than half of their material is in the knuckle. That doesn't seem right to me. It seems that it would compromise stability. Also, my old ball joints allowed the bushing to sit flush. Furthermore, the guy's on youtube who have their bushings coming in from the top have no problem with getting them to seat all the way. Have you seen other trucks with their camber bushings not fully seated?
That's exactly what I have. Thanks for the great pictures. My camber bushings look like that. They stick so far out that little more than half of their material is in the knuckle. That doesn't seem right to me. It seems that it would compromise stability. Also, my old ball joints allowed the bushing to sit flush. Furthermore, the guy's on youtube who have their bushings coming in from the top have no problem with getting them to seat all the way. Have you seen other trucks with their camber bushings not fully seated?
Fleet Mechanic
Joined: Jul 2003
Posts: 1,844
Likes: 129
From: Atlantic Canada
Thread Starter
|
Freshman User
Joined: Jun 2018
Posts: 26
Likes: 0
Thanks for the reply, Rembrant.

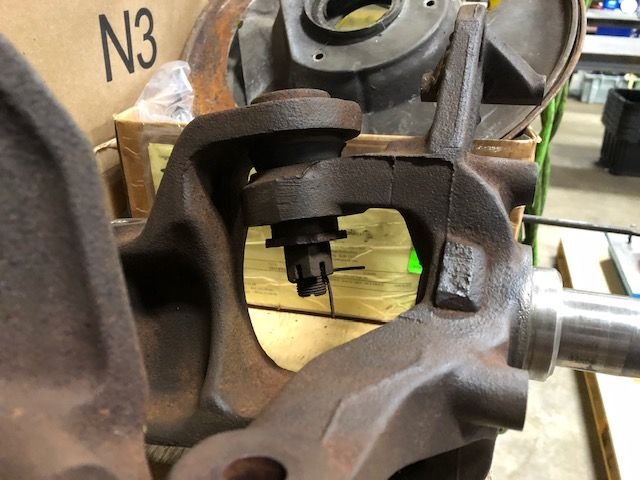

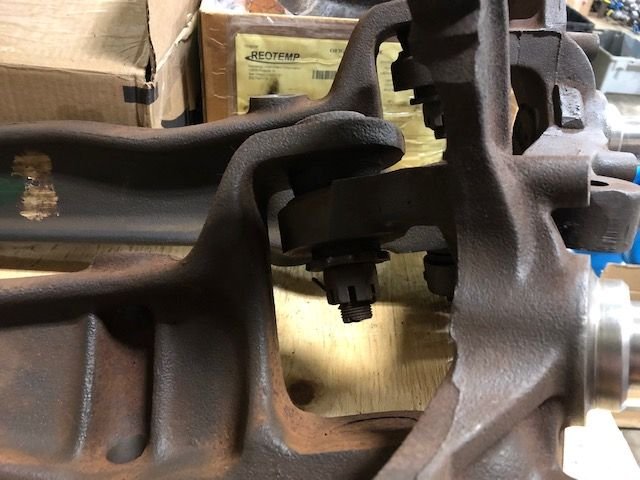

The pictures are very descriptive. Looking at the top one I can see that even with the camber bushing not fully flush, there is still plenty of meat inside the knuckle. This makes me feel better because I was thinking that there was only about 1 inch of 'camber bushing meat' in contact with the knuckle. It's also comforting to read that your truck came that way, too. My replacement bushings are from NAPA and looked identical to the naked eye. I'm wondering if I tap the ball joint farther up into the knuckle if this will help any. My thought is that by doing so there will be less of the fat portion of the ball joint stud interacting with the camber bushing. Anyway, your input has helped to put my mind at rest. By knowing that others run with protruding camber bushing I am less inclined to pull my hair out trying to get 'it right'.
