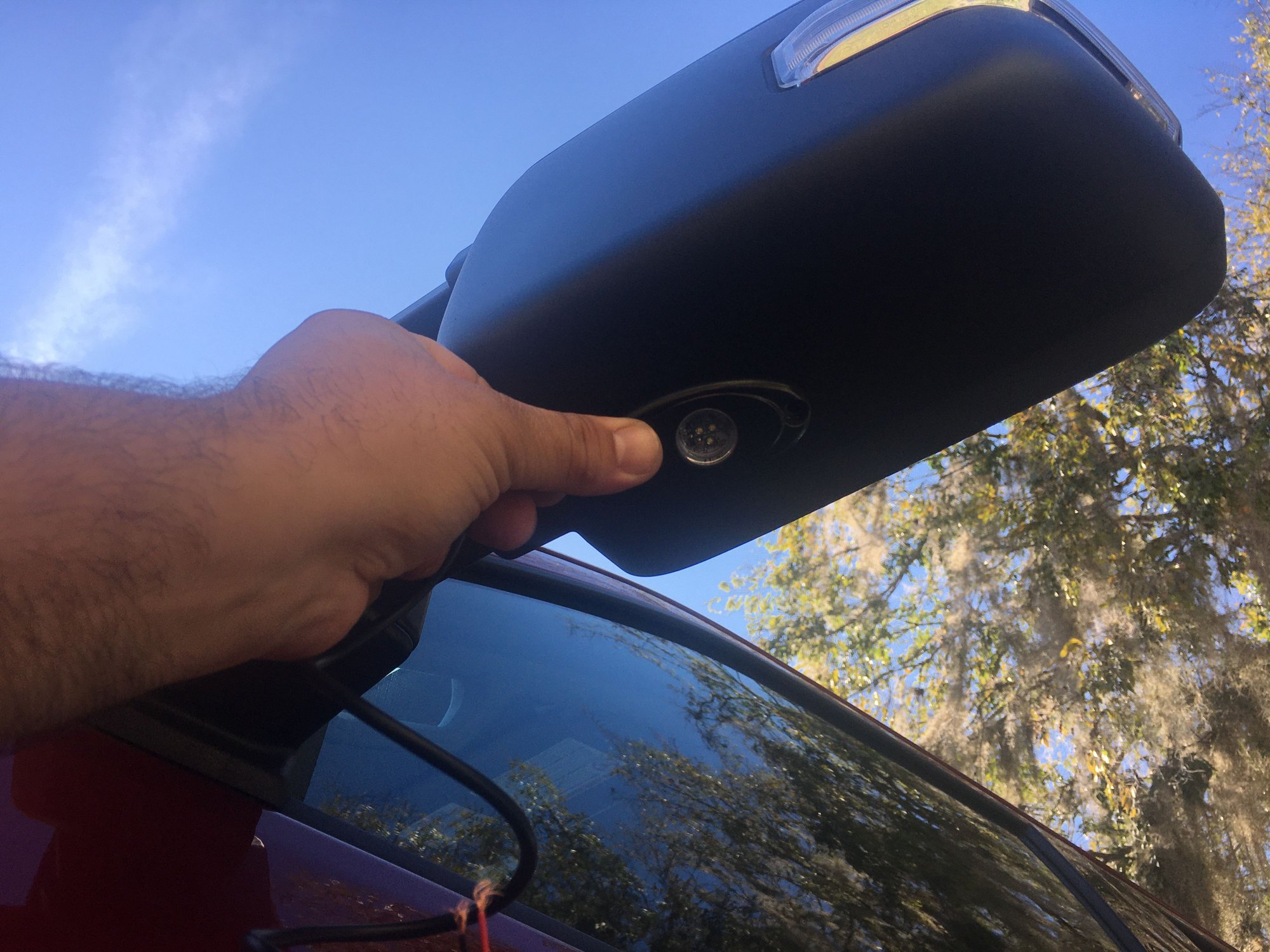

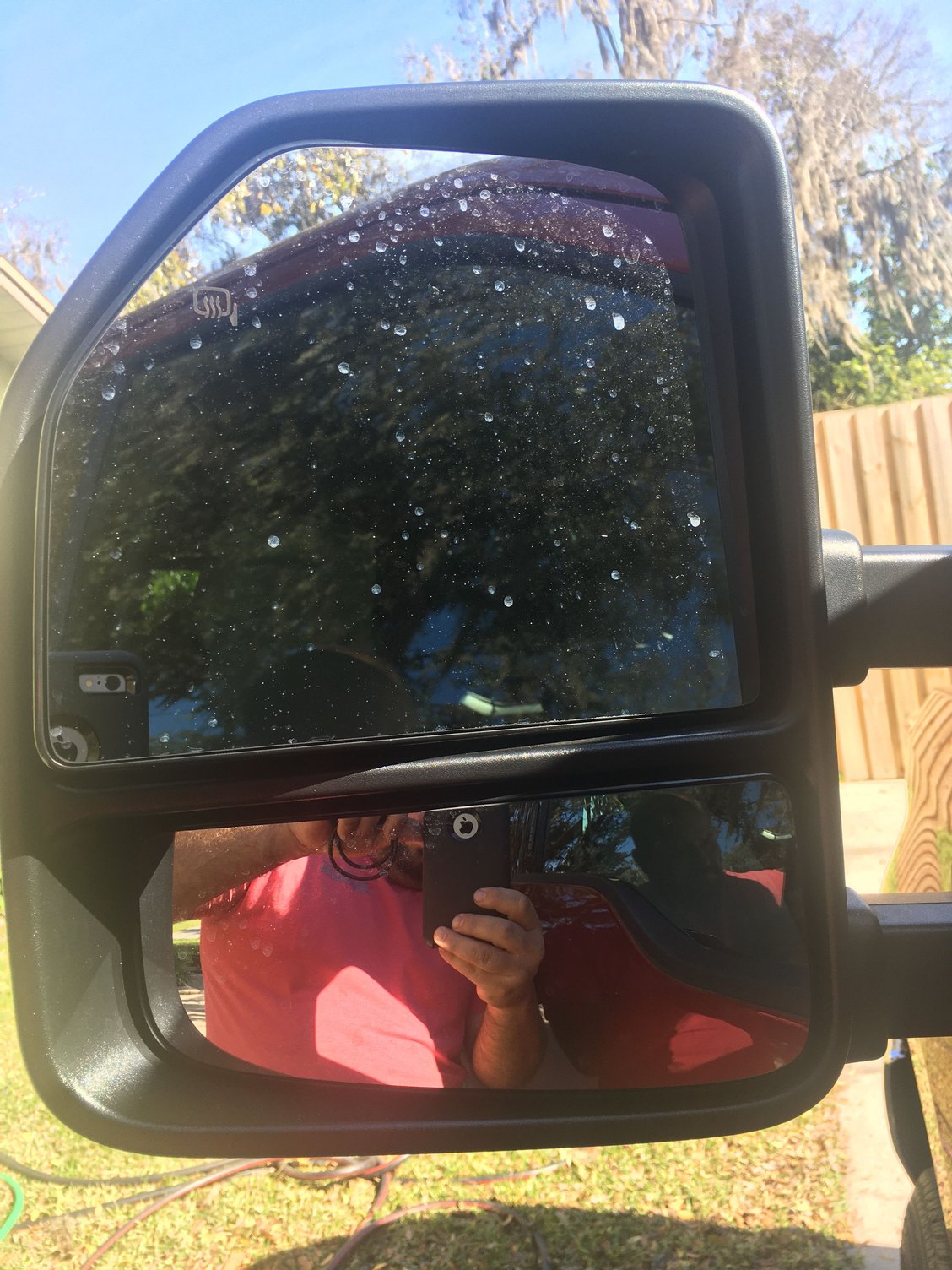

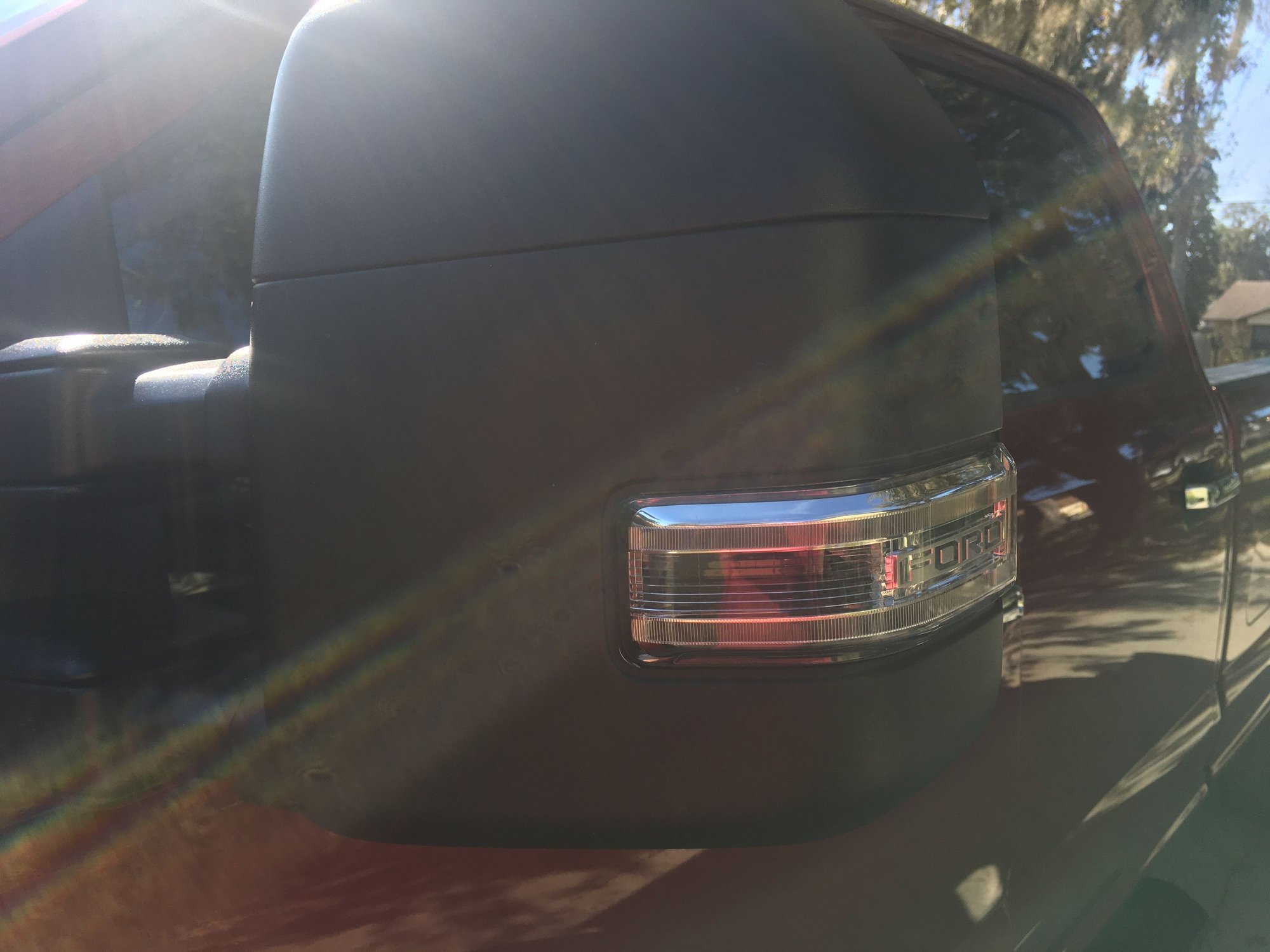

Would like to add these Rock lights to the bottom of my mirrors. My mirrors do have a defrost function and they are a manual fold in and out.
Is there a power wire that I can tap into in the mirror section so the puddle lights come on when you unlock the doors or open the doors? I know there's power for the blinker and turn signal. But I dont want the puddle light on all the time.

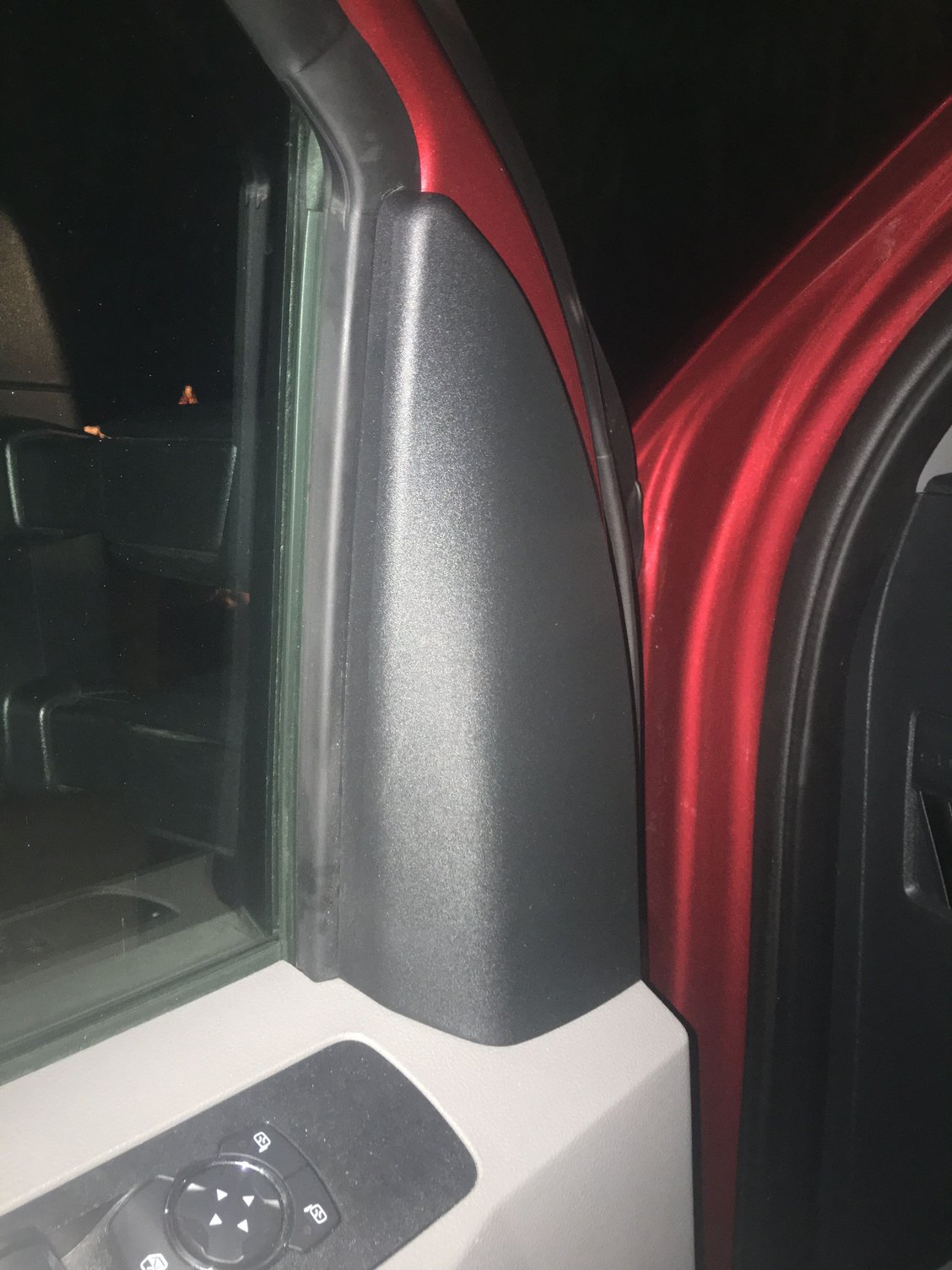

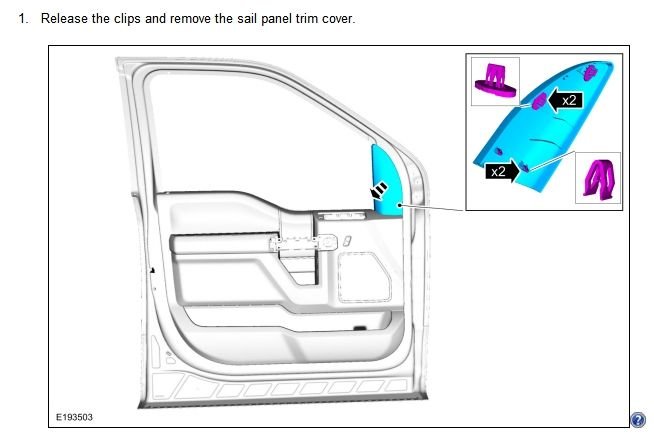

See if you have and then meter the Violet-Green wire going to the mirror. Easiest location to access the harness is pulling the cap off of the inside door trim just opposite of the mirror. Black-Yellow is ground.
See if you have and then meter the Violet-Green wire going to the mirror. Easiest location to access the harness is pulling the cap off of the inside door trim just opposite of the mirror. Black-Yellow is ground.

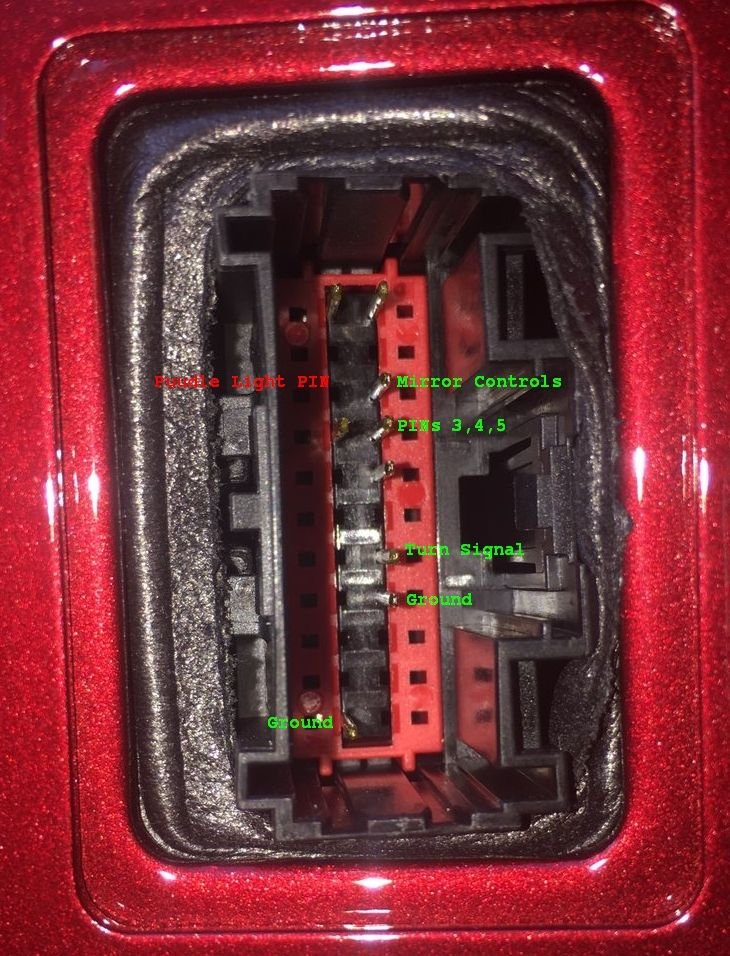

Just took the cover off and here is what I see. The top left pin is the running light. The top right pin is the defrost.
None of the other pins react to blinkers, 4 way flashers or anything. They seem "dead". I probed them with door open, closed, truck on and off and got nothing. Only ones for sure are the running lights and defrost.

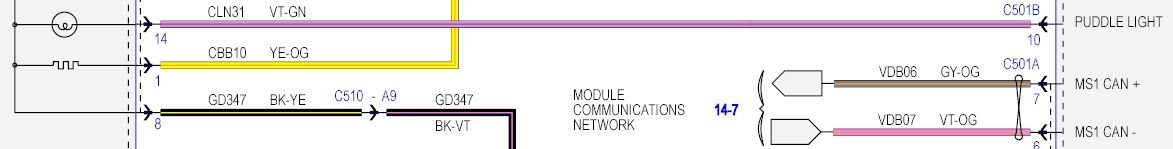

New meter.... Heres the results. If your schematic is right about that particular pin being a puddle light, I am getting 5.5v constant. The pin you show for turn signal is dead. Doesn't matter if doors open, locked, engine on or off.
Im baffled
Since the mirror doesn't support a puddle light any recommendations on which fuse I can tap into that will trigger the lights when the doors lock/ unlock? I was looking at interior fuse #3.
