Trans fluid temp gauge
I’m thankful for all the discussion/contributions at this point. It’s conversations like this that get the boilers in my brain fired up - I’ll just need to let the steam vent until I’m ready to act on it.
https://www.electro-tech-online.com/...calculator.php
https://www.electro-tech-online.com/...calculator.php
All I know for certain is that it’s integrated into the solenoid/pressure switch assembly that’s bolted onto the back side of the valve body. The wiring diagram shows “Trans Temp Sig” running from the box that’s supposed to represent the solenoid/pressure switch assembly to the PCM. There’s no symbols inside the box (which, to my understanding, means it’s a solid state device) indicating what type of sensor it is like you would see if it were just a stand-alone temp sensor.

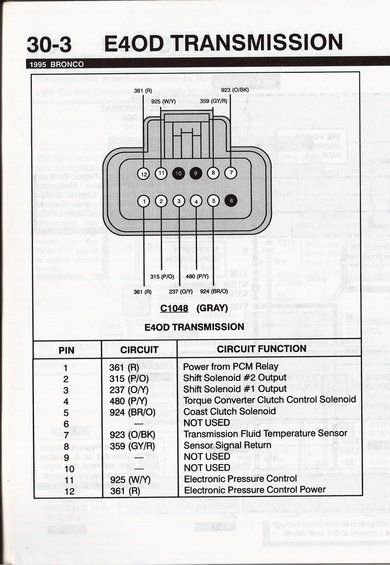

The TOT sensor is Pins 7 and 8 on the connector ......
Pin #8 is Signal Return and Pin #7 goes to the Pin #7 of the PCM in a 93 Diesel for this example....
Schematically speaking it looks like this.......

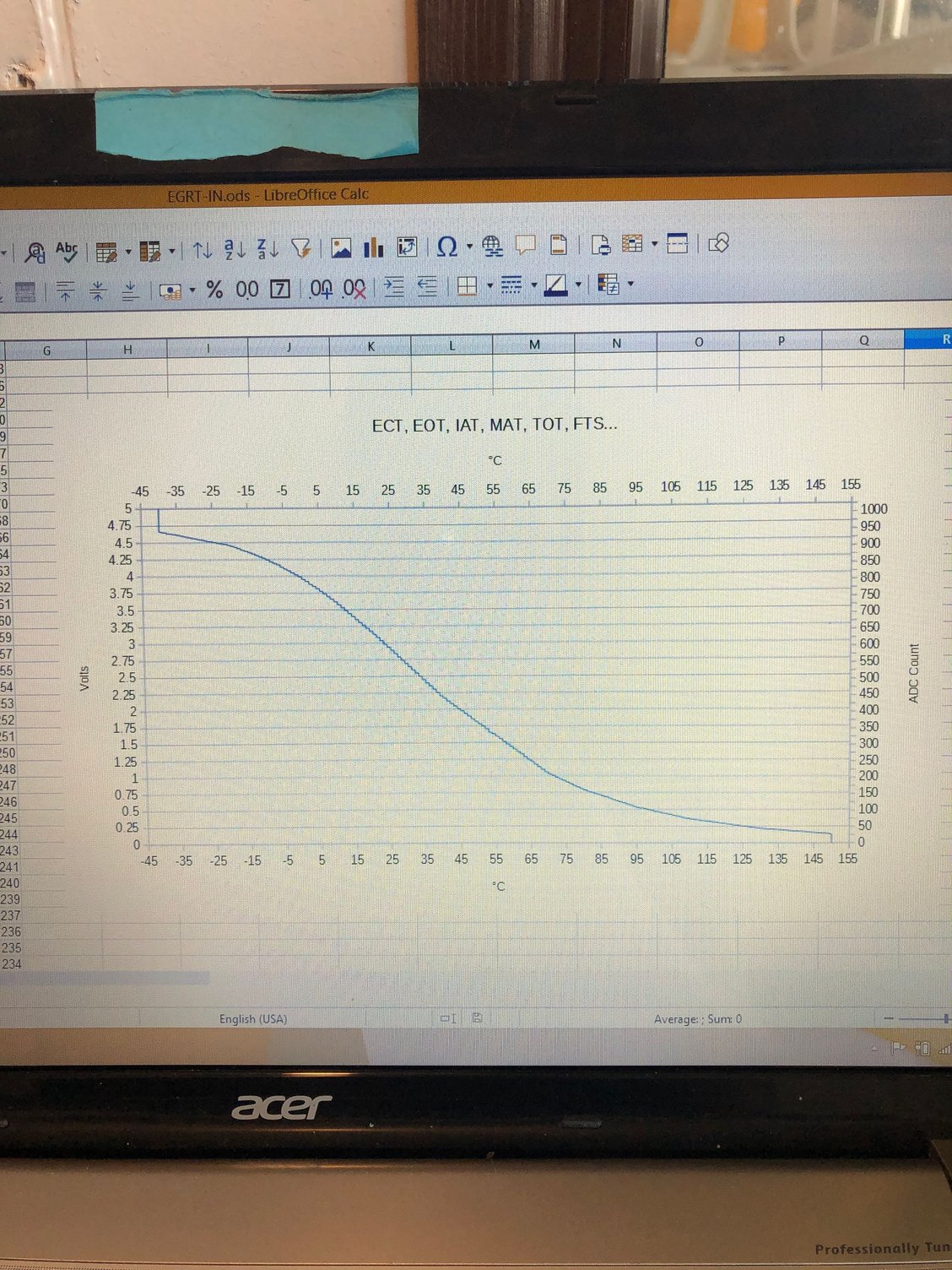

IF you monitor the Voltage on the High side of the sensor it will inversely follow the Temperature ie as Temp goes Up Voltage goes down.

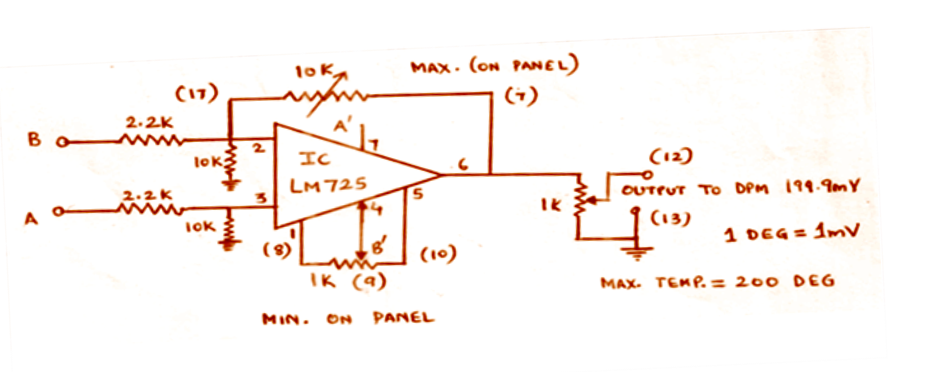

SO to make sense out of the Voltage the easy thing to do is use an Inverting OP AMP to drive a Digital Panel Meter (or and Analog Volt meter)
Your VRef on the sensor is most likely 5 Volts DC .... what you need to know is what the Resistance Value of the Thermistor is at Room Temp ... Generally 25C would be the Room Temp and at that Temp would give lets say a resistance reading of 10K Ohms .... then this says you have a 10K NTC thermistor.. then you can use a set of standard Curves for a 10K thermistor and probably be close enough for Gov't Work Calibration... then you would adjust the Gain on the OP Amp to display an appropriate Voltage to read as temperature on your Volt meter.
OK here is an example of a 10K thermistor output table.... http://2avrmz2nom8p47cc28p2743e-wpen...stor_10K-2.pdf
Being that there are many types of NTC thermistors it is important to find the Resistance Value at 25C and then you can do the math or Plot a curve using know temperature steps..... for example how many Ohms when I put the thermistor in an oil bath that is 75C then 100C etc etc etc
not knowing What Transmission you are working with .... I can only give you general information as I don't know the Specifics of your sensor... I would have to do just as I explained to discover what it is if the Manufacture will not release the Data on their part.
EDIT: I guess what I'm saying is YES you can do it.... BUT is there an Aftermarket Product that is Plug-N-Pray ... not that I've seen
Last edited by lonewolf_; Oct 2, 2019 at 10:37 PM. Reason: Explanation
Ford Trucks for Ford Truck Enthusiasts
There are plenty of other units with different ranges that you could choose from all based on same Technology

FleaBay, Aliexpress, and even Gearbest carry these things.
drill in center and epoxy/JB weld it in
this video explains where to mark for correct reading
I’ve also seen the video on the engine oil dipstick mod. I’m not saying he’s not right to have a hot and cold range, but to have an accurate hot check, you still need to know fluid temp and that’s all manufacturers, not just Dodge. The only point of the cold range is to know you have enough fluid to drive the vehicle safely until a hot check can be made.
https://www.amazon.com/DIGITEN-Fahre.../dp/B0114AWZMA
There are plenty of other units with different ranges that you could choose from all based on same Technology

FleaBay, Aliexpress, and even Gearbest carry these things.
To be honest, I’m surprised something like this doesn’t already exist given the variety of aftermarket gauges there are.
For the moment, I think I’m gonna have to shelf this idea. Besides the apparent time (which is hard for me to find these days) and effort it’s going to take to figure out how to make a gauge work as I want it to, I just answered my question in this post - I didn’t consider the warranty (until the meat thermometer idea).
I haven’t read all the fine print but I’m not gonna argue about covered repairs due to a simple tapping of a signal wire, so until the warranty is up, I guess I’ll be getting a small scan tool or phone adapter.
Thanks to all for your contributions.
different sensors create a calibration issue for a mass produced device too.
Always better to use a separate gauge circuit or just monitor the data stream in the case of OBD2
MY standard Disclaimer applies here.......
This information is provided free of charge and is probably worth precisely what you paid for it. If you build one of these devices, it is likely that it will fly apart and kill everyone within 5 blocks. Construct and use at your own risk.
3) If I wanted to purchase a small scan tool or OBD adapter for my phone to read live data, I would. But, I don’t want to, which is the reason for asking people who know more than me if this is a viable option.
totally understand temp difference, but you dont know when the sensor will malfunction, I thought manual said drive/warm up 15 minutes, apply park brake, check in neutral, sensor in valve body that is in the fluid in pan, meat thermo would also be in pan in the same area, they put special tool to check level, it cant leak up, or it would blow out when you remove cap with it running, to use special tool to check level, was all I was thinking
3) If I wanted to purchase a small scan tool or OBD adapter for my phone to read live data, I would. But, I don’t want to, which is the reason for asking people who know more than me if this is a viable option.
totally understand temp difference, but you dont know when the sensor will malfunction, I thought manual said drive/warm up 15 minutes, apply park brake, check in neutral, sensor in valve body that is in the fluid in pan, meat thermo would also be in pan in the same area, they put special tool to check level, it cant leak up, or it would blow out when you remove cap with it running, to use special tool to check level, was all I was thinking
Also, I see your point about the position of the sensor vs the sensor/temp probe for the thermometer, but the valve body/pressure switch assembly for the 62te is actually mounted on the side of the trans, not the bottom as most transmissions are. This puts it at least 6”-8” above the pan, closer to the center of the transmission, so temps read by the sensor and temps in the oil pan would have a substantial difference. Would it be enough to offset the temp range when checking the level? I can’t say for sure at this point.
