So, i just got my first truck which is a manual 88 f150 single cap xlt 4x4. Pretty nice for a first truck IMO. its got about 125k miles and im the third owner. Anywho... I did not like that there were no cup holder so one day I was at a junk yard and got a light bulb idea. Basically I took the rear pop out cup holder out of a 05-12 Acura RL (my pops has one) and put it in to my arm rest.
For me doing this was better idea than the factory options.
So I cut out the main part of the Acura rear arm rest. which is a metal box and the cup holder mechanism. left all the leather and the foam at the junk yard.
then disassembled my factory ford armrest. Cut a measured a box out the same dimensions as the cup holder set up from the front face . then measured back about 9 inches from the front and made a slit on the bottom face (the top fact has a sheet metal that goes from front to back), perpendicular to the whole arm rest.
I had to cut some tabs off and that will be showed in the pics.
the trim that came with the cup holder went on too. the trim has two clips on the top which clip on the the metal box but i trimmed the bottom of the trim to make it be level with the arm rest. unfortunately the clips on the bottom were choped off. so i put two screws on the sides through the plastic trim that go in to the metal box. Make sure the trim is pushed as much to the bottom as possible because otherwise it will pop off from the top.
It will be easier to understand once you see the pictures.
I will redo the trim in the future and trim the foam to make it not bugle out as much.


arm rest is upside down


top is the top of the arm rest where you see the gray, that is the metal



mock up


pretty centered

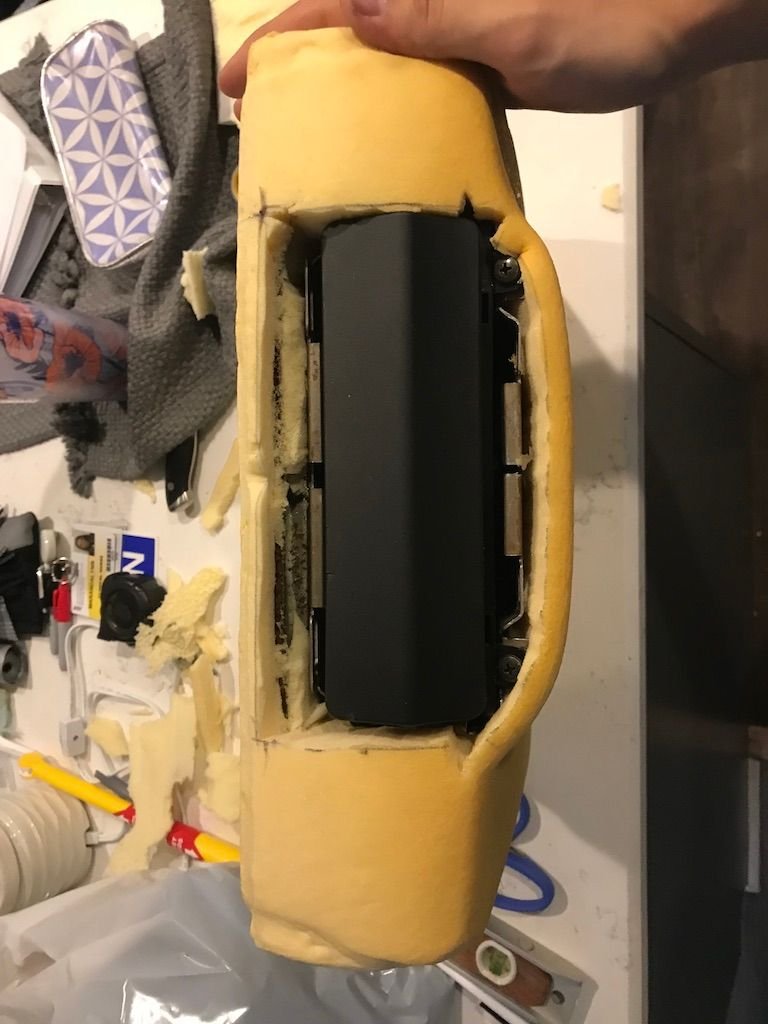

stuck out to much so i had to cut the brackets off on the right side in this pic.

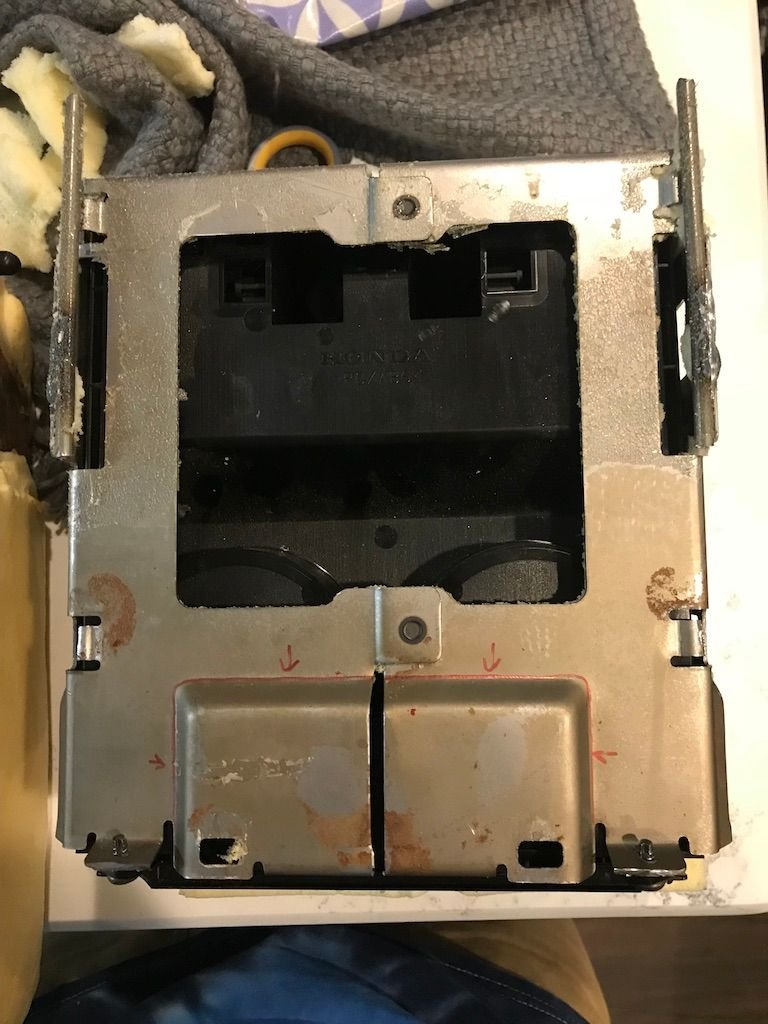

cut along the red lines


cut above the arrows


this is after i cut the side brackets off


the squares cut off

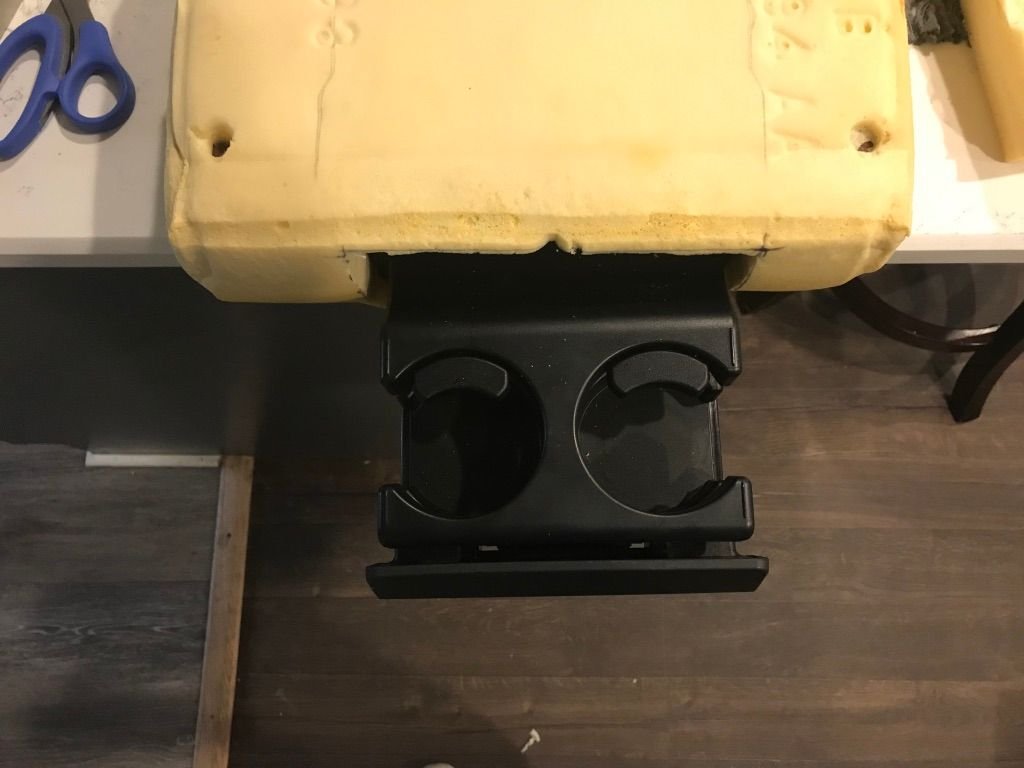

all done
