Wiper conundrum



The switch


From the motor

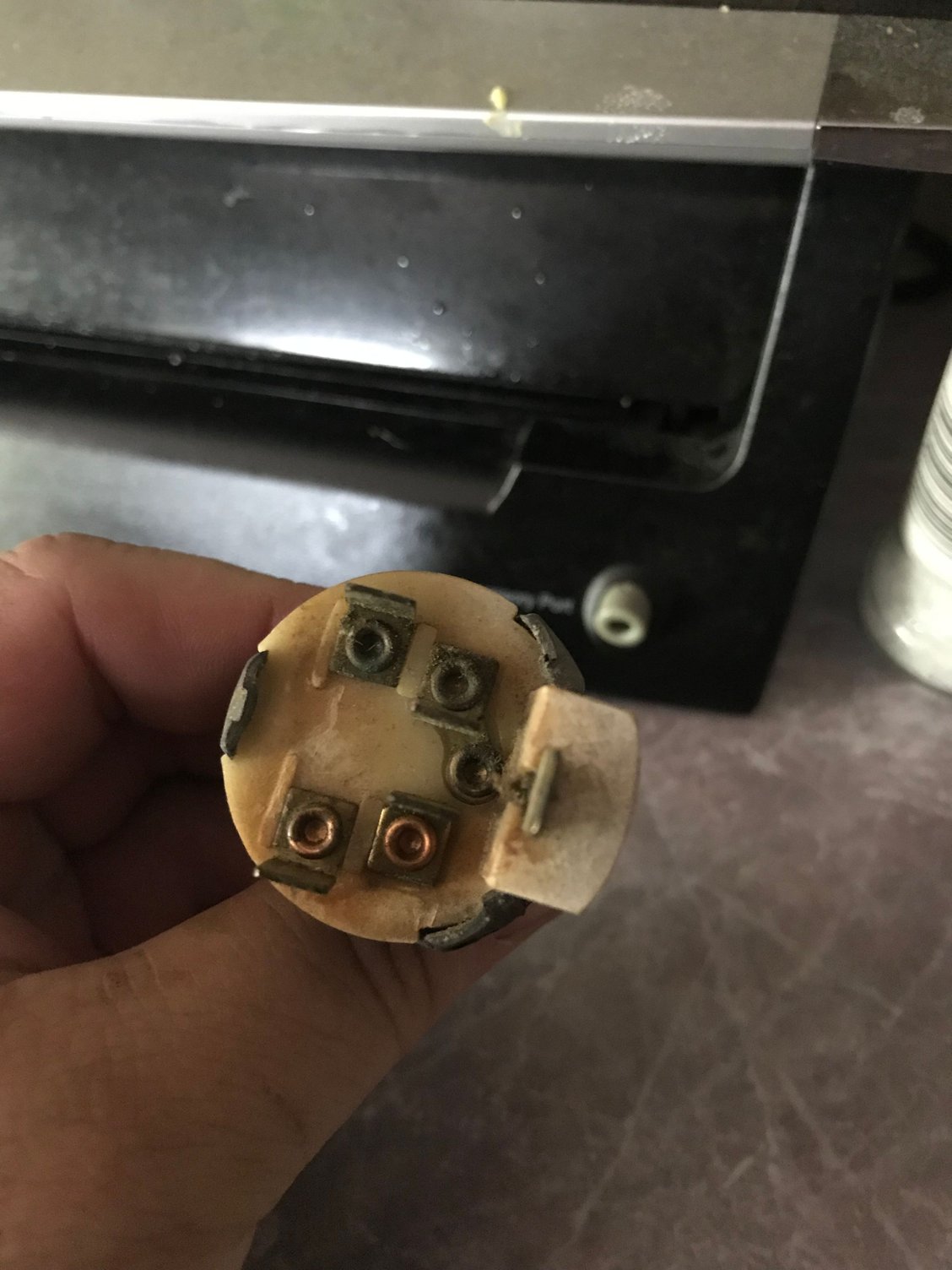

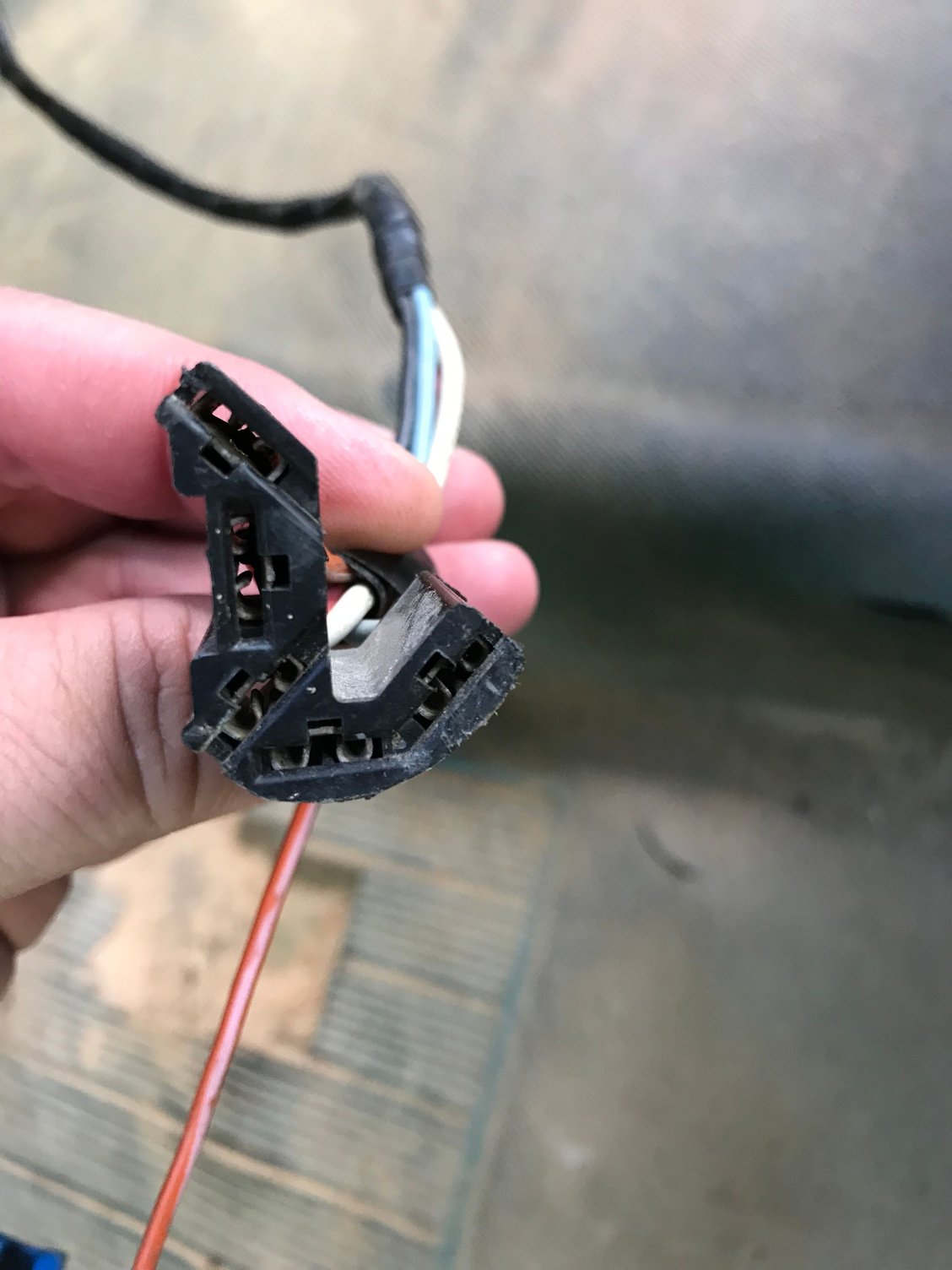

I have a 66 f100 that I bought that was missing some pieces, one of which was the wiper motor and bracket. I found one on eBay that was supposed to be from a 66 f350 and it fits. The only problem is that the connector on it doesn’t match the wiper switch in my dashboard. Can anyone help?

  #2
Old 05-06-2018, 12:50 PM
TA455HO's Avatar
TA455HO
TA455HO is online now
Post Fiend
Join Date: Aug 2012
Location: Seattle, WA
Posts: 5,282
TA455HO has a very good reputation on FTE.TA455HO has a very good reputation on FTE.TA455HO has a very good reputation on FTE.TA455HO has a very good reputation on FTE.
The connector is of the type on the two-speed wiper motors. The switch is the type for the single speed wiper motor.

I'd believe you just need a switch for the two-speed wipers. A neat way to go if you want delay wipers also is to get the switch and governor from a later model Ford truck. Here's an example.

https://www.ebay.com/itm/Delay-Wiper...daCOVf&vxp=mtr

The black box is the governor, the loose wire is the ground. Your new wiper motor female connector plugs into the black male connector of the switch. The shaft would need a slight trim and an original **** and it's hard to tell from an original install.

Chad

  #3
Old 05-06-2018, 03:22 PM
NumberDummy's Avatar
NumberDummy
NumberDummy is offline
Ford Parts Specialist
Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 83,134
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
TWO different 1966 two speed wiper switches. One has 4 terminals, the other has 7 terminals and includes the windshield washer switch.

C3TZ-17A553-E .. Two Speed Wiper Switch-4 terminals / Marked: C3TB-17A553-A or C3TB-17A553-E (Motorcraft SW-721) / Obsolete

1963/65 F100/350 and 1966 F100/350 before serial number 760,001 / 1963/65 F500/950 & N/NT500/850 and 1966 F500/950 & N/NT500/850 before serial number 802,001 / 1963/66 Econoline.

MUSTANG'S ETC. in Van Nuys CA has 1 = 818-767-7634.

MCDONALD OBSOLETE PARTS in Rockport IN has 1 = 812-359-4965.
-----------------------------------------------------------------------------
C6TZ-17A553-B .. Two Speed Wiper Switch-7 terminals - includes windshield washer switch / Marked C6TB-17A553-B / (Motorcraft SW-736) / Obsolete

1966 F100/350 from serial number 760,001 / 1966 F500/950 & N/NT500/850 from serial number 802,001 // 1967/69 F800/950 & N/NT500/950.

NOS PARTS SOURCE in Olathe KS has 1 = 913-220-5746.

KAMA OBSOLETE PARTS in East Bethel MN has 1 = 763-434-0123.

OBSOLETE RELIABLE PARTS in Nashville GA has 2 = 229-686-5101.

  #4
Old 05-06-2018, 05:17 PM
John32369
John32369 is offline
New User
Thread Starter
Join Date: Jan 2016
Posts: 12
John32369 is starting off with a positive reputation.
Mine has 5 terminals it appears

  #5
Old 05-06-2018, 06:06 PM
TA455HO's Avatar
TA455HO
TA455HO is online now
Post Fiend
Join Date: Aug 2012
Location: Seattle, WA
Posts: 5,282
TA455HO has a very good reputation on FTE.TA455HO has a very good reputation on FTE.TA455HO has a very good reputation on FTE.TA455HO has a very good reputation on FTE.
The wiper switch to wiper motor wiring connector is 5 (female) of the 7 total male connectors on the switch. 6th one is power from the ignition switch TO the wiper switch and the 7th one powers the wiper motor pump for the windshield squirters.

Chad

  #6
Old 05-06-2018, 07:30 PM
NumberDummy's Avatar
NumberDummy
NumberDummy is offline
Ford Parts Specialist
Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 83,134
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Originally Posted by John32369 View Post
Mine has 5 terminals it appears
The only 5 terminal wiper switch is a single speed: C3TZ-17A553-G / Marked C3TB-17A553-G / Obsolete

1963/66 F100/600 & N500/600.

  #7
Old 05-06-2018, 08:44 PM
John32369
John32369 is offline
New User
Thread Starter
Join Date: Jan 2016
Posts: 12
John32369 is starting off with a positive reputation.
Any idea where I may find one?

  #8
Old 05-06-2018, 08:50 PM
NumberDummy's Avatar
NumberDummy
NumberDummy is offline
Ford Parts Specialist
Join Date: Nov 2006
Location: Simi Valley, CA
Posts: 83,134
NumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputationNumberDummy has a superb reputation
Originally Posted by NumberDummy View Post
The only 5 terminal wiper switch is a single speed: C3TZ-17A553-G / Marked C3TB-17A553-G / Obsolete

1963/66 F100/600 & N500/600.
Very hard to find, none have been available NOS for at least 8 years.

  #9
Old 05-07-2018, 12:16 PM
TA455HO's Avatar
TA455HO
TA455HO is online now
Post Fiend
Join Date: Aug 2012
Location: Seattle, WA
Posts: 5,282
TA455HO has a very good reputation on FTE.TA455HO has a very good reputation on FTE.TA455HO has a very good reputation on FTE.TA455HO has a very good reputation on FTE.
Your wiper motor from the 66 F350 is the two speed motor so you'll want a two speed switch to go along with it. The connector from the motor isn't going to connect to a single speed switch.

Chad

  #10
Old 05-14-2018, 10:38 PM
William
William is offline
Postmaster
Join Date: Feb 2000
Location: Sun River St. George
Posts: 3,474
William is gaining momentum as a positive member of FTE.
Using the entire system off a later model Ford and the firewall bracket that you have (I suspect you have the right motor as well). You just need the later governor and switch. This is a plug and play up grade. Saw off a bit of the new switch and install a 66 button with set screw retainer (Carpenter has this). You will have a intermittent delay and two speed system that is not detectable until you turn the wipers on. Look on ebay for the complete system (switch, governor). Plug and play.
