Hey fellas,
I am looking to get headlights in my 54 and am missing 100% of the parts aside from the grill. I do have the parking lamps. Does anyone have a diagram of how they are assembled or something that shows what all parts are required?
Are led bulbs a thing in these old trucks?
I am looking to get headlights in my 54 and am missing 100% of the parts aside from the grill. I do have the parking lamps. Does anyone have a diagram of how they are assembled or something that shows what all parts are required?
Are led bulbs a thing in these old trucks?
Fleet Owner
Joined: Dec 2000
Posts: 25,312
Likes: 5,354
From: Central PA
You should have a shop manual. Check eBay for good used ones or buy a reproduction. Or at least call MidFifty and get a free catalog. They have lots of pictures and diagrams.
There are headlight buckets, springs, retainer for rings, etc, with a trim ring as the last piece .
Someone might be along later to post a diagram for you.
There are headlight buckets, springs, retainer for rings, etc, with a trim ring as the last piece .
Someone might be along later to post a diagram for you.
Former Vendor
Joined: May 2017
Posts: 208
Likes: 0
Vanquish Auto LED Headlights
I got some led bi-led I would recommend. Do not get led on reflectors, the cutoff is not good.
Here are are the better ones
https://vanquishauto.com/2007-2017-j...placement.html
no need to get adapters or cancellers. Use coupon code SAVEME20% at checkout.
Here are are the better ones
https://vanquishauto.com/2007-2017-j...placement.html
no need to get adapters or cancellers. Use coupon code SAVEME20% at checkout.
Logistics Pro
Joined: Nov 2011
Posts: 4,684
Likes: 79
From: Northville, MI
Trending Topics
Thread Starter
|
Senior User
Joined: Mar 2012
Posts: 332
Likes: 0

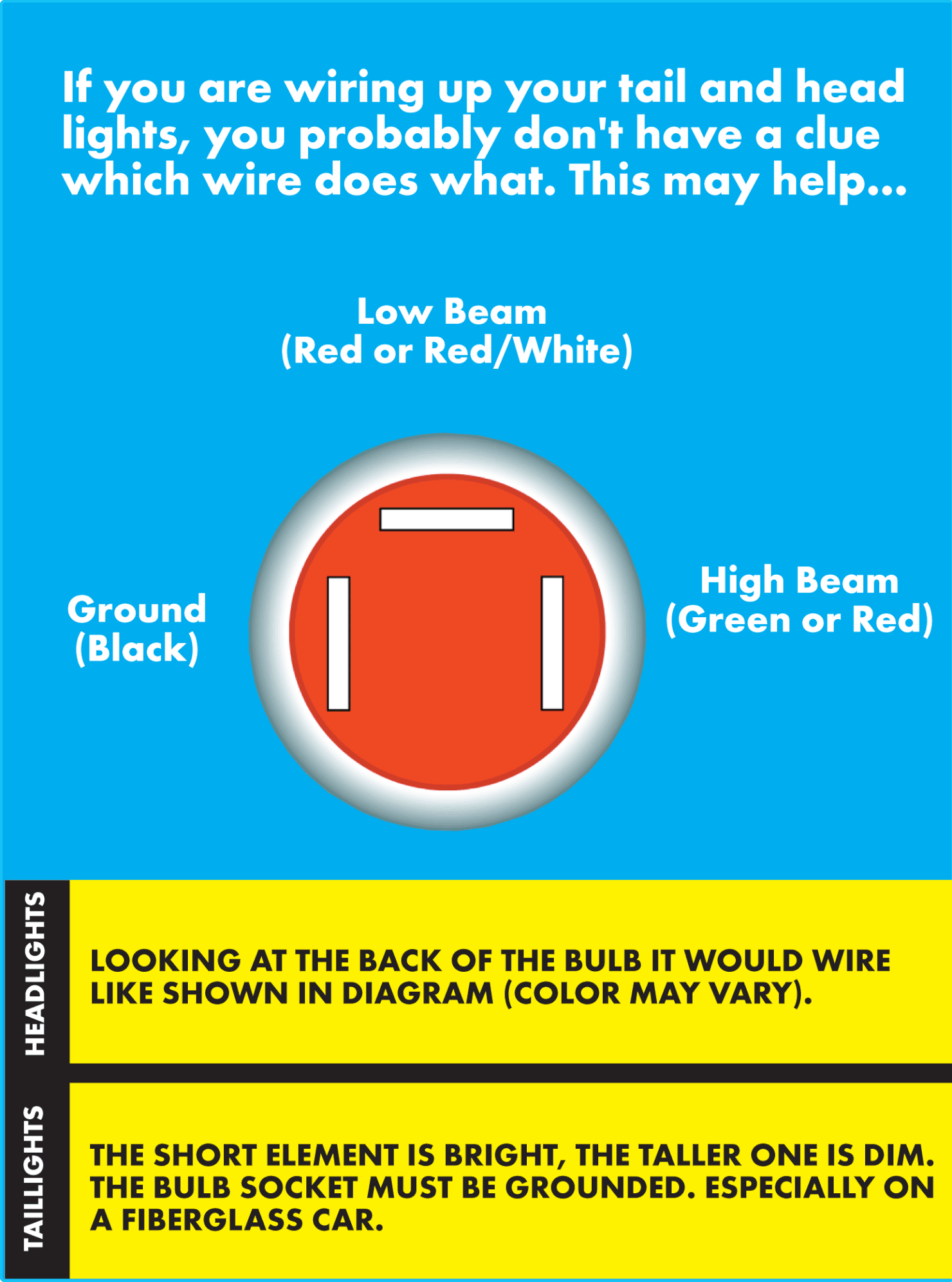

Thanks for posting the pin out. I ordered all my stuff this morning. I went with some of those LED halo lights on sort of an impluse purchase. I like them on everything I see them on. We'll see if I regret it later.
