1985 Bronco 5.0L

I am getting code 18c, the SPOUT connector grounded. The truck will not start. Brand new distributor and module. I am very right on the timing, I have taken enough distributors in and out on these Ford EFIs before.

All sensors in the motor were replaced. New timing chain and checked the crank and the cam are on the correct strokes. I checked the wires to the module on the distributor to the computer 100 times and nothing is wrong. Tried an alternate module and no difference. Used a jumper cable and temped grounds everywhere and no change.

The truck did not start, and had the same code before I did any of this work. How do I rid this problem?

Thank you for reading.

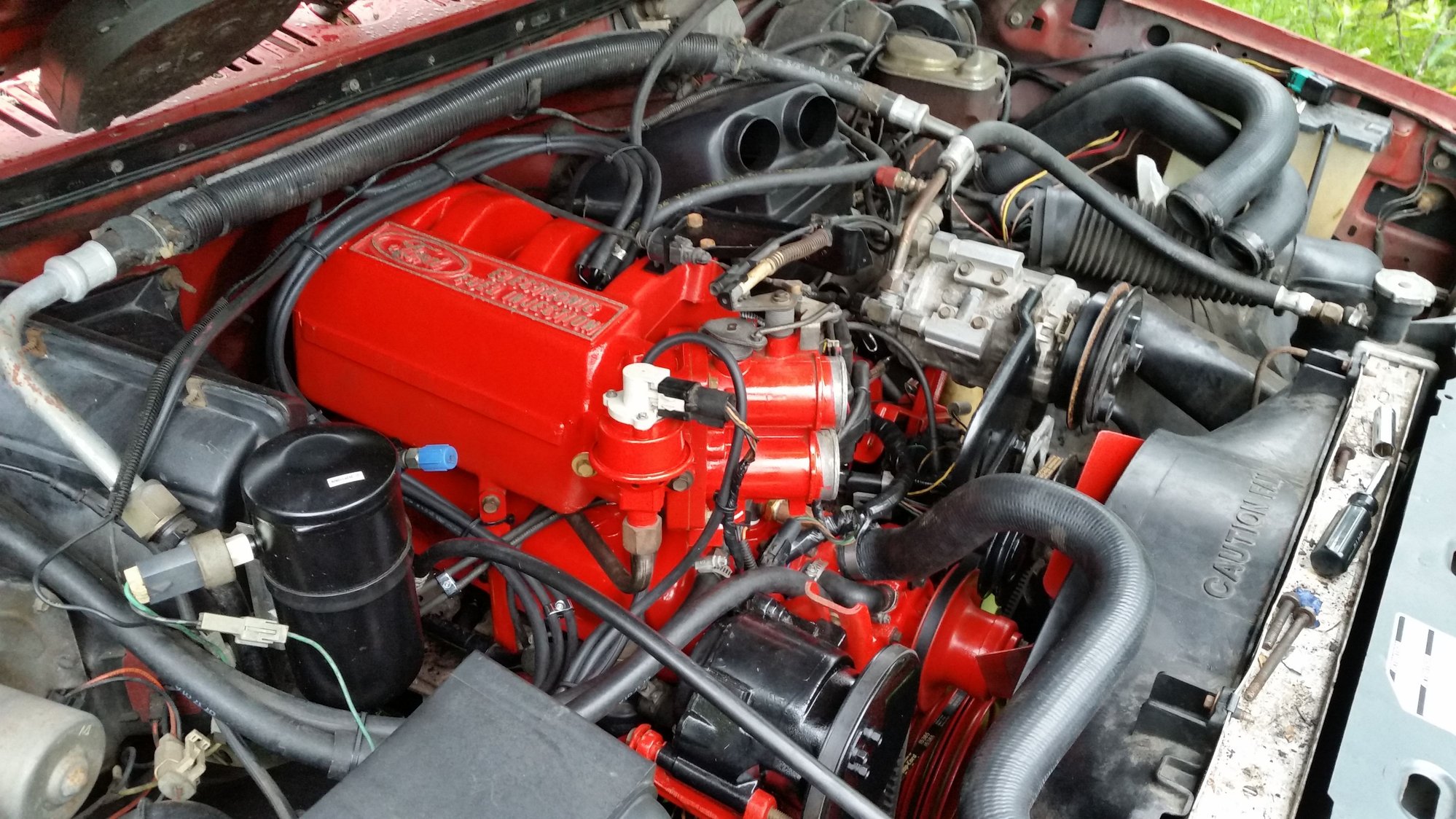

PS here's the picture of it, it needs to run again! It is my wife's and it needs to be running before her highschool reunion.



Reply With Quote
  #2
Old 06-16-2017, 01:15 PM
rla2005's Avatar
rla2005 rla2005 is online now
Post Fiend

Join Date: Oct 2005
Location: Illinois
Posts: 13,341
rla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud of
Code 18 (CM) has two definitions: Loss of IDM input to processor/SPOUT circuit grounded.

Have you tried removing the SPOUT plug to see if you get spark? If it is a grounded SPOUT signal that may prevent the computer from triggering the ICM. With the SPOUT out the raw PIP signal from the distributor will trigger the Ignition Control Module (ICM).

If the problem is really "Loss of IDM input to processor" that will not keep the truck from starting. There is a 22k ohm resistor in line from coil to the computer to provide a feedback signal that the coil is triggering.
Reply With Quote
  #3
Old 06-16-2017, 07:52 PM
ClintonA ClintonA is offline
Freshman User
Thread Starter

Join Date: Mar 2016
Posts: 26
ClintonA is starting off with a positive reputation.
Thanks for the information. I was able to find a soldered splice that was grounding itself. My computer now reads okay yet the truck still does not start. I went through everything again with the timing- pulled all the wires, pulled out plug 1 and found compression stroke, re-stabbed the distributor in, went through the firing order again. Still nothing. When it is turning over I can hear the tail pipe giving out low putts every few turns like it is trying. I am like pulling my hair out over this lol.
Reply With Quote
  #4
Old 06-16-2017, 11:07 PM
ClintonA ClintonA is offline
Freshman User
Thread Starter

Join Date: Mar 2016
Posts: 26
ClintonA is starting off with a positive reputation.
Update, it still says code 18c after trying to start it. I opened the wiring harness and inspected all the wires and they are all in order.
Reply With Quote
  #5
Old 06-17-2017, 04:04 PM
Bubba Jones's Avatar
Bubba Jones Bubba Jones is offline
Posting Guru

Join Date: Dec 2006
Location: Fort McDowell, AZ
Posts: 1,688
Bubba Jones has a good reputation on FTE.Bubba Jones has a good reputation on FTE.Bubba Jones has a good reputation on FTE.
Not saying this is your problem but I have had issues with part store parts right out of the box. Maybe you have a bad distributor or other sensor if you got the parts from a local chain store (I have had way too many issues with distributors from my local parts stores.)


Anyways, if it's not starting (computer stuff aside) that means it's either:

1. Not getting spark (or it's too weak)
2. Not getting fuel (or the fuel pressure it too low)
3. Not timed correctly
4. No compression

I probably wouldn't worry about #4 and it seems like you have #3 taken care of as well.

Have you tried and tested for spark? I'd first test for spark at the ignition coil (the wire going to the top of the distributor), then if that's good, I'd test for spark on the wires (near the spark plug. Make sure the spark is a nice fat blue spark too.

If you are getting spark at the end of the wires (near the plugs), then it's gotta be fuel or timing. Based on having some codes, I'd suspect a spark issue.
Reply With Quote
  #6
Old 06-17-2017, 10:45 PM
Black Ford XLT's Avatar
Black Ford XLT Black Ford XLT is offline
Posting Guru

Join Date: Aug 2002
Location: Swansea SC
Posts: 1,066
Black Ford XLT is starting off with a positive reputation.
Agreed , the 3 basic things fuel, spark. compression ,i see you had removed the upper intake , When was the engine last running ,been sitting long ?I know you said you have had problems before any changes ????Good looking 85 ! TR
Reply With Quote
  #7
Old 06-19-2017, 01:46 PM
rla2005's Avatar
rla2005 rla2005 is online now
Post Fiend

Join Date: Oct 2005
Location: Illinois
Posts: 13,341
rla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud of
Quote:
Originally Posted by ClintonA View Post
Update, it still says code 18c after trying to start it.
Did you clear the CM codes after repairing the wiring?

They are called stored codes for a reason. I believe they will eventually clear themselves, 40? drive cycles...maybe 80. Much easier to clear the codes yourself.
Reply With Quote
  #8
Old 06-24-2017, 11:23 PM
ClintonA ClintonA is offline
Freshman User
Thread Starter

Join Date: Mar 2016
Posts: 26
ClintonA is starting off with a positive reputation.
So I had time to check my compression and didn't go well, I took out all the plugs and checked one at a time and let it turn over at least 3 times.

1 - 61
2 - 91
3 - 91
4 - 70
5 - 60
6 - 90

The tool was too much of a pain in the butt to check the last two. And all of these numbers suck.



Valve covers off, intake off, timing chain cover off. I can see both valves on 1 are closed, I can feel the piston in the plug hole ready for compression stroke, and the TDC lines on my crank and cam are perfectly in line.

My next door neighbor keeps insisting that my rotor should be pointing physically to cylinder. The TFI unit wont even fit that direction. All my other Ford always point top right. Why does he say this? The timing wont even be right.

Where should I go from here?
Reply With Quote
  #9
Old 06-24-2017, 11:59 PM
Torky2 Torky2 is offline
Posting Guru

Join Date: Sep 2003
Posts: 1,679
Torky2 has a great reputation on FTE.Torky2 has a great reputation on FTE.Torky2 has a great reputation on FTE.Torky2 has a great reputation on FTE.
I'm late to this one, so I'm not sure what exact problem you're chasing.

Quote:
So I had time to check my compression and didn't go well, I took out all the plugs and checked one at a time and let it turn over at least 3 times.

1 - 61
2 - 91
3 - 91
4 - 70
5 - 60
6 - 90

The tool was too much of a pain in the butt to check the last two. And all of these numbers suck.
You are using a thread-in compression gauge I hope, and not one of those old goofy push-in-hard-as-you-can rubber nosed ones, right? And do you have the throttle blocked wide open when doing the test?

Quote:
Valve covers off, intake off, timing chain cover off. I can see both valves on 1 are closed, I can feel the piston in the plug hole ready for compression stroke, and the TDC lines on my crank and cam are perfectly in line.
Is that a typo? TDC should be at the TOP (ending) of the compression stroke, not when the piston is at the bottom about to come up and Start the compression stroke.

Quote:
My next door neighbor keeps insisting that my rotor should be pointing physically to cylinder. The TFI unit wont even fit that direction. All my other Ford always point top right. Why does he say this? The timing wont even be right.
At the top of the compression stroke for cylinder #1, the rotor Should be pointing at the distributor cap tower for plug wire 1. If you are really at the top of compression stroke for cyl. #1, and the rotor is not pointing at #1, and by turning the distributor to try to get it, you run out of room, then the distributor needs to be pulled out, and re-stabbed in the appropriate amount around, so you have turning adjustment room.
Reply With Quote
  #10
Old 06-25-2017, 12:02 AM
ClintonA ClintonA is offline
Freshman User
Thread Starter

Join Date: Mar 2016
Posts: 26
ClintonA is starting off with a positive reputation.
I am using a thread in, and yes I opened the throttle all the way. I meant the piston is at it's highest point closest to the plug.
Reply With Quote
  #11
Old 06-25-2017, 09:45 PM
ClintonA ClintonA is offline
Freshman User
Thread Starter

Join Date: Mar 2016
Posts: 26
ClintonA is starting off with a positive reputation.
I decided to pull the heads because it was leaking oil into one of the cylinders and wanted them to have new gaskets since I have no idea what happened to this motor before I got it.

So I turned the motor over a few times. Every piston has no weird play, held the water I dumped in from removing the heads, and the walls are smooth without a scratch.

I noticed nothing weird about the heads, no cracks, and the valves are all seated closed.
Reply With Quote
  #12
Old 06-26-2017, 06:39 PM
rla2005's Avatar
rla2005 rla2005 is online now
Post Fiend

Join Date: Oct 2005
Location: Illinois
Posts: 13,341
rla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud ofrla2005 has much to be proud of
Pushrods too long keeping the valves open? Without knowing exactly what was replaced and what work was performed it's all a guess from this side of the keyboard.
Reply With Quote
  #13
Old 06-27-2017, 06:21 PM
ClintonA ClintonA is offline
Freshman User
Thread Starter

Join Date: Mar 2016
Posts: 26
ClintonA is starting off with a positive reputation.
The lifters were replaced. Though I have changed lifters on my other trucks and never had an issue but maybe I have the wrong ones? The valves do close all the way and have that tiny of play in the rocker arm. I did this so long ago I don't remember where the old ones are. I know for sure they were identical height and insides. Would it mattered if they gave me lifters for a carbeurated motor when I have an EFI, since they did that before on another part I ordered.

Does anyone know how far down the rocker arms press downward? If I knew that I can get some new lifters or rods.

Thanks!
Reply With Quote
  #14
Old 06-27-2017, 06:53 PM
Conanski's Avatar
Conanski Conanski is offline
Post Fiend

Join Date: Jun 2006
Location: Ottawa, Ontario
Posts: 24,966
Conanski has a brilliant futureConanski has a brilliant futureConanski has a brilliant futureConanski has a brilliant futureConanski has a brilliant futureConanski has a brilliant futureConanski has a brilliant futureConanski has a brilliant futureConanski has a brilliant futureConanski has a brilliant futureConanski has a brilliant future
Awesome looking truck.. I love the tire/wheel combo but hate the running boards.. sorry.

I think I see your problem though.. it's right there in that first pic... that BLACK ignition module on the side of your new distributor.
Reply With Quote
  #15
Old 06-27-2017, 07:13 PM
ClintonA ClintonA is offline
Freshman User
Thread Starter

Join Date: Mar 2016
Posts: 26
ClintonA is starting off with a positive reputation.
Quote:
Originally Posted by Conanski View Post
Awesome looking truck.. I love the tire/wheel combo but hate the running boards.. sorry.

I think I see your problem though.. it's right there in that first pic... that BLACK ignition module on the side of your new distributor.
Thanks! And yes the black module was changed to a gray one since I had both. When I ordered a new distributor I had a cast iron gear and the only cast iron gear distributor came with a black module even though it said it was for my truck. I had changed it to a gray one later than the picture.
Reply With Quote
