Part Number?
Hotshot
Joined: Mar 2013
Posts: 14,255
Likes: 199
From: Phoenix, Az.
Those bolts might work, but it wouldn't match the other pressed in studs.

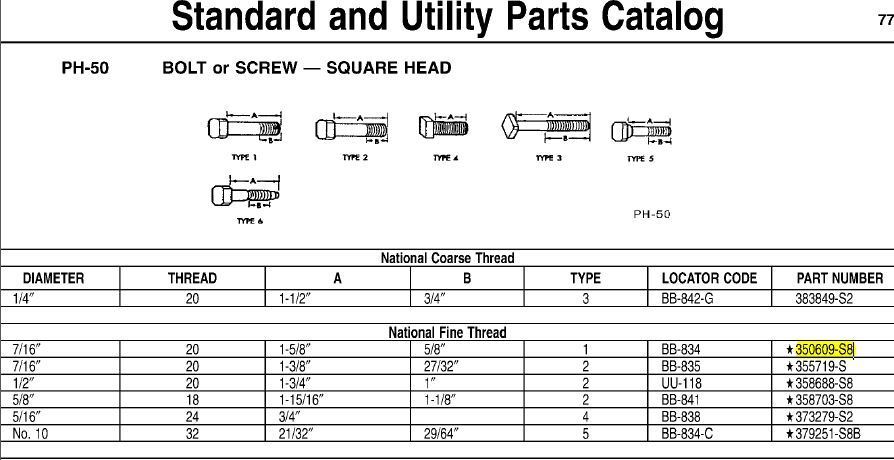

I found this part number in a Ford "Standard Utility Parts" catalog that has a diagram that appears to match what I'm after:
350609-S8
It is a similar part number to the bolt, but I suspect this one will return press-in studs. Only problem is I don't know where to look as well as you all.
I found this part number in a Ford "Standard Utility Parts" catalog that has a diagram that appears to match what I'm after:
350609-S8
It is a similar part number to the bolt, but I suspect this one will return press-in studs. Only problem is I don't know where to look as well as you all.
64 and up B-F100/750,C500/600, P350/500 4 speed M/T.
64 and up P350/500 with 3 speed M/T.
Bolt (flange to coupling shaft flange yoke)
7/16" - 20 X 1 5/8" long not including the square head. The last 5/8" being the threads. So that would mean a full inch of shank.
Thread Starter
|
5th Wheeling
Joined: May 2009
Posts: 39
Likes: 0
That is very close. When I measured the stud (somewhat awkwardly since it was still installed) the size was definitely 7/16"-20, but I measured the overall length (not including head) as 1 1/4".
Perhaps the extra 1/2' will be okay. Or I could trim it.
If I'm going to just go with a bolt, I might just look for a high grade generic fastener, rather than some obscure Ford part that is just a bolt.
Perhaps the extra 1/2' will be okay. Or I could trim it.
If I'm going to just go with a bolt, I might just look for a high grade generic fastener, rather than some obscure Ford part that is just a bolt.
Hotshot
Joined: Mar 2013
Posts: 14,255
Likes: 199
From: Phoenix, Az.
That is very close. When I measured the stud (somewhat awkwardly since it was still installed) the size was definitely 7/16"-20, but I measured the overall length (not including head) as 1 1/4".
Perhaps the extra 1/2' will be okay. Or I could trim it.
If I'm going to just go with a bolt, I might just look for a high grade generic fastener, rather than some obscure Ford part that is just a bolt.
Perhaps the extra 1/2' will be okay. Or I could trim it.
If I'm going to just go with a bolt, I might just look for a high grade generic fastener, rather than some obscure Ford part that is just a bolt.
Cargo Master
Joined: May 2015
Posts: 2,350
Likes: 7
From: Garland, Tx
Sometimes they make me cry too as they make it seem easy.
A Poe Boy gotts Poe Ways, but to reiterate what Jeffaffa said, don't be Johnny Q. Public and "rigg" that stud, with all do respect.
Posting Guru
Joined: Apr 2006
Posts: 1,477
Likes: 7
From: NAMPA, ID.
On a side note, is there some trick to the numbering on the schematic I posted? It seems like the numbers on the diagram are fairly useless except as a descriptor for forum discussions. In other words, is there a way to use the schematic number to determine an actual part number?
