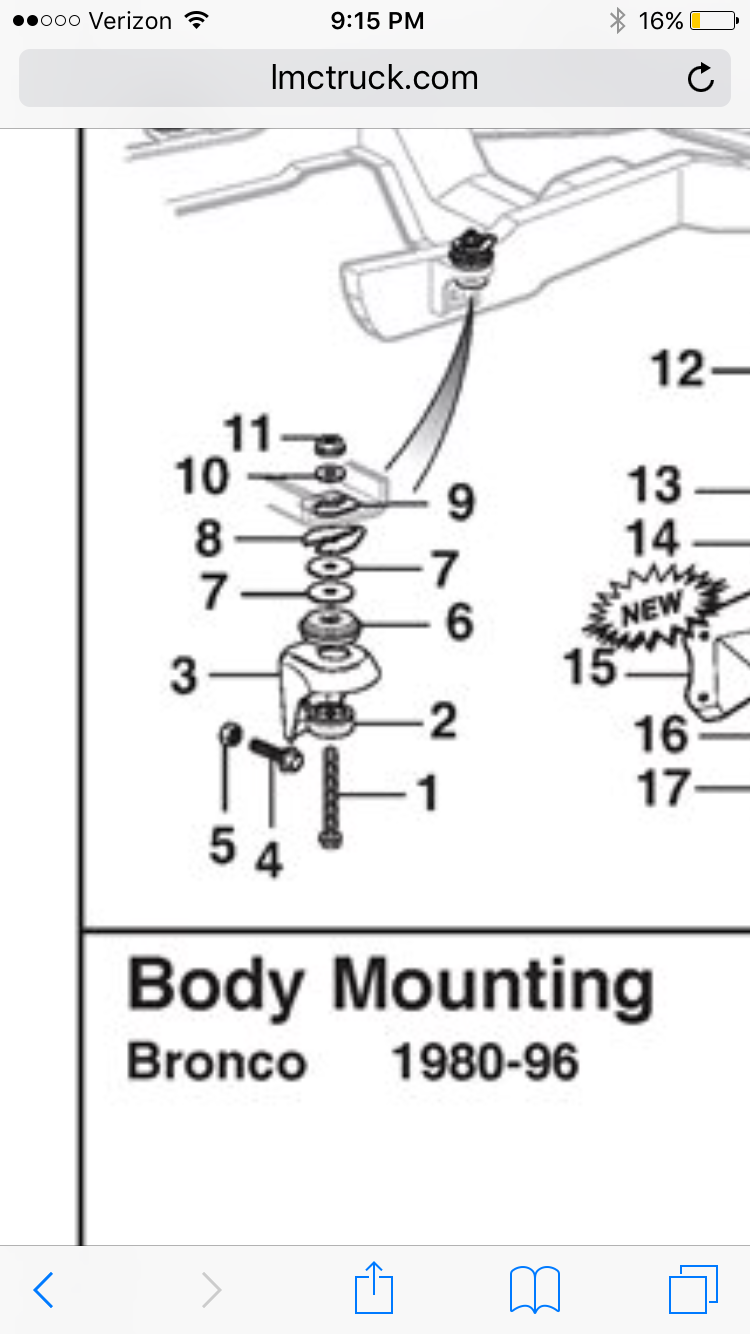

Can anyone confirm what goes where I found this picture online but want to make sure. My old core support is beyond junk and I'm unable to tell what's what.



I'm not 100% sure what part you are asking for verification (all of it or just parts), but the gas and diesel hardware should be the same between the two core supports. Obviously the diesel core support is larger, but the hardware itself is the same. I reused the hardware from my Bronco's core support when I swapped the diesel support on there.

I don't know if that helps, but at least finding the hardware in a junk yard should be pretty straight forward if that's what you are needing to do.



Hey thanks for the reply I should have clarified better I have all the hardware In this picture but want to know what parts go on the bottom of the bracket and what goes on top? I set the bracket up the same as this picture but my old rotted core support i just pulled out looks different as far as bushings and hardware? On my old support There's a big rubber bushing on the bottom and small rubber bushing on top with 3 flat washers? But this picture shows a small plastic bushing on the bottom and big rubber/metal bushing on top?
