95 F150 harnesses -- HELP

I'm swapping a 5.8/E4OD from a '95 F150 into an old '52 F3...

The million dollar question: what all do I need to transfer over to make the motor run and make the PCM happy? I've got a box of harnesses from the previous owner of the '95... obviously waaaaay more than I'll need.

I do have the engine harness separate as well as the harness for the tranny, so that's a good start.

I also have the "main" harness with the power distribution box and PCM.

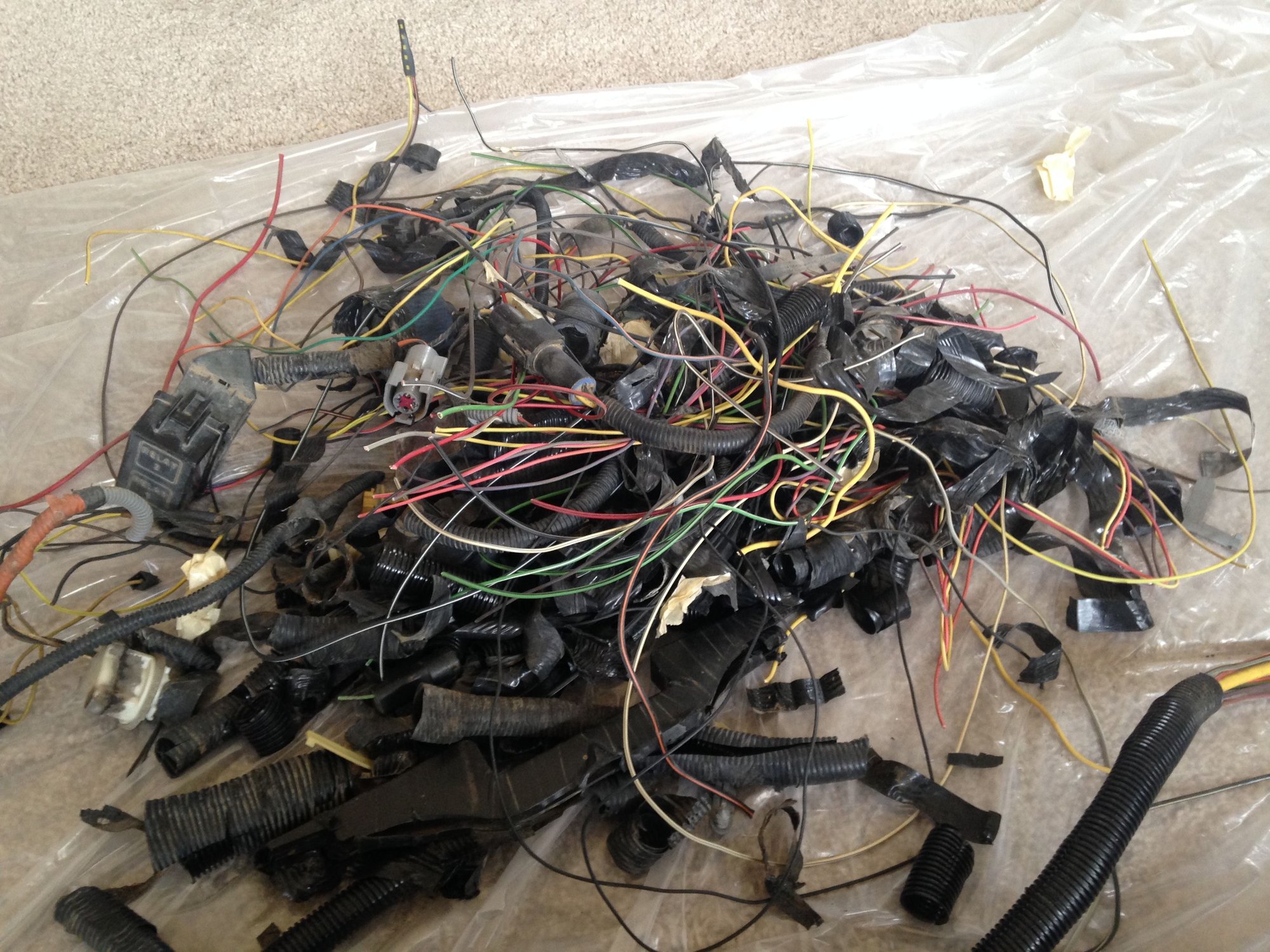

Then of course there's another large harness with the massive connector that takes everything back from the engine compartment... I'm really hoping I don't need anything from this spider web mess.

Any insight from the experts would be hugely appreciated! All I care about is getting the motor/tranny to work (I'll run my own wires for lights, etc. later).

Thanks in advance.

Feb 17, 2017 | 06:58 AM

Franklin2

Moderator

Joined: Jan 2001

Posts: 56,984

Likes: 2,738

From: Virginia

The engine harness with the computer to run the engine and the transmission should be all you need. Of course you will need to mount the oxygen sensors in the exhaust, and see where the speed sensor is, they were usually in the rearend. You will also need to swap over the fuel tanks. Here's a link where you can look up schematics.

Search Wiring Diagrams

P.S. If this is not 4wd, you probably do not have any place to run your old timey speedometer with it's cable. You could run the newer speedo, but that's more wires.

Feb 17, 2017 | 09:30 AM

GoldCo

Thread Starter

Laughing Gas

Joined: May 2015

Posts: 826

Likes: 21

From: Golden, CO

i sure hope you're right...
yes, planning to add O2 sensor(s) (anyone know if it is one or two, and heated or not?).
thanks for the link-- i'll dig around.
yes, i've got fuel tank from donor, too. (guess that will need plugged in somewhere, too).
where does VSS (from rearend) plug in to (which) harness?

cheers.

Quote:

Originally Posted by Franklin2

Feb 17, 2017 | 01:35 PM

Franklin2

Moderator

Joined: Jan 2001

Posts: 56,984

Likes: 2,738

From: Virginia

The VSS plugs into the harness that runs along the driver's side frame rail. It may be separate from the rear light harness.

Feb 23, 2017 | 03:39 PM

GoldCo

Thread Starter

Laughing Gas

Joined: May 2015

Posts: 826

Likes: 21

From: Golden, CO

Trying to make sense of various wire diagrams...

anybody know now what gets connected here (off starter relay harness)?

Feb 23, 2017 | 03:42 PM

GoldCo

Thread Starter

Laughing Gas

Joined: May 2015

Posts: 826

Likes: 21

From: Golden, CO

One more

How 'bout this one inline to MAP sensor?

Feb 23, 2017 | 05:30 PM

Franklin2

Moderator

Joined: Jan 2001

Posts: 56,984

Likes: 2,738

From: Virginia

The one with the map is going to be some sort of sensor or something with the computer. Are you labelling all this stuff as you discover it? What I would do is get masking tape and a sharpie, and when you find something put a piece around it and label it. Then print out the diagram below and check it off.

As you find more more things, the process of elimination will help you. Once you get down to some things you don't know about, carefully clean the wires, and then look at your diagram and see what is not checked off. This system should work ok for the computer stuff. Here's the diagram.

http://www.revbase.com/BBBMotor/Wd/DownloadPdf?id=2024

Here's your rear axle speed sensor diagrams.

http://www.revbase.com/BBBMotor/Wd/DownloadPdf?id=2037
