Drum Brakes
On a 1959 4X4; I'm putting the rear brakes back together.
What is the size difference if any between the hold down nails in front and rear?
What is the numbering system on the heads.
It appears there is supposed to be a "thrust washer" in the adjusting screw assembly, I can't find where these are sold. What is the correct name? Could this be replaced with a brass washer?
What is the size difference if any between the hold down nails in front and rear?
What is the numbering system on the heads.
It appears there is supposed to be a "thrust washer" in the adjusting screw assembly, I can't find where these are sold. What is the correct name? Could this be replaced with a brass washer?
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
On a 1959 4X4; I'm putting the rear brakes back together.
What is the size difference if any between the hold down nails in front and rear? What is the numbering system on the heads?
It appears there is supposed to be a "thrust washer" in the adjusting screw assembly.

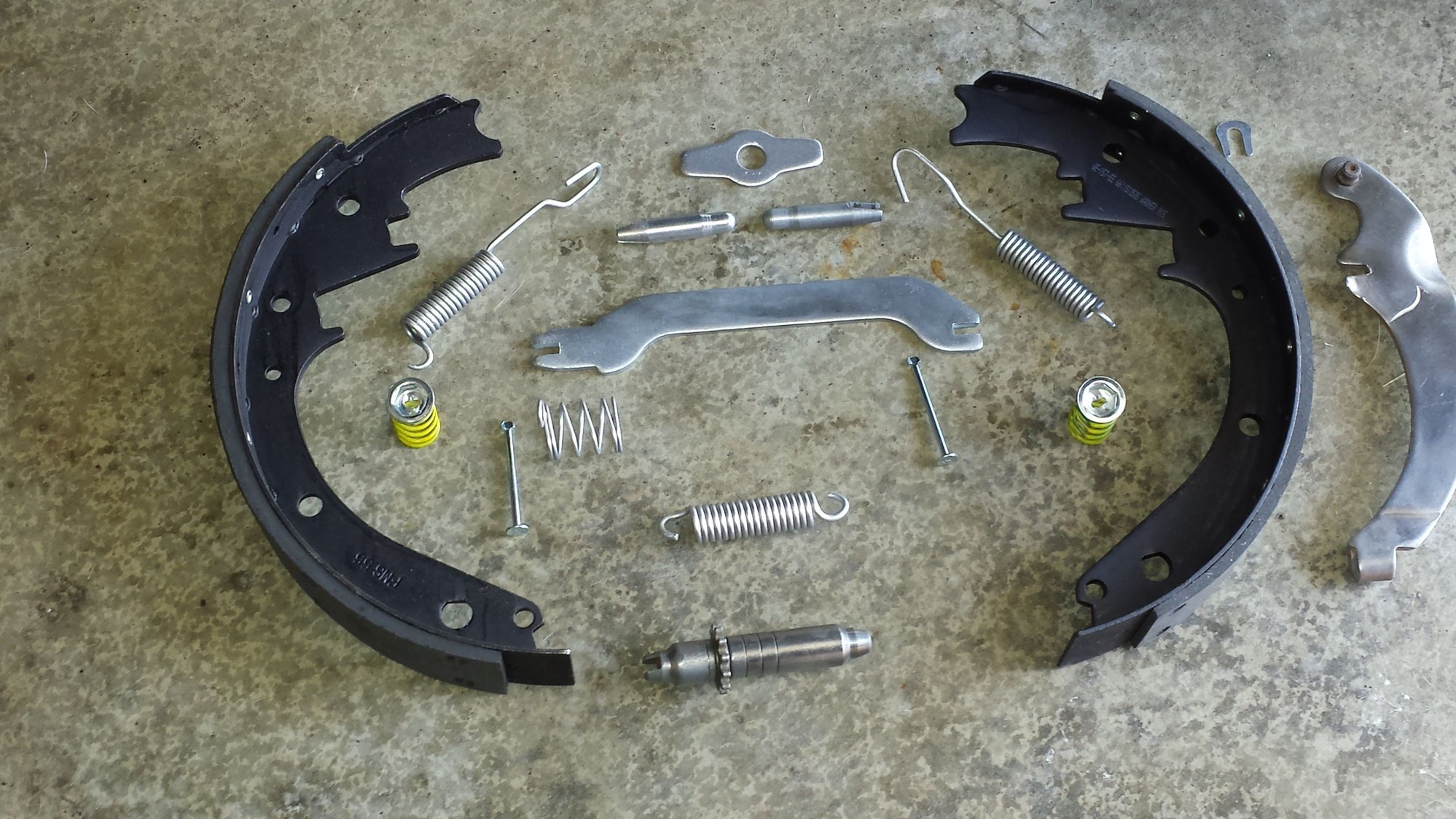

No such thing, see pic.
What is the size difference if any between the hold down nails in front and rear? What is the numbering system on the heads?
It appears there is supposed to be a "thrust washer" in the adjusting screw assembly.
No such thing, see pic.
1951/52 F2 & 1953/56 F250 Front & Rear; 1953/56 F350 Front; 1959/63 F100 4WD Front.
NOS PARTS LTD in Waxahachie TX has 4 = 972-937-2201.
REAGOR DYKES MOTOR CO. in Plainview TX has 4 = 806-293-2511.
MARK II ENTERPRISES in Apple Valley CA has 5 = 800-576-2752.
--------------------------------------------------------------------------
H-2069-A .. Brake Shoe Hold Down Pin (Nail); 2 1/64" long-stamped #2 / Obsolete
1948/52 F1 & 1953/58 F100 Front & Rear / 1959/66 F100 2WD Front & Rear; 1959/63 F100 4WD Rear.
NOS PARTS LTD has 2.
GREEN SALES CO. in Cincinnati OH has 4 = 800-543-4959.
MARK II ENTERPRISES has 5.
MCDONALD OBSOLETE PARTS in Rockport IN has 9 = 812-359-4965.
CARPENTER NOS OBSOLETE PARTS in Concord NC has 11 = 800-476-9653.
Thread Starter
|
Tuned
Joined: Oct 2012
Posts: 371
Likes: 6
From: Slocum, TX

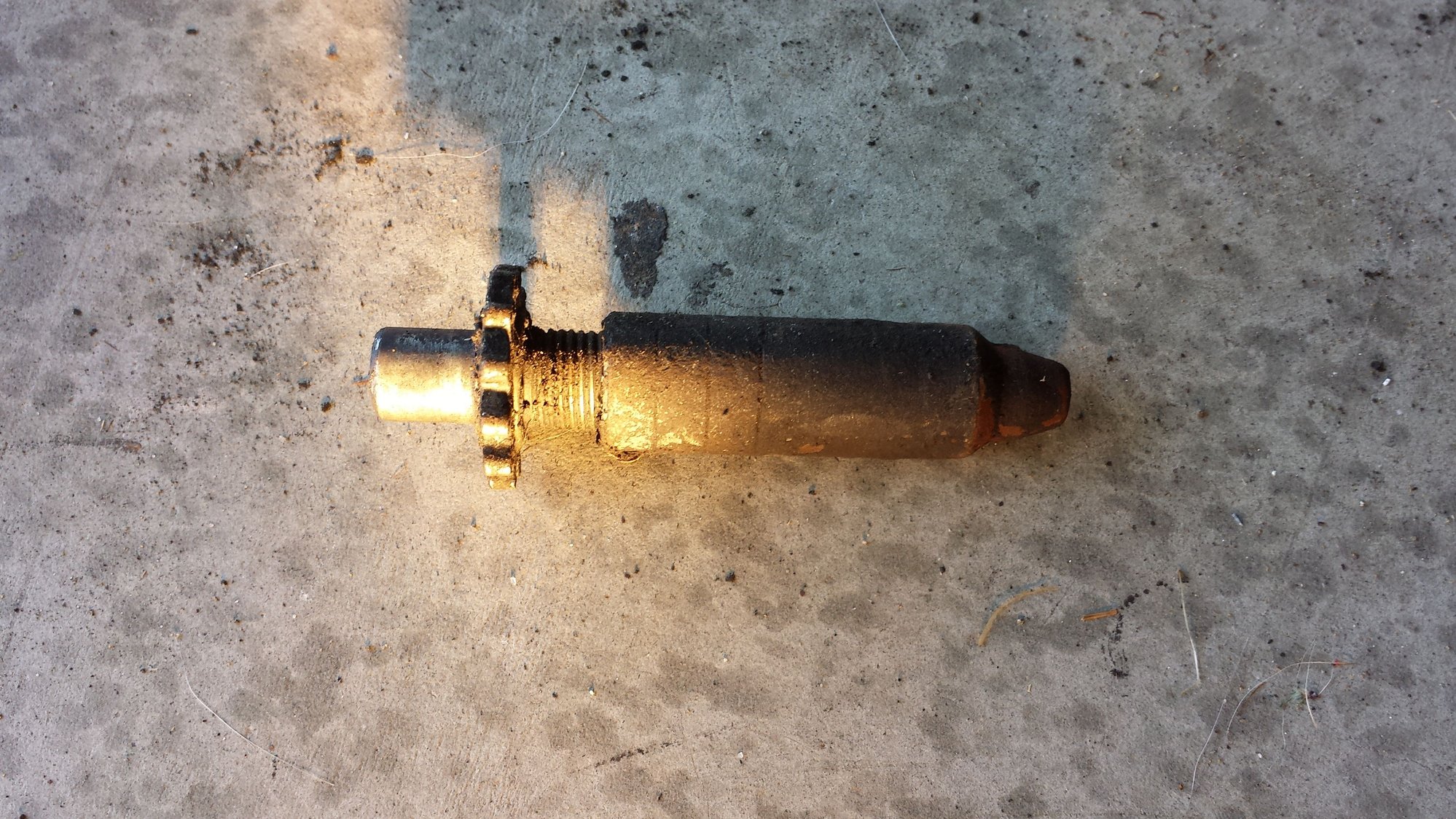

brake adjuster
Thanks for the photos and numbers.
Looks like every adjuster sold today has a washer. If all new have washers, why can't I just replace the missing washer?
I'm not going to open my '73 but memory tells me there is a washer in the back break adjusters.
I just did not want to leave it out.
As for quick and easy buy at Napa. I got two kits from D. Carpenter for $20 plus $3 to send them back. Another sure thing $10 kit from a local and they don't fit either.
3/4 inch hold down springs came out and 1" springs in the kits. 2 1/32" nails were in the rear. Almost impossible to crunch down a 1" spring.
I'll work it out but can't depend on local counter sales to get it right. Most don't have a schematic for 1959.
Looks like every adjuster sold today has a washer. If all new have washers, why can't I just replace the missing washer?
I'm not going to open my '73 but memory tells me there is a washer in the back break adjusters.
I just did not want to leave it out.
As for quick and easy buy at Napa. I got two kits from D. Carpenter for $20 plus $3 to send them back. Another sure thing $10 kit from a local and they don't fit either.
3/4 inch hold down springs came out and 1" springs in the kits. 2 1/32" nails were in the rear. Almost impossible to crunch down a 1" spring.
I'll work it out but can't depend on local counter sales to get it right. Most don't have a schematic for 1959.
Ford Parts Specialist
Joined: Nov 2006
Posts: 88,826
Likes: 784
From: Simi Valley, CA
1973/79 F100/150 shows a washer, but all the brake parts are different!
Senior User
Joined: Oct 2015
Posts: 216
Likes: 1
With the pin spring (2068) basically holding the shoe against the backing plate, I've never understood how one or two 64ths of an inch in pin length can make any difference, but then... I'm not an engineer!
Trending Topics
Post Fiend
Joined: Jun 2003
Posts: 8,209
Likes: 12
From: Black Hills of SD
I don't think it does. Over 45 years and hundreds of brake jobs, I've noticed some stick out more than others. Some cars are a real beast to get the spring compressed enough and others easy. Ford springs generally seem to go on tighter than GM.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Thread Starter
|
Tuned
Joined: Oct 2012
Posts: 371
Likes: 6
From: Slocum, TX
After the last three "parts houses", I agree 100%. Leaving the last I thought WTH I can make a 2 1/32" nail. Driving home 20 miles, I thought over the measurements of springs and nails and came to the same conclusion.
Thread Starter
|
Tuned
Joined: Oct 2012
Posts: 371
Likes: 6
From: Slocum, TX
Well, I tried a 2 1/4" nail and it is too long. The hold down springs protrude past the break shoes. May or may not be a problem but I wouldn't want the hold down springs to fail. I resurrected the original 2 1/32" nails and put it all back together for another day.
Now on to the pinion shaft seal.
Now on to the pinion shaft seal.
Post Fiend
Joined: Jun 2003
Posts: 8,209
Likes: 12
From: Black Hills of SD
Good deal. Sometimes a pesky detail like that can bog you down. When I was doing the rears on my 29 (with a 57 9 inch and the standard 1 3/4" shoes) I found that every parts kit had the nails for 2" shoes. I had to really scrounge through all my coffee cans of brake parts to come up with the right ones, no parts store had them in the parts kit.
And FWIW, I'm doing brakes on my 59 4x4 right now and there are no washers on the adjusters.
And FWIW, I'm doing brakes on my 59 4x4 right now and there are no washers on the adjusters.
