66 SPEEDOMETER CABLE
Lead Gopher
Joined: Aug 2012
Posts: 10,066
Likes: 1,622
From: Seattle
Here, I whipped up a quick youtube video for you. This might not be the issue, but on the other hand there are speedometer repair places that can correct a weak spring and make other fixes if the head is worn out. Might be easier to find another speedo head if it comes to that.
https://www.youtube.com/watch?v=FyXBMOXMcYw
Chad
.
https://www.youtube.com/watch?v=FyXBMOXMcYw
Chad
.
Lead Gopher
Joined: Aug 2012
Posts: 10,066
Likes: 1,622
From: Seattle
If you exhaust other possibilities.
Describe the symptom a bit more - does it max out at anything above 1 MPH? Does it temporarily max out and then drop lower and sort of twitch back and forth or is it steady at a given speed?
Changing a gear one tooth up or down usually affects it about 2.5 MPH one way or the other and there are only a few gear choices over all. So, like I say, trying to correct a 100 MPH pegged problem with drive and driven gears and ratio changers can only do so much.
A person can disconnect the speedo cable at the head and pull it back out and reroute it into a side window so you can hold it in front of you while driving around the block. The inner spinning portion can be observed. It will try to creep its way out of the jacket but a finger tip on the end will usually hold it in place. A slow speed should equal slow revolutions of the inner core. Faster speeds should increase revolutions. If that all looks fine then the only thing the speedo cable hooks to - and it is the end of the line - is the head.
It's all very mechanical in operation - just the fine nature of that head makes it something that doesn't tolerate much abuse.
Chad
.
Describe the symptom a bit more - does it max out at anything above 1 MPH? Does it temporarily max out and then drop lower and sort of twitch back and forth or is it steady at a given speed?
Changing a gear one tooth up or down usually affects it about 2.5 MPH one way or the other and there are only a few gear choices over all. So, like I say, trying to correct a 100 MPH pegged problem with drive and driven gears and ratio changers can only do so much.
A person can disconnect the speedo cable at the head and pull it back out and reroute it into a side window so you can hold it in front of you while driving around the block. The inner spinning portion can be observed. It will try to creep its way out of the jacket but a finger tip on the end will usually hold it in place. A slow speed should equal slow revolutions of the inner core. Faster speeds should increase revolutions. If that all looks fine then the only thing the speedo cable hooks to - and it is the end of the line - is the head.
It's all very mechanical in operation - just the fine nature of that head makes it something that doesn't tolerate much abuse.
Chad
.
Thread Starter
|
Senior User
Joined: Dec 2016
Posts: 436
Likes: 0
From: Omaha,NE
When I step on the gas and just get going, it jumps to 55 then right up to max. It won't come down until I go in reverse. I thought I heard a different sound when I shut the engine off. Kinda like a spring unwinding. DOINK!
Lead Gopher
Joined: Aug 2012
Posts: 10,066
Likes: 1,622
From: Seattle
Here, you can probably isolate it a little more using this technique.
Let me know if I can clarify anything. Don't use a super high speed drill/dremel or you will just max it out. And don't bend the core while you have it chucked up. You should be able to DX the cable at the transmission and use the drill motor to turn the core, thus turning the speedo, run the drill motor backwards (counterclockwise) to simulate forward and of course opposite (clockwise) to simulate reverse.
Let me know.
Chad
.
Let me know if I can clarify anything. Don't use a super high speed drill/dremel or you will just max it out. And don't bend the core while you have it chucked up. You should be able to DX the cable at the transmission and use the drill motor to turn the core, thus turning the speedo, run the drill motor backwards (counterclockwise) to simulate forward and of course opposite (clockwise) to simulate reverse.
Let me know.
Chad
.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
3 Best / 3 Worst Parts of Modern Ford Ownership
Brett Foote
10 Amazing Upgrades That Solve Common Ford Truck Owner Headaches
Pouria Savadkouei
Every 2026 Ford Engine Explained
Brett Foote
10 Ugly Ford Trucks That We Still Kinda Love
Joe Kucinski
10 Things Every Truck Owner NEEDS (2026 Edition)
Michael S. Palmer
Rezvani's Latest Post-Apocalyptic Monster Is a Ford F-150 Raptor Underneath
Verdad Gallardo
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
Thread Starter
|
Senior User
Joined: Dec 2016
Posts: 436
Likes: 0
From: Omaha,NE
Chad, I removed the cable from the transfer case and hooked up a drill. I ran it slowly counter clock wise. The needle jumps to 55 and then to 100 with hardly any rpms on the drill. The needle sticks at 100 and needs to run clockwise to get it to return to 0. The front of the gauge cluster is cracked and would need to be replaced. Do you have suggestions now?
Lead Gopher
Joined: Aug 2012
Posts: 10,066
Likes: 1,622
From: Seattle

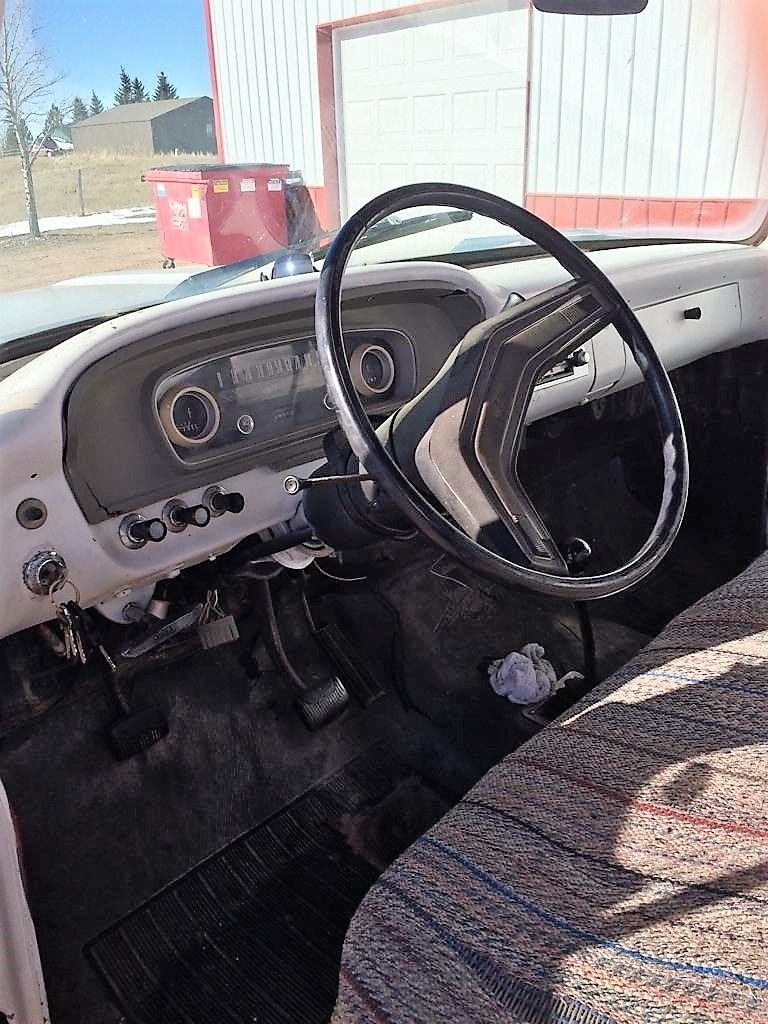

I'm going to go out on a limb here and suggest that it sounds like you have a defective speedometer head. I do see the cracks in your bezel. That has seen better days. It doesn't have the simulated engine turning either, like someone painted over or it has faded badly. If you can't salvage the bezel to reinstall it then they do make reproductions.
