Unable to pull EEC codes
Thread Starter
|
New User
Joined: May 2011
Posts: 24
Likes: 0
From: Lancashire United Kingdom
Unable to pull EEC codes
Hi guys
I'm currently struggling to be able to pull the EEC iv codes on my 1986 f150 302 EFI.
I've tried my innova code reader and no test will start. I have tested code reader, it works on another vehicle.
I have also tried the jumper wire method to make the light on dash flash. This again does not work.
The truck has power.
The motor will crank but not start.
I have no power to fuel pumps as well.
I have tested the power relay and this has 12v on both circuits with ignition on.
Any suggestions where to look/ test next?
Any help would be much appreciated.
I'm currently struggling to be able to pull the EEC iv codes on my 1986 f150 302 EFI.
I've tried my innova code reader and no test will start. I have tested code reader, it works on another vehicle.
I have also tried the jumper wire method to make the light on dash flash. This again does not work.
The truck has power.
The motor will crank but not start.
I have no power to fuel pumps as well.
I have tested the power relay and this has 12v on both circuits with ignition on.
Any suggestions where to look/ test next?
Any help would be much appreciated.
Thread Starter
|
New User
Joined: May 2011
Posts: 24
Likes: 0
From: Lancashire United Kingdom
Sadly not yet. Am working my way through checking all my earthpoints as read about earth issue on other posts.
Is there any way to bell out the eec?
Is there any way to bell out the eec?
FTE Legend
Joined: Jul 2010
Posts: 32,875
Likes: 48
From: Northeast, OK
Thread Starter
|
New User
Joined: May 2011
Posts: 24
Likes: 0
From: Lancashire United Kingdom
I assume you've found the EVTM here: 1986 EVTM - ???Gary's Garagemahal
Thankyou very much. That's a great resource you have there. Nice work.
Moderator
Joined: Nov 2007
Posts: 22,415
Likes: 92
From: Denver Metro Area, CO

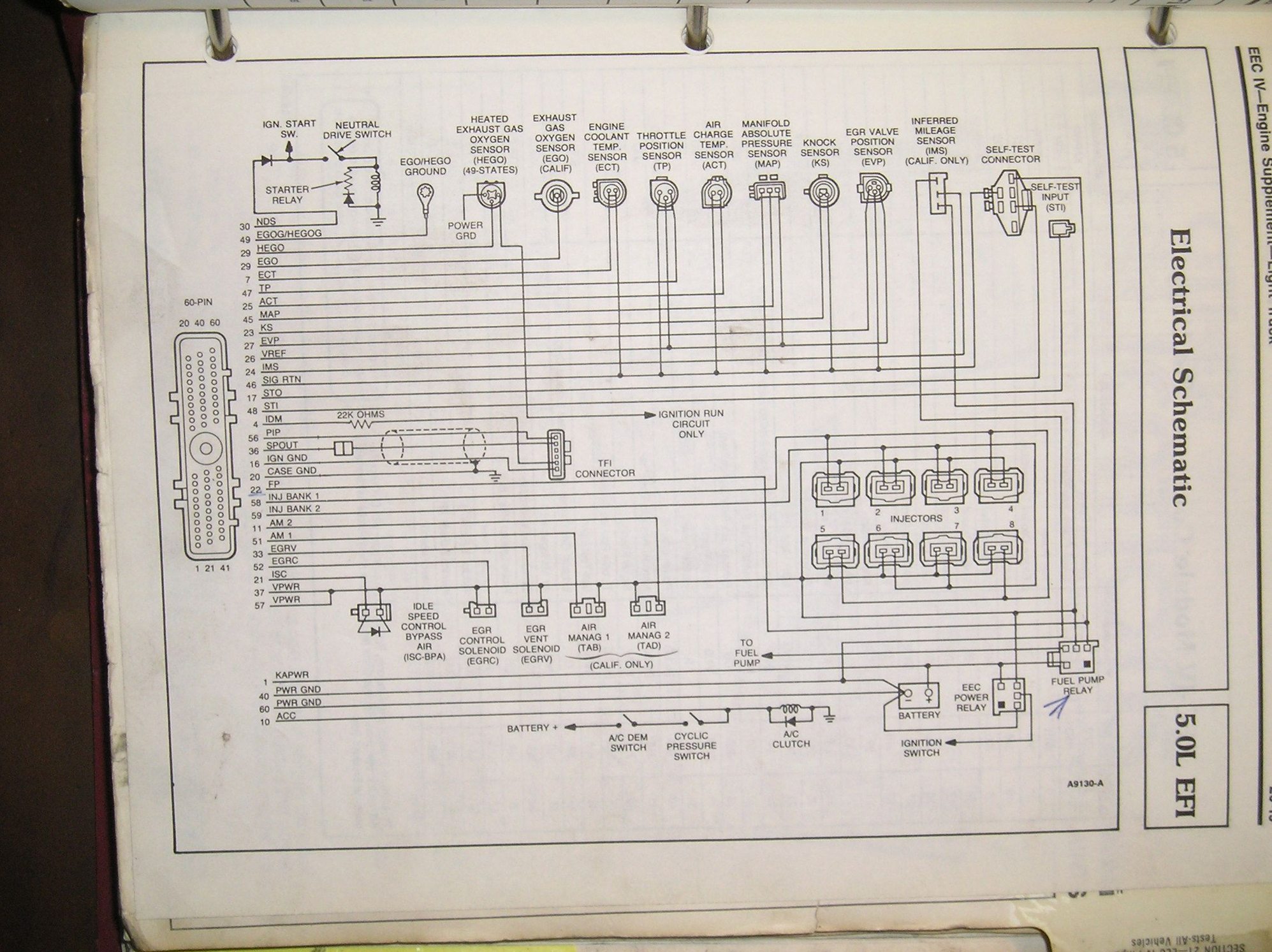

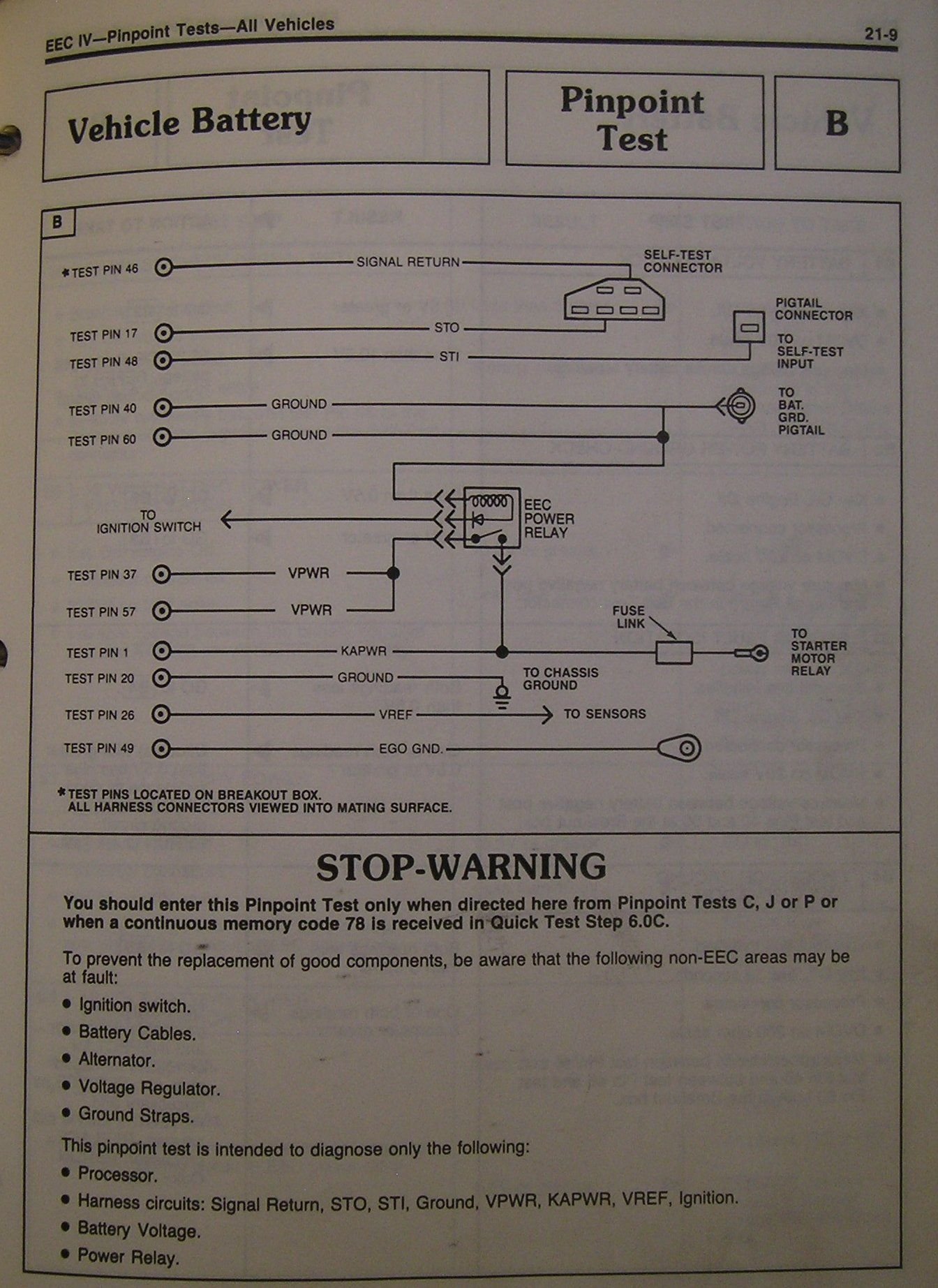

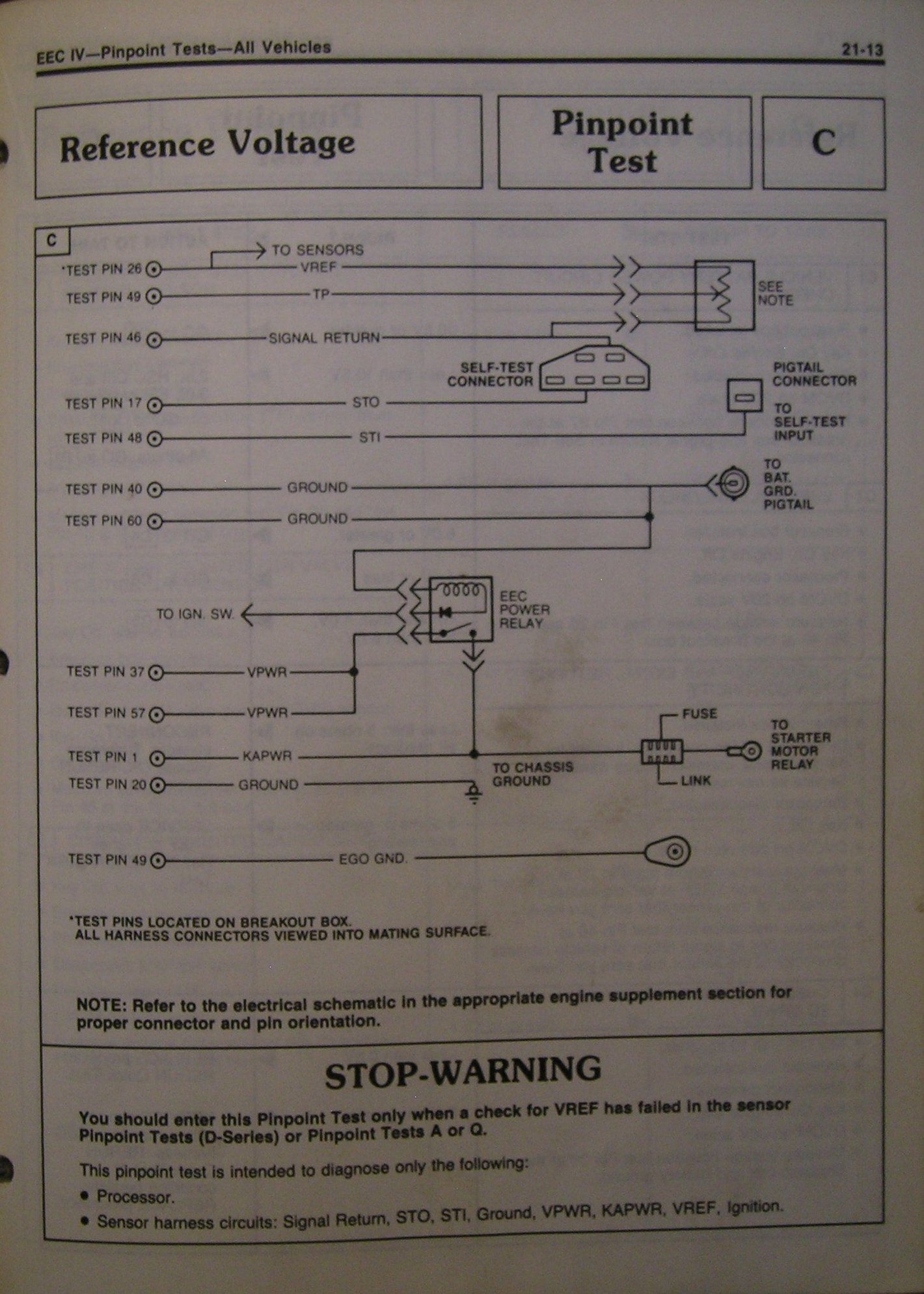

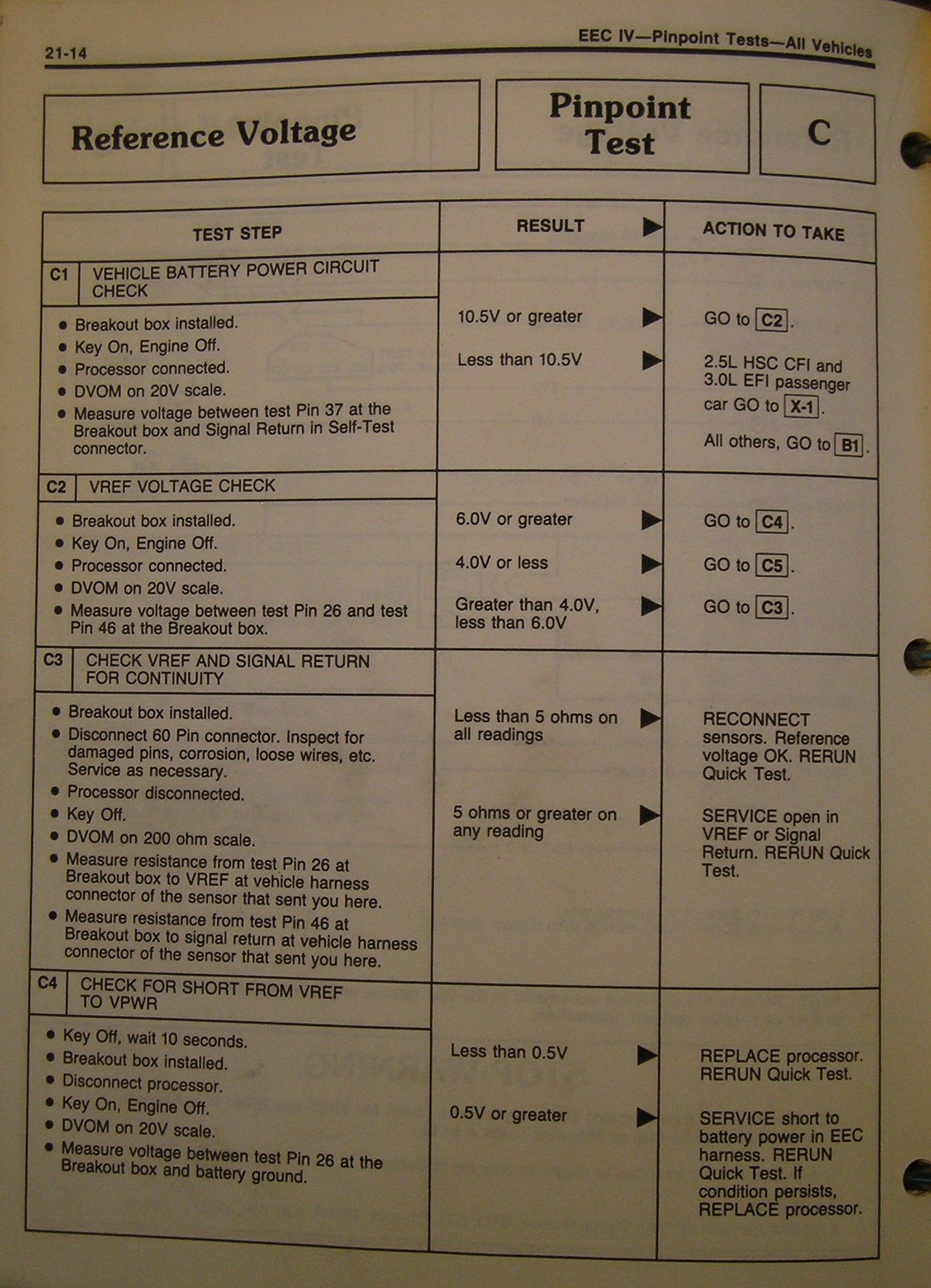

Here are the EEC-IV no-start diagnostics from the shop manual.
