84 f150 ignition coil E type

I want to hook up a tachometer up to my 84. I am currently having trouble finding the negative wire to the ignition coil and have no diagram. It's one of those stupid square E type coils and I am having trouble finding a diagram for it. The colors of the wires would be nice but a diagram would be better. Thanks.

May 24, 2016 | 08:27 PM

WhatsAChevy?

Posting Guru

Joined: Jul 2015

Posts: 2,239

Likes: 5

From: Northeast Ohio USA

Quote:

Originally Posted by 4speedspring

E-type coil ? Meaning DuraSpark II Ignition ?

May 24, 2016 | 08:40 PM

4speedspring

Thread Starter

New User

Joined: May 2016

Posts: 13

Likes: 0

From: Linden

Quote:

Originally Posted by WhatsAChevy?

E-type coil ? Meaning DuraSpark II Ignition ?

I think so a square plug on the ignition coil.

May 24, 2016 | 08:55 PM

WhatsAChevy?

Posting Guru

Joined: Jul 2015

Posts: 2,239

Likes: 5

From: Northeast Ohio USA

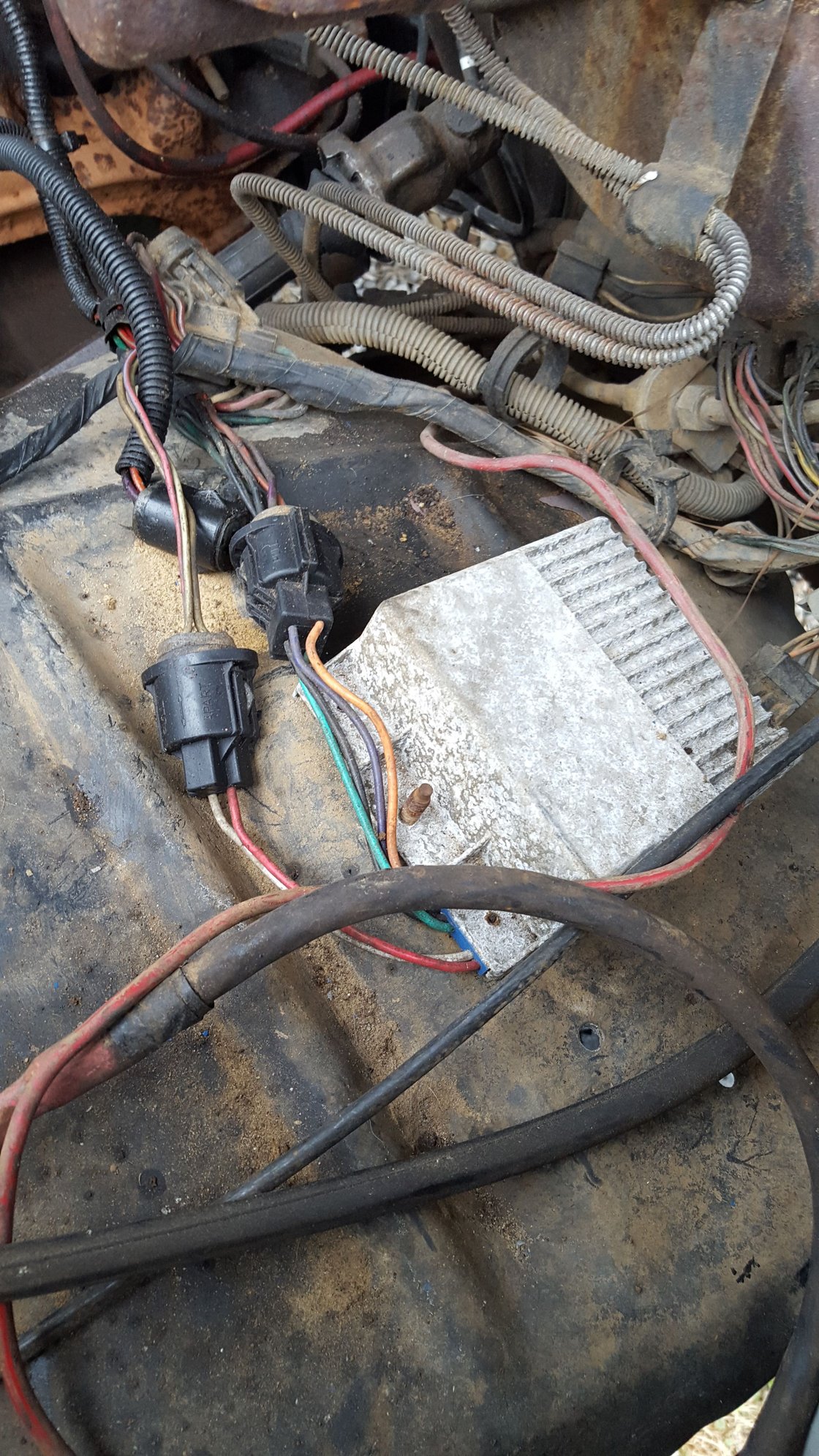

Does Your ignition look like this :

This is a Duraspark Ignition.

May 24, 2016 | 10:18 PM

ctubutis

Moderator

Joined: Nov 2007

Posts: 22,415

Likes: 92

From: Denver Metro Area, CO

Depending on engine, 1984 could have a Duraspark II ignition or the EEC-IV ignition; given he's talking about a square coil, that strongly implies the 300 cid I-6 with the EEC-IV ignition but of course he doesn't tell us this stuff so we really don't know for sure what he needs.

May 24, 2016 | 10:29 PM

82F100SWB

Post Fiend

Joined: Jan 2000

Posts: 5,330

Likes: 17

From: Dryden, ON, Canada

Square e-core type coil should be TFI-IV. It's been a long time since I saw one so I can't remember wire colours, if it is the same as later EFI stuff you want tge tan/yellow tracer wire at the coil connector.
Either way one will be key switched constant power, and the second one which you want is a pulsed negative.
