Overhead console question
I added a Bronco overhead console to my 93 EB several years ago which recently stopped working. The computer is fried, so I'll probably just swap in an explorer one and repin if necessary. Back in the day when I put it in, I was in a hurry and didn't do a great job on the wiring, which I'd like to fix while I have it down.
My question is: Would a 1993 EB have the connector off of the main harness for the overhead console harness to plug into, or did they only add that when the console became optional on the 1994 - 1996 Bronco EB? If the factory connector is there somewhere, I'll use it, otherwise I'll build a newer, neater one than I did last time.
My question is: Would a 1993 EB have the connector off of the main harness for the overhead console harness to plug into, or did they only add that when the console became optional on the 1994 - 1996 Bronco EB? If the factory connector is there somewhere, I'll use it, otherwise I'll build a newer, neater one than I did last time.
Thread Starter
|
Posting Guru
Joined: Dec 2004
Posts: 1,023
Likes: 0
Does anyone have a wiring diagram that shows the pinouts at computer module in the console? I'm talking about the plug directly on the module, not down the harness. Mine has been hacked up, all the wires are black, and I'm pretty sure I have a BRONCO computer, and an EXPLORER harness which is making it really difficult to get things sorted back out. I can power the thing up, but I'm not getting temps
Fleet Mechanic
Joined: Dec 2006
Posts: 1,925
Likes: 10
From: Phoenix, AZ
I could have sworn I had something but I can't find the pictures. I swapped from an explorer overhead console, to a Bronco one. Then the Bronco computer wasn't working, so I swapped the explorer computer into the Bronco console.

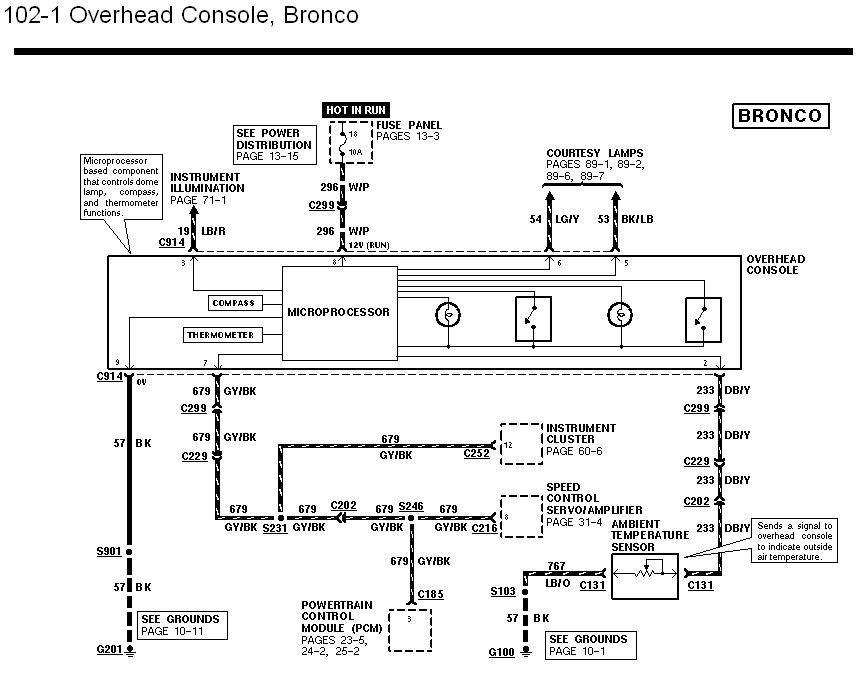

Here is a picture that might help a tiny bit with the wiring that I made years ago, but it doesn't really say much....
If I find out more from my old pictures or something, I'll try and post it up. I remember specifically thinking it was dumb that the wires were all black so you couldn't really distinguish what is what.
Here is a picture that might help a tiny bit with the wiring that I made years ago, but it doesn't really say much....
If I find out more from my old pictures or something, I'll try and post it up. I remember specifically thinking it was dumb that the wires were all black so you couldn't really distinguish what is what.
Fleet Owner
Joined: Oct 2005
Posts: 20,780
Likes: 1,746
From: Kentucky
Trending Topics
Thread Starter
|
Posting Guru
Joined: Dec 2004
Posts: 1,023
Likes: 0
Awesome, that should be everything I need. I'm working out of town for the week, i'll have to check the module when I get home to see if it indicates anywhere what direction the pins go 1-8 in. I've got power and ground figured out too, so that will probably tell me what orientation the pins go in.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Ford Super Duty: 5 Things Owners LOVE, 5 Things They LOATHE!
Joe Kucinski
Every 2026 Ford Truck Engine RANKED from WORST to FIRST!
Michael S. Palmer
The Best F-150 Deal of Every Trim Level (XL through Raptor)
Joe Kucinski
Thread Starter
|
Posting Guru
Joined: Dec 2004
Posts: 1,023
Likes: 0
One more question about the mounting bracket. How do you mount the bracket to the truck on pre 1994 trucks? I didn't use the bracket the 1st time, I just mounted the console to the headliner, which was a PITA and never looked quite right. When I pulled the console down, it left a perfect imprint on the headliner to follow, so I cut out the opening in the headliner the way the 94+ trucks with the OC have. It looks like the metal roof directly above the overhead console **might** be double wall metal where I could use a couple of short, self-tap screws to secure the bracket to the ceiling, but it's hard to tell. The roof on the outside of the truck is completely smooth except back by the topper. Behind the OC on the inside, the ceiling has a roughly 6" wide "strip" that appears to be about 1/2" lower than the rest. I've never seen a picture of how the bracket mounts to the trucks originally equipped with the OC.
Fleet Mechanic
Joined: Dec 2006
Posts: 1,925
Likes: 10
From: Phoenix, AZ
I think the pre 94 trucks have the same cab as the 94-96 trucks but I could be wrong.
I found this picture online because I don't think I have a picture of when my headliner was off. Maybe it can help slightly to compare if the top of yours looks the same to this one.
http://www.supermotors.net/getfile/4...bronco-048.jpg
I found this picture online because I don't think I have a picture of when my headliner was off. Maybe it can help slightly to compare if the top of yours looks the same to this one.
http://www.supermotors.net/getfile/4...bronco-048.jpg
