I was given a 2003 Ford 150 7700 Series truck from the military to use at my police department. The truck was given to us for free. It only has 63,000 miles on it and is in pretty decent shape. However, the truck came equipped to operate only on natural gas. We cannot get a natural gas pump here where we are so I did some research and decided to convert it to gasoline.
The truck is essentially a hybrid, I think, between an F-250 & F-150. It is equipped with a 5.4 liter engine and 7 lug wheels which makes me believe the drivetrain is essentially an F-250.
I found a donor truck at the local junk yard that had a 4.6 liter engine but I was able to remove the wiring harness from the tail lights to the headlights, everything but the harness inside the cab was replaced. I then removed all of the natural gas fuel lines and pumps and replaced them with the stuff from the 4.6 model truck. I installed the charcoal filter, the gas lines, new tank and pump, vacuum lines, fuel rails from a 5.4, and new injectors. I did some work on the throttle body and cranked the truck up. The truck sounded great just sitting there in the shop at idle. There was a strong gas smell coming from the exhaust.
When I took the truck out for a spin I got a check engine light telling me there was a bad o2 sensor and a bad fuel pressure sensor as well. This was expected because there isn't a fuel pressure sensor in the gas fuel rails and there are no o2 Sensors in the CNG exhaust system. When I drove the truck I got severe engine valve pinging when I put the engine under any stress. I figure the timing is off in the CNG PCM settings.
I took the truck to the local Ford Dealer to get the PCM flashed with a gas program and they said it couldn't be done without a donor truck PCM program. I found a donor truck, a 2003 F-150 XLT Lariet, bought a new PCM that would accept that programming as the existing PCM would not and cranked the truck. Again it sounded great at idle but on the test drive the speedometer went to 100 mph when we were going about 30 mph, the transmission didn't shift properly anymore, the truck ran horrible and shut off on us at least three times in a 1/4 mile test run.
My thoughts on this are the conversion will work and I will constantly have a check engine light because I don't have the sensors need to shut it off. I feel like if I get a PCM Flash program from an F-250 of the same year it might act properly. I just don't know about these 7700 series trucks. Where could I possibly get the flash code to take to my Ford Dealer for a 2003 F-250 to even try ? The dealer says he can't call Ford and get it himself. So what do the experts out here think ? I really want to use this truck to haul and move equipment around for the department and hate not to be able to get it right.
Does anybody out there build custom PCM flash codes for F-150's with various setups ?
The truck is essentially a hybrid, I think, between an F-250 & F-150. It is equipped with a 5.4 liter engine and 7 lug wheels which makes me believe the drivetrain is essentially an F-250.
I found a donor truck at the local junk yard that had a 4.6 liter engine but I was able to remove the wiring harness from the tail lights to the headlights, everything but the harness inside the cab was replaced. I then removed all of the natural gas fuel lines and pumps and replaced them with the stuff from the 4.6 model truck. I installed the charcoal filter, the gas lines, new tank and pump, vacuum lines, fuel rails from a 5.4, and new injectors. I did some work on the throttle body and cranked the truck up. The truck sounded great just sitting there in the shop at idle. There was a strong gas smell coming from the exhaust.
When I took the truck out for a spin I got a check engine light telling me there was a bad o2 sensor and a bad fuel pressure sensor as well. This was expected because there isn't a fuel pressure sensor in the gas fuel rails and there are no o2 Sensors in the CNG exhaust system. When I drove the truck I got severe engine valve pinging when I put the engine under any stress. I figure the timing is off in the CNG PCM settings.
I took the truck to the local Ford Dealer to get the PCM flashed with a gas program and they said it couldn't be done without a donor truck PCM program. I found a donor truck, a 2003 F-150 XLT Lariet, bought a new PCM that would accept that programming as the existing PCM would not and cranked the truck. Again it sounded great at idle but on the test drive the speedometer went to 100 mph when we were going about 30 mph, the transmission didn't shift properly anymore, the truck ran horrible and shut off on us at least three times in a 1/4 mile test run.
My thoughts on this are the conversion will work and I will constantly have a check engine light because I don't have the sensors need to shut it off. I feel like if I get a PCM Flash program from an F-250 of the same year it might act properly. I just don't know about these 7700 series trucks. Where could I possibly get the flash code to take to my Ford Dealer for a 2003 F-250 to even try ? The dealer says he can't call Ford and get it himself. So what do the experts out here think ? I really want to use this truck to haul and move equipment around for the department and hate not to be able to get it right.
Does anybody out there build custom PCM flash codes for F-150's with various setups ?
#3
Quite an ambitious undertaking to say the least and you did well.
You need to put Ox sensors in the exhaust just below the exhaust manifolds outlets like a stock gas motor has.
Either swap the whole exhaust system with cats or weld Bungs into the pipes.
What you indicate is that you are not awhere that missing Ox sensors cause the motor to run rich off fixed fuel table because the sensors are missing.
I suspect you also have more codes for open heater circuits and possibly EGR codes as well and even CAT monitor codes..
Put a Scanner on, list the codes here, then address those until all are taken care of.
After that, look at live data to see how well the data range is inside limits and go from there to make any corrections that may be needed.
Good luck.
You need to put Ox sensors in the exhaust just below the exhaust manifolds outlets like a stock gas motor has.
Either swap the whole exhaust system with cats or weld Bungs into the pipes.
What you indicate is that you are not awhere that missing Ox sensors cause the motor to run rich off fixed fuel table because the sensors are missing.
I suspect you also have more codes for open heater circuits and possibly EGR codes as well and even CAT monitor codes..
Put a Scanner on, list the codes here, then address those until all are taken care of.
After that, look at live data to see how well the data range is inside limits and go from there to make any corrections that may be needed.
Good luck.
#4
Thanks Bluegrass 7, That does make some sense to me now that I think about it .... If I put the O2 sensors in the truck they are about $40 a piece. Then my next step is to find a harness to connect them to the main harness with as there is nothing there right now. Then I hope and pray that the computer reads the O2 sensors and adjusts the timing accordingly and maybe it takes the pinging out of the engine ? It does not have EGR or fuel pressure but if the timing corrects itself I think I can live with that issue. I just want to get the timing correct and take that ping out of the engine.
Thanks again!
Thanks again!
#5
Join Date: Jun 2009
Location: Fort Smith, Arkansas
Posts: 1,908
Likes: 0
Received 11 Likes
on
11 Posts
The transmission should be a heavier duty 4R100 in the 7700. So unless the donor truck you got the PCM from has the same transmission that may be why you are having transmission issues. You might want to scout around for someone selling a compatible PCM out of a dual fuel 7700 that already has the correct gasoline tune on it.
#6
Your into a back yard re- engineering project without knowing a lot about what needs t be done and how things work.
There is no fuel pressure sensor.
The OX sensors do not control ignition timing.
The transmission plugup may be different.
You need front Ox Sensors as a Min..
You need the EGR system.
You need the gas exhaust system in place.
You need the harness to feed power to these area that normally come from fuse #23 in a gas build.
And who knows what else we can't tell at this point.
I can tell you how things work but you need to get the hardware in place first.
Otherwise it's a big hassle.
Good luck.
There is no fuel pressure sensor.
The OX sensors do not control ignition timing.
The transmission plugup may be different.
You need front Ox Sensors as a Min..
You need the EGR system.
You need the gas exhaust system in place.
You need the harness to feed power to these area that normally come from fuse #23 in a gas build.
And who knows what else we can't tell at this point.
I can tell you how things work but you need to get the hardware in place first.
Otherwise it's a big hassle.
Good luck.
#7
Join Date: Jun 2009
Location: Fort Smith, Arkansas
Posts: 1,908
Likes: 0
Received 11 Likes
on
11 Posts
I don't know if it will help you or not, but I have a 2003 7700 propane/gas truck with a seized 5.4 if you need me to check part #s on it or anything.

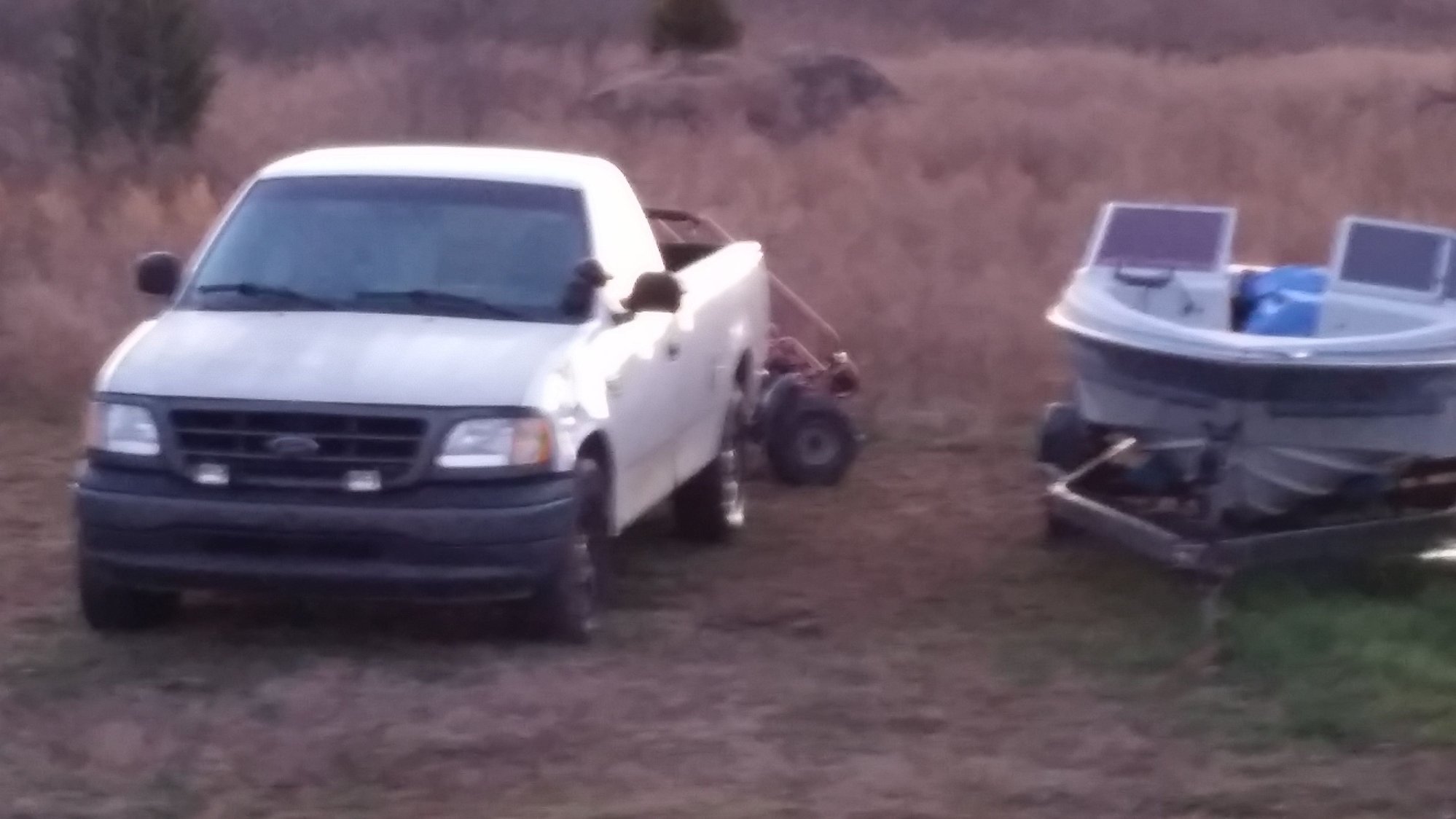

2003 F150 7700 single cab long bed 2WD 5.4 LPG/gasoline missing propane control box
A-pillar spotlight & dent in the front fender
Sorry for the low quality, this was part of a pic of something else.
2003 F150 7700 single cab long bed 2WD 5.4 LPG/gasoline missing propane control box
A-pillar spotlight & dent in the front fender
Sorry for the low quality, this was part of a pic of something else.
