Battery Cable Ground Wire

Can someone tell me where the smaller ground wire coming from the battery terminal connects to?

Mar 14, 2016 | 12:57 PM

Brian1971f100

Posting Guru

Joined: Mar 2016

Posts: 1,412

Likes: 1

From: Barre Mass

Chassis ground

Mar 14, 2016 | 12:58 PM

Freightrain

Lead Driver

Joined: Jan 2003

Posts: 9,893

Likes: 12

From: Ohio

I would say it is the body ground, should be a screw someplace near the battery.

Mar 14, 2016 | 12:59 PM

Scndsin

FTE Chapter Leader

Joined: May 2006

Posts: 12,322

Likes: 1,299

From: Central Mississippi

Fender....

Mar 14, 2016 | 01:02 PM

LARIAT 85

Thread Starter

Cargo Master

Joined: Dec 2004

Posts: 3,362

Likes: 22

From: Florence, SC

Quote:

Originally Posted by Brian1971f100

Chassis ground

I can see that the "flag" and provided screw bolt to the chassis, and the end of the battery cable connects to the engine block.

My question is concerning the smaller and shorter black wire, attached to the battery terminal. Where does this connect?

Mar 14, 2016 | 01:07 PM

Freightrain

Lead Driver

Joined: Jan 2003

Posts: 9,893

Likes: 12

From: Ohio

The longer wire goes the front passenger side of the block. The short wire goes to the fender.

Mar 14, 2016 | 01:08 PM

subford

Fleet Owner

Joined: Aug 2005

Posts: 23,666

Likes: 301

From: Easton,Ks

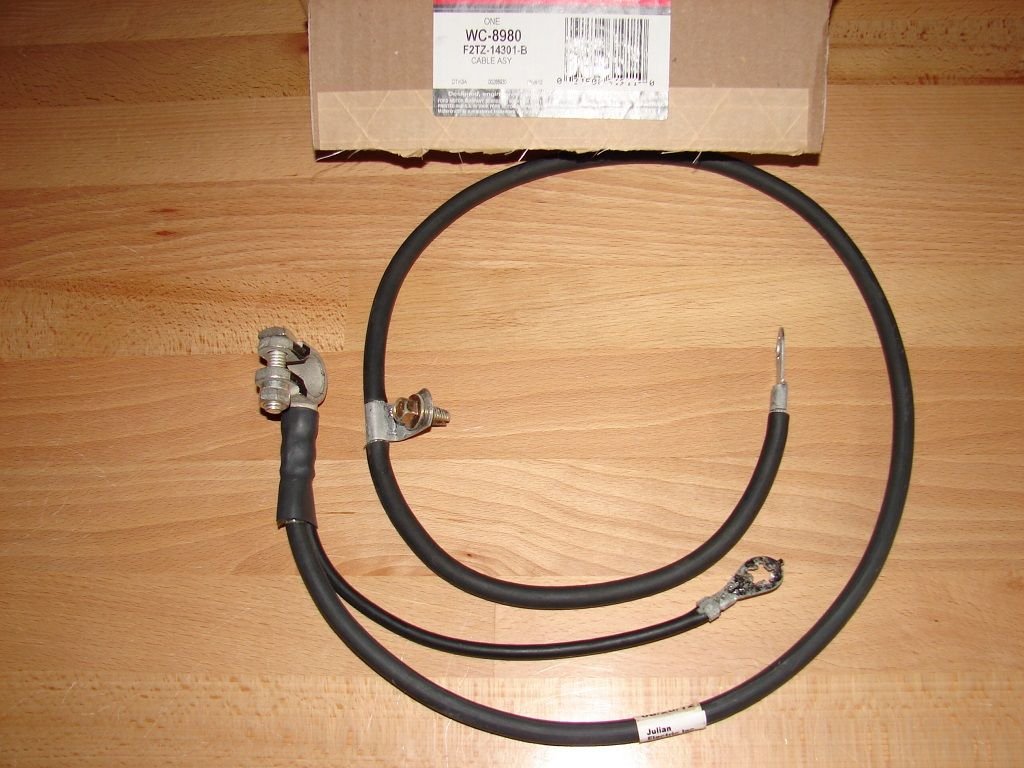

If this is for an 85 truck then you have the wrong set of cables.

It is the body ground at the fender for an OBS and Brick nose:

For an 85:
