Mar 10, 2016 | 07:54 PM

#16

ArdWrknTrk

pedant

Joined: Jan 2008

Posts: 23,576

Likes: 39

From: EXTREME southwest CT

Quote:

Originally Posted by Cam_

I could email it to you?

Its fine.

Just hard -with my eyes and- on my phone...

Mar 10, 2016 | 07:55 PM

#17

Cam_

Thread Starter

New User

Joined: Feb 2016

Posts: 24

Likes: 0

Quote:

Originally Posted by ArdWrknTrk

Follow the green egr line from the thermal vacuum valve on/at the thermostat housing.

Okay and then what

Mar 10, 2016 | 07:56 PM

#18

ArdWrknTrk

pedant

Joined: Jan 2008

Posts: 23,576

Likes: 39

From: EXTREME southwest CT

Quote:

Originally Posted by Cam_

Okay and then what

Make sure it's connected and functioning?

Mar 10, 2016 | 07:59 PM

#19

Cam_

Thread Starter

New User

Joined: Feb 2016

Posts: 24

Likes: 0

Quote:

Originally Posted by ArdWrknTrk

Make sure it's connected and functioning?

Yes that it all hooked up

Mar 10, 2016 | 08:42 PM

#20

ctubutis

Moderator

Joined: Nov 2007

Posts: 22,415

Likes: 92

From: Denver Metro Area, CO

Quote:

Originally Posted by ArdWrknTrk

You have an iPhone, don't you???

I'll have to look at that diagram on a screen I can rotate.

How's this, Jim:

Mar 10, 2016 | 08:47 PM

#21

ctubutis

Moderator

Joined: Nov 2007

Posts: 22,415

Likes: 92

From: Denver Metro Area, CO

Quote:

Originally Posted by Cam_

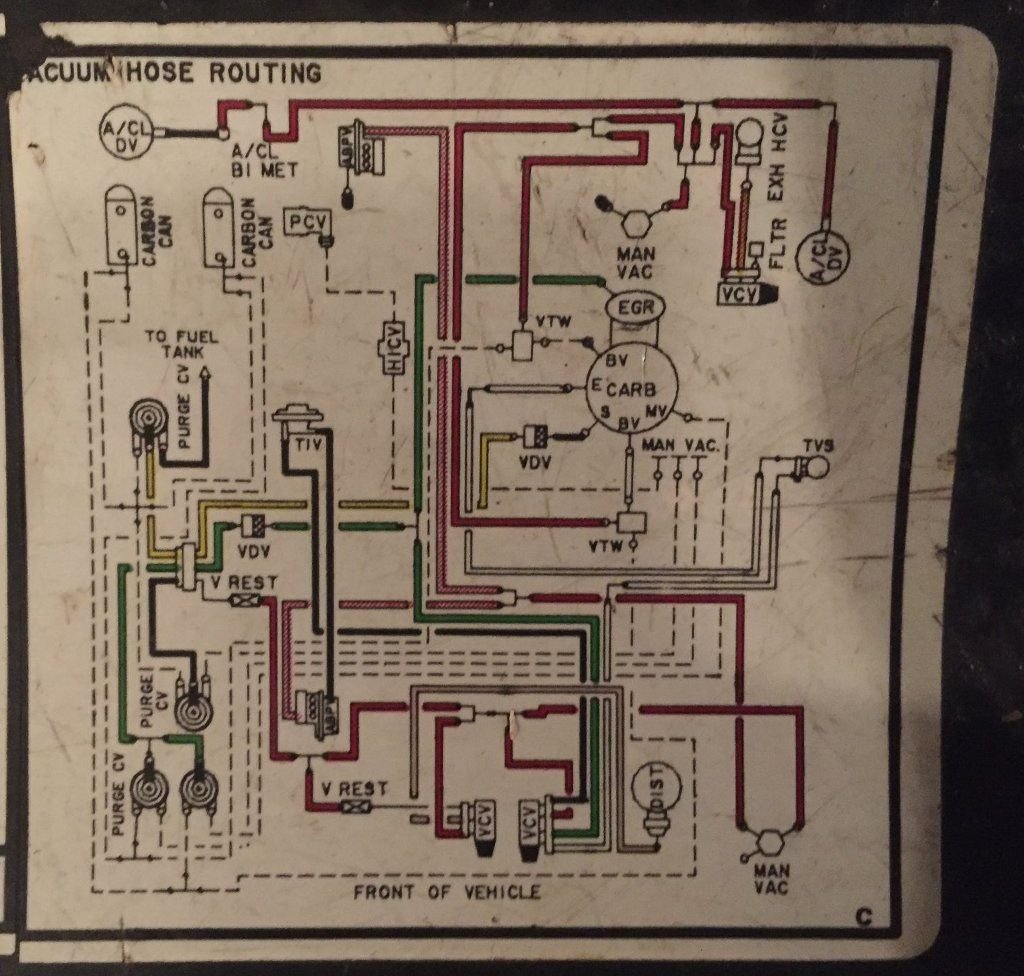

Here is the vacuum diagram with engine bay pics and the lines that I need help finding

What are the colors of this wire?

Mar 10, 2016 | 09:17 PM

#22

ArdWrknTrk

pedant

Joined: Jan 2008

Posts: 23,576

Likes: 39

From: EXTREME southwest CT

Quote:

Originally Posted by ctubutis

How's this, Jim:]

I'd say that the VCV at the rear controls the exhaust crossover.

The other lines from the rear manifold vacuum tree go to the air cleaner, and the bowl vent/purge/charcoal canister.

it there a Tee on the bottom of the A/C housing where a line can connect?
