How to wire a 6.9 engine
I'm a little stuck here guys. So I put a 1964 Ford cab on a 1992 ford pickup frame. The 1992 Ford pickup i used had a 6.9 in it. I put an ATS turbo i had laying around on it and 7.3 injectors on it already. Where I'm stuck at is how to wire it to where it will run. I have the 64 cab and front clip mounted on the frame along with a flatbed I repaired and made fit. I'm only 19 and did all the work myself, i just need some more simple directions to wiring it. Thanks
Thread Starter
|
Trailering
Joined: Sep 2015
Posts: 16
Likes: 0
From: https://t.me/pump_upp

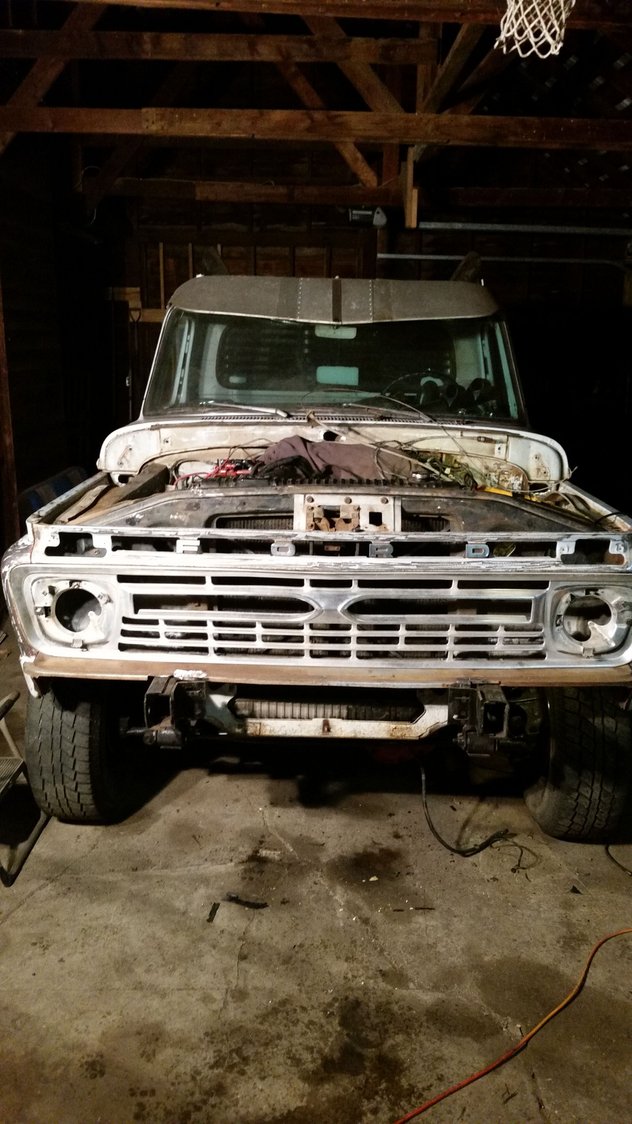

Here is when i first put the front clip. I used the old 92 ford radiator support and also swapped the front axle to a solid 1 ton axle. I will get a more current picture tomorrow.
i ain't rite
Joined: Mar 2005
Posts: 65,507
Likes: 5,563
From: Marlboro Mental Hospital.
<p>welcome to FTE.</p><p>in reality, all you need is 12 volts to the fuel shutoff switch on the injector pump to get the engine to run.</p><p>having working glow plugs and gauges will make life easier though.</p>
Thread Starter
|
Trailering
Joined: Sep 2015
Posts: 16
Likes: 0
From: https://t.me/pump_upp
I'm going to have guages i just wanted to get it running so i could test light wires to figure out the rest of the wiring like guages, lights, etc. So do i just take the wire that's running to the fuel tank and put power to it and jump the solenoid to make the engine crank over?
Postmaster
Joined: Dec 2004
Posts: 2,941
Likes: 30
From: Maple Valley, WA
IF you want a GP controller (Key on wait to start stuff) Find a 7.3 Controller and wire some Beru/Motorcraft ZD9 Glow plugs into the mix. Its a very easy setup to wire, and there are several diagrams on Google images if you do a search. If you want to keep it simple, Just wire the GP's up to a starter solenoid attached to a button inside the cab, and hold it for 10 seconds when the truck is cold.
i ain't rite
Joined: Mar 2005
Posts: 65,507
Likes: 5,563
From: Marlboro Mental Hospital.
to fire the engine, put 12 volts to the power connector on the front of the injector pump. you will hear it click, this will tell you the fuel solenoid is engaged to let it run.
Trending Topics
Clueless spectator!
Joined: Aug 2010
Posts: 1,587
Likes: 6
From: Denver, CO
^^^^^ What everyone else said, There is only one wire required to make these motors run, and it is basically an electric fuel shut off valve. it is the flat pin on the top of injection pump that is closest to the front of the truck. The entire rest of the motor is mechanical. Later we can tell you how to deal with glow plugs and gauges, but if you just want to hear her rattle, that is all you need. Of course you will need to power the starter unless you live on top of a very large hill and have a manual trans! Use ether sparingly to get her to fire. Just a little goes a long way, and too much will cause slow cranking and possible engine damage. I think it is awesome that at 19 you took on a project like this! The good news is, you started with possibly the most simple truck/engine platform you can get! Let us know how things go.
Good luck,
Mac.
Good luck,
Mac.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
Top 10 Most Expensive Ford Trucks Ever Sold on Bring a Trailer
Joe Kucinski
2027 Ford Super Duty Buyer's Guide (Every Model, Engine, & Package)
Brett Foote
Top 10 Ford Truck Tragedies
Joe Kucinski
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
Clueless spectator!
Joined: Aug 2010
Posts: 1,587
Likes: 6
From: Denver, CO
P.S. if you get it to fire on ether, but it won't stay running, you likely have air intrusion issues, don't keep trying ether, let us know what she is doing, (how long it runs, how much smoke, what color, any visible fuel leaks that sort of thing) We will straighten you out.
Thread Starter
|
Trailering
Joined: Sep 2015
Posts: 16
Likes: 0
From: https://t.me/pump_upp
Thank you, I will try doing this tomorrow if I have time.
Thread Starter
|
Trailering
Joined: Sep 2015
Posts: 16
Likes: 0
From: https://t.me/pump_upp
^^^^^ What everyone else said, There is only one wire required to make these motors run, and it is basically an electric fuel shut off valve. it is the flat pin on the top of injection pump that is closest to the front of the truck. The entire rest of the motor is mechanical. Later we can tell you how to deal with glow plugs and gauges, but if you just want to hear her rattle, that is all you need. Of course you will need to power the starter unless you live on top of a very large hill and have a manual trans! Use ether sparingly to get her to fire. Just a little goes a long way, and too much will cause slow cranking and possible engine damage. I think it is awesome that at 19 you took on a project like this! The good news is, you started with possibly the most simple truck/engine platform you can get! Let us know how things go.
Good luck,
Mac.
Good luck,
Mac.
Logistics Pro
Joined: Jul 2012
Posts: 3,602
Likes: 132
From: Centerville TN
I dont think it will need much ether or any at all to get it running because the engine was running a year ago in the original pickup. I will try giving power to the injection pump tomorrow. So do i connect the starter wire to the solenoid after that and it will crank over? Thanks for the reply, i'm excited to hear it finally run and will keep you updated.
