Clearly, I'm missing something

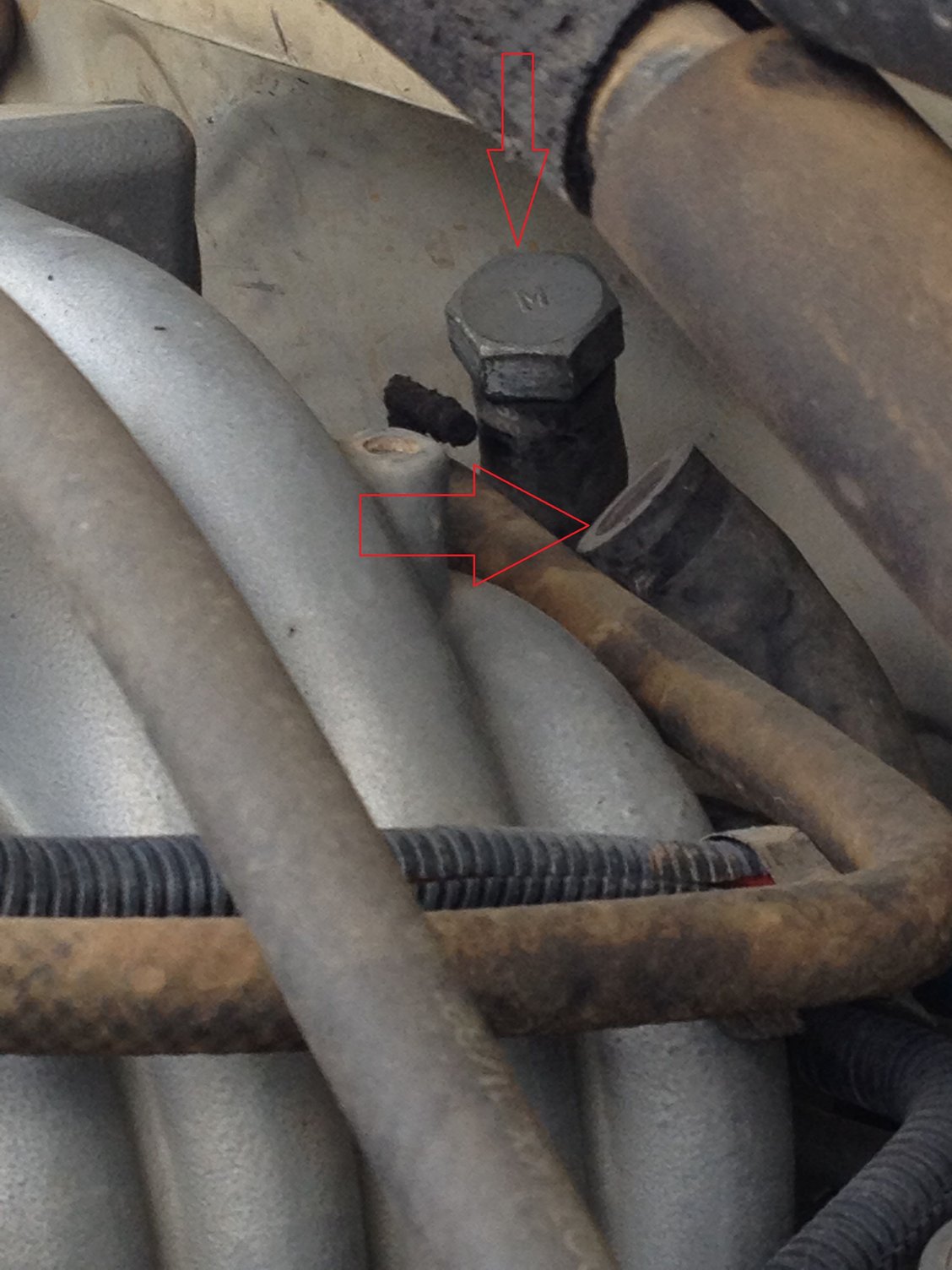

I just noticed a bolt in what appears to be a heater hose near the firewall:

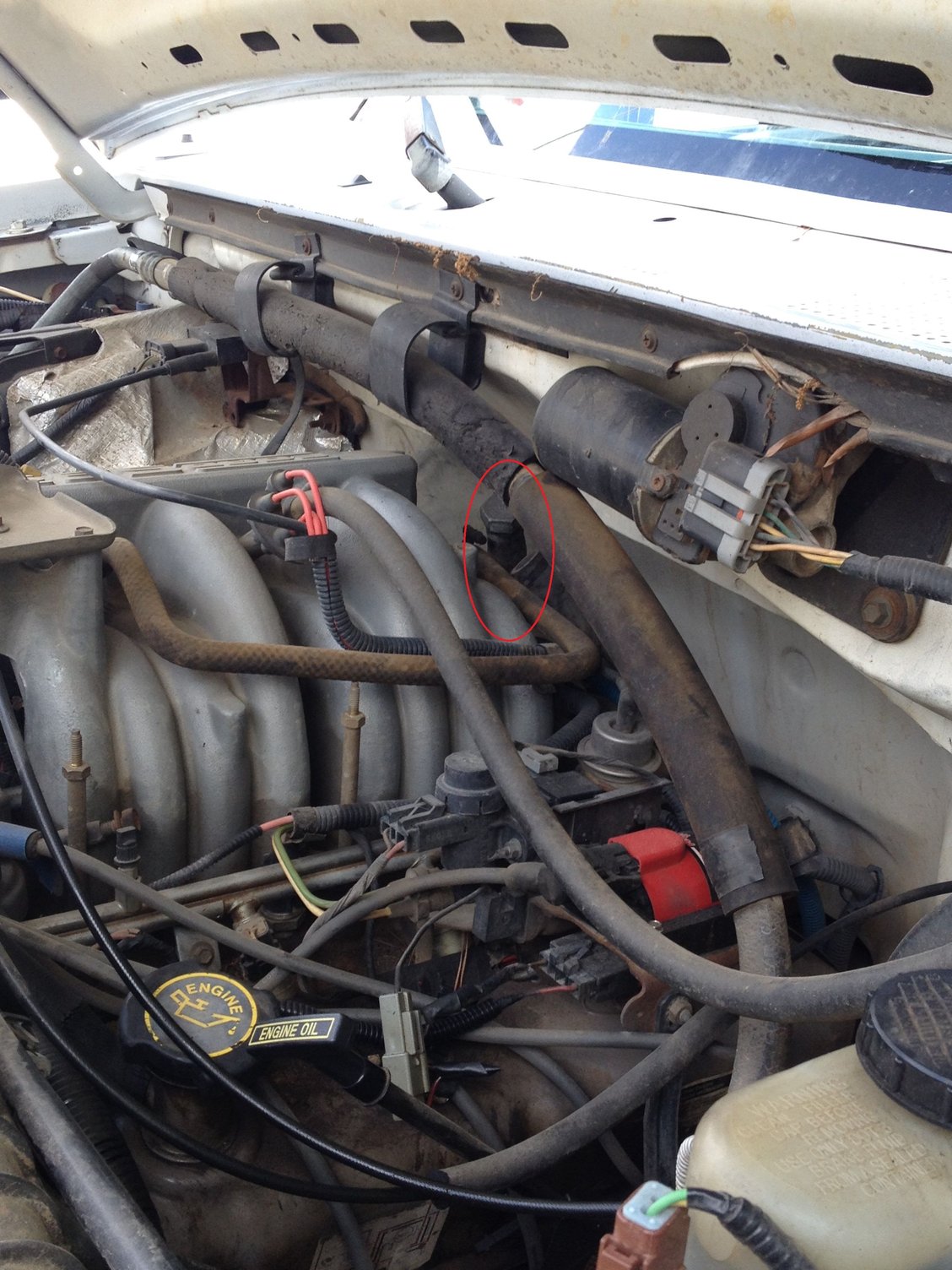

Taken from the drivers side

Since I'm a bit of a bone head, when I ordered a manual I got a 1997 and up manual. Useless since my '97 F-250HD is essentially a '96 F-250. Can anyone tell me what should be between these hoses?

Jun 2, 2015 | 03:56 PM

timbersteel

Logistics Pro

Joined: Mar 2005

Posts: 4,698

Likes: 47

From: Mexico, Missouri

I'm betting that and the other hose went to the Combination Air Diverter/Bypass valve. It was part of the smog equipment.

One hose came off the wishbone on the back of the heads. The other hose is connected to the exhaust.

Maybe someone has a pic of it they can post.

Jun 2, 2015 | 05:53 PM

Puddy

FTE Chapter Leader

Joined: Dec 2007

Posts: 1,931

Likes: 16

From: Edmonton, Alberta

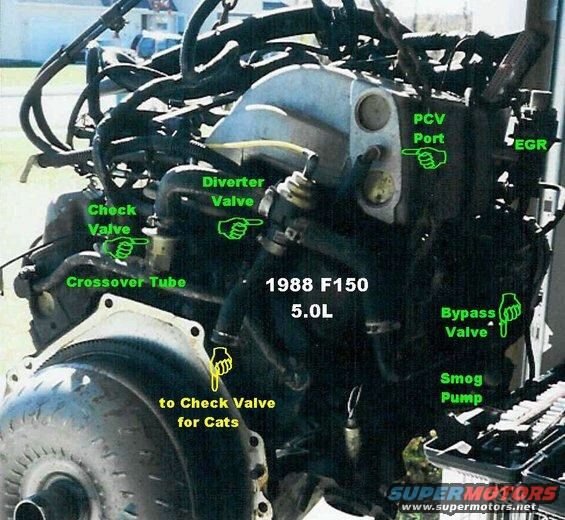

Convenient timing

Jun 2, 2015 | 06:39 PM

Puddy

FTE Chapter Leader

Joined: Dec 2007

Posts: 1,931

Likes: 16

From: Edmonton, Alberta

Also this is a better pic

Jun 3, 2015 | 09:15 AM

5Fingerride

Thread Starter

Junior User

Joined: Feb 2014

Posts: 53

Likes: 0

Thanks Puddy. Seeing the picture I recognize the set-up from doing the trans on my 89. Shouldn't hurt anything to leave it as is then right?

Jun 3, 2015 | 10:01 AM

Puddy

FTE Chapter Leader

Joined: Dec 2007

Posts: 1,931

Likes: 16

From: Edmonton, Alberta

Well is all the smog equipment removed?

Jun 3, 2015 | 10:57 AM

5Fingerride

Thread Starter

Junior User

Joined: Feb 2014

Posts: 53

Likes: 0

near as I can tell without a manual. in two weeks my wife and kids will be gone for 6 weeks. I plan to spend some time crawling around then engine then to fix a few things, I'll look closer then
