Ok so i have been considering a 3G swap for awhile now but never pulled the trigger.
I was at the junkyard today amd found a 93 Taurus so i decided to go ahead and grab one.
I pulled the alternator and the wires. I got the big black/orange and yellow/white all the way back to the fuse box and green/red i cut right before the big woring harness. Did i miss something?
Just to make sure ive got it right, i need to connect the big black/orange which is connected to the yellow/white into an eyelit connector, to the 175a megafuse then to the side of the starter solenoid that the + side of the battery goes to, the black/white wire is already plugged into the back of the alternator. What about the green/red?
And as im looking at my old alternator and voltage regulator i realized i dont have a wire coming from the "I" terminal of the regulator. My green/red on my regulator comes out of the "s" terminal.
What all do i take out of the old stuff? Do i take the whole regulator out?
I was at the junkyard today amd found a 93 Taurus so i decided to go ahead and grab one.
I pulled the alternator and the wires. I got the big black/orange and yellow/white all the way back to the fuse box and green/red i cut right before the big woring harness. Did i miss something?
Just to make sure ive got it right, i need to connect the big black/orange which is connected to the yellow/white into an eyelit connector, to the 175a megafuse then to the side of the starter solenoid that the + side of the battery goes to, the black/white wire is already plugged into the back of the alternator. What about the green/red?
And as im looking at my old alternator and voltage regulator i realized i dont have a wire coming from the "I" terminal of the regulator. My green/red on my regulator comes out of the "s" terminal.
What all do i take out of the old stuff? Do i take the whole regulator out?
Fleet Mechanic
Joined: Jul 2013
Posts: 1,997
Likes: 237
From: NE Ohio
Thread Starter
|
Senior User
Joined: Jan 2013
Posts: 351
Likes: 0
From: Virginia

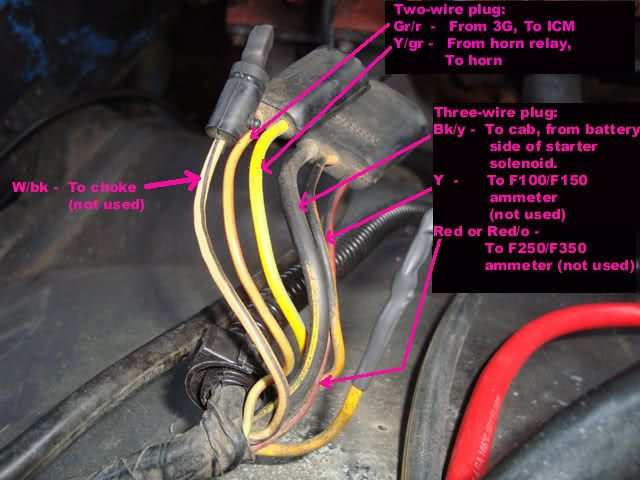

Thank you for that. I was using the same one from a similar thread but my question is what specifically do i tie the green/red wire into? That bottom picture helped but still dont know where it goes
Senior User
Joined: Apr 2014
Posts: 252
Likes: 0
I just cut that wire in the picture, and tied it into it. Wrapped it in electrical tape.
Thread Starter
|
Senior User
Joined: Jan 2013
Posts: 351
Likes: 0
From: Virginia
Ok thanks alot that really helped. Thats what i though i needed to do but didnt want to cut anything before i knew for sure it was right. I dont do alot of wiring so i appreciate the help
