p0221 Service engine soon
When I pulled the codes on it (FORscan & 327 elm), I had; p0122,p0123,p0221,p0478,p0470
I replaced the pedal from the local pick-a-part. And took a look at the EBP, which was too fused on to remove, so I poked a wire down the tube about halfway as it was so backed up. I'm ignoring that for now as I can fix that once I have my truck back home. This has reduced my errors to only p0221 and p0478 with a SES light and no throttle still.
I followed this AP/IVS Pedal Position Sensor/Idle Validation Switch page (APS=123 AVS=AB)
Connector Checks to Ground
2 and 3 to Grd are questionable (my tester is a cheap china knockoff)
Connector Voltage Checks
ok
Harness Resistance Checks
open! 91-1
ok-89-2
ok-90-3
Operational Voltage Checks
ok-Range is good and responds to throttle (.55v-3.69v)
So from that I gathered that there is a problem somewhere for the APS circuit between the PCM and pedal. From that page, there was a '76-way Bulkhead connector. I looked around I'm guessing it was the 42-way under the air intake on the drivers side. on my year of truck.
Testing continuity from the PCM to the 42way
ok-90-21
ok-91-19
ok-10-A
Testing continuity from the Harness to the connectors
open-21-3
open-19-1
At this point I have reached the limit of my knowledge of what to do. I guess I am looking for the #1 open/grounded wire between pedal and harness, which is as good as a needle in a haystack to me. However FORscan does show correct voltage range and if the circuit was open/grounded wouldn't it be inopperable?
What should I do next?
Anyone have circuit 359 or 351 diagrams?
Should I signup for AlldataDIY/anyone have experience with this?
Thanks for any help!
Last edited by Riversonly; Feb 5, 2015 at 08:43 PM. Reason: missing year
When I pulled the codes on it (FORscan & 327 elm), I had; p0122,p0123,p0221,p0478,p0470
I replaced the pedal from the local pick-a-part. And took a look at the EBP, which was too fused on to remove, so I poked a wire down the tube about halfway as it was so backed up. I'm ignoring that for now as I can fix that once I have my truck back home. This has reduced my errors to only p0221 and p0478 with a SES light and no throttle still.
I followed this AP/IVS Pedal Position Sensor/Idle Validation Switch page (APS=123 AVS=AB)
Connector Checks to Ground
2 and 3 to Grd are questionable (my tester is a cheap china knockoff)
Connector Voltage Checks
ok
Harness Resistance Checks
open! 91-1
ok-89-2
ok-90-3
Operational Voltage Checks
ok-Range is good and responds to throttle (.55v-3.69v)
So from that I gathered that there is a problem somewhere for the APS circuit between the PCM and pedal. From that page, there was a '76-way Bulkhead connector. I looked around I'm guessing it was the 42-way under the air intake on the drivers side. on my year of truck.
Testing continuity from the PCM to the 42way
ok-90-21
ok-91-19
ok-10-A
Testing continuity from the Harness to the connectors
open-21-3
open-19-1
At this point I have reached the limit of my knowledge of what to do. I guess I am looking for the #1 open/grounded wire between pedal and harness, which is as good as a needle in a haystack to me. However FORscan does show correct voltage range and if the circuit was open/grounded wouldn't it be inopperable?
What should I do next?

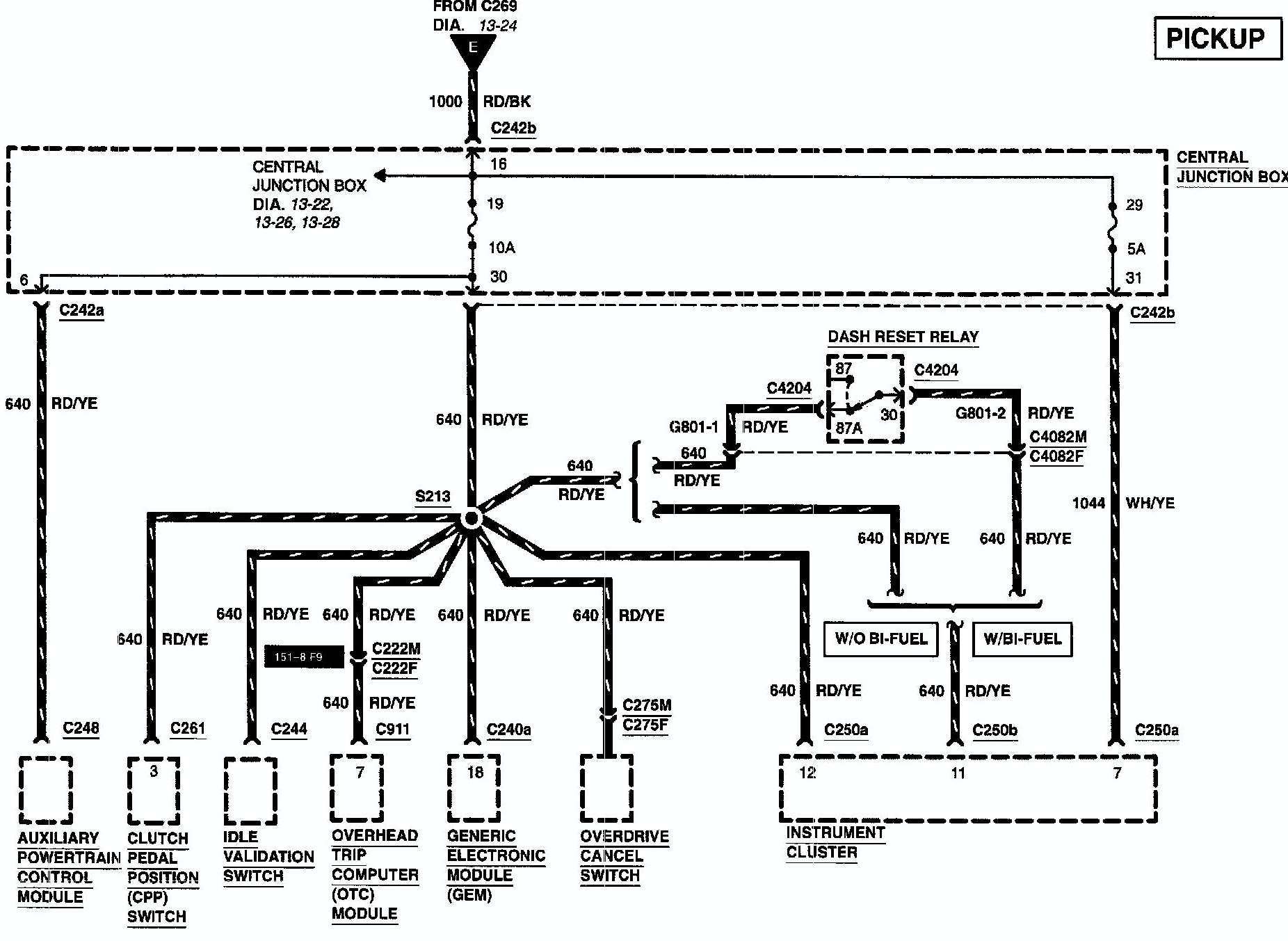

Anyone have circuit 359 or 351 diagrams?
Should I signup for AlldataDIY/anyone have experience with this?
Thanks for any help!
Is it possible to wire the idle off at an earlier point in the circuit and if so are there any side effects?
Trending Topics
Now that it is home, I am onto dismantling dash and replacing/resplicing the wiring harness.
Ford Trucks for Ford Truck Enthusiasts
Originally, I was receiving a good connection to PIN 10 for the vref BUT fluctuating Power, from 4-11v, then I was able to jiggle the harness and get a steady voltage and get the IVS to operate enough to get home. Once home and dismantled my dash, and I got into the harness/slice power oscillations halted and were a steady 11v. However I can no longer get the IVS to 'off idle', connection is good to pin 10 still. I even checked using a breakout fuse from another 10a circuit to the VREF and it wouldn't leave idle. IVS vref to ground is not present (testing to ground on brake connector)
So for tom's IVS diagnostic;
FE2 No
FE3 No
FE4 Yes
FE5 Yes
FE6 Yes
FE7 Replaced pedal to no avail
Before I buy a PCM, is there any chance that my OTC light is out is related? Or that my ignition was popped (currently using a screwdriver)? Or perhaps PCM Pin 10 is seating with the harness?
Is it common for a PCM to fail ONLY on one circuit? From the video's I've been youtubin; the PCM looks like it went in a smoker for 2 hours.
I'm starting to get pretty anoyed, and my wife wants to sell...
Any reason to not clip the VREF pin 10 at the harness and rerun a wire, just to rule out a vref?
If you see signal, check again at the PCM. Again, DO NOT ALLOW THE "T-PIN" TO TOUCH SYSTEM VOLTAGE!
Be CAREFUL with this test!
Raise the rear USE JACK STANDS!, BLOCK THE FRONT WHEELS and see if you can get it to 26 MPH, Set Cruise Control and see if it maintains, accelerates using the Cruise Switches. This will eliminate the PCM.
DO NOT SLAM THE BRAKES ON! You could damage an ABS Sensor.
Do you have access to a Bi-Directional Scan Tool to monitor PID's?
You may also have an ABS or Speed Sensor DTC Set as a result.
I was able to get some time on the truck, I looked up a t-pin; works great! WAY better than splicing in. The things you learn! I was able to get a reading and I can see a signal going to the PCM.
I wasn't brave enough to test the Jack stands, though when I did get it home, cruise control evened out the ride. (I think it was switching idle/off idle from p0221 / IVS).
Will start to look for a PCM on Monday. - Thanks again.
