help with cab mounts
Thread Starter
|
Cross-Country
Joined: Sep 2010
Posts: 84
Likes: 0
From: Fareham,Hampshire,England
help with cab mounts
Hi Guys , about 2 years ago took the cab off my 1952 f1 pickup , now its time to put it back on ,can anyone post pictures of how the cab mounts assemble as i cannot remember and have a new kit of mounts etc ,regards Bruce
More Turbo
Joined: Dec 2009
Posts: 696
Likes: 48
From: Central Connecticut
There's a good description in the Dennis Carpenter catalog (p.25 in Feb, 2012 issue). It also refers you to P. 317-318 of the 1948-52 Shop Manual. I don't have access to a scanner right now but maybe someone else can scan it in and post it for you if you don't have either of these sources.
More Turbo
Joined: Dec 2009
Posts: 696
Likes: 48
From: Central Connecticut
Just realized you can download the catalog as a pdf file. See page 24.
http://www2.dennis-carpenter.com/pdf/48-56Truck.pdf
http://www2.dennis-carpenter.com/pdf/48-56Truck.pdf
Cargo Master
Joined: Oct 2013
Posts: 2,580
Likes: 29
From: in a barn

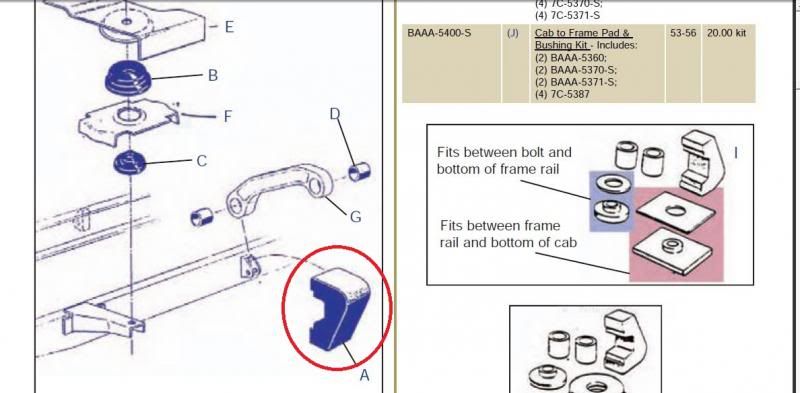

In line with this question, what does this block of rubber do?
I just bolted my cab down to the frame for mockup work and the rear of the cab is sitting on the frame rails. Do these blocks get wedged in the mounting arm and keep the cab up off the frame?
Does anyone have a picture of these installed?
Thanks!
I just bolted my cab down to the frame for mockup work and the rear of the cab is sitting on the frame rails. Do these blocks get wedged in the mounting arm and keep the cab up off the frame?
Does anyone have a picture of these installed?
Thanks!
Laughing Gas
Joined: Jun 2004
Posts: 823
Likes: 4
From: Calais, Vermont
The rear of a mounted cab is supported by the two arms. The arms hold it up off the frame and allow the cab and frame to move independently as the frame slightly twists over uneven terrain. The rubber wedges serve as cushions as the cab shifts relative to the frame.
Cargo Master
Joined: Oct 2013
Posts: 2,580
Likes: 29
From: in a barn
OK so right now I have the cab bolted to frame, rubber blocks are missing, and the cab is touching the frame. Does that mean my mounting arms are junk or will the cab raise up some with the blocks installed? Looking at the setup it doesnt seem like rebuilding the arms would do much but maybe I am wrong? I will have to take them apart and see how much slop is in there.
