Installing 3 gauges
Okay, I ordered a 3 gauge pod for my van and am now sourcing some gauges. I have been looking at my engine and doing some research hear. I have a couple of questions. My gauges will be EGT, Engine/coolant temp and Trans temp. So here is my questions:
1. I am wanting to keep both my dash temp gauge and dummy light. I know people have used the port in the front of the drivers side head. What would be the downfall if I used the port at the rear of the drivers side head? With the doghouse off it is extremely easy to get at. How would my readings be effected?
2. On the EGT....I know I want it in the manifold as close to the #7 or #8 cylinder exhaust valve as possible. How are our cylinders numbered? want to make sure I drill/tap on the right one.
Thanks
1. I am wanting to keep both my dash temp gauge and dummy light. I know people have used the port in the front of the drivers side head. What would be the downfall if I used the port at the rear of the drivers side head? With the doghouse off it is extremely easy to get at. How would my readings be effected?
2. On the EGT....I know I want it in the manifold as close to the #7 or #8 cylinder exhaust valve as possible. How are our cylinders numbered? want to make sure I drill/tap on the right one.
Thanks
Logistics Pro
Joined: Jul 2012
Posts: 3,602
Likes: 132
From: Centerville TN
I was advised to put mine in the driver's side manifold at the rear. That is #8. Passenger's side (from front to rear) 1-3-5-7. Driver's side 2-4-6-8. I'm gonna put my temp sender in the port you mentioned. Tried to when I installed my gauges, but didn't have a socket to fit it. It's TIGHT! Mine's in the dummy light port for now.
Thread Starter
|
Fleet Mechanic
Joined: Oct 2012
Posts: 1,943
Likes: 21
http://www.summitracing.com/parts/sum-g2879
It isn't a pillar pod. I think I am going to make a base for it so that it is sitting on my dash and use some anti-skid stuff on the base. DOing it this way means that I don't end up putting holes in my dash with screws. If I find that I like it in a certian position I may permenitly mount it.
Thread Starter
|
Fleet Mechanic
Joined: Oct 2012
Posts: 1,943
Likes: 21
Yep, that is exactly where I was talking about.
Trending Topics
Postmaster
Joined: Jul 2011
Posts: 3,061
Likes: 2
negative on the thread ghost rider. My gauge came with a few different adapters and i just found one that worked, didn't pay attention to the thread count.
FTE Stories
Ford Trucks for Ford Truck Enthusiasts
AEV FXL Super Duty - the Super Duty Raptor Ford Doesn't Make
Brett Foote
Lobo Vs Lobo: Proof the F-150 Lobo Should Be Even Lower!
Michael S. Palmer
Ford's 2001 Explorer Sportsman Concept Looks For a New Home
Verdad Gallardo
10 Best Ford Truck Engines We Miss the Most!
Joe Kucinski
2026 Shelby F-150 Off-Road: Better Than a Raptor R?
Brett Foote
2027 Super Duty Carhartt Package First Look: 12 Things You NEED to Know!
Michael S. Palmer
10 Most Surprising 2026 Ford Truck Features!
Joe Kucinski
Top 10 Ford Trucks Coming to Mecum Indy 2026
Brett Foote
5 Best / 5 Worst Ford Truck Wheels of All Time
Joe Kucinski
Thread Starter
|
Fleet Mechanic
Joined: Oct 2012
Posts: 1,943
Likes: 21
Okay, another question for those who have done this before....
Is there a certain place that works better for pulling the power for electrical gauges? I know I want one that is hot in the on and run positions for the sender. Then I want to tap into the light switch power so they light up when I turn on the lights.

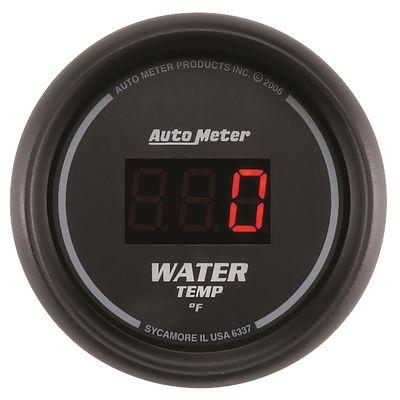

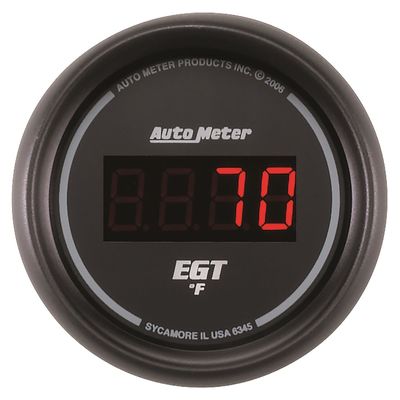

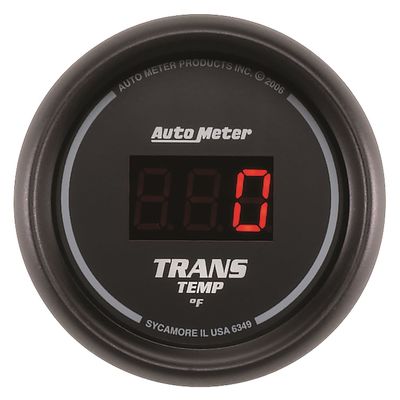

These are the gauges I am installing:
Installing them in here:
Is there a certain place that works better for pulling the power for electrical gauges? I know I want one that is hot in the on and run positions for the sender. Then I want to tap into the light switch power so they light up when I turn on the lights.
These are the gauges I am installing:
Installing them in here:
Cargo Master
Joined: Oct 2012
Posts: 3,072
Likes: 48
From: California
Then I want to tap into the light switch power so they light up when I turn on the lights.
I don't think you actually want that. Or maybe you mis-wrote.
You technically don't want your gauges powered on with the light switch. In fact, most gauges have a wire that will dim the gauge when the lights are on. Just use a quick snap connector to your power supply wire after the head light switch, or just any 12V wire that powers on when your lights are on. I used my wire connected to the little light that iluminates my wiper switch.
As for On or Run, just find a wire with a multimeter or test light that gets hot when your key is in the right position. There are dozens. I used my radio wire, but I have an aftermarket wire. It's imparative you use a good relay and not just steal power from whatever you are connected to. If I were you, I would power on all gauges with the key-on relay, then connect to a 12V light bulb to do the dimming.
Thread Starter
|
Fleet Mechanic
Joined: Oct 2012
Posts: 1,943
Likes: 21
I don't think you actually want that. Or maybe you mis-wrote.
You technically don't want your gauges powered on with the light switch. In fact, most gauges have a wire that will dim the gauge when the lights are on. Just use a quick snap connector to your power supply wire after the head light switch, or just any 12V wire that powers on when your lights are on. I used my wire connected to the little light that iluminates my wiper switch.
As for On or Run, just find a wire with a multimeter or test light that gets hot when your key is in the right position. There are dozens. I used my radio wire, but I have an aftermarket wire. It's imparative you use a good relay and not just steal power from whatever you are connected to. If I were you, I would power on all gauges with the key-on relay, then connect to a 12V light bulb to do the dimming.
You technically don't want your gauges powered on with the light switch. In fact, most gauges have a wire that will dim the gauge when the lights are on. Just use a quick snap connector to your power supply wire after the head light switch, or just any 12V wire that powers on when your lights are on. I used my wire connected to the little light that iluminates my wiper switch.
As for On or Run, just find a wire with a multimeter or test light that gets hot when your key is in the right position. There are dozens. I used my radio wire, but I have an aftermarket wire. It's imparative you use a good relay and not just steal power from whatever you are connected to. If I were you, I would power on all gauges with the key-on relay, then connect to a 12V light bulb to do the dimming.
Where exactly is the key on relay? And do you mean to add a 12v relay like when you add an electric fuel pump that activates with the 12v signal from a key on power source, or just tie in directly to the key on relay without adding another one?
Posting Guru
Joined: Jan 2001
Posts: 1,101
Likes: 2
From: Poway, CA
I have the same EGT and coolant temp gauges in my pickup. I like them a lot. For power, I used fuse taps that look like this:
http://www1.cooperbussmann.com/image...86ccd13aad.JPG
They work great and made the wiring stupid simple.
Mike
http://www1.cooperbussmann.com/image...86ccd13aad.JPG
They work great and made the wiring stupid simple.
Mike
Thread Starter
|
Fleet Mechanic
Joined: Oct 2012
Posts: 1,943
Likes: 21
I have the same EGT and coolant temp gauges in my pickup. I like them a lot. For power, I used fuse taps that look like this:
http://www1.cooperbussmann.com/image...86ccd13aad.JPG
They work great and made the wiring stupid simple.
Mike
http://www1.cooperbussmann.com/image...86ccd13aad.JPG
They work great and made the wiring stupid simple.
Mike
