Warning this is a long post of me rambling/tech article with lots of pictures

Some of you are probably wondering why 3.0? Well you kind of have to go back 9 years to read what a crazy 18 year old (ask Dick) did when he put his 1951 Mercury M-3 on a 1978 F-250 chassis. If your so inclined you can read about V2.0 here:
1948-52 Ford Truck Frame Swap
Version 1.0-1.5 is a little fuzzy with changing M-3 frames and mixing F-1 axles/suspension but that is a totally different story...

Back to the story at hand, I must note I'm probably going to ramble and go on tangents. At the end of V2.0 the truck was pretty much put into storage (Okay under a tarp in the farm equipment line) as I went to post secondary school to become an automotive service technician. I have to say working as one, you get to see what works and what doesn't plus solutions to older problems.

This time it isn't take a different chassis and go make it work. Been there, did that, got the FTE shirt. Now I'm building the chassis from scratch! It's kind of an evolution based on past mistakes, solving issues, new part additions and being a slight perfectionist... (almost qualify for the frame swap “hokey pokey” if anyone gets that reference)

Your going to have to bare with me as I try to explain the method to the madness. (This is my opinion)

There is no “perfect” frame swap. There is will always be a compromise to make something fit. Frame profiles will never quite match, component interference etc. Personally I think grafting the entire “donor” floor to make it fit is redundant. Always make the chassis fit the body. Parts interchangeability is key. So when that big storm “nicely” puts a tree through your roof, you can swap out the cab easily. I'm not saying there won't necessarily be minor trimming for drivetrain choice or accessories but it will be replicable in a weekend. Or if you get tired or move onto another project, it can be reverted back to stock (if owner chooses) instead of being on a barge to china.

My current modified frame has several issues: (in no particular order)
1. Front bumper frame horns are welded in crooked.
2. Steering box to column interference. (Big issue)
3. Rear suspension is too high.
4. Rear crossmembers don't allow room for gas tank.
5. Frame is joined to correct wheelbase. (personal preference not to be)

The goal is to have a frame that hasn't been cut in half, same frame profile as stock plus updated suspension and fits all the accessories I plan to use. Should note that my entire truck build is being done with all Ford parts. There won't be any Chevrolet or Dodge parts if I can help it.

The big issue to fix is the steering box location. The 1965-1979 Twin-I-Beam suspension utilizes a tall rear steering box which doesn't line up with the factory location.


http://i996.photobucket.com/albums/a...psc2b4c6ee.jpg

To make it work would require a rather convoluted steering shaft which would be ugly and rather unsafe. The way to solve this is to change to front steer which is somewhat easier said than done.

I guess I should mention why I'm sticking with the 1965-79 style suspension than going with the front steer 1980-97 suspension. The 1980+ has a 37.5” front frame width vs -1979 34” front frame width. The 1965-79 also has the longest and equal length I beams which reduces camber change while driving.

If I had unlimited funds I would be using 1999+ 2WD Superduty I beams as they went back to equal length and are almost full length. I would make a custom crossmember to narrow the width back to 34” to make it fit but then I'd also would have a 5.0 Coyote engine with 6spd auto...

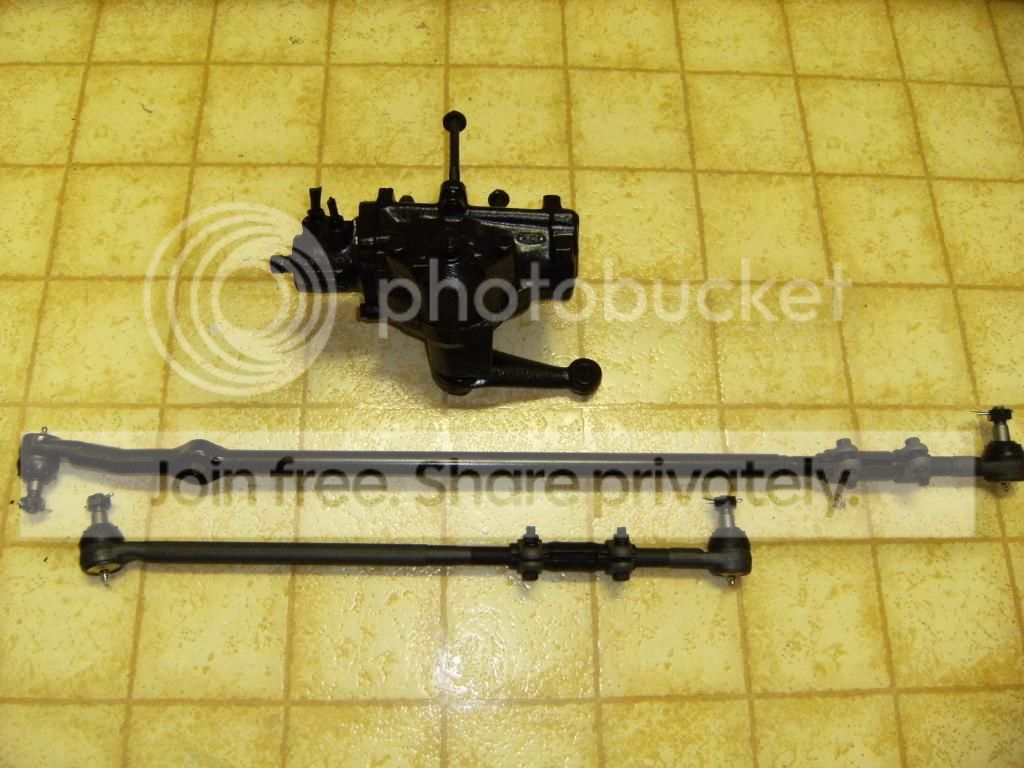

So to make it front steer requires 1980-86 HD F-250/350 spindles. They use the same kingpin diameter as the 1967-79 F-350 but are longer and had a slightly taller I beam. The kingpin inclination is also 8 degrees vs the 1965-79 4 degrees so I will have to bend my beams to correct the camber (just have to find the correct alignment tools). You'll also need the matching steering box and steering linkage. You can't just flip the original spindles side to side as ackermans angle will be out of spec plus will handle terrible. The spindle “itself” is 1976-?? as the Superdutys and Econolines still use the same wheel bearings today.


http://i996.photobucket.com/albums/a...psc4d1a2de.jpg

http://i996.photobucket.com/albums/a...ps1ecfcc91.jpg

The other issues are solved by making new frame rails. I decided to change up the rear suspension a bit. Instead of getting custom leaf springs to get the right height I went to a custom 4 link which uses Econoline front springs. I still want a payload capacity of stock and good ride. Stiff leaf springs aren't ideal with a stiff boxed chassis as they will want to fight each other.


http://i996.photobucket.com/albums/a...ps85182ed9.jpg

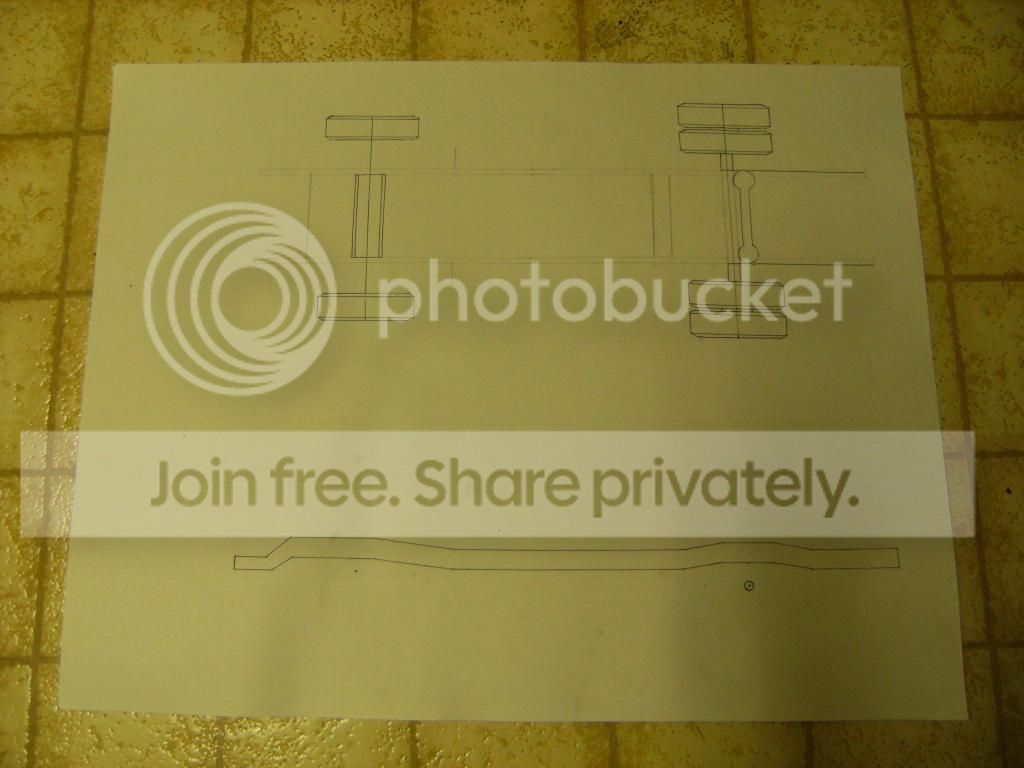

I didn't simply plan this all out in a week either. This have been drafted out off and on over the last two years as I've been collecting parts. I pretty much overlayed the Twin-I-Beam front clip over the stock chassis.


http://i996.photobucket.com/albums/a...ps7f496aae.jpg

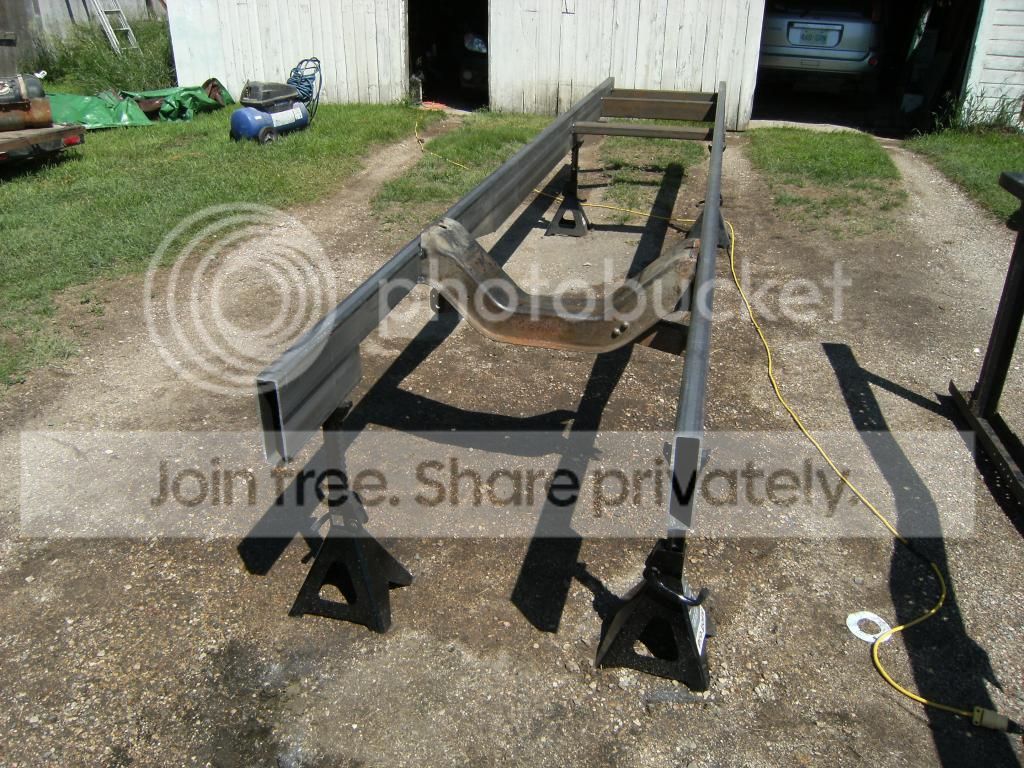

So this past Canada Day long weekend, I bought 2 – 2”x8”x20' 3/16 rectangular tubing, 4 – 2”x20' 3/16 flat stock and a 2”x5”x10” rectangular tubing. I bought 2”x8” rectangular tubing as I can cut out the profile I want without having any vertical seams. I will need to add a slight section on top of the rail at the front as the Twin-I-Beam crossmember has a higher kickup than the 2”x8” allowed me. I still have much more cutting to do as I ran out of time and also let the smoke out of my angle grinder.


http://i996.photobucket.com/albums/a...psa55f69e8.jpg

http://i996.photobucket.com/albums/a...ps49794741.jpg

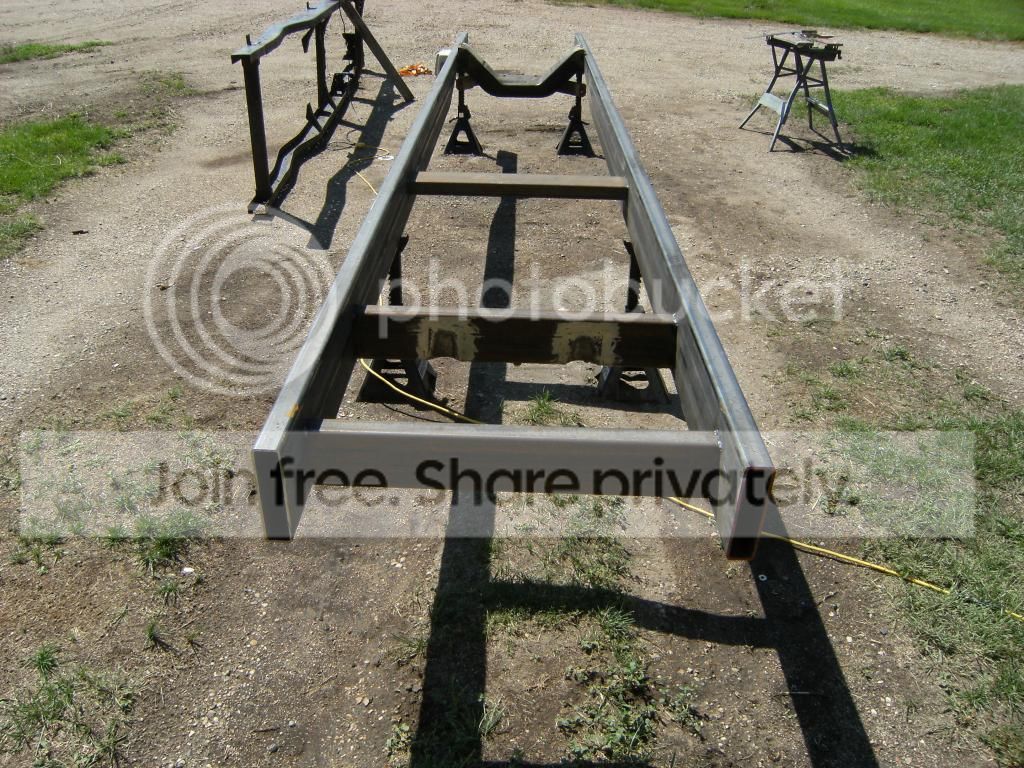

I took some frame design from the newer fords as they have the crossmember go right through the entire chassis. The last two crossmembers only go through the inner layer as they would nearly cut the rail in half. I will be integrating the 4 link mounts into the third crossmember.


http://i996.photobucket.com/albums/a...ps247e312d.jpg

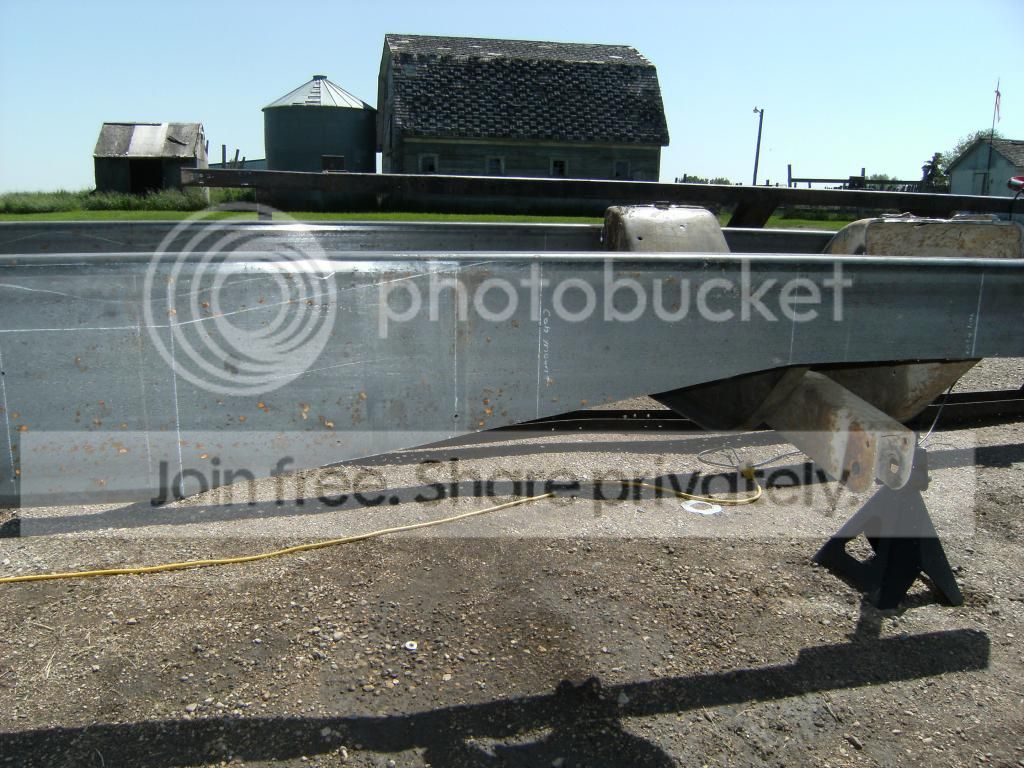

Can see what the front profile will sort of look like. All mounting holes will have nuts welding inside the rail before its sealed with the flat stock.


http://i996.photobucket.com/albums/a...pse5fe14d2.jpg

http://i996.photobucket.com/albums/a...ps807c22c6.jpg

I just have everything tacked into place as I only have an arc welder at the farm. Final welding will be done at work with the 250 amp mig.


http://i996.photobucket.com/albums/a...ps535c26dd.jpg

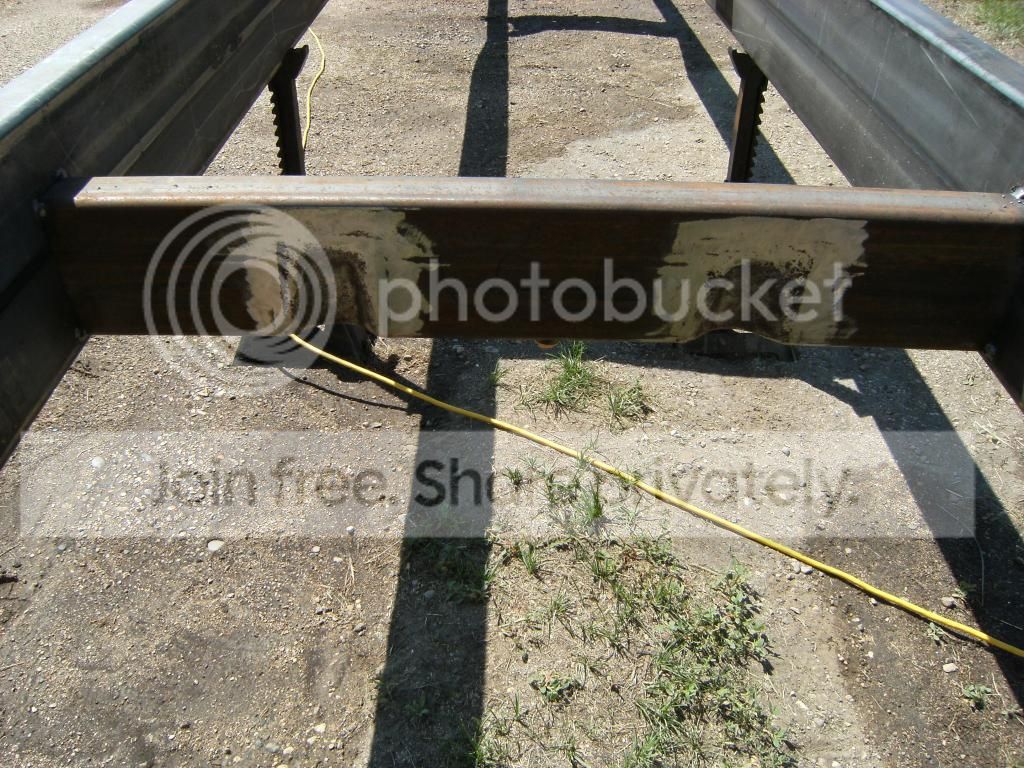

Here I grafted in sections of the original crossmember for my 1993 F-350 chassis cab gas tank. They are required for the upper gas tank straps. I did this with the mig at work before I got to the farm.


http://i996.photobucket.com/albums/a...ps3f75aa24.jpg

http://i996.photobucket.com/albums/a...psb7880372.jpg

I still need to do preliminary draft work on my updated pedal, booster/master cylinder and transmission mount. I've had to change over to a Superduty hydroboost as the aftermarket 7” dual diaphram booster is incapable of powering my huge 4 wheel disc brakes. Of course needed to change the master cylinder as well since I need the Ford cruise control cancellation switch. It took a while of researching to find a big bore master with the switch in the vertical position. The Superduties and Econolines both have it facing down which isn't ideal in an under floor setup. Finally found that 2002 F-150/Expedition uses a 1 1/4” bore with the switch in the correct position. For comparison sake the original Superduty master is 1 3/8” bore.


http://i996.photobucket.com/albums/a...ps0045c927.jpg
